JIMI AT4 magnetic asset gps tracker with long battery life
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (60727055200):
Product Overview
Description
HARDWARE
AT4 Portable Asset GPS Tracker
The advanced features, rugged construction, and industry-leading battery life make the AT4 the new state of the art in asset GPS tracking. Using GPS and LBS positioning, the magnet-mounted AT4 gives detailed reports telling you exactly where a vehicle has been, where it's headed and how fast it's traveling.
Features:
●GPS + LBS + WIFI positioning
Allow the location to be pinpointed in real time or periodically
●Tamper alert
●Tamper alert
Once the device is disassembled, you will get informed immediately
●IPX5 water resistance
●IPX5 water resistance
Water-resistant case to ensure stable operation in tough environment
●Strong magnet mount
●Strong magnet mount
Strong magnetic cover allowing for flexible mouting on vehicles or assets
●10000mAh internal battery
●10000mAh internal battery
LED display for you to view battery status
●Audio monitoring
Listen to the surroundings by sending SMS command
●Audio monitoring
Listen to the surroundings by sending SMS command
Specifications:
GSM Specification | ||
GSM frequency | 850/900/1800/1900MHz | |
Receive sensitivity | Class II RBER2%(-102dBm) | |
GPRS | Class 12, TCP/IP | |
Receive sensitivity | Class II RBER2%(-102dBm) | |
Memory | 32+32Mb | |
Phase error | RMSPE<5,PPE<20 | |
Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm | |
Max frequency error | ±0.1ppm | |
GPS Specification | ||
GPS chipset | High sensitivity GPS chip | |
Frequency | GPS L1, 1575.42MHz | |
GPS channel | 66 | |
Location accuracy | <10 meters | |
Tracking sensitivity | -165dBm | |
Acquisition sensitivity | -148dBm | |
TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec | |
Function & Package | ||
Switch | 1 for base falling detection 1 for inner dis-assembly detection 1 for power control | |
LED Indicator | Re: working status; Green(4); battery | |
Working Voltage/current | 3.7V/60mA | |
Operating temperature | -20℃～ 70℃ | |
GSM/GPS antenna | Built-in quad-band GSM antenna, GPS dual-mode antenna | |
Charger | 5 VDC / 2A | |
Charging hour | 8 hours | |
Tracking mode | 30 days(drive for 2 hours per day) | |
Battery | 10000mAh/3.7V industrial grade lithium polymer battery | |
Device Dimension | 108.0 x61.0x 30.0mm | |
Device Weight | 285g | |

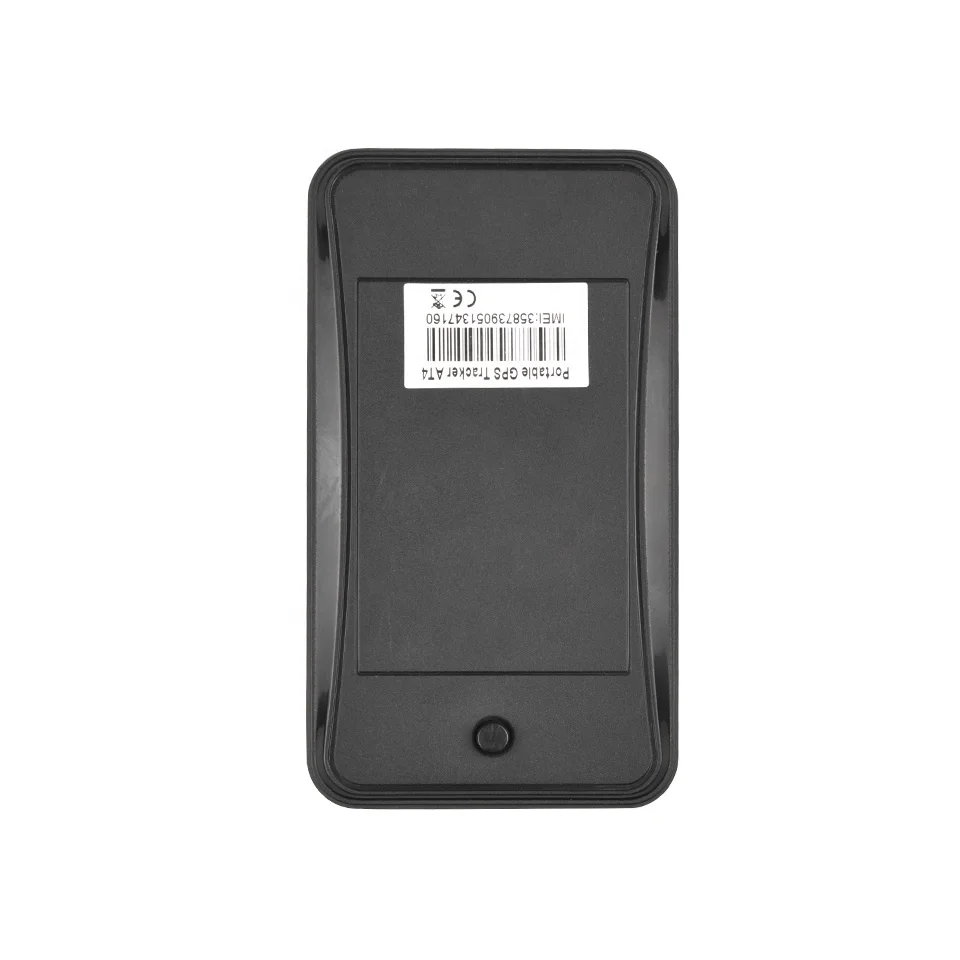

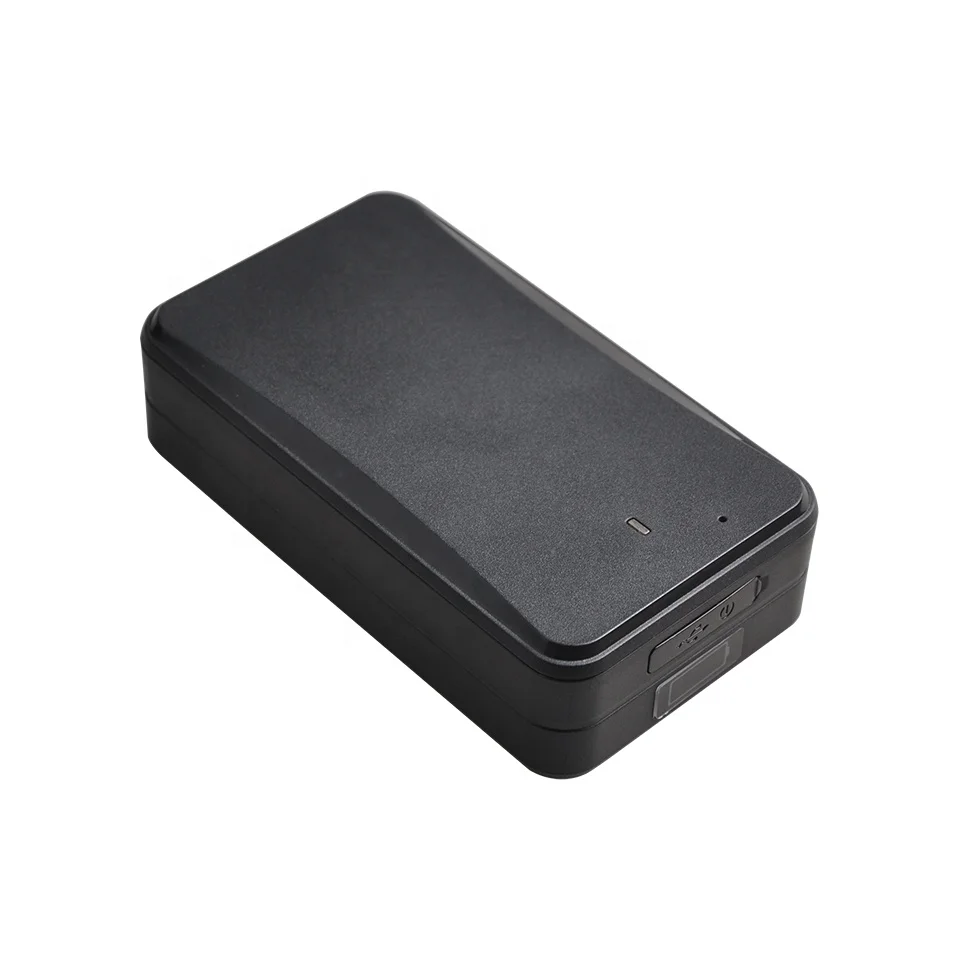

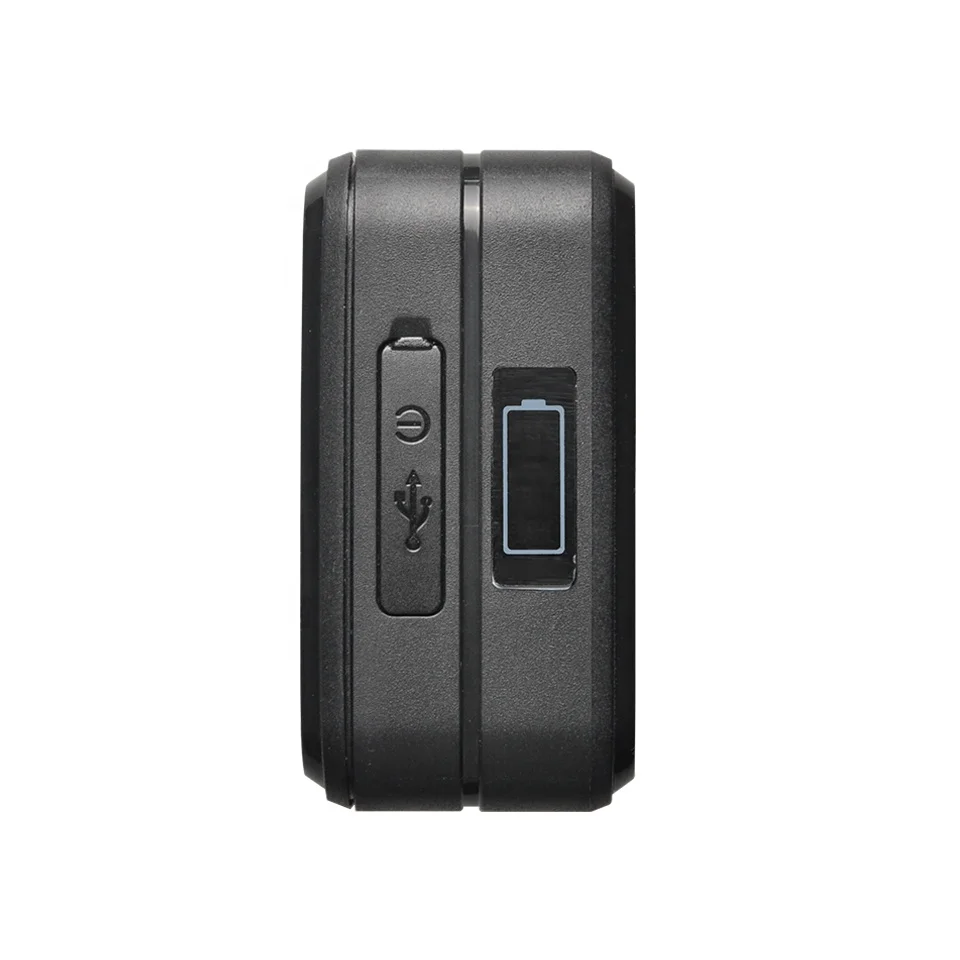

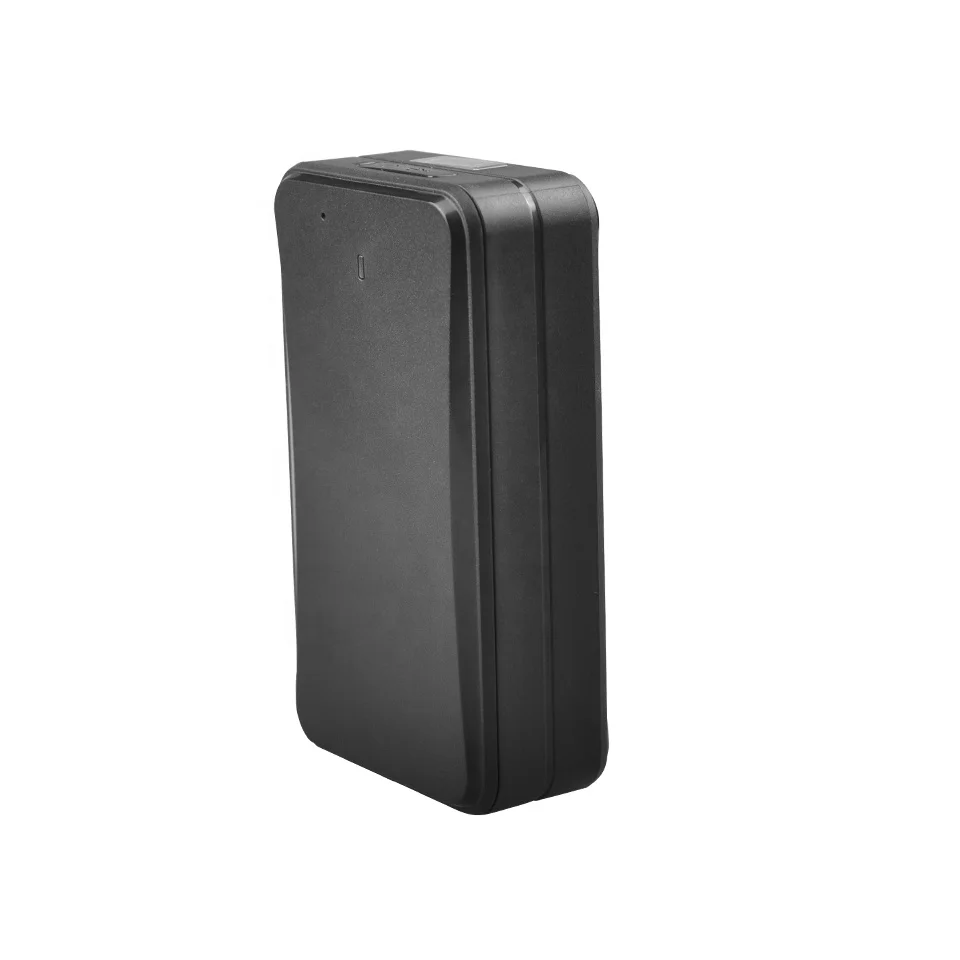

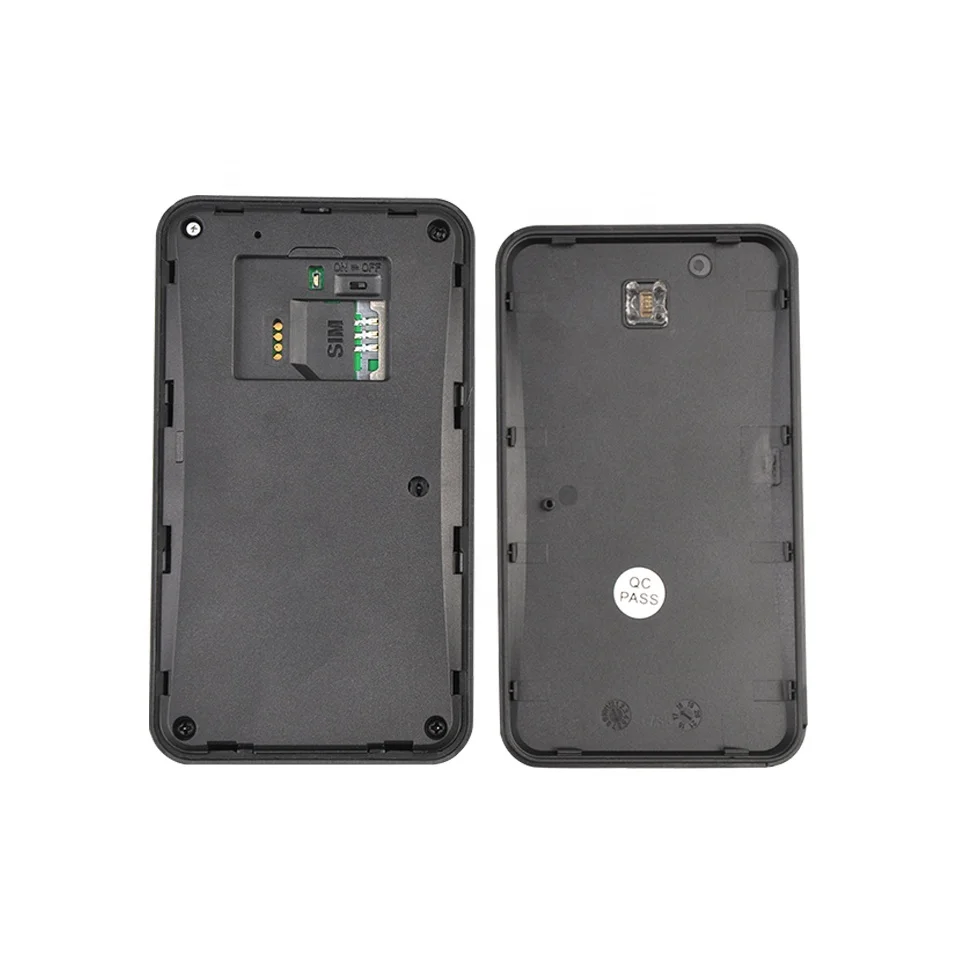

Appearance:
Certificates:
CE
