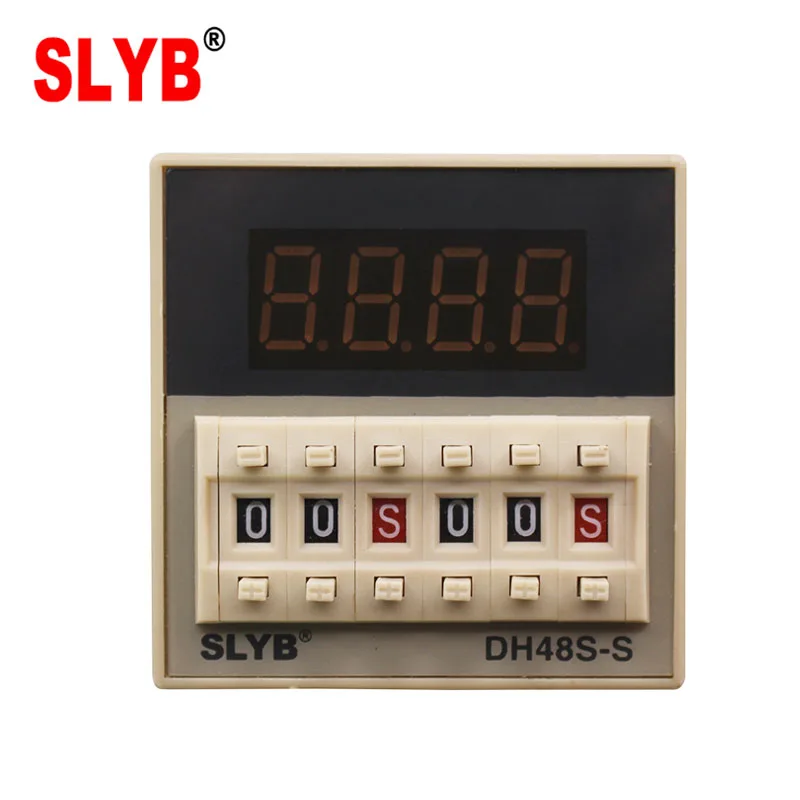

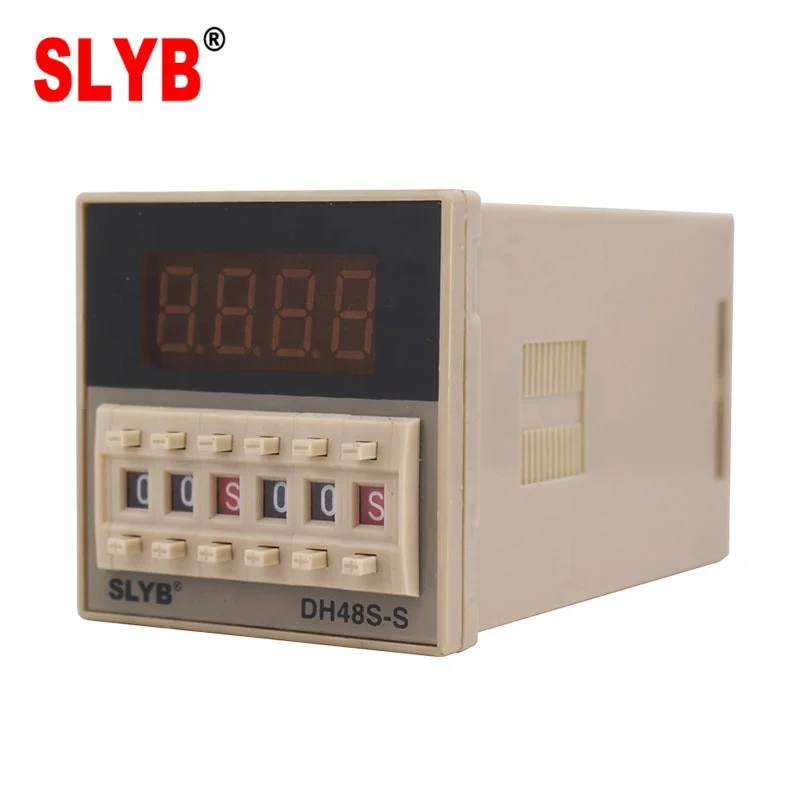

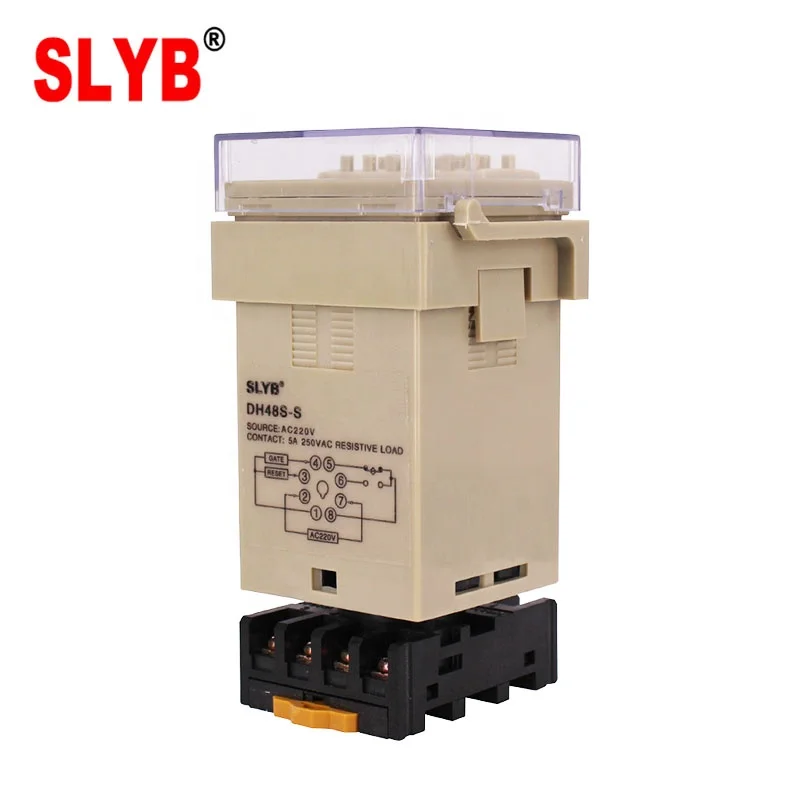

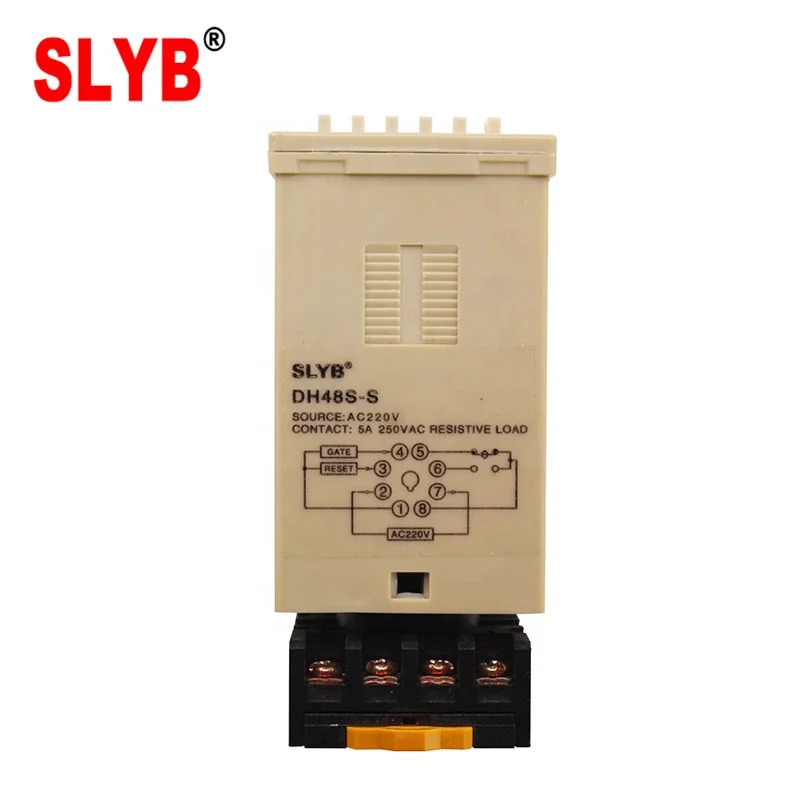

Good Sales Time Delay Relay DH48S S Timer AC220V Seconds and Minutes with Base
- Category: >>>
- Supplier: Yueqing Songling Electric Co. Ltd.
Share on (60727058642):
Product Overview
Description
Timer DH48S-S

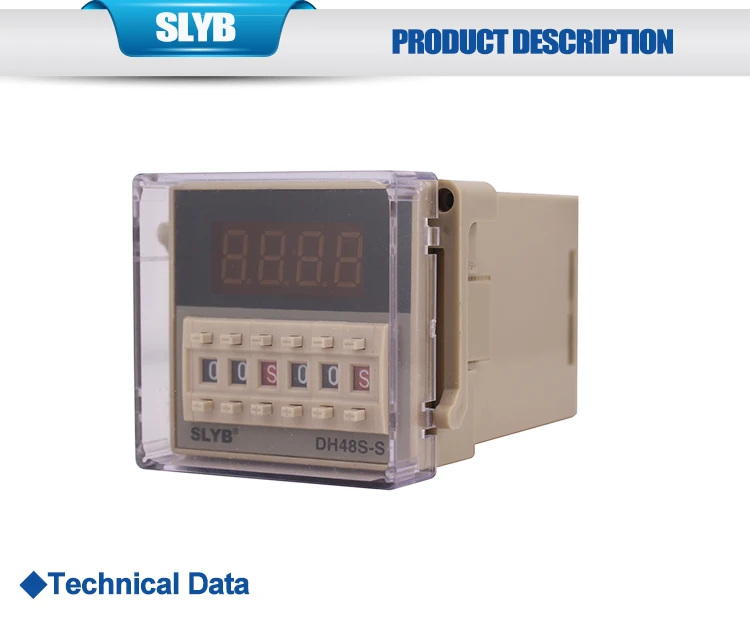

Product Description
Type | DH48S-S |
Voltage | DC 12V-48V AC 12V-380V 50/60Hz |
Time Range | 0.01~99.99S, 0.01~99M99S, 0.01~99H99M |
Working Mode | Cycle-delay |
Contact Mode | Time Delay 1 Switch |
Mounting Mode | Panel mounting plug in |
Power Expend | DC 1.0W AC1.0VA |
Contact Output | 5A220VAC |
Insulation Resistance | DC500V 100MΩ |
Dielectric Strength | BCC1500VAC BOC1000VAC |
Operating Temperature | -10℃~50℃ |
Humidity | 35%~85% |
Life | Mech:10^7 Elec:10^3 |
Outline Dimension | 48*48*95mm |
Weight | ≈220g |
Company Information
FAQ
Q1:Are you factory or trading company?
A1:We are the factory,and we have experience in production for 15 years.
Q2:Do you accept OEM orders?
A2:Yes,we accept OEM orders.
Q3:Whats the universal lead-time for order delivery?
A3:1-2 days for sample,3-5 days for small order,7-20 days for bulk order.
Q4:Do you provide samples?If it for free?
A4:Yes,we could offer one sample for free,but not pay for freight.
Q5:What is your MOQ?
A5:We accept small sample order less than 5 pieces,sample test is warmly welcomed for customer.
Q6:Why we choice you?
A6:Because we are the factory.
1.We have good price.
2.We can provide professional technological guidance.
3.We can help you choice the product which suitable for your requirement.
