Product Overview

Description


Product Description

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

\t
Project
\t
VMC850
\t
VMC1060
\t
VMC1270
\t
Table size (L×W)
\t
1050×500mm
\t
1300×600mm
\t
1400×700mm
\t
Max. load capacity
\t
650kg
\t
1000kg
\t
1100kg
\t
T slot
\t
5-18×80mm
\t
5-18×120mm
\t
5-18×120mm
\t
X/Y/Z travel
\t
800/500/600mm
\t
1000/600/650mm
\t
1200/700/650mm
\t
Spindle nose to table surface
\t
150-750mm
\t
110-760mm
\t
110-760mm
\t
Spindle center to column surface
\t
620mm
\t
660mm
\t
760mm
\t
CNC system
\t
FANUC-0i MD
\t
FANUC-0i MD
\t
FANUC-0i MD
\t
Rapid displacement(X/Y/Z)
\t
30/30/24m/min
\t
30/30/24m/min
\t
30/30/24m/min
\t
Max. cutting feed rate
\t
12m/min
\t
12m/min
\t
12m/min
\t
Standard tool number
\t
Hat type: 20
\t
Hat type: 20
\t
Hat type: 20
\t
Disc type: 24
\t
Disc type: 24
\t
Disc type: 24
\t
Max. diameter/length of the tool
\t
φ80/300mm
\t
φ80/300mm
\t
φ80/300mm
\t
Tool Exchange
\t
Pneumatic
\t
Pneumatic
\t
Pneumatic
\t
Average time for tool exchange
\t
Hat type: 5s
\t
Hat type: 5s
\t
Hat type: 5s
\t
Disc type: 2.5s
\t
Disc type: 2.5s
\t
Disc type: 2.5s
\t
Positioning accuracy
\t
0.008mm
\t
0.008mm
\t
0.008mm
\t
Repeat positioning accuracy:
\t
0.005mm
\t
0.005mm
\t
0.005mm
\t
Spindle speeds
\t
8000rpm
\t
8000rpm
\t
7000rpm
\t
Spindle specification (model/diameter)
\t
BT40/φ150mm
\t
BT40/φ150mm
\t
BT40/φ150mm
\t
Spindle transmission mode
\t
Belt drive
\t
Belt drive
\t
Belt drive
\t
Spindle motor
\t
7.5/11kw
\t
7.5/11kw
\t
11/15kw
\t
Air demand
\t
≥6kg/cm2
\t
≥6kg/cm2
\t
≥6kg/cm2
\t
Air flow
\t
≥0.3m3/min
\t
≥0.3m3/min
\t
≥0.3m3/min
\t
Machine weight
\t
5000kg
\t
7000kg
\t
8000kg
\t
Machine Dimensions
(L×W×H) mm
\t
2700×2300×2600
\t
3250×2700×2650
\t
3500×2700×2650
\t
Standard configuration
\t
Siemens controller system
\t
Water tank cooling system
\t
Automatic lubrication device
\t
Outer protection cover
\t
Spindle blowing device
\t
Handheld air gun
\t
Electric control cabinet
\t
Transformer
\t
Heat exchanger in electric cabinet
\t
 standard output interface
\t
Working lamp
\t
Three color warning lamp
\t
LCD
\t
Manual pulse generator
\t
Tool
\t
Operating manual
\t
Optional configuration
\t
Carousel type or disc type tool changer
\t
Spindle oil cooling device
\t
High spindle speed 10000-15000rpm
\t
Coolant through spindle
\t
Chain type/Sprial type chip removal
\t
Disc type oil-water separator
\t
CNC rotary table ( Forth axis or fifth axis)
\t
Air conditioner in electric cabinet

All the electric accessories are of good function and quality.
Considering the actual production, we take the most suitable structure to ensure the machine work more quiet and smooth.
This machine can be widely used in many aspects.

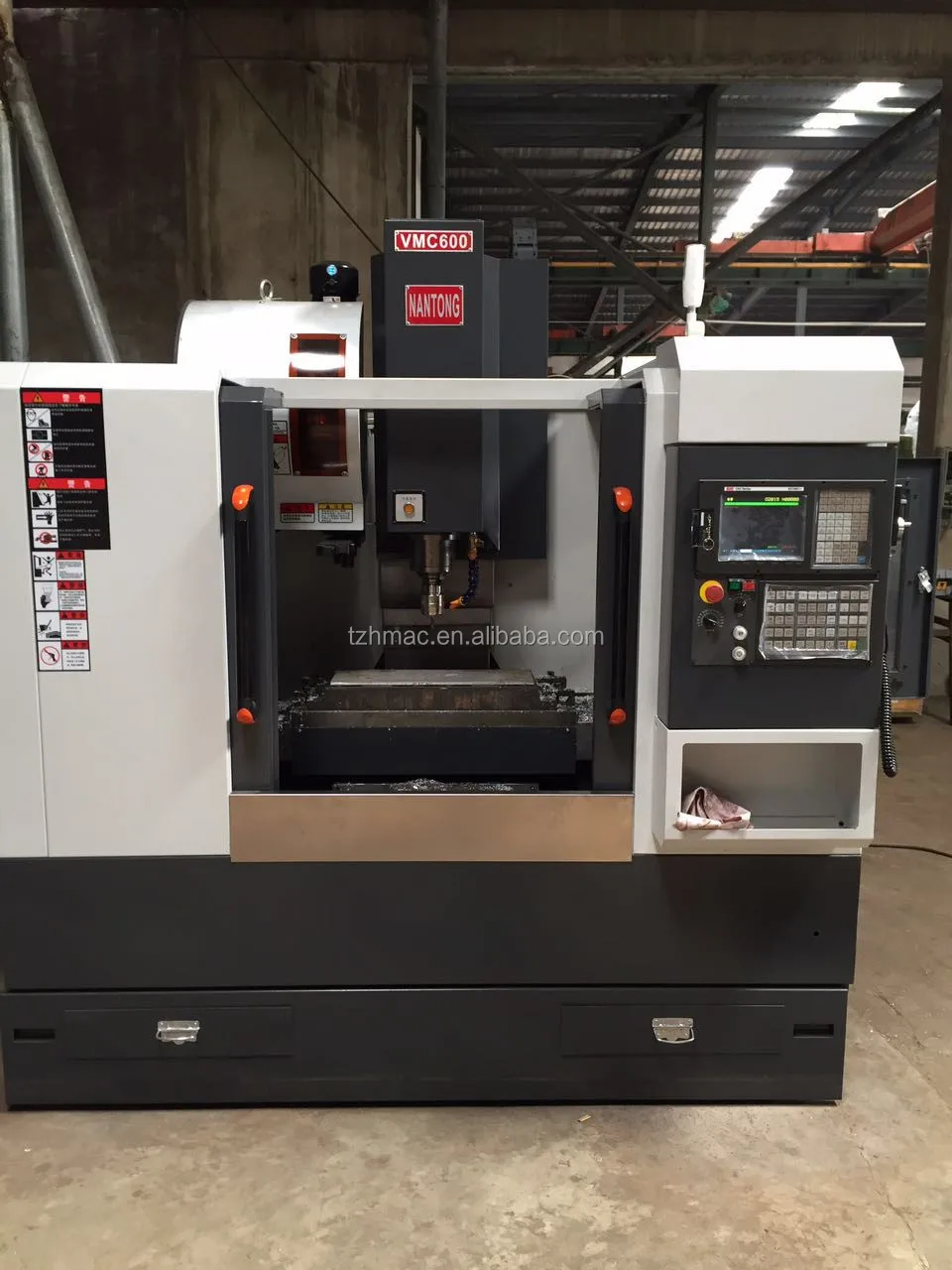

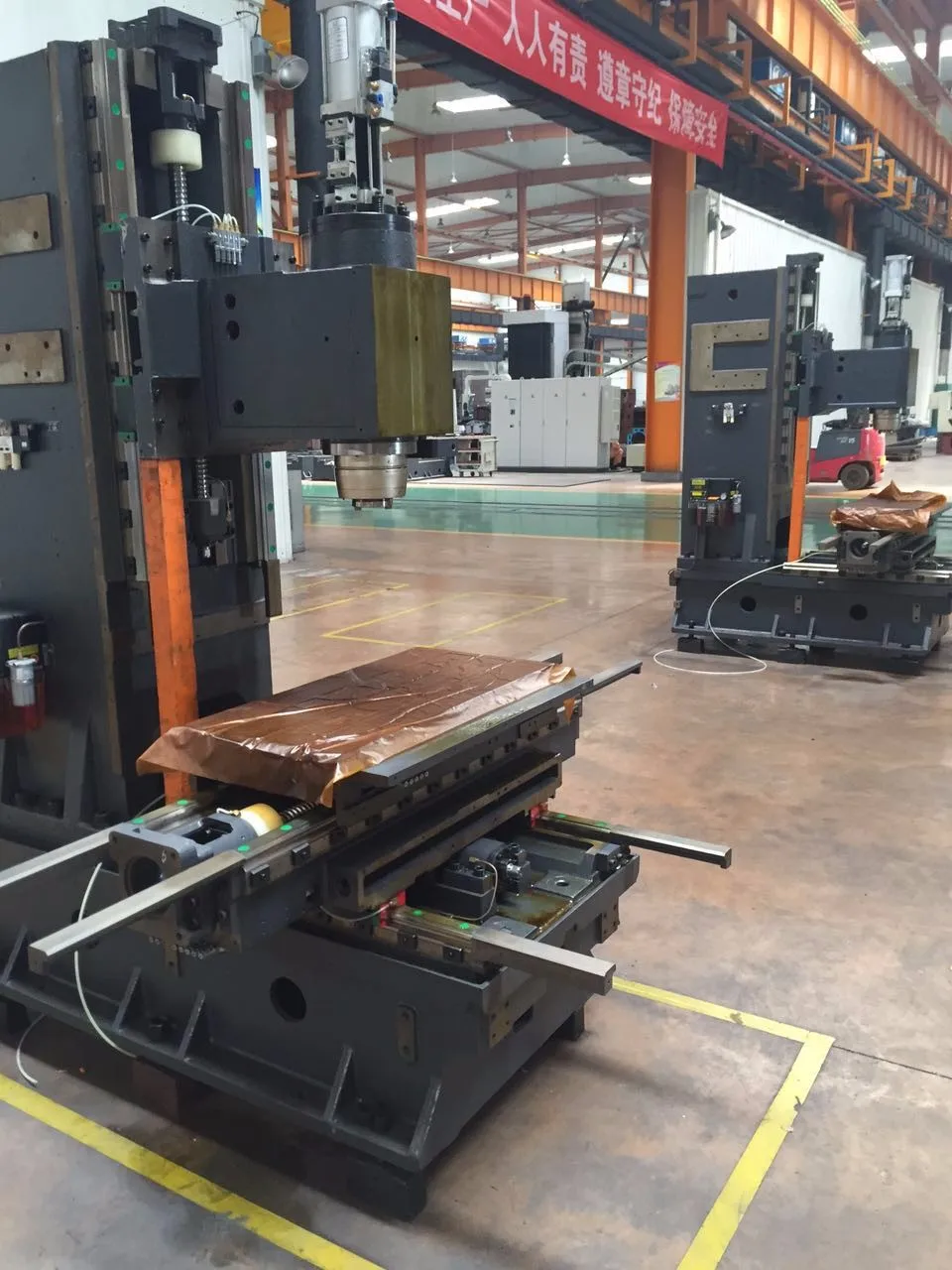

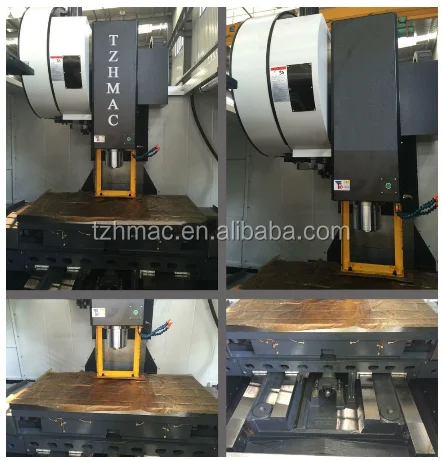

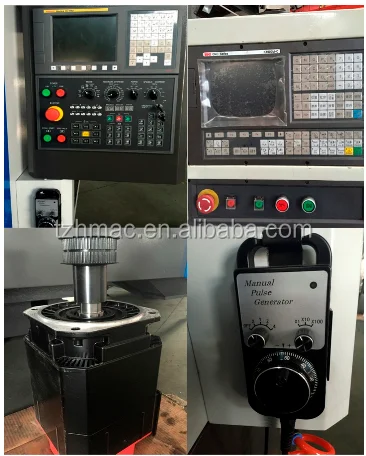

Detailed Images

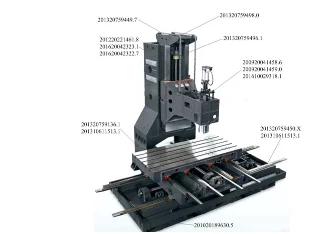

 Patents


TZHMAC  vertical machine centers have more than 10 patents.

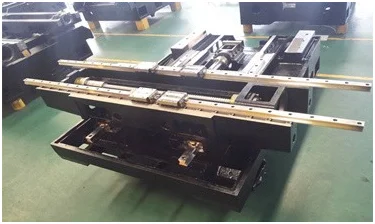

Structure


The machine body structure has oil-water separation, reduce the pollution of the waste cutting fluid.

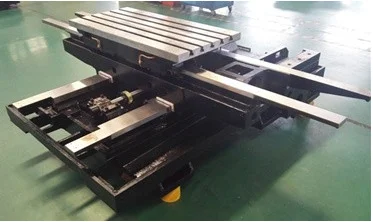

Material

Line rail extension, reduce shield running noise, prolong the service life of the shield.

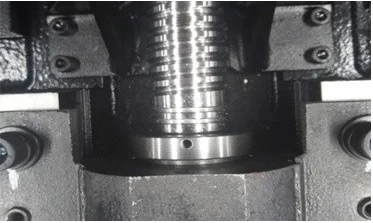

Bearing

Double protection of the bearing, prevent damage of oil pollution resulting in abnormal bearing



Packing & Delivery
FAQ

1. How should i pay for my order ? what is the procession of this purchase ?

we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?
The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained.
Our Service

 Warranty & After-sale service

1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings
   Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.

Contact
1.Our working time: 8:00am~6:00pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within  24 hours.
