China Latex Glove Making Machine With Computer Control (Jinshi Company)
- Category: >>>
- Supplier: Ruian Jinshi Machine Co. Ltd.
Share on (60727140065):
Product Overview
Description
Product Description
China Latex Glove Making Machine With Computer Control (Jinshi Company)
1- This disposable glove machine is an ideal equipment for batch production of PE,EVA,CPE gloves.
2- it has such advantages as stable product quality, automatic control, easy to operate and maintenance.
3 The main power of the machine adopts 1.5KW,220V Panasonic frequency converter with stable performance and low noise.
4- The control part is equipped with single chip microcomputer control, and step motor with low maintenance rate and low noise.
Model | DFJ-500 |
Producing Length | 200-400mm |
Producing width | 270-330mm |
Film thickness | 0.008-0.02mm |
Producing Speed | 40-130pcs/m |
Main Power | 1.1Kw |
Power Source | 220V 50HZ |
Weight | 600Kg |
Overall dimensions(LxWxH) | 2300x1190x1500mm |
Accessories
Parts | Size | Original Place |
Unwind Motor | 370W | Wuhu, China |
Unwind speed regulation plate | 600W | Made-in China |
Unwind photoelectric | adjust the distance of 2 meter | Shanghai, China |
Main motor | 1.5KW | Shanghai, China |
Frequency converter | 1.5KW | Taizhou, China |
Liquid crystal microcomputer | DC2002A | Wuxi, China |
Three-phase hybrid drive |
| Wuxi, China |
Step motor |
| WUXI CHINA |
Temperature controller | K model | Yuyao, China |
The glove mold adopt high-quality copper which after several high-density processing Heating pipe: Use imported material | ||
Free spares | ||
Model | Design number | Quantity (1 set) |
Big umbrella gear | 2-02 | 2 |
Small umbrella gear | 2-03 | 2 |
Cut knife small spring | 3-11 | 2 |
Slip block spring-up | 3-12 | 2 |
Pull pole 1 | 1-02 | 2 |
Pull pole 2 | 1-03 | 2 |
Long spring for pull pole | 1-04 | 2 |
Pull roller spring | 2-05 | 20 |
Up spring for Pull pole | 2-06 | 4 |
Down spring for Pull pole | 2-07 | 4 |
Electro-thermal tube | 5-01 | 12 |
Hot needle (set) | 5-02 | 4 |
Potentiometer | 6-03 | 2 |
Electro-thermal dual | 6-04 | 1 |
Button switch | 6-05 | 2 |
|

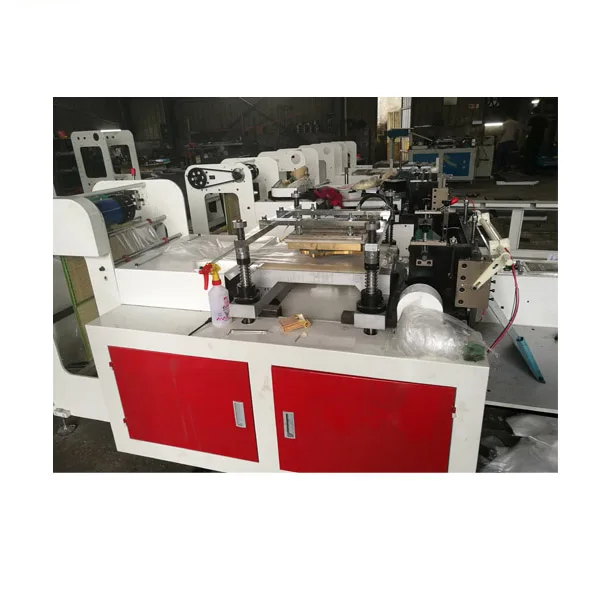

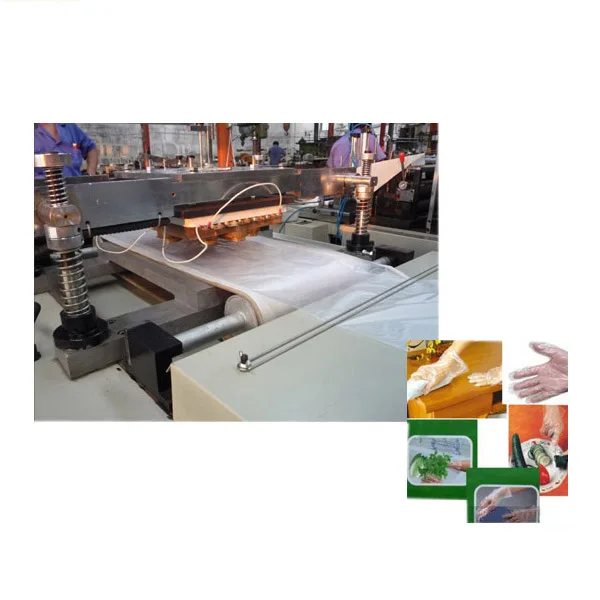

Detailed Images

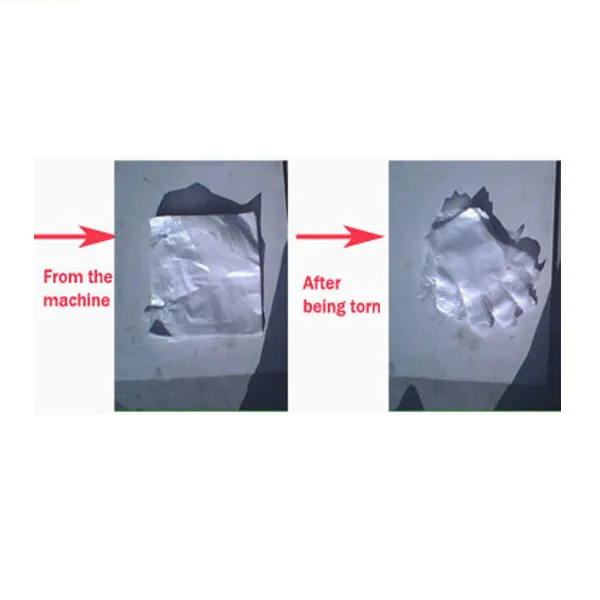

Finished Products
Packaging
Our Services
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
7- Guarantee: 1 year, long life service.
Company Information
W are specializing in producing kinds of plastic packaging machines for more than 15 years. We owes excelllent technician,sales and service team. Our achines have been popular with customers from all of the world. Both old and new customers are warmly welcome to visit us! Let's work together! Let's share the same sunshine!
