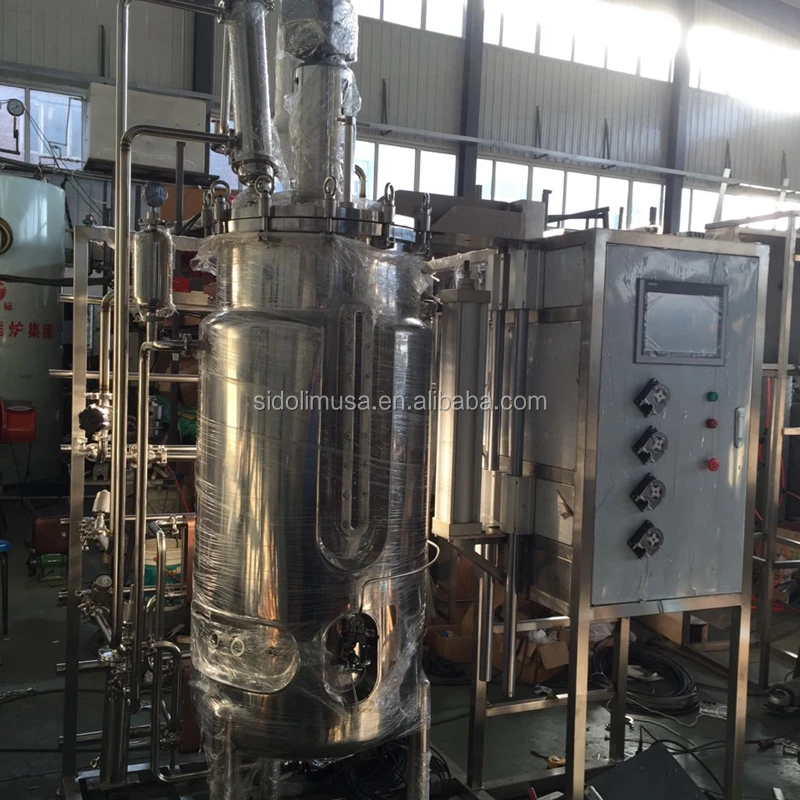

bacteria bioreactor with agitator, pH, DO, temperature control
- Category: >>>
- Supplier: Beijing Sentinain Technology Inc.
Share on (60727144686):
Product Overview
Description
We provide bacteria bioreactor with agitator, pH, DO, temperature control
Uses
Equipment for production insulin is used in medical facilities, pharmacy, microbiology, etc. At works on the principle by reverse denaturation at which renews the natural structure.
Process

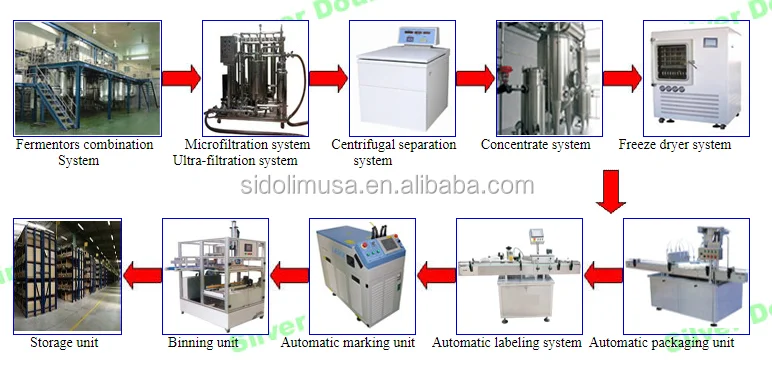

Standard equipment:
1. Fermentors combination system
2. Micro-filtration system Ultra-filtration system
3. Centrifugal separation system
4. Concentrate System
5. Freeze dryer system
6. Automatic packaging unit
7. Automatic labeling system
8. Automatic marking unit
9. Binning unit
10. Storage unit
For the pharmaceutical and food industry is particularly important accuracy, precision, sterility and hygien.
All machines and production lines are manufactured according to international regulations and GMP (Good Manufacturing Practice) and pass quality test.
Equipment for the production of insulin is triple-jacket tank made of stainless steel 316, all parts that are in contact with the product are made of SS 304.
The stirrer consists of a vertical mixing propeller with variable speed and mechanical seal.
Special introduce the control function of fermentation system
No. | Control function | |
1 | Sterilization | Automatic sterilization Sterilization temperature:100-130℃ Sterilization time:0-60 min; Manual sterilization of other parts; Allowed error of sterilization temperature:±0.5℃; Note 1:Sterilization parameters such as temperature and time can be set on the touch screen. Note 2:The sterilization can automatically enter the waiting state after the sterilization. |
2 | Fermentation temperature | PID automatic control,heating, cooling, circulating system; Control: + 5-65 ℃, cooling water temperature control precision: + / - 0.1 ℃. It has a real time curve and a historical curve and an be segmented tracking control. |
3 | Do | It can be controlled by the stirring velocity, which is by changing the mixture velocity to regulate the dissolved oxygen; Control range: 0-100%, display range: 0-200%, resolution: 1% It has a real time curve and a historical curve. |
4 | Stirring speed | PID automatic control, adopt governor stepless speed control; Speed range: 0-188rpm; Control accuracy: plus or minus 0.5%, resolution: 1rpm It has a real time curve and a historical curve and an be segmented tracking control |
5 | Tank pressure | PID automatic control, pneumatic control valve ON/OFF; Control range 0-0.2 MPa, steady state precision: plus or minus 0.01 MPa, resolution: 0.001 MPa It has a real time curve and a historical curve and can be segmented tracking control |
6 | Material measurement | Yes |
7 | Antifoaming control | Yes |
8 | Level control | Yes |
9 | Exhaust gas sterilization | Yes |
What we offer for the fermentation production line:
Creating of manufacturing process:
- technological planning
- manufacturing and delivering of equipment
- mounting
- adjustment and commissioning
- training of personnel
- warranty and after sales service
We also accept reconstruction - technological improvement of manufacturing process using engineering solutions, producing of innovative, automatic and cost saving equipment.
Modernization - updating of equipment (changing for more compact and energy saving equipment).
After sales service of the fermentation production line:
- consulting
- equipment diagnosis
- repairing (any kind of difficulty)
- spare parts supply
- modernization
- reinstallation of units
- training of personnel
- emergency repairin
Type and Usage
We have different type fermenter and bioreactor, from lab scale to industrial scale.
We accept customized according to your requirements.
1. Lab scale single vessel fermentor bioreactor
2. Lab scale double vessel fermentor bioreactor
3. Lab scale bowl vessel fermentor bioreactor
4. Lab Scale Fermentor bioreactor Aniaml Cell Vessel
5. Multi-Fermentor bioreactor SiDoLim 6
6. In situ sterilizable Fermentor bioreactor
7. Pilot Scale Fermentor bioreactor
8. Plant scale fermentor bioreactor system
Packaging & Shipping
1.Qualified wooden package or carton for different products or as customer require.
2.Sufficient inner protection with different materials, including bubble bag, foam board and others.
3. Strict packing process to ensure the safety and completeness of the goods.
4. We have good cooperation with many international express companies such as DHL / UPS / FedEx / TNT and Other, as well as large shipping companies to provide air shipping and sea shipping. We can also arrange global shipment as clients' requirement.
Company Information
SiDoLim, Silver Double Limited is a worldwide leading OEM manufacturer and supplier of measuring instruments and automation solutions for the industrial process, engineering industry, chemicals and petrochemicals industries,and paper making industries, metallurgy and so on, and is focused on providing advanced, state-of-the-art products for our customers. We are also committed to producing cost-effective, accurate, rugged, and reliable monitors and control solutions at reasonable prices.
FAQ
1. How can you guarantee we receive a good quality?
First, we have Q/C department to control the quality from raw material to the finished products. When the machine was finished, we will send you the inspection video and pictures. Or you can come to our factory to inspect the machine before you arrange the balance of the payment.
2. Do you provide any help about the product operation?
We have English manuals and operational video, which could help you know the operation easily.
3. How about warranty?
We could make sure all of our machines with one year’s warranty and provide you with free technical support of equipment lifelong.
4. How can I get more details about this machine?
Please write all your question in the below mailbox, we will reply to you via E-mail within 12 hours.
Contact information
What’s more, the SiDoLim provides many kinds of production lines, such as:
1. Insulin Production Line
2. Vaccine Production Line
3. Antibiotics Production Line
4. Lysine Production Line
5. Biological Health Drinks Production Line(e.g. hericium drinks)
6. Any Shape of Tablet Production Line
About the production line equipment, more information, pls contact with Yoli as following contact information:
Or, Send your Inquiry Details in the Below, Click "Send " Now! Specific information and Accurate quotation are waiting for you.
If possible, you can also add skype:Yoli.zhang or whatsapp ID: 0086 18518557630 for getting more informaiton!
Welcome to contact us for more details and latest price!
