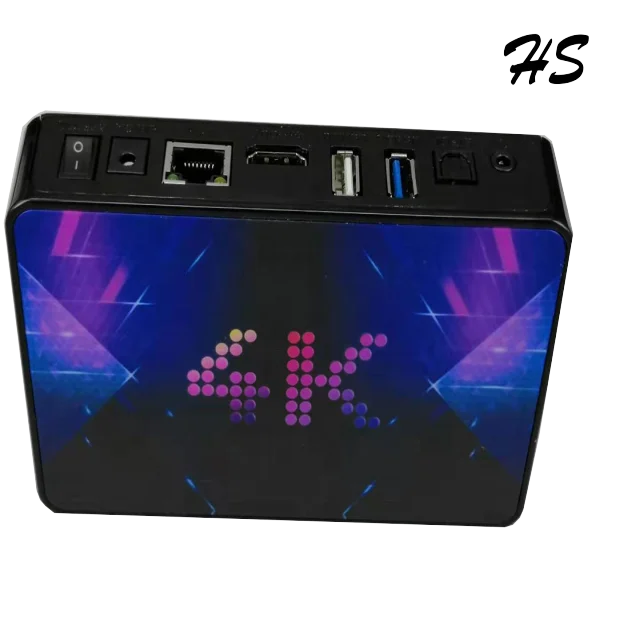

shenzhen China 4k tv box bes oem service iptv supplier international tv set top box for USA
- Category: >>>
- Supplier: Shenzhen Hs Video Technology Co. Ltd.
Share on (60727174992):
Product Overview
Description
Product Description
| Key Specifications | ||||||||
| High Performance CPU | Quad-core 64-bit high-performance Cortex A53, 1.5 GHz, | |||||||
| 3D GPU | Six-core High performance GPU Mali450-MP4, | |||||||
| OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL, | ||||||||
| Memory | DDR3 Samsung SDRAM (2GB), | |||||||
| Samsung eMMC 5.1 flash(8GB). | ||||||||
| Image Decoding | H.265/HEVC Main/Main 10 profile&level 5.1 high-tier, | |||||||
| H.264/AVC BP/MP/HP&level 5.1, H264/AVC MVC, | ||||||||
| VP6/VP8/VP9, | ||||||||
| MPEG1,MPEG2 SP&ML, MP&HL, | ||||||||
| MPEG4 SP&level 0-3, ASP&level 0-5, GMC, short header format, | ||||||||
| AVS-P16(AVS+)/AVS JIZHUNprofile&level6.0, | ||||||||
| VC-1 SP&ML, MP&HL, AP&level 0-3, | ||||||||
| Support 4Kx2K decoding, | ||||||||
| Pixel Rotate/Horizon Revert/Vertical Revert,Pixel Scale, | ||||||||
| Output pixel format configurable, YUV420/YV12/… | ||||||||
| Image Decoding | Large resolution support, up to 16384x16384, | |||||||
| YUV400/YUV420/YUV422/YUV444, | ||||||||
| Picture Rotate/Horizon Revert/Vertical Revert,Picture Scale, | ||||||||
| Output pixel format configurable, YUV420/YV12/… | ||||||||
| Video and Image Encoding | H264 BP/MP/HP&level 4.2 video encoding, | |||||||
| 1080p&60fps/2x1080p&30fps/4x720p&30fpssimultan eous encoding | ||||||||
| Variable bit rate(VBR) or constant bit rate(CBR) mode, macroblock level bit rate control, | ||||||||
| Low-delay encoding,Encoding of multiple region of interest(ROIs), | ||||||||
| Picture Rotate,Picture free scale up/down, scale ratio from 1/4 to 4, | ||||||||
| Full input format support, NV12/NV21/YUV420SP/… | ||||||||
| Audio Encoding/Decoding | MPEG L1/L2, | |||||||
| Dolby Digital/Dolby Digital Plus,Dolby DMA Audio Effect, | ||||||||
| AAC-LC and HE AAC V1/V2 decoding,APE, FLAC, OGG, AMR-NB, and AMR-WB decoding, | ||||||||
| G.711(u/a) audio decoding,G.711(u/a), AMR-NB, AMR-WB, and AAC-LC encoding | ||||||||
| IPTV | JS Linux API Network (portal) protocol support RTSP, HTTP, HLS, RTMP, MMS, RTP, UDP, IGMP | |||||||
| PVR | TS inputs, SSI or SPI mode, | |||||||
| Recording of IPTV live stream media | ||||||||
| Security Processing | Trusted execution environment(TEE), | |||||||
| Secure OS Support GP standard,Secure boot,Secure Storage,Secure upgrade,Protection for JTAG, | ||||||||
| 2K bits EFuse,Digital rights management(DRM),Downloadable conditional access(CA)(DCAS), | ||||||||
| HDCP 1.4 protection for HDMI outputs | ||||||||
| Graphics and Display Processing | 2 Display device, dual display(same or different content), | |||||||
| For the main display device: | ||||||||
| 4 video layer(also can support graphic, | ||||||||
| 12 graphic layers, | ||||||||
| 4 alpha blending channel, potter duff compatible blending operation | ||||||||
| For the auxiliary display device: | ||||||||
| 4 video layer(also can support graphic), | ||||||||
| 4 graphic layers, | ||||||||
| 2 alpha blending channel, potter duff compatible blending operation. | ||||||||
| On line video processing, ultra-low-delay,Independent scaler for each channel, anti-alias-filter, | ||||||||
| Letter box and PanScan,Full format 3D video processing and display,Full-hardware anti-aliasing and anti-flicker, | ||||||||
| Color space conversion(CSC) with configurable coefficients,Sharpening, adaptive detail/edge enhancement, | ||||||||
| Saturation, adaptive color enhancement,Contrast enhancement,black/white level stretch,flesh-tone-rectify | ||||||||
| Audio/Video | PAL and NTSC standard output, and forcible standard conversion, | |||||||
| Aspect ratio of 4:3 or 16:9, forcible aspect ratio conversion, and free scaling, | ||||||||
| 4Kx2K/1080P/1080I/720P/576P/576I/480P/480I output, | ||||||||
| HD and SD outputs from the same source,HDMI TX with HDCP, | ||||||||
| Analog video interface: | ||||||||
| One CVBS interface | ||||||||
| Audio interface: | ||||||||
| Two audio-left and audio-right input interface, | ||||||||
| Audio-left and audio-right output interface, | ||||||||
| S/PDIF interface, | ||||||||
| HDMI audio output | ||||||||
| Peripheral Interfaces | DC-In :DC-5V 2000ma( VDE,Xterra,BS), | |||||||
| USB :USB*2 HOST function, | ||||||||
| WIFI :5G External wifi antenna, | ||||||||
| RCA-AV :CVBS-1,Audio-L/R, | ||||||||
| RJ-45 :100M Ethernet, | ||||||||
| HDTV :HDTV | ||||||||
Company Information
Packaging & Shipping
Our Services
1.we provide OEM&ODM service
2.warranty:365 days
3.payment terms:T/T /Western Union /Money Gram/Credit card
4.response within 12 hours
