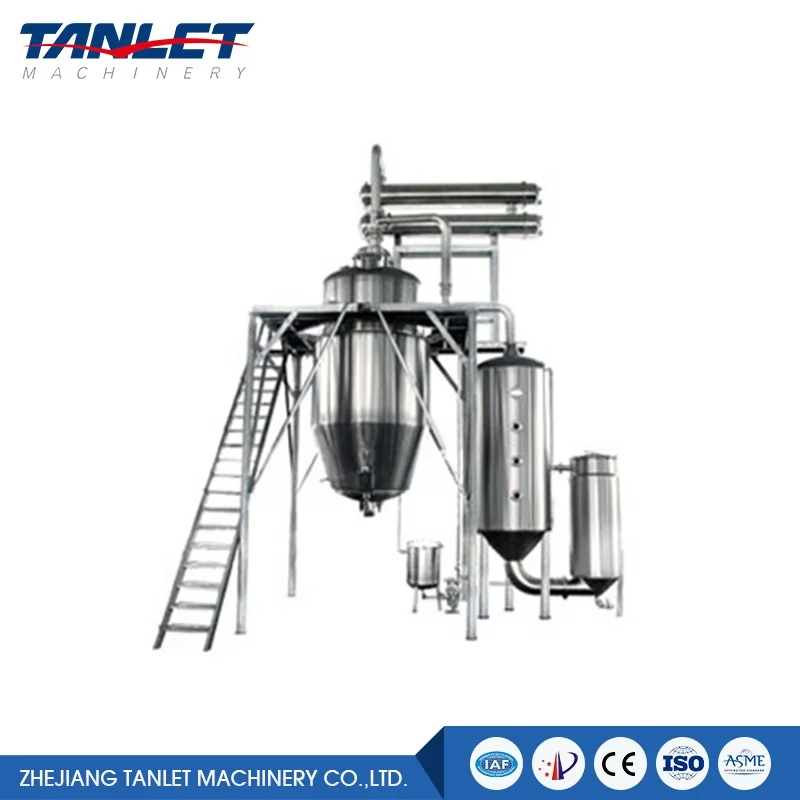

Medical Herbal Liquid Extractor Vacuum Concentrator
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60727185944):
Product Overview
Description
Product Description
Medical Herbal Liquid Extractor Vacuum Concentrator
Product Application
Composed by: extractor, filter, pump, heater, evaporator, condenser, cooler, oil separator and project control computer.
After dipping and heating, the liquid of traditional Chinese medicine will be pumped into the external heater for heating from the bottom of extracting tank.
The extra pump liquid will enter into heater for heating from the bottom of the extracting tank to reflow and play its partial mixing effect. After the extracting liquid is heated by the heater, it will be evaporated instantly and separated by the separation concentrator.
The twice steam will enter into the extracting tank, transmitting the heat to the solvent in the extracting tank, and also playing mixing effect.
The residual air will enter into the condenser and become solvent, and after reflux it will enter into the extracting tank. It will enter into the heater for condensed liquid to carry out heat exchange and make the temperature of condensed liquid approximate to the boiling point of solution in the extracting tank.
Then the residual air will enter into condenser. As the solvent has large reflux quantity, the density of solute will be rapidly dissolved The extraction and concentration are synchronous with continuous discharge of concentrated liquid, thus, the process is greatly reduced and only requires 4~6 hours.
Extract Liquid
Main Parameters
Concentrate Cream
Extract Powder
Extractor Volume (m3) | TQ-0.5 | TQ-1 | TQ-2 | TQ-3 | TQ-4 | ||||
Evaporation Capacity of Concentrator (L) | 600 | 1200 | 2300 | 3200 | 4300 | ||||
Water-extraction Temp. (℃) | 0.09 | ||||||||
Alcohol-extraction Temp. (℃) | 0.3 | ||||||||
Extraction Time | 2.4 | 3 | 4.7 | 6.8 | 8 | ||||
Vacuum Degree (Mpa) | 3 | 4 | 5.4 | 8 | 10 | ||||
Designed Pressure (Mpa) | 1 | 1 | 1 | 1 | 1 | ||||
Advantages
This unit has many advantages such as high efficiency, energy saving, multifunction.
As to the comprehensive performance, it is at the leading position in domestic. It is modernized technology equipment keeping pace with international natural plant medicine. Our company can also produce ordinary control unit or semi-automatic control unit to satisfy different requirements of customers.
Application
This unit not only has good function for extraction and concentration of traditional Chinese medicine and Chinese herbal medicine (dry product), but also has powerful functions for extraction and concentration of fresh plant products at low temperature with fresh flavor preserved, such as the extraction and concentration of flower and asparagus. It has applied in traditional Chinese medicine factories and health product factories, which shows its powerful function advantages.
The equipment is also applicable to the extraction and condensation of natural condiments and food additives concerning animals and halobios.
The equipment is also applicable to the extraction and condensation of natural condiments and food additives concerning animals and halobios.
Composition

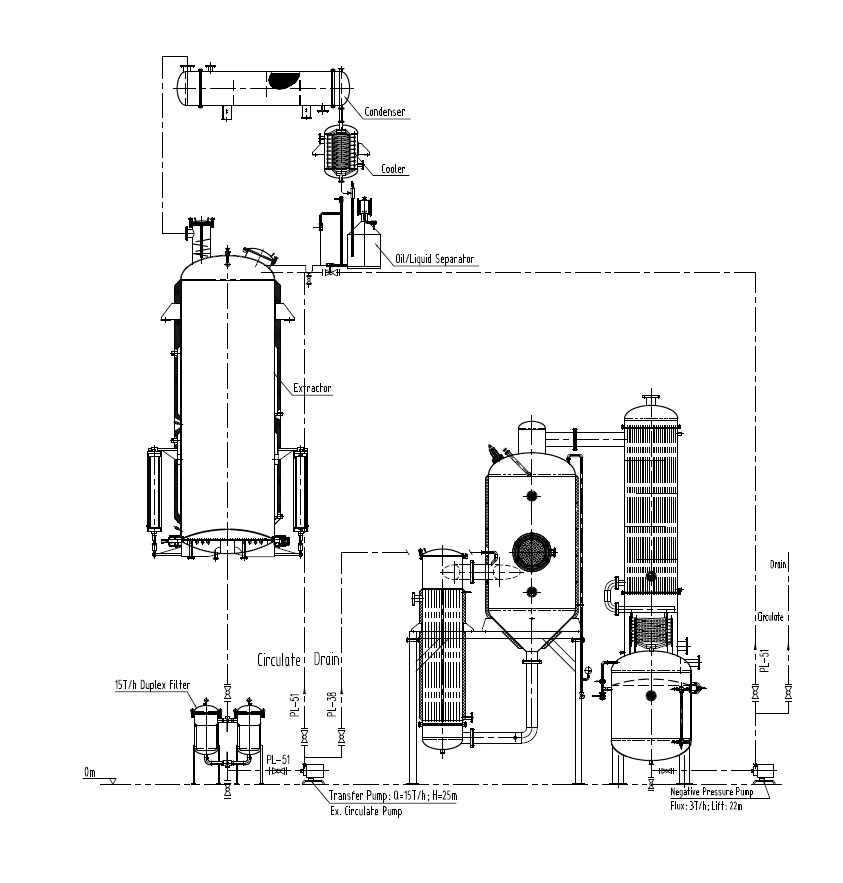

The RH Dual Heat Reflux Extracting Concentrator unit is composed of extractor, extraction cooler, extraction condenser, evaporation chamber, evaporator condenser, evaporator cooler, liquid receiver, heater, duplex filter, centrifugal pump, pipes, lifting structure, etc.
Accessories: manhole, sight glass, inspection light, pressure gauge, liquid level gauge, thermometer, nozzles, etc.
Fabrication Process
Cutting
Plasma Welding
Mechanical Polishing
Assembly
Final Product
Our Service
User Demand Analysis
Once the project is confirmed, the product level, processing technology and consulting group are analyzed according to the actual demands of customers so as to provide suitable engineering plans, form a complete production line and calculate the budget.
Engineering Design
We carry out planning and designs on details of engineering plans through introducing internationally advances design conception to provide valuable project technological plans and ensure effective implementation of all steps.
Product Manufacturing
The approved production drawing is the basis for production and manufacturing. All equipment that is not manufactured on the site shall be indentified by our quality responsible person so as to meet the strict stipulations.
Automatic Control Integration
The installation of the system and the whole automatic project meets the GMP standard. According to our years of experience, the installation and process rules will help simplify the starting and commissioning of equipment.
Trial Running and Training
During the equipment commissioning, our engineers will provide guidance on the site and carry out various tests with respect to all performances of the equipment with customers. Approval will be received from users.
Verification Services
To ensure normal production, we can set up maintenance and servicing plans for a single machine, the whole production line or the whole factory and provide equipment maintenance services and offer fittings according to customer requirements.
Packing & Delivery
Delivery & Transportation
Shipped in 45 days after the deposit confirmed.
All delivery terms are available: EXW, FOB, CIF, CFR, DAF, DDP, CIP, etc.
Packing
Adopt steel frame/plywood/frame/seal boxes to fasten each main component, avoiding movable damage via transportation, and make it easier for clients to unload the cargo.
Payment Terms
T/T, L/C, Western Union, Paypal, Apple Pay, Online Payment, etc.
