Product Overview

Description

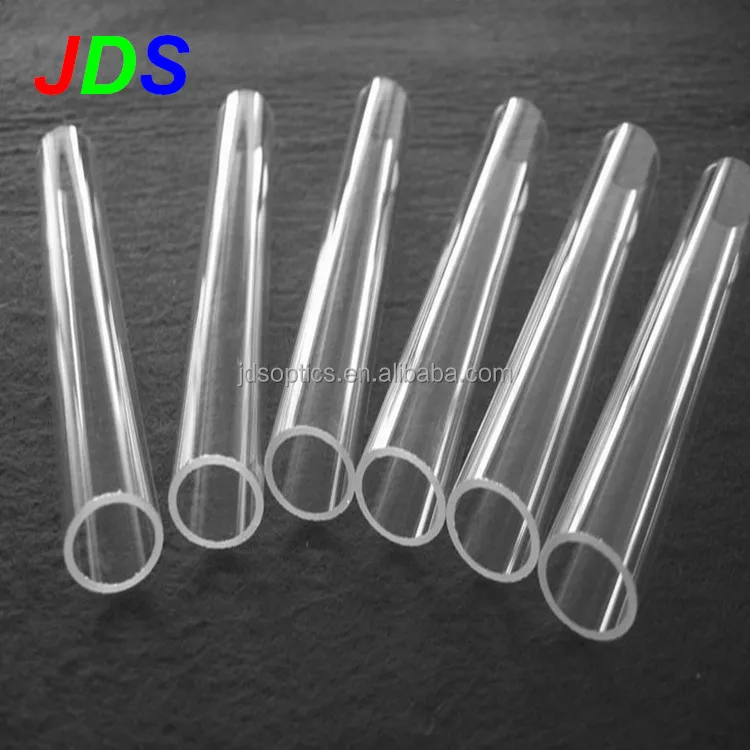

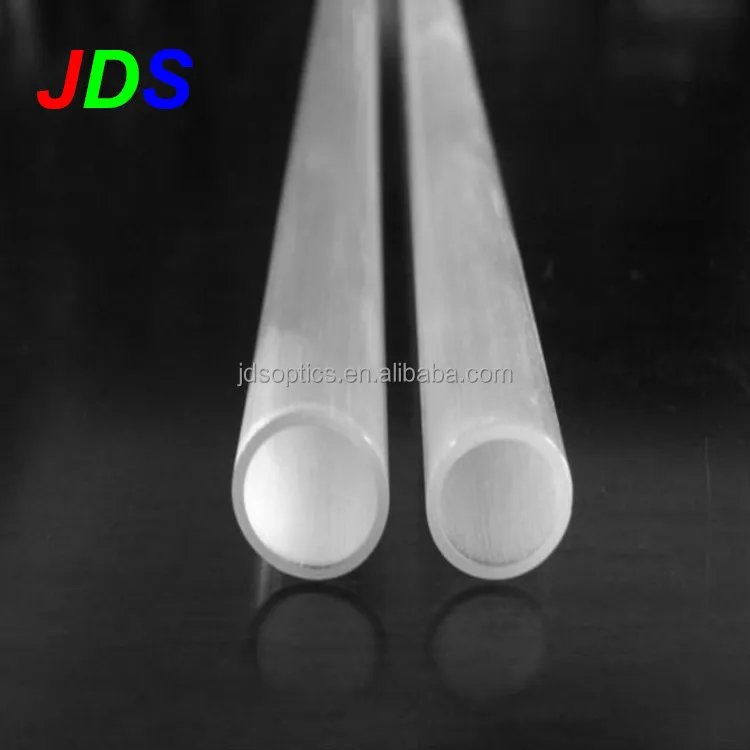

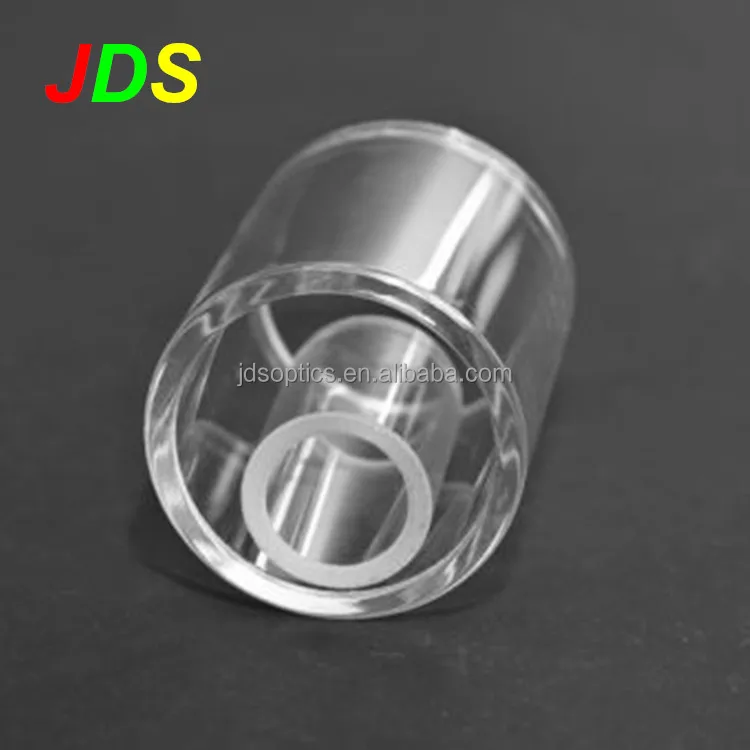

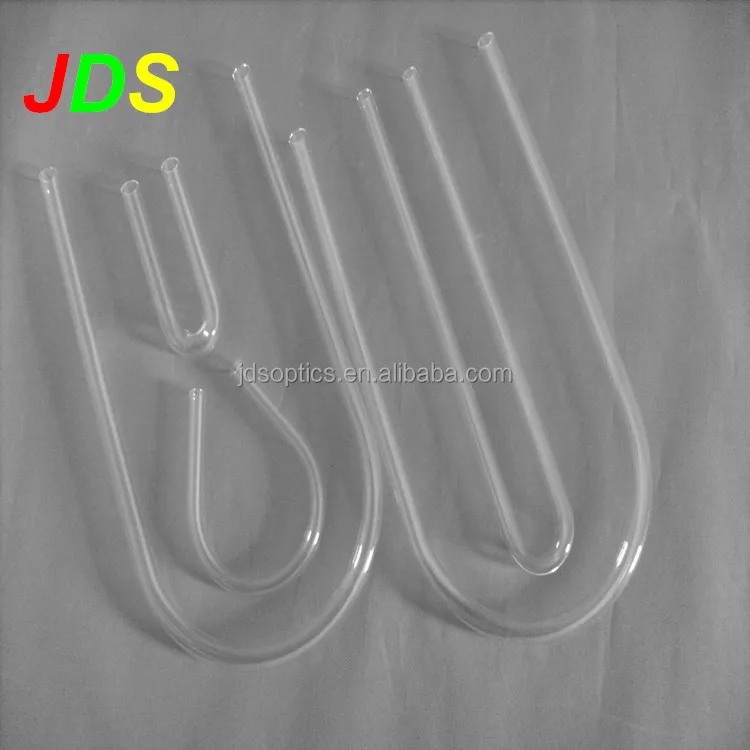

JDS clear quartz tube for semiconductor and solar , sapphire glass tube

Specification
Density
2.2x103 kg/m3
Dielectric Properties
(20°C and 1 MHz)
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Constant
3.75
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Strength
5x107 V/m
Design Compressive Strength
Greater than 1.1 x l09 Pa (160,000 psi)
Loss Factor
Less than 4x10-4
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Dissipation Factor
Less than 1x10-4
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Index of Refraction
1.4585
Young's Modulus
72GPa (10.5x106 psi)
Constringence (Nu)
67.56
Poisson's Ratio
0.17
Velocity of Sound-Shear Wave
3.75x103 m/s
Coefficient of Thermal Expansion
5.5x10 -7 cm/cm·°C (20°C-320°C)
Velocity of Sound/Compression Wave
5.90X103 m/s
Thermal Conductivity
1.4 W/m·°C
Sonic Attenuation
Less than 11 db/m MHz
Specific Heat
670 J/kg·°C
Permeability Constants(700°C)
(cm3 mm/cm2 sec cm of Hg)
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10
Electrical Resistivity
7x107 ohm cm (350°C)
Neon
9.5x10-10
Parameter/ Value
JGS1
JGS2
JGS3
Maximum Size
<φ200mm
<φ300mm
<φ200mm
Transmission Range
(Medium transmission ratio)
0.17~2.10um (Tavg>90%)
0.26~2.10um (Tavg>85%)
0.185~3.52um (Tavg-85%)
OH- content
1200ppm
150ppm
5ppm
Fluorescence (ex254nm)
Virtually Free
Strong V-B
Strong V-B
Impurity Content
5ppm
20-40ppm
40-50ppm
Birefringence Constant
2-4nm/cm
4-6nm/cm
4-10nm/cm
Melting Method
Synthetic CVD
Oxy-Hydrogen melting
Electrical melting
Applications
Laser substrate: window, lens, prism, mirror
Semiconductor and high temperature window
IR & UV



Product type

 kinds of sapphireCUSTOMZIED SAPPHIRE GLASS .jpg

Product Application





 Optics tubes⇒

 are ofen used in electric light source ,semiconductor ,optical communication ,military industry ,chemical ,bulding ,machinery ,enviroment protective and other files



we are offered in a variety of substrates, such as sapphire ,quartz,  Germanium (Ge), Silicon (Si), N-BK7, UV Fused Silica, Zinc Selenide (ZnSe), or Potassium Bromide (KBr). Multiple anti-reflection coating options are available for the Ultraviolet (UV), visible, or Infrared (IR)



JDS® Optics and Laser⇒



offers a variety of Sapphire Optical Components for a range of applications, including ball lenses, spherical lenses, or windows. Sapphire Ball Lenses feature high refractive indices, ideal for minimizing the distance between fiber output and lens. Sapphire Half Ball Lenses are available to simplify mounting or system integration. Ruby-doped Sapphire Ball Lenses are also available to ease handling.

JDS® Optics and Laser⇒



can customized various optical products with different shape, dimention and precision. Including spherical lens, aspherical lens, achromatic lens and provide coating. It can be used for UV, visible or infrared wavelengths.



we are confident that JDS®can provide the best service for you.





OEM service



 ♥ If you need a custom optics developed we can help! ♥

  • Our team can evaluate your designs tolerance & performance
  • We make your design more feasible & affordable
  • 3D models & drawings are created
  • All drawings are to ISO standards
  • Assistants with sourcing and procurement of optical elements
  • We CAN design your optics today!
Other products

 other products



Quality control

 12_14_

Packaging & Shipping





PackagingSingle products → with private lable or as request
Inner packing  → pecial packaging foroptical and laser components
Outer packing → three layers corrugated carton, wooden box or as required
Shipping by air → UPS , DHL , Fedex , TNT, EMS ,SF ,etc
by sea



Company Information



Who we are ?



JDS® Optics and Laser⇒ a leading manufacture of high precision Optical components in China over 20 years. Its stock and build to print custom products areused in leading edge photonics technology, electro-optics,lasers,telecommunications,

medical instruments, optical imaging and optical computing.





What we can do for you ?



♥Our team can evaluate your designs tolerance & performance

♥We make your design more feasible & affordable

3D models & drawings are created

♥All drawings are to ISO standards

♥Assistants with sourcing and procurement of optical elements

♥We CAN design your optics today!

Why us ?



1. Technical and degisn help

2.Quality ⇒  Our technical sales staff are always on hand to offer aftercare for your products .

3 .MOQ and Price⇒  usually , for inventory products, the moq is 1pcs, for customzied products , the moq is 5-10pcs, all in a reasonable price .

4.Fast delivery⇒  for inventory products ---1-3days , for customized products --- 7-25days .

5.Convenient express⇒  we will send products by UPS, Fedex, DHL ,TNT,EMS ,SF and so on .

6.Flexible payment method⇒  T/T , Money gram , Western Union , Paypal ,Credit card

 contact infor.jpg





~~~Any further question or Inquiry just contact us ! we will reply you within 24hours ~~
