Thermal bonded recycled felt making machine
- Category: >>>
- Supplier: Changshu Chenyang Nonwoven Machinery Co. Ltd.
Share on (60727224558):
Product Overview
Description
Product Description

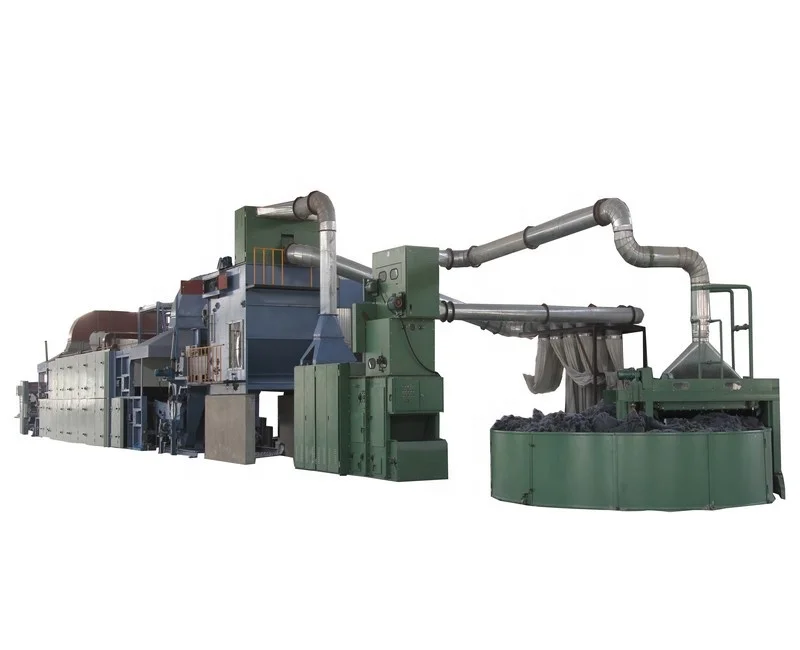

AIRLAID FELT PRODUCTION LINE
This production line designs non-woven manufacturing systems for mattress industry, Packing application, and the automotive industry,by airlaid or by carding solution.
The system produce individualized fibers with tensile strength that is uniform in both length and width under controllable percentage.
These advanced fiber web systems create fibers that are ideal for automotive applications such as air bags, headliners, sun shades, acoustical pads, door panels, and various engine parts. The versatility that is engineered into every system allows for the production of non-woven fiber webs from many materials, including cotton, cotton shoddy, synthetic shoddy, recycled fiber, reclaimed material.
Air Laid Fiber Automotive Application | Air bags Acoustic Pads Headliners Door Panels Sun shades Engine Parts |
Mattress Application | Spring top felt Thick and hard waddings |
Fiber Material | Cotton Shoddy Reclaimed Material Synthetic Shoddy Cotton Carbon fiber Recycled Fiber |
Weight | 400-2500g/㎡ 400-5500g/㎡ |
Additional Processes Available | Dust Filter System Bonding Resins Sprayer Ovens Needle Punch Looms Spray Bonding |
Typical Equipment | Openers Blend Line Feeders Edge Trim Slitter Webbers Air seperators |
Support Service | Design Field Technical Support Engineering Aftersales assistance |
\t\t\t\t\t\t\t\t\tMachine Images \t\t\t\t\t\t\t
Fiber preparation.
Automatically feed fibers into the production line, with higher precision and less labors.
Raw material: Polyester, recycled cotton fiber, low melt fiber, PP fiber
Capacity:500kg/1000kg/1500kg
Opening structure: carding wire, snail pins.
Carding felt
Carding machine help felts gain perfect evenness and favorable weight.
Working width: 1850mm/ 2000mm/ 2500mm
Capacity: 200-400kg/h
Airlaid felt
Air laid solution ensures random fiber distribution, allow greater insulation and acoustic effects.
Capacity:500kg/1200kg/h
Weight range:500-3000gsm/500-5000gsm
Thickness:0.5-10cm
Thermal Bonding Oven.
Thermal bonding fibers together.
Weight range:100-3000gsm
100-5500gsm
Felt thickness:10-150mm
Heating temperature:0-250°C
Heating source: Gas, diesel oil, electricity
Needle punch solution
Working width: 2000-6000mm
Felt thickness:0-20mm
Weight range:0-2200gsm
Line speed:0-8meter/min
Heat pressing Calender
Heat pressing and rolling calender.
Thin and hard felt.
Heating temperature:0-250°C
\t\t\t\t\t\t\t\t\tProduct Images \t\t\t\t\t\t\t
