Product Overview
Description

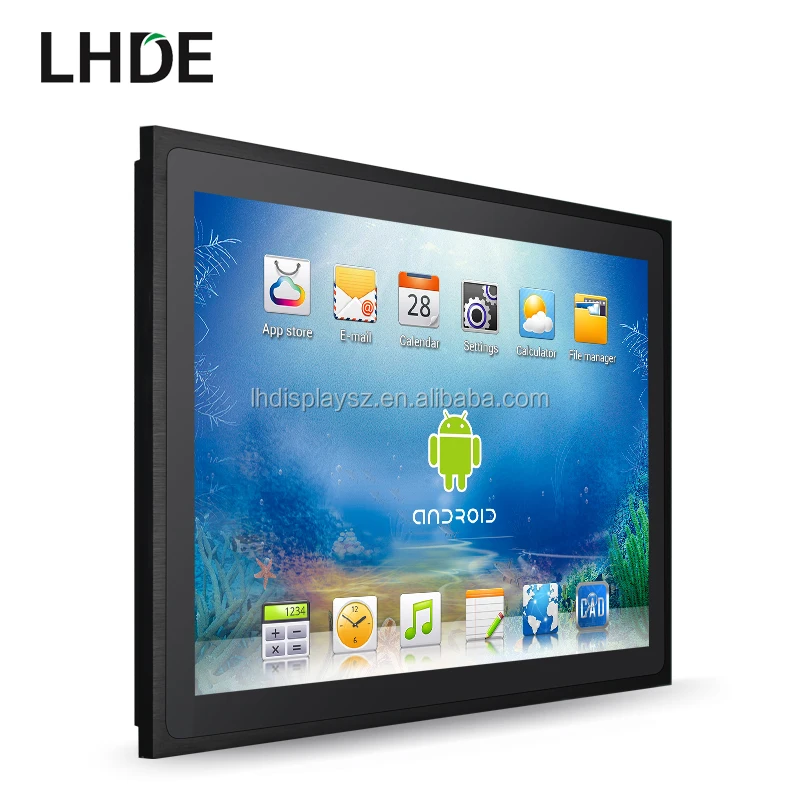

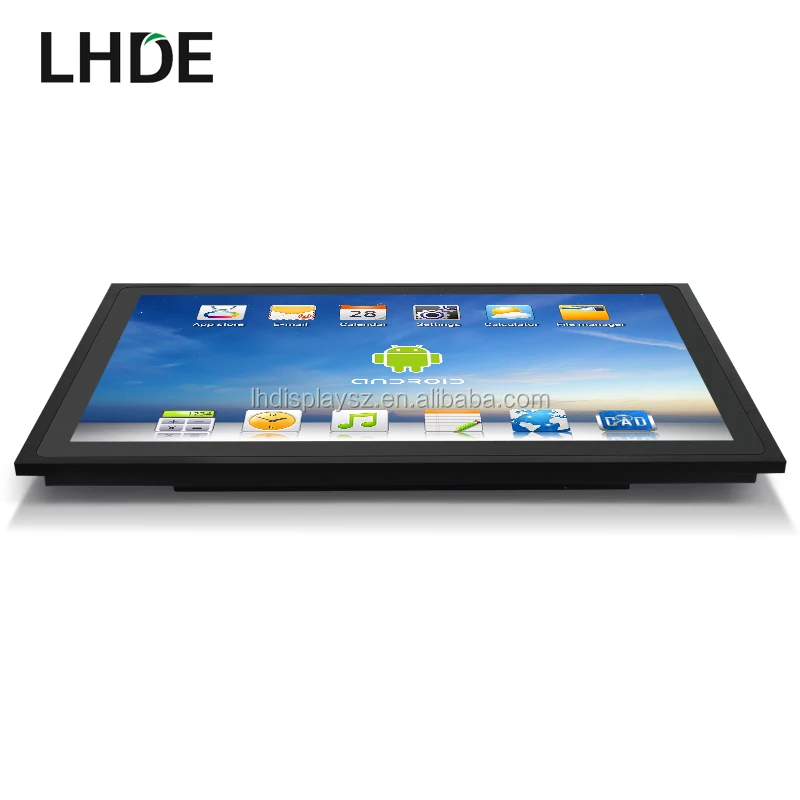

12 15 17 19 21.5 inch Factory cheap touch screen all in one pc, industrial panel pc android
Product Description

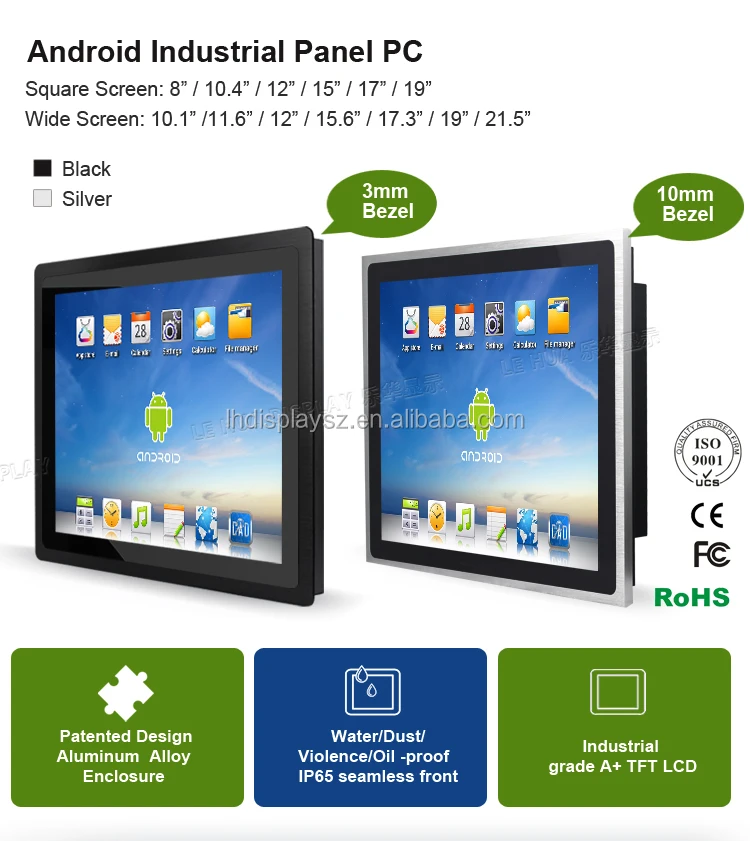

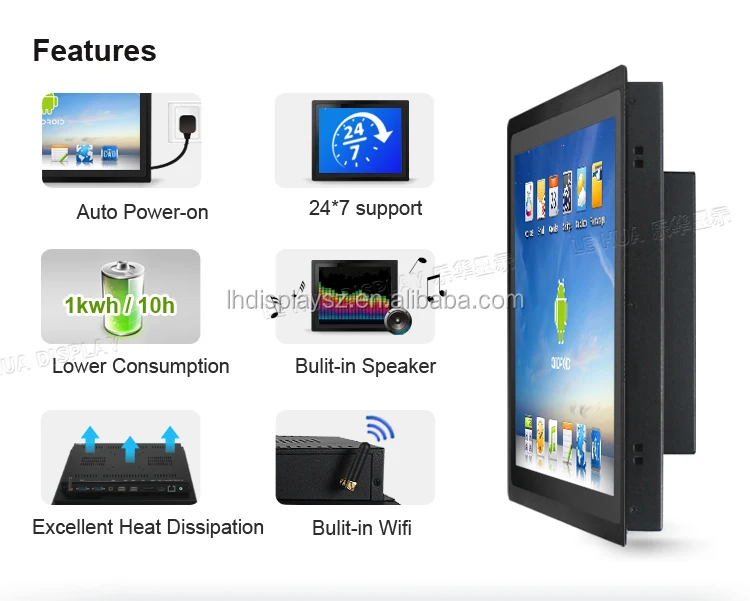

General Parameters
1. Size: 10.1", 10.4”, 12”, 15”,15.6", 17”, 19”, 19.1", 21.5”
2. Patented Design: Aluminum Alloy Enclosure
3. Panel: Industrial grade A TFT LCD
4. IP65 standard seamless front with water/dust/oil–proof
5. Touch Screen:10-point capacitive/2-ponit infrared touch
6. CPU: Android RK3288 1.8GHz, RK3399/A64 can be customized
7. Memory: 2GB DDR3 RAM, 4GB can be customized
8. Storage: eMMC 8GB, 16/32GB can be customized
9. Built-in bluetooth, Built-in wifi module, 802.11a/b/g/n
Apply to Different Environments
1. Wide working temperature range : -10℃—60℃
2. Wide voltage range: 12V-36V
3. Anti-Interference / Anti-Static
Applications:
Industrial Control, ATM, POS, Indoor/outdoor Kiosks, Transportation, Advertisement machine, Gaming, Medical,etc.
Specification
| Size | 10.1inch | 12inch | 15inch | 17inch | 19inch | 19inch wide | 21.5inch |
| Display | |||||||
| Panel Type | Industrial LCD panel A+ grade | ||||||
| Aspect Ratio | 16:9 | 4:3 | 4:3 | 4:3 | 4:3 | 16:10 | 16:9 |
| Resolution | 1366*768 | 800*600 or 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | 1440*900 | 1920*1080 |
| Contrast | 800:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Luminance | 250nit-1000nit | 250nit-1000nit | 250nit-1000nit | 300nit-1000nit | 300nit-1000nit | 300nit-1000nit | 300nit-1000nit |
| Response time | 5ms | 5ms | 5ms | 5ms | 5ms | 5ms | 5ms |
| Active Area (mm) | 227*131 | 250*188.4 | 305.8*229.8 | 341.5*274 | 383*308 | 414.3*262.5 | 478*269.24 |
| Display colors | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) |
| View angle | 89/89/89/89 | 75/75/75/75 | 75/75/75/75 | 75/75/75/75 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 |
| PC Configuration | |||||||

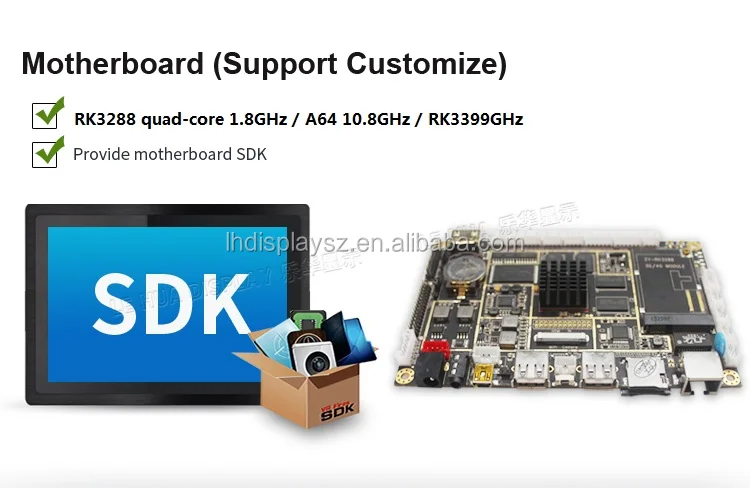

| CPU | Rockchip RK3288 Quad-core ARM Cortex-A17 1.8GHz, RK3399/A64 customized | ||||||
| GPU | Mail-400 533MHz | ||||||
| Internal memory | 2GB DDR3 RAM, 4GB can be customized | ||||||
| Storage | eMMC 8GB, can expandable to 16GB/ 32GB by TF/SD card | ||||||
| WIFI | Built-in wifi module, 802.11a/b/g/n | ||||||
| Bluetooth | Built-in bluetooth module | ||||||

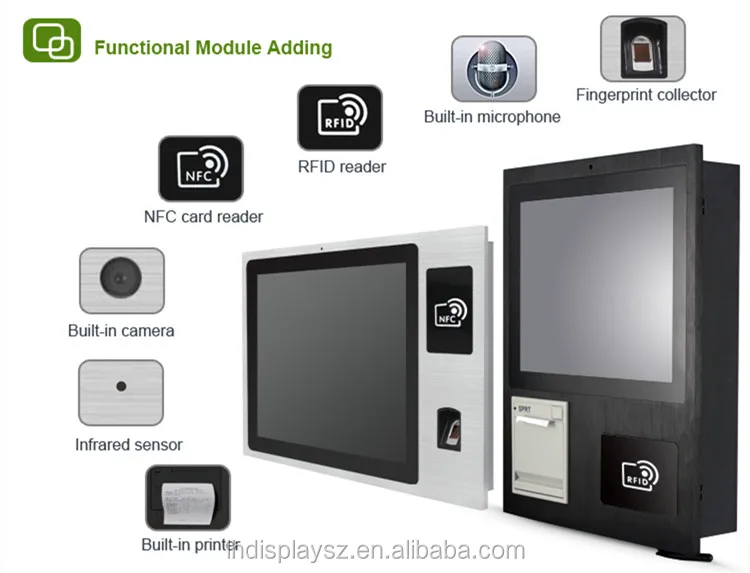

| Functions requirements | Built-in 3G/4G/GPS/USB Camera (optional) | ||||||
| Touch Screen | 10-point capacitive touch screen, 5 wire resistive touch, dual infrared touch optional | ||||||
| Operating System | Pre-installed Android 5.1, Android 6.0/Android 7.1 customized | ||||||
| Support multi-language | English,French,Spanish,Portuguese,Russian,Arabic,Chinese,etc | ||||||
| Google play service | Support Google play service | ||||||
| Pre-installed App | Google market,Email,Gmail,Google talk | ||||||

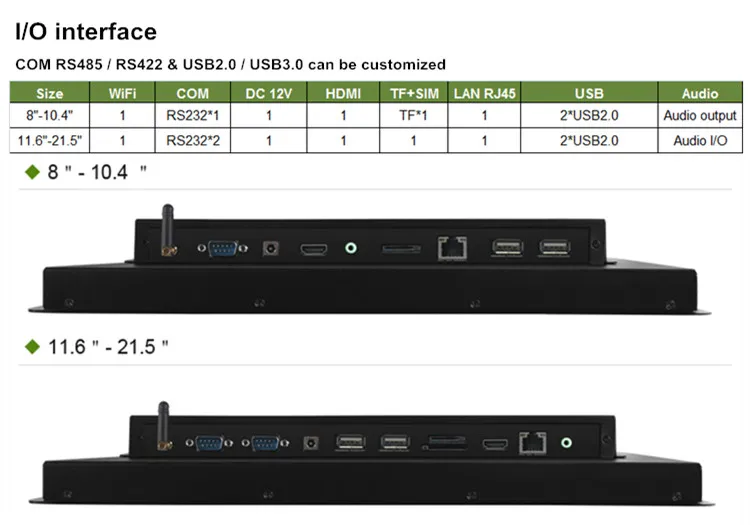

| I/O ports | 1*12V ATX input, 1*SIM card slot, 1*TF/SD card slot, 1*HDMI, 2*USB port, 1*RJ-45 network interface, 1*3.5mm Audio output interface, 2*com (Serial port), 1*mini USB port for re-flash/upgrading firmware | ||||||
| Material | Aluminum alloy enclosure | ||||||
| Bezel thickness | 3mm bezel, 10mm bezel(optional) | ||||||
| IP rating | IP65 for front panel | ||||||
| Color | Silver, black , other colors can be customized | ||||||

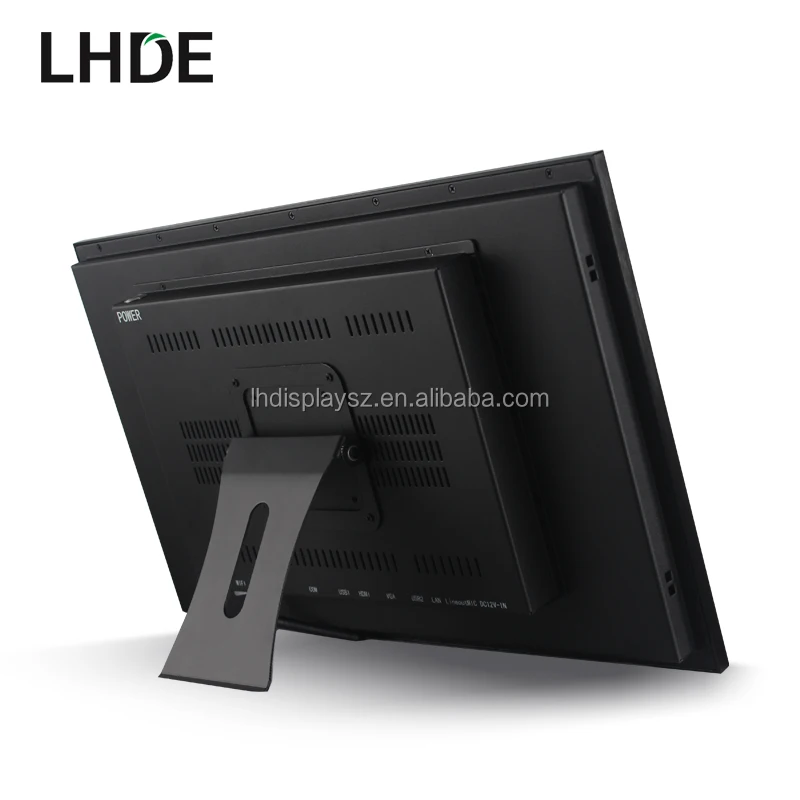

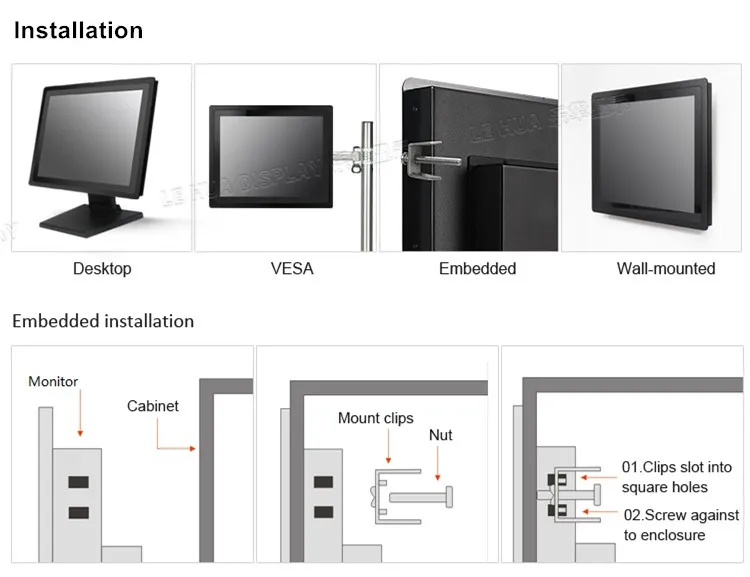

| Installation method | VESA, Embedded, Wall Mount, Desktop optional | ||||||
| Certificates | CE,ISO,FCC,ROHS | ||||||
| Packaging | EPE+Carton (wooden crate for mass order) | ||||||

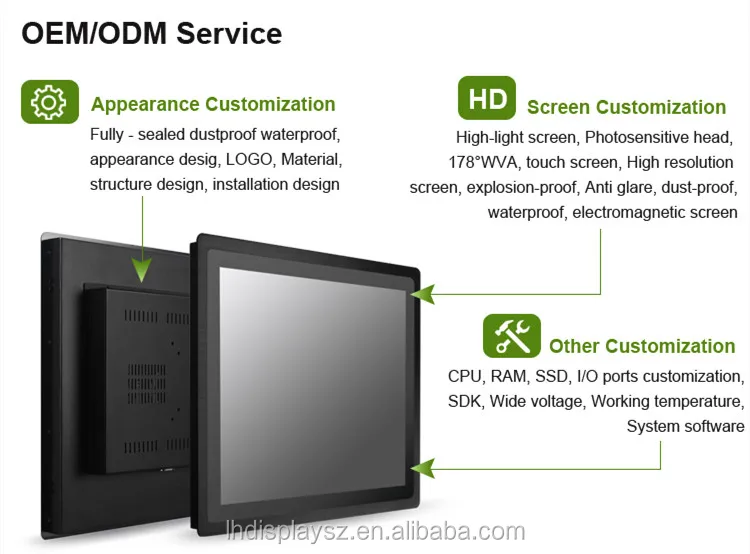

OEM/ODM Service
Packaging & Shipping
Our standard packaging: EPE+Carton as below. Mass order accept wooden case.
