BG 40 Высокоэффективная машина для нанесения пленки на планшет

Product Overview

Description

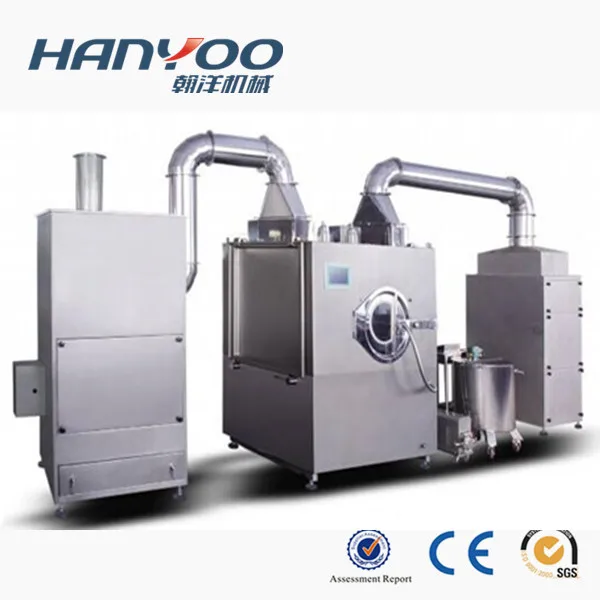

BG Series High Efficient Coating Machine

BG series of high-performance coating machine, the use of new microcomputer PLC, and temperature module control system, touch screen graphics display, easy to operate, efficient energy-saving, clean and safe, in line with GMP requirements, widely used pharmaceutical and food industry, tablets, pills, Chocolate and other water-soluble film coating, organic film coating, sugar coating, is an ideal coating equipment.





Technical Parameter

Model	BG-10	BG-40	BG-80	BG-150
Output (KG/batch)	10	40	80	150
Rotating Speed (r/min)	4-32	4-28	4-24	4-20
Power (KW)	0.55	1.1	1.5	2.2
Pan Diameter (mm)	600	780	930	1200
Fan Motor Power (KW)	1.1	2.2	3	5.5
Air Flow (m3/h)	1285	3517	5268	7419
Hot Air Fan Power (KW)	0.37	0.75	1.1	1.5
Air Flow (m3/h)	816	1285	1685	2356
Air Pressure (Mpa)	≥0.4
Air Consumption (KG/h)	≤60	≤74	≤85	≤106
Gross Weight (KG)	200	500	600	850
Dimension (mm)	840×980×1700	920×1210×1830	1030×1480×1920	1320×1760

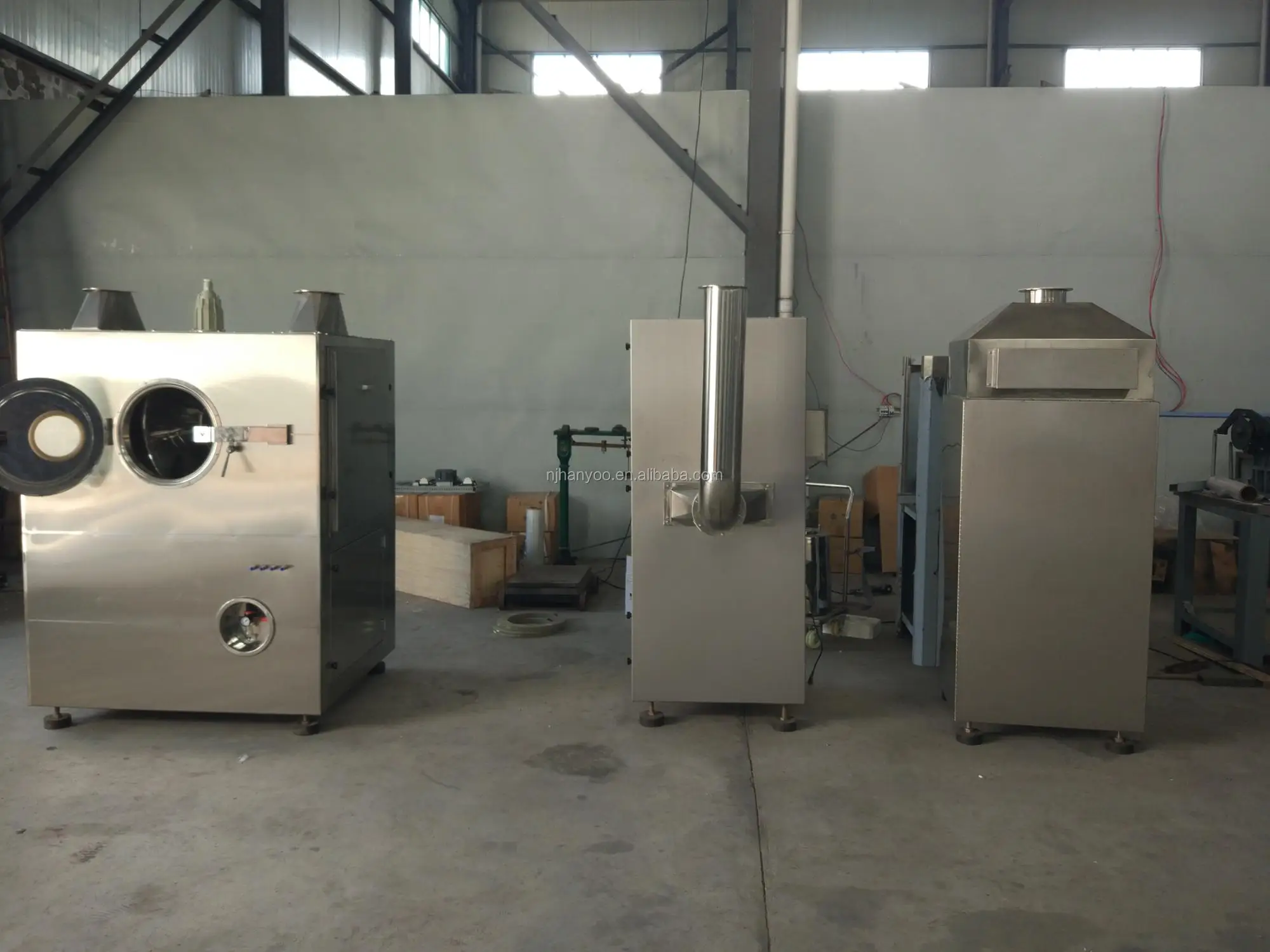

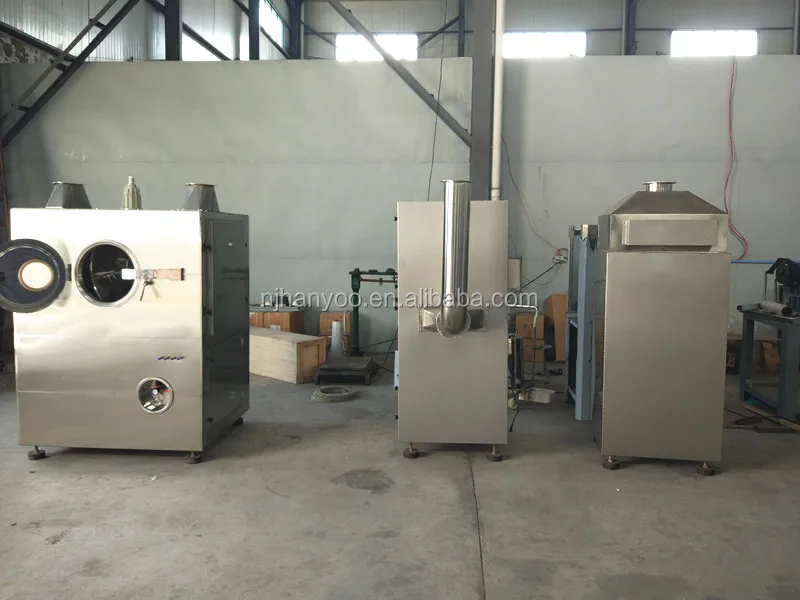

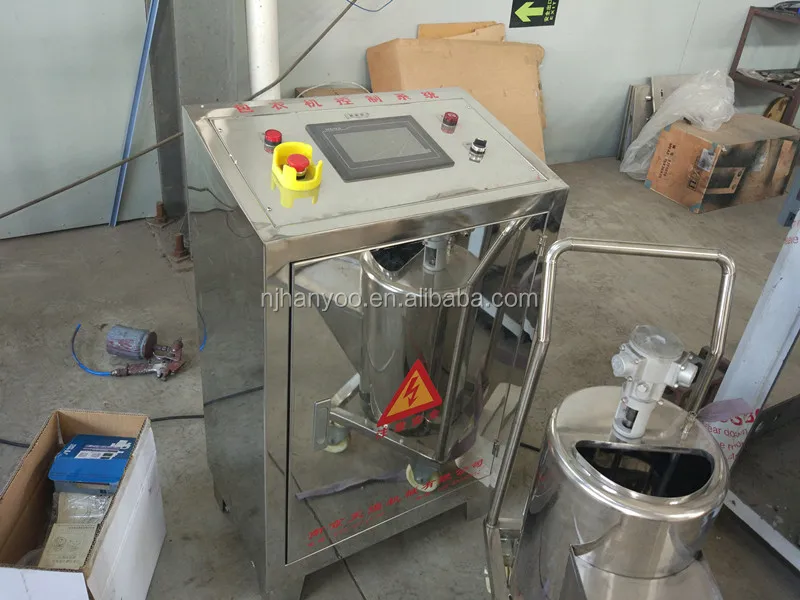

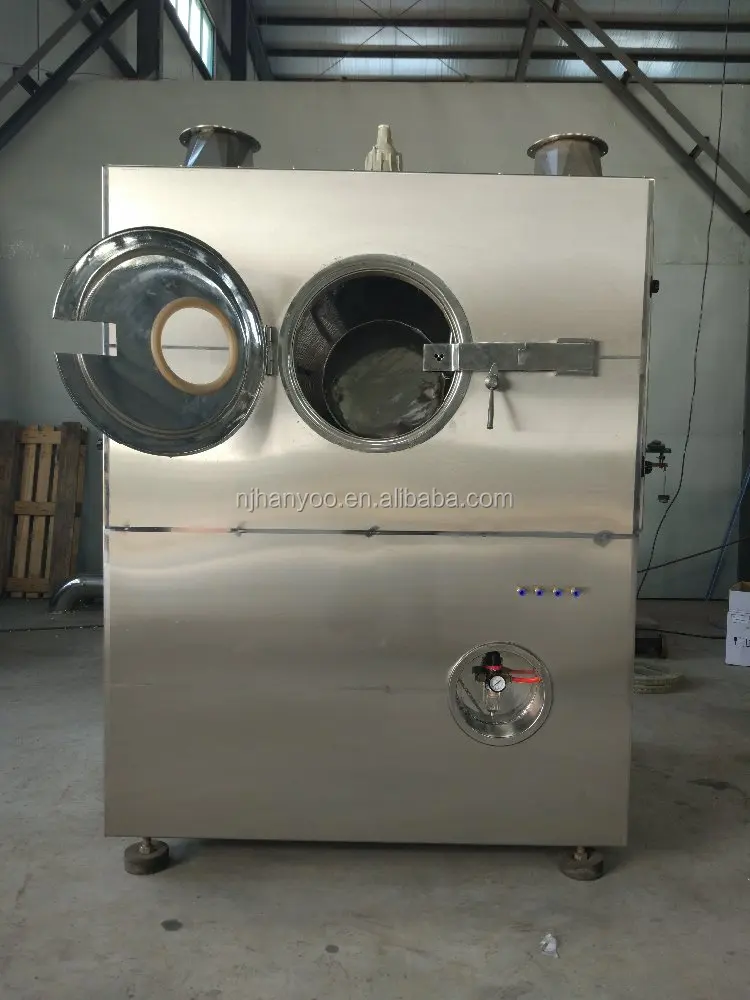

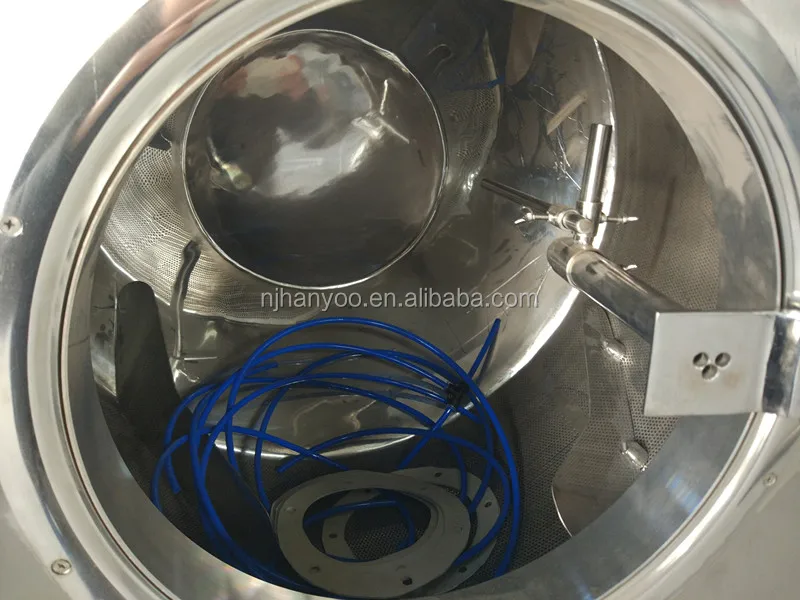

Machine Picture

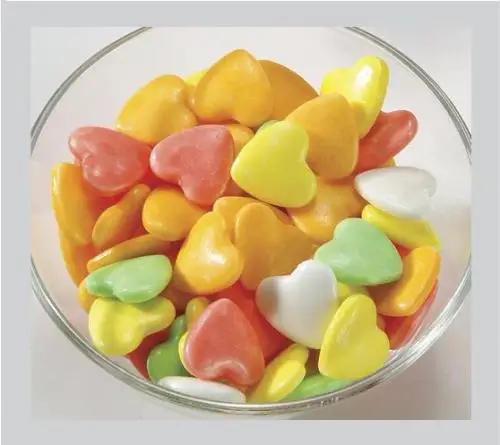

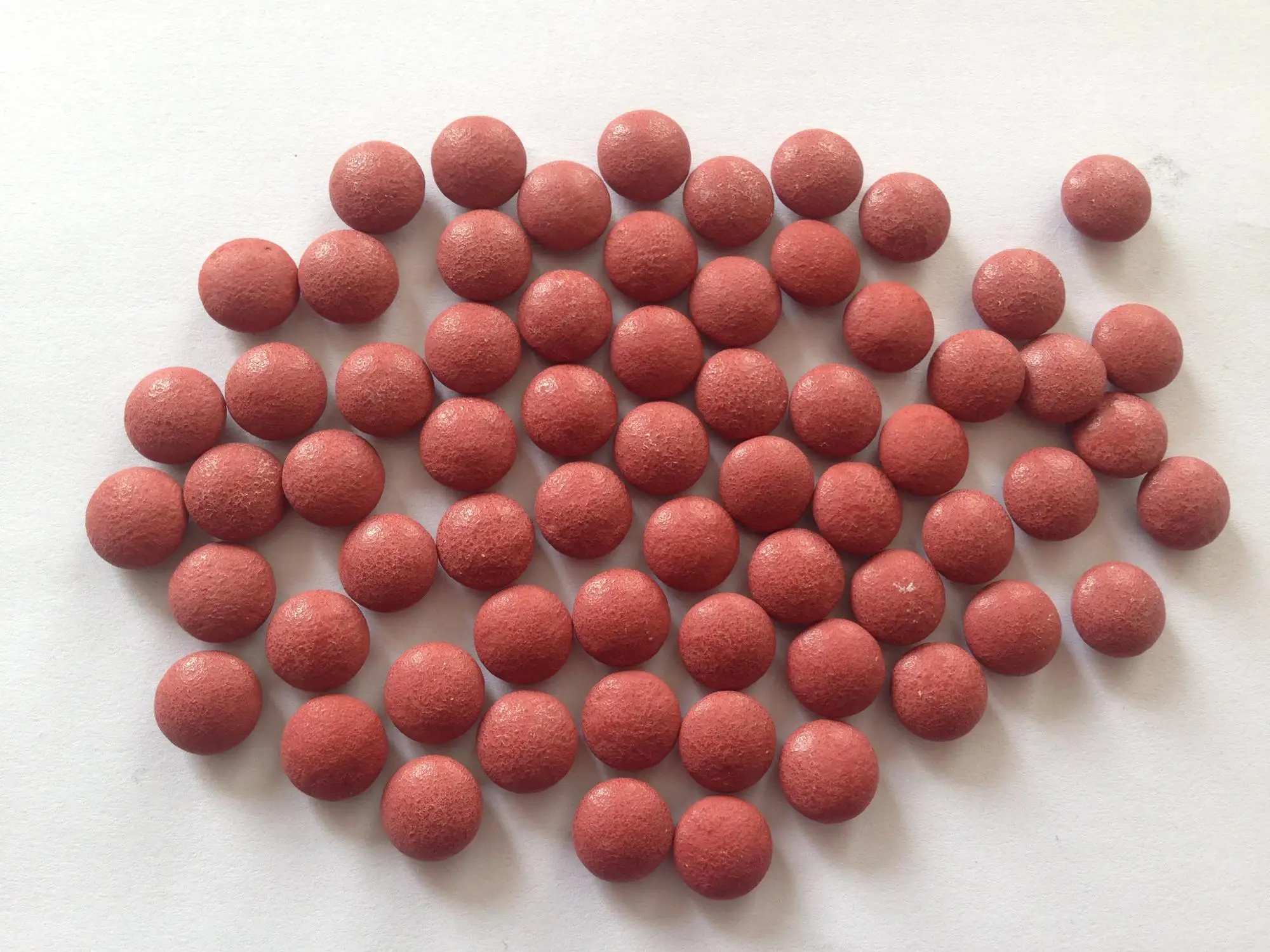

Sample Picture





Client & Team

Payment
1. The TT, Western Union, LC, Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 30 days to send out the machine. We will notice you if there is the special circumstance.
Shipping
1. We can send out the machine within 30 days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.

Warranty
1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours.
