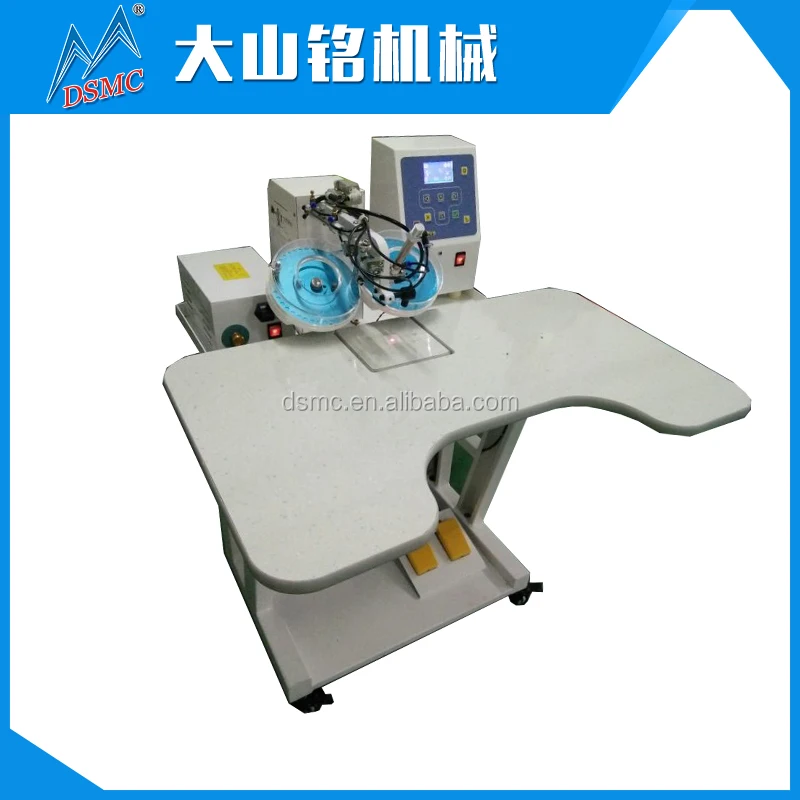

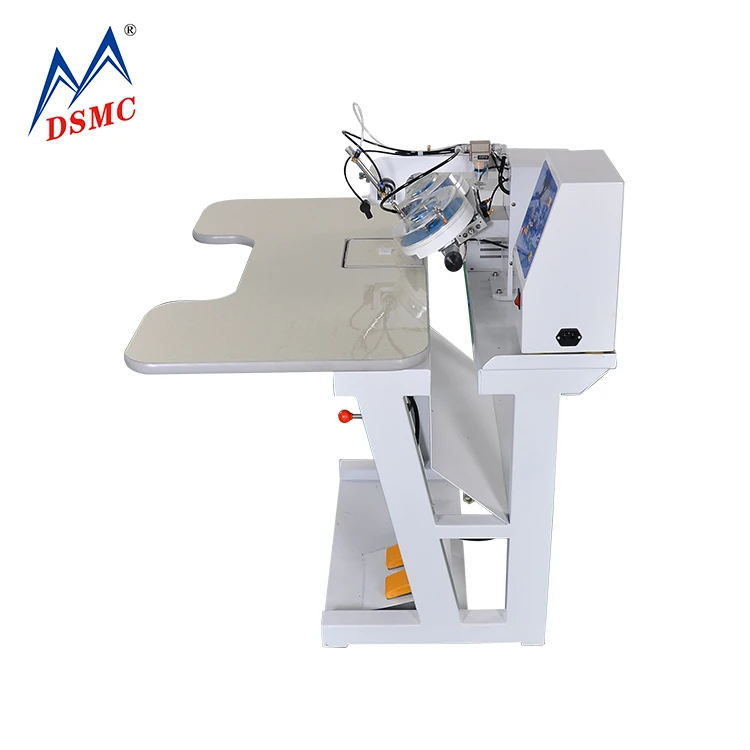

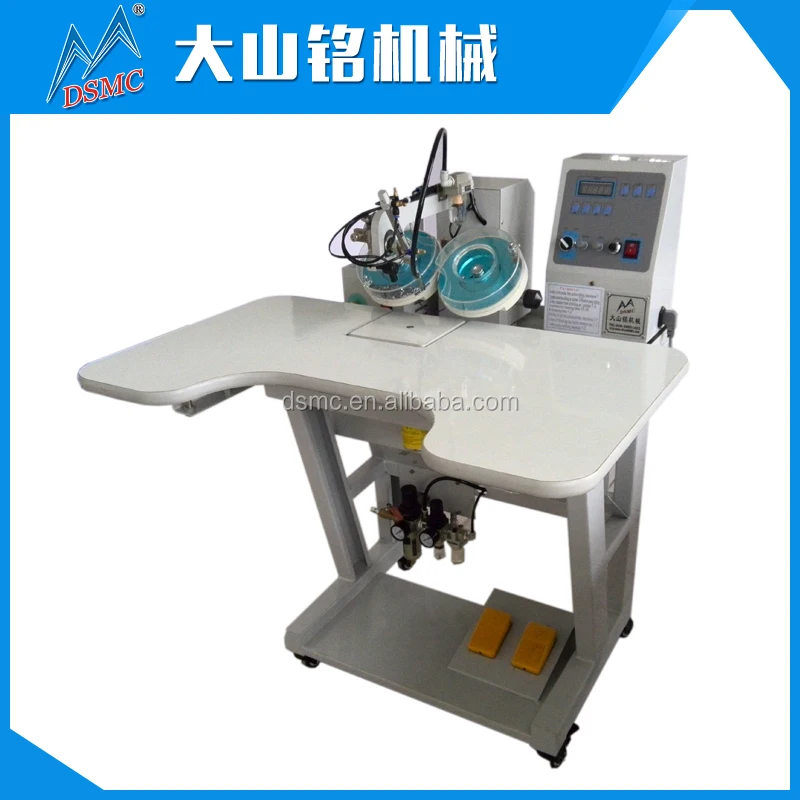

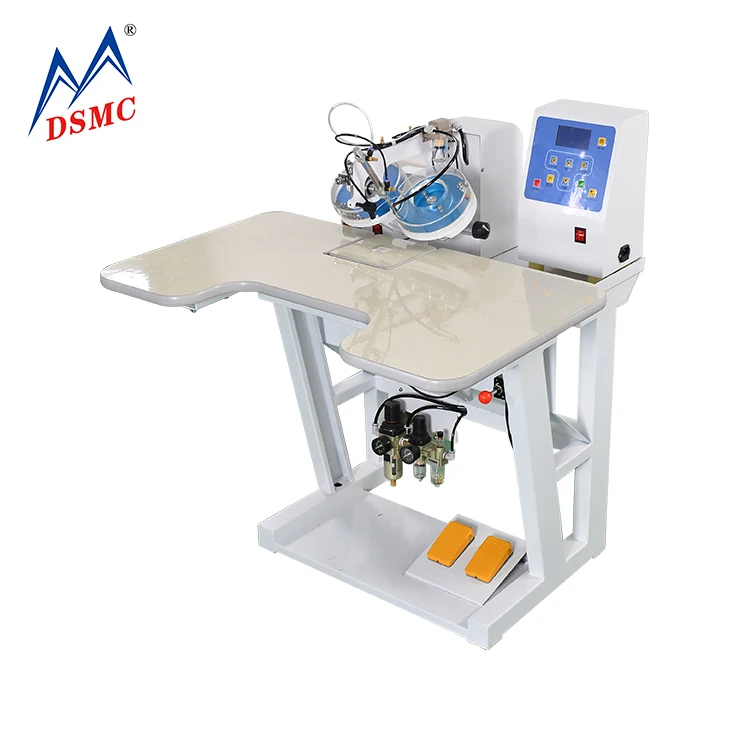

Ultrasonic Automatic rhinestone hot fix setting machine
- Category: Rhinestone Machines >>>
- Supplier: Guangzhou Dashan Ming Machinery Co. Ltd.
Share on (60727239295):
Product Overview
Description
Ultrasonic Semi-Automatic rhinestone hot fix setting machine
Product Description
Features of hot fix rhinestone machine:
1. Can fix different kinds of beads with different colors, with a highly improved efficiency, and no damage to the material.
2. Infrared positioning; Positioning accuracy; Sticking firmly
3. Different material parameter setting is one of the characteristics of this machine, related parameter can be set according to different material to reach the best rhinestone fixing effect
4. Rhinestone fixing simulating function: can do simulating fixing of the chose design, the speed can be slowed down or quicken, and also can be paused
5. Fixing effect testing function: can check the rhinestone fixing effect by moving the fabric manual and do semi-auto fixing
6. A few labor cost can achieve mass production, high production efficiency.
Technical parameters of crystal rhinestone machine for sale:
Model | DS-07102 | DS-09101 | DS-09101S |
Product name | Portable rhinestone machine | Ultrasonic single head hot fix machine | Ultrasonic Double heads hot fix machine |
Voltage | 110V/220V | 220V | 220V |
Power | 80W | 300W | 300W |
Diamond size | 1-10mm | 1-10mm | 1-10mm |
Speed | 60-120pcs/min | 110-220pcs/min | 110-220pcs/min |
Size | L268*W168*H198mm | L650*W800*H1080mm | L650*W800*H1080mm |
Weight | 7kg | 88KG | 88kg |
Product details of hotfix rhinestone:

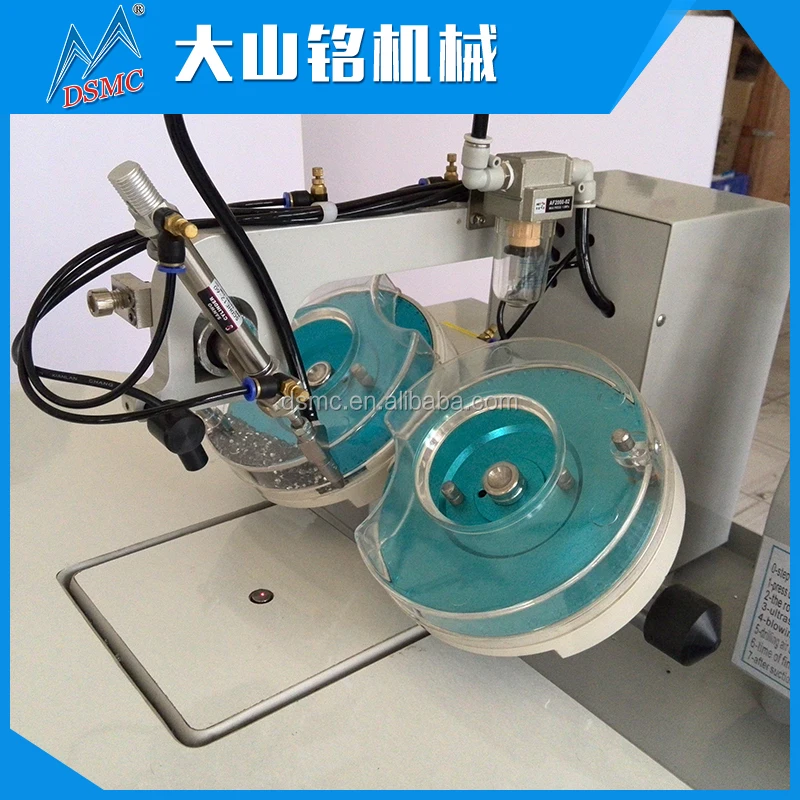

1. Powerful and durable ultrasonic system
2.Equipped with laser marking light
3. Equipped with new rotation system
4. frame motor : step motor
5. Cylinder : germany fst
6. Heating system: ultrasonic
7. Air pressure: 8KG
Working theory:
Through ultrasonic heating principle, picking up rhinestones by Pneumatic control method.
At the same time move the material accordingly by hand after the red light locate, then
the machine will fix rhinestones on the material quickly. Working speed can reach 130-150pcs rhinestones per minute, and will not fall off after being cleaned by water.
Pictures
1.Wide range machines with competitive price, high quality and good after service are provided
2.No middle man or agency, we are manufacture.
3.Technical support & technical training will be always available, you just need to contact us .
4.Can design independently as we have professional engineers100%quality satisfaction, provide spare parts and technical beyond one year warranty
5.Exquisite production technology & skilled workers
6.Accept small order, and provide door- to- door service.
Our Services
1.warranty:one year quality guaranty ,the machine with main parts(excluding the consumables)
2.provide technical services to the door(we have professional engineers to offer machine installation and maintenances).
3.to free replace all accessories during the warranty period.(except artificial damage )al
4.24 hours on line service each day, free technic support.
5.Machine has been adjusted before delivery
Company Information
Guangzhou Dashanming Machinery Co., Ltd, an industrial enterprise integrating R&D, production, sales and service, specializing in the manufacturing ultrasonic hot drilling machine, automatic hot fix machine, ultrasonic welding machine( fixed position machine),heat press machine(pneumatic, hydraulic, manual), steam press machine, laser cutting machine(carving machine), robot automatic production line, other equipment and related accessories. Further more, we can develop all kinds of non-standard production equipment according to the drawing and requirements from clients.
