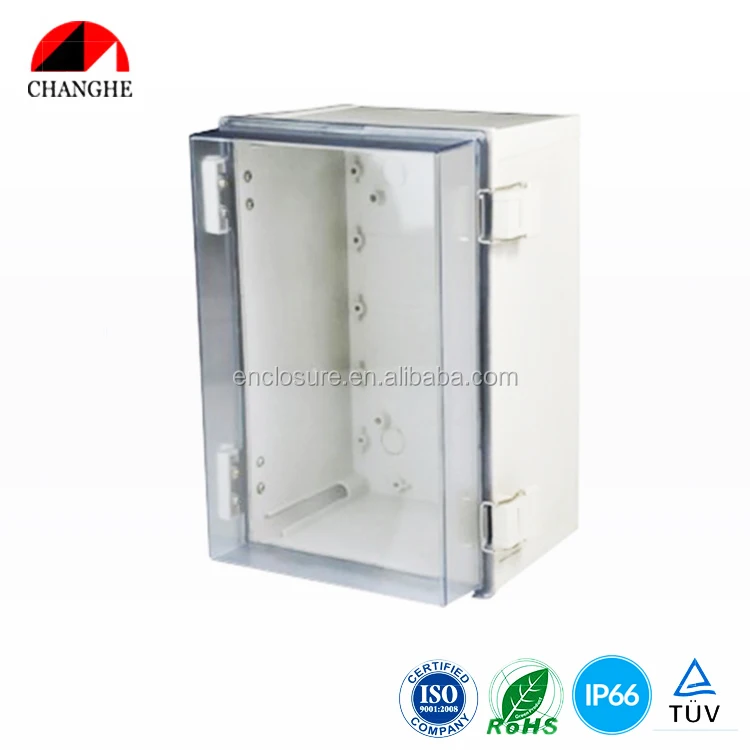

IP65 Wall Mount Enclosure Weatherproof electrical control boxes industrial control enclosure with hinge cover 300x200x180mm

With protection level up to IP65 and high impact resistance, CHANGHE plastic control boxes are ideal for packaging instrumentation, monitoring and process control equipment in harsh indoor and outdoor environments.

CHANGHE control enclosures feature hinge covers, and many sizes are available with transparent covers.
They are halogen free and available in both ABS and polycarbonate. Dimensions(L x W x H) range from 190x190x130mm to 560x380x180mm. Optional accessories include wall mounting kits for easy mounting.

All CHANGHE enclosures can be customized to meet your specific requirements. Our customization services include custom colors, fire-retardant materials, cutouts and customized molding.

Product Specs

IP65 Waterproof Electrical Enclosure 300x200x180mm (20D)

The dimensions specified below are Length x Width x Height.

Model No.	External Dimensions	Internal Dimensions	Mounting plate size	Wall mounting size
20D	300x200x180mm	284x184x170mm	200x158.5mm	n/a

Technical Features:

· IP 65 watertight and dust-proof (IEC60529 : 2001)
· High impact resistance (IK grade: IK07)
· Temperature Range (short term): -40℃～80℃ IEC60068 : 1997
· Temperature Range (long term): -20℃～60℃ IEC60068 : 1997
· Electrical insulation: total insulation
· Non-toxicity: halogen Free

· Hinged opaque  cover

· Easy mounting, optional accessaries include wall mounting kits

· The interior contains fastening domes to accommodate mounting plates or supporting rails

Dimension Chart

Customization

Custom & Modified Enclosures

When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:

- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes

- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring
