Waste tire/plastic/rubber to 85%~90% diesel distillation plant export to 50 countries

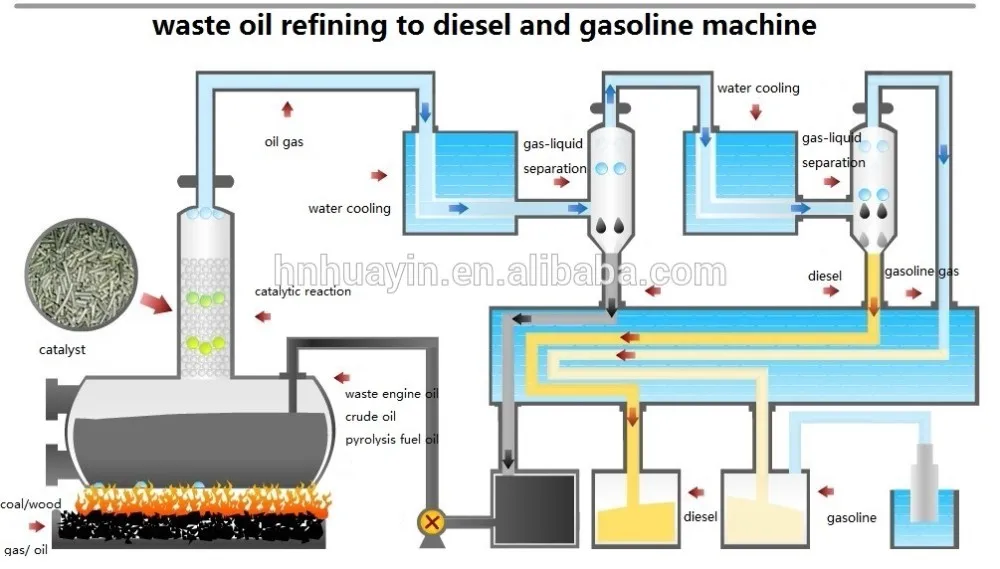

First: We need to pump waste oil into reactor by oil pump, then to heat reactor, and the liquid oil will become oil gas, oil gas will go through catalytic chamber and condenser, then diesel will be cooled out first by controlling the temperature over 150 Celsius degrees, the gasoline will be cooled out when the temperature is below 150 Celsius degrees(but it’s very small),the rest of the system is same as pyrolysis system. Second: After get the fuel oil, it is also need remove the color and smelling, then it needs the third procedure machine.
Advantages of distillation machine
Safety 1. With an auto welding machine for the reactor, it can not only greatly improve working efficiency but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak. 2. Professional heating treatment and x-ray detection chamber are especially for welding. 3. Vacuum system will prevent oil gas from going back to reactor and causing accident. 4. Professional thermometer, pressure gauge and safety valve. 5. It is dangerous to burn exhaust gas (C1 to C4) without any safety measures. In our process, it is transferred first through the safety device and safe gas gun. Before burning, we should ensure the safety of production.
Environment friendly: 1.Well water dedusting system can avoid black smoke. 2.The waste gas will be recycled for heating reactor, no gas pollution 3.Every junction of the reactor is in good sealing situation with professional sealing material.
Long service life: 1.Material: Q345R special steel plate, thickness 16mm. 2. Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of reactor to the max.
Certifications

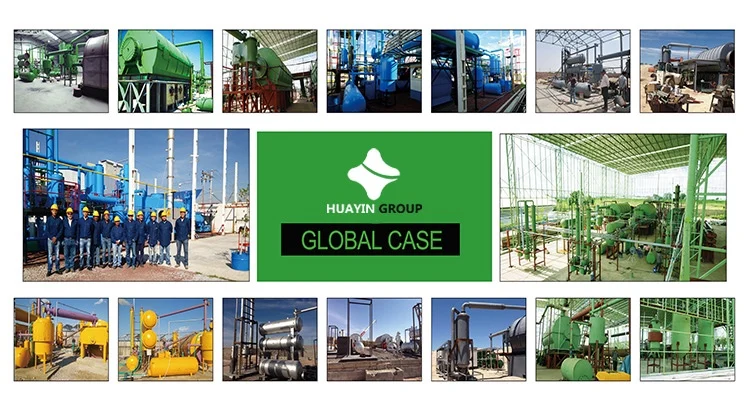

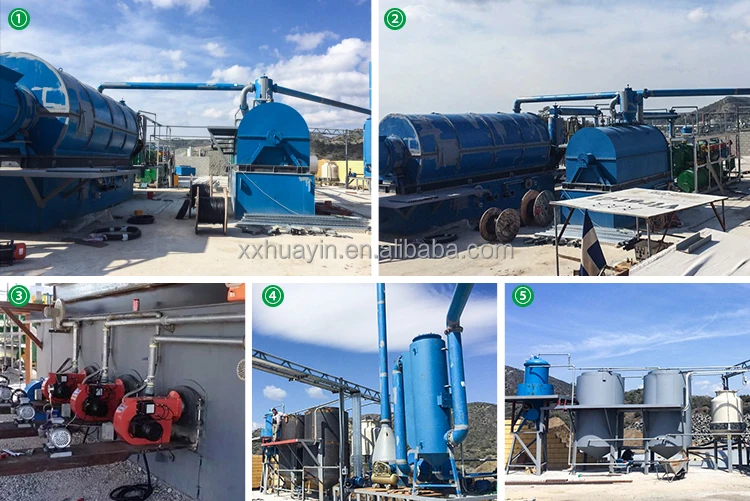

Customer site
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
D2800*L6600mm
Weight
30 T
Packaging Details
The normal package is 1*40' flat rack container and 1*40' HQ.
