photo book edge gilding and polishing , album making machine

Product Overview

Description

photo book edge gilding and polishing , album making machine



Book edge hot foil stamping machine is a special machaine of hot stamping for book edge,album edge and play cards etc, to make the book more beautiful.

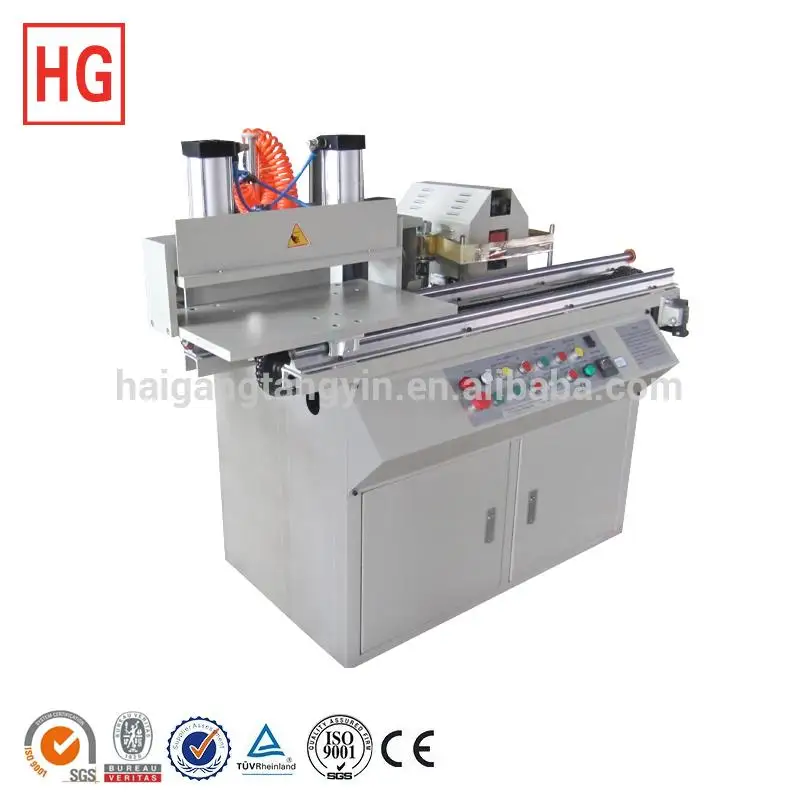

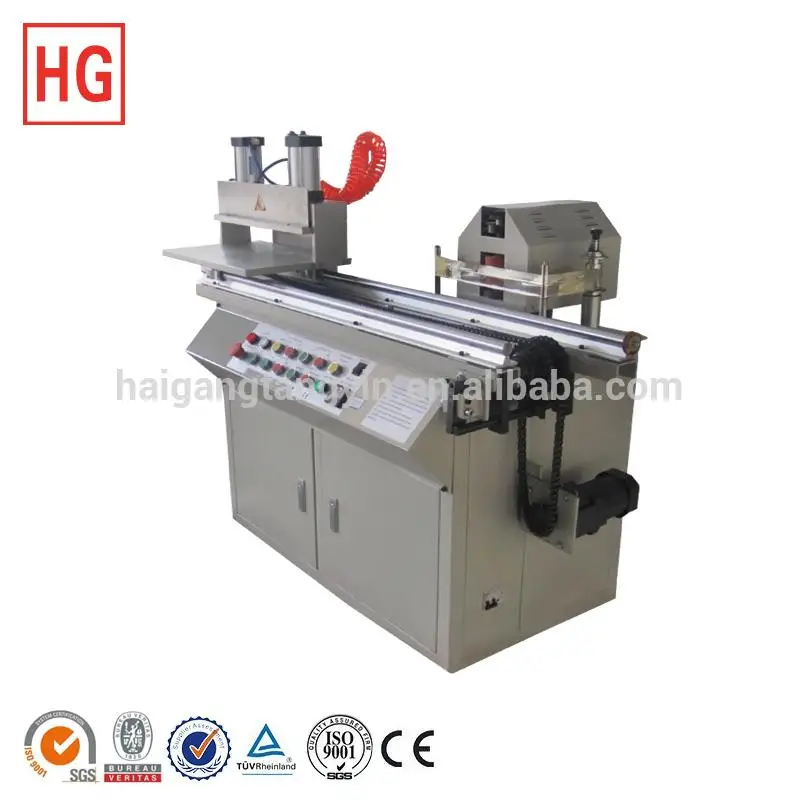

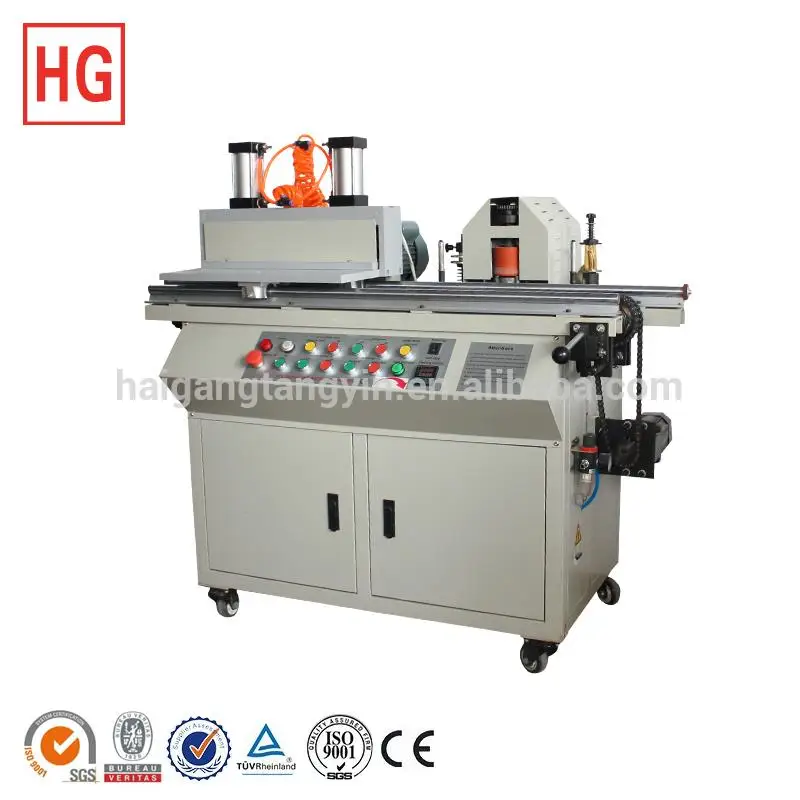

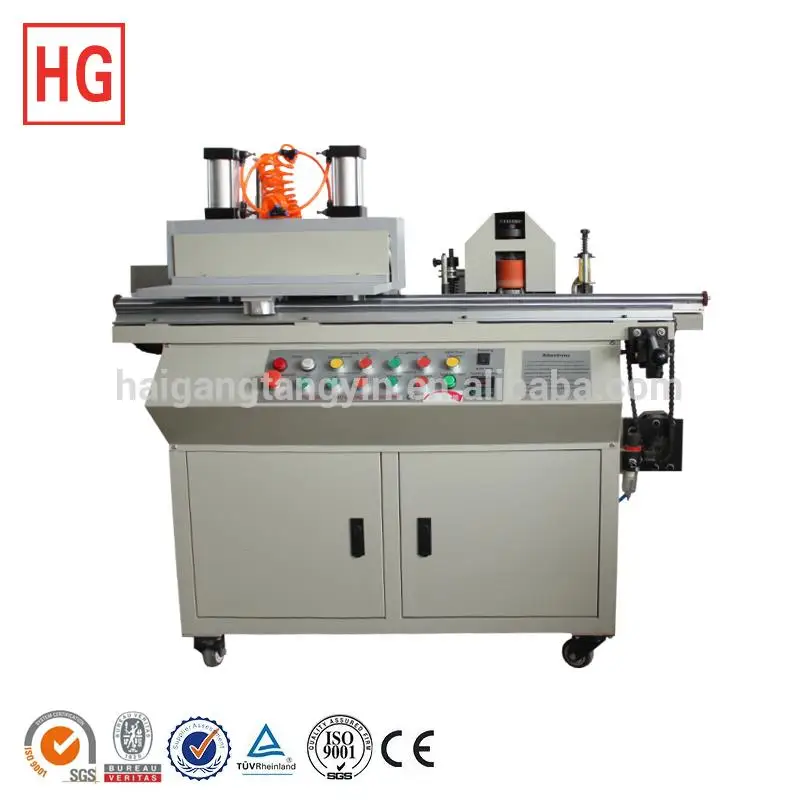

WT-39 Book Edge hot-stamping Machine
Driving methods	Chain-driven
Abrasive method	By alloy knife
Rolling hot-stamping Lenght	620mm( 24Inch)
Hot-stamping Thickness	≤40mm
Abrasive cutting Thickness	≤15mm
Hot-stamping Pressure	0.8Mpa
Pressure Of Plater	0.8Mpa
Main motor	1500W
Driving motor	90W
Hot-stamping motor	15W
Heater	800W
Total Power	2400W
Voltage	220V 50HZ
Net Weight	240KG
Overall Dimension	1450X700X1160mm





Pls visit our website www.hot-stamping-machine.comto find out more information.

Thank you for your cooperation.

edge gilding machine

















Our other machines:click the picture or name for more information.





SEMI-AUTOMATION HOT STAMPING MACHINE









MANUAL HOT FOIL STAMPING MACHINE FOR THE PAPER/PLASTIC/LEATHER











FOIL CUTTER





Cutting Machine for Foil rolls	WT-37A1/2/1300mm: Electric	WT-37B: Korean Electric	WT-37C: Manual	WT-37D: Electric	WT-37E: Electric
Max. Cutting Length	700mm 1300mm	700mm	640mm	1600mm	700mm
Max. Out Diameter	Φ120m-200m	Φ150mm-230mm	Φ70mm Φ100mm	Φ260mm	Φ100mm
Diameter. Of papercore	Φ25mm	Φ25mm-75mm	Φ16mm-25mm	Φ75mm	Φ25mm
Motor power	180w	250W		750W	180w
Weight	45kg/85kg	100kg	18kg	220kg	75kg
Overall Dimension (m)	1.02×0.45×0.32	1.3×0.6×0.7	1×0.3×0.2	2.25×0.7×0.8	1.4×0.45×0.4







We are the factory----the advantage of choosing factory.

1. Better Price
As a factory, you can do business directly with us. It saves the profits of trading company. The price will be much better and favorable.
2. Better quality
We have quality inspection during processing to ensure the quality of the product
3. Better service
We have our own professional sellers and after sales service team. We can supply the better professional service for you.
4. More Flexible
We have our own design team, and we can design and manufacture any kind of machine and auto matic product line as customers' requirement.
5. More Professional
We have more than 20 years of experience on the machines. We can design and manufacture the machine just as your sample products.
6. Honesty and trustworthiness
We have exported the machines more than 10 years. There is no one trade dispute. And many customers place order many times.





Other Products of our company:



a. Hot stamping machine.

For different materials, such as paper, leather, wood, metal, cloth and so on, and for

the objects with different shapes. Our excellent research and development department

could make the automatic packaging machine according to the customers' specific demand.

b. Elastic string tag.

We have got patent for our machine to make the tags. Our tag could be customized as per

customers' requirement in the respects of size, color, printing and others. With the automatic

machine, we could guarantee the fast delivery.

c. Transparent hang tabs.

Made of PET. With most competitive price and high quality.

d. Jewelry cards.

The custom jewelry card for necklace and earring are made by PP or PVC, with your own logo.

e. Eyeliner pencil.

Also can be made by your demand.

f. Automatic brake band inner baling machine.

This machine is full-automatic to save a lot of labor.

Advanced technology can ensure high efficiency.

g. Automatic foam box molding machine

The foam box molding machine is full automatic. It can be used for molding the foam box which

size is 210*135*32mm. And the thickness is 4mm.But we also could modify the machine according

to your demand to suit for the boxes with different size.
