Factory Price High Lumen Dip Pure Green Rohs LED 3mm
ultra bright pure green led diode led light source
super bright led diode mini led chip led factory
rohs led ce led china led cheap led chip pure green
Products Description
Features

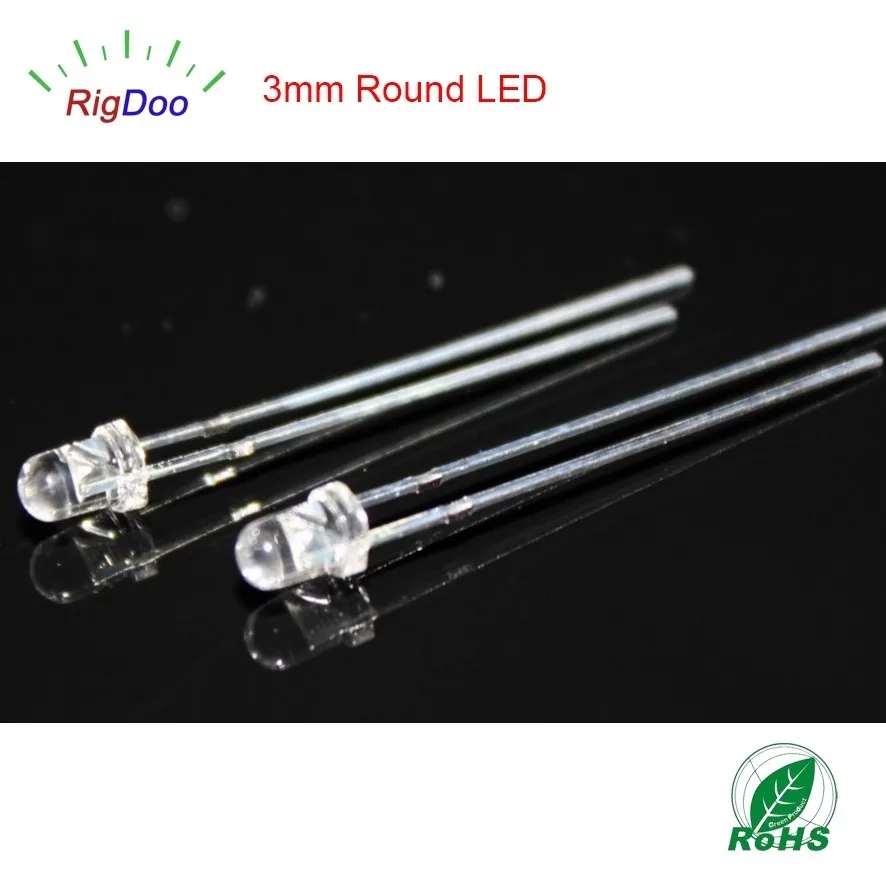

Product Name: Factory Price 3mm Dip Pure Green Rohs LED With Water Clear Lens
Package ( L/W/H ) : 3 mm Color : Ultra High Bright Prue Green Lens: Water Clear Flat Mold EIA STD Package Meet ROHS, Green Product Compatible With SMT Automatic Equipment Compatible With Infrared Reflow Solder Process

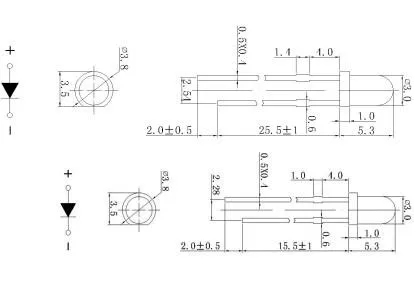

Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
75
mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
70
mA
DC Forward Current
IF
20
mA
Reverse Voltage
VR
5
v
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
IV
500
1900
mcd
IF = 20mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 20mA
Dominant Wavelength
λd
515
520
525
nm
IF=20mA
Peak Wavelength
λp
---
522
--
nm
IF=20mA
Spectral Line Half-Width
Δλ
---
20
---
nm
IF=20mA
Forward Voltage
VF
2.8
---
3.6
V
IF=20mA
Reverse Current
IR
---
---
5
uA
VR=5V
Packing
Certificates
Applications
Backlight for Indicator Board
Backlight for Automobile Meter
Backlight for Digital and Marks
Backlight for Digital，words and Marks
Indicator Application
Backlight for Keyboard and Nameplate
LED Lighting
LED Strips, LED Strings
LED Screen
