Огнеупорная плита mgo от Wellyoung

Product Overview

Description

Wellyoung MGO tile backboard is a kind of MgO board, which is a ceramic tile underlayment that is manufactured from magnesium oxide as its primary ingredient rather than portland cement. The construction of this product offers a better environmental alternative and an upgrade to replace gypsum drywall and cement underlayment boards. it is a durable, water-resistant environmentally-friendly product that is suitable for use as a tile backer on countertops and floors.



It is a interesting building material, with properties that give advantages in many construction structures. It contributes to a more efficient, profitable, environmentally and health-friendly construction production. It has excellent fire and sound properties, sensitive to moisture, very shock-resistant and produced entirely without environmentally and health-hazardous raw materials. This board is very easy to process, and can be advantageously cut and broken as a plasterboard.



Fire Resistance limit of fireproof mgo tile backboard:

9mm Wellyoung magnesium oxide (mgo) boards could be applied for  >= 120mins fireproof lightweight partition wall;

12mm Wellyoung magnesium oxide (mgo) boards could be applied for >=  180mins fireproof lightweight partition wall.

The data is for reference only. Please contact us for more details on fireproof magnesium oxide (mgo) boards in different specifications.





Comparison between mgo board, gypsum boards and cement board

Items	MgO board	Gypsum board	Plywood / OSB	Cement board
Environmentally	Yes	No	No	No
Recyclable	Yes	No	No	No
Fire Resistance/Non-combustible	Yes	No	No	Yes
Watere & Moisture Resistant	Yes	No	No	Yes
Mould & Mildew Free	Yes	No	No	Yes
Insect Resistance	Yes	No	No	Yes
Easy Cut /Saw	Yes	Yes	Yes	No
Wall paper laminate	Yes	Yes	No	No
Tile backer	Yes	No	No	Yes
Sound and Heat Insulation	Yes	No	No	Yes
Strong and Durable	Yes	No	Yes	Yes
Light weight	Yes	Yes	No	No
Fastener Strength	Excellent	Poor	Excellent	Poor

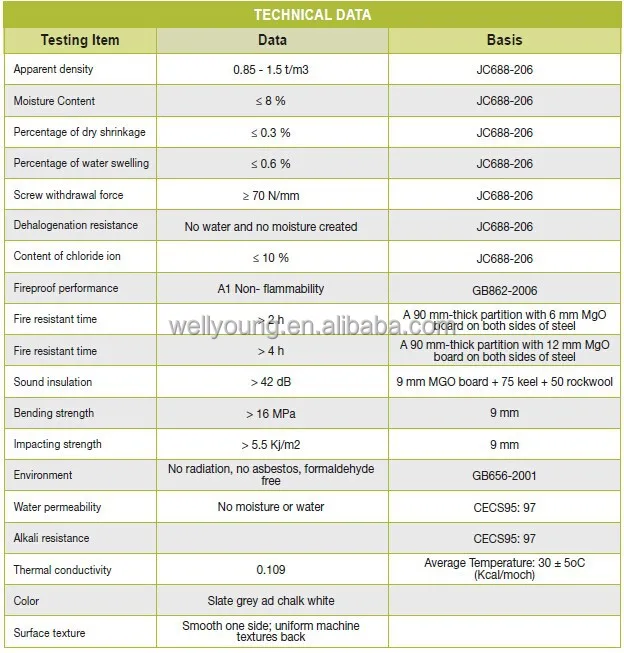

Technical data:







Benefits & Advantages:

• Non-Toxic material safe to cut


• Resistance to fire, moisture, and wood boring insects


• Lightweight – easy to nail & screw


• ASTM & ANSI tested


• Less energy required to install


• Long lasting materials – reducing repair and replacement costs


• No silica-based Portland cement


• Post-consumer recycled content


• Gypsum-Free


• Advanced Magnesium cement replaces ordinary Portland cement


• Can be used in the place of traditional drywall or cement boards. No special tools required.


• Will not warp, swell, delaminate or disintegrate when exposed to moisture


• Lifetime warranty





Specifications:

Size:  600*1250mm, 800*1200mm, 915*1525mm, others are available.
Thickness: 6mm -- 20mm

Particular size can be customized.





Applicable Testing:



- Strength – ASTM E72



- Water Vapor Transmission – ASTM E96



- Thermal Transmission – ASTM C518



- Structural Transmission – ASTM E2099



- Water Penetration – ASTM E331



- Mold/Mildew Growth – ASTM D3273



- Surface Burning – ASTM E84 Flame Spread 0

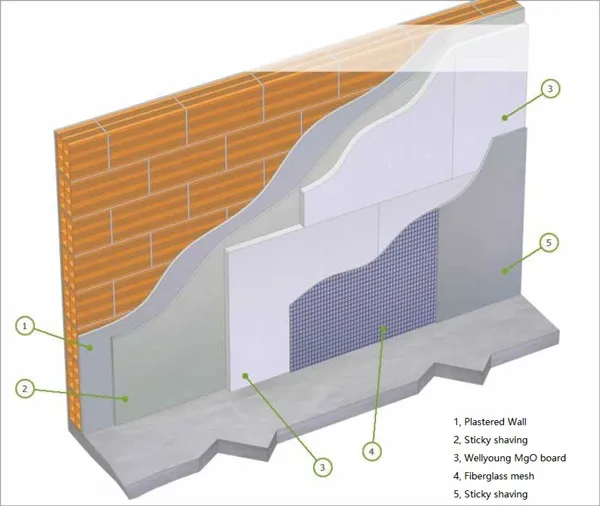

Application

It is a ideal backboard for tubs, showers, floors, kitchens, fireplace surrounds. it also can be used outside such as soffit cladding, as an exterior sheathing behind stucco applications when structural strength is not required for the exterior sheathing, as an interior or exterior skin for SIPs, in homes where breathable walls are desired, and as a mold resistant and flame rated paneling in mobile and manufactured homes.
