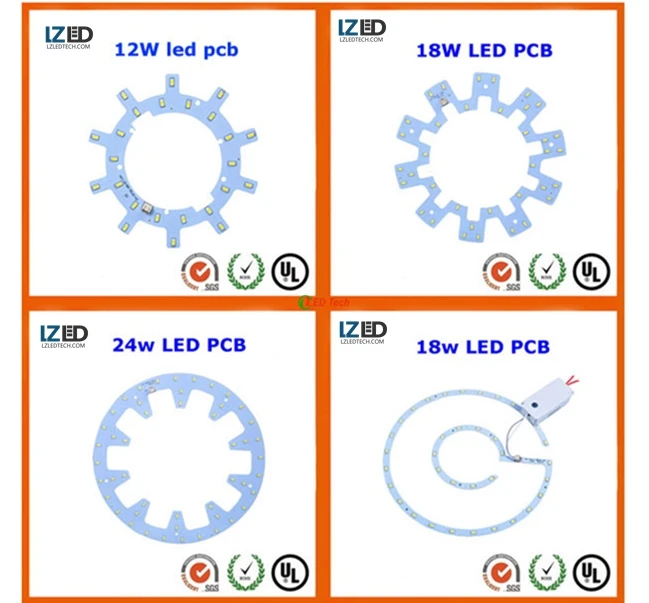

Customize 1 Layer 1.5mm Aluminum LED PCB Module / High Power Led Module

Turnkey PCBA

PCB+components sourcing+assembly+package

Assembly details

SMT and Thru-hole, ISO SMT and DIP lines

Lead Time

Prototype: 15 work days. Mass order: 20~25 work days

Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, Functional test

Quantity

Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files needed

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB Panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Component package

Cut Tape,Tube,Reels,Loose Parts

PCB assembly
process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
