UK RCD fuse spur unit fused spur unit Plastic Clad Switched Fused Spur Connection Unit

Product Overview

Description



Description:



UK RCD fuse spur unit fused spur unit Plastic Clad Switched Fused Spur Connection Unit

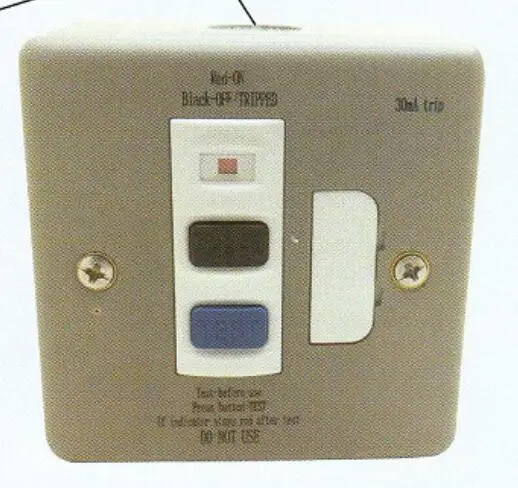

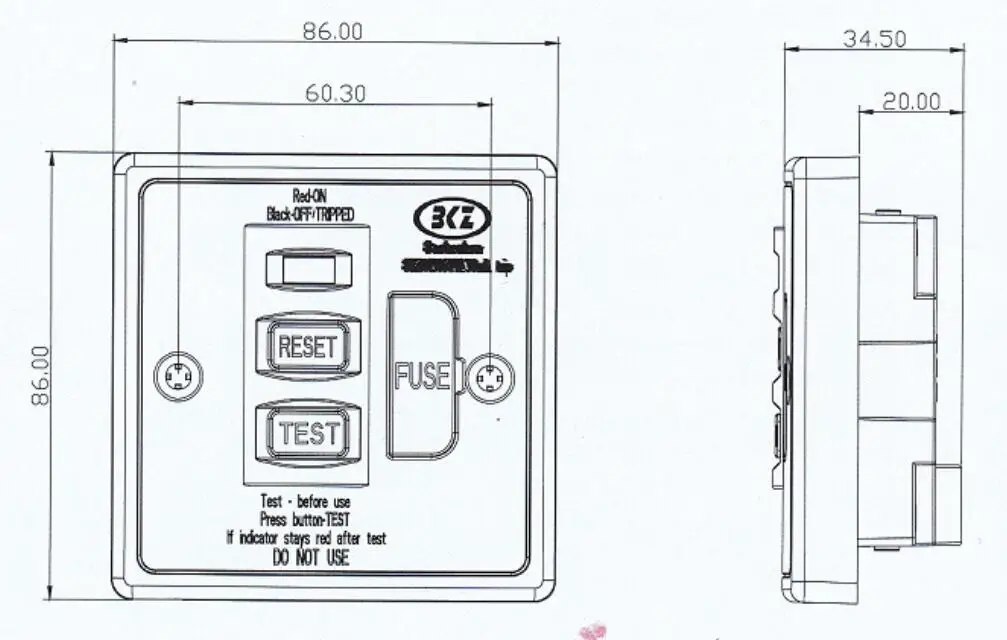

Reference pictures:

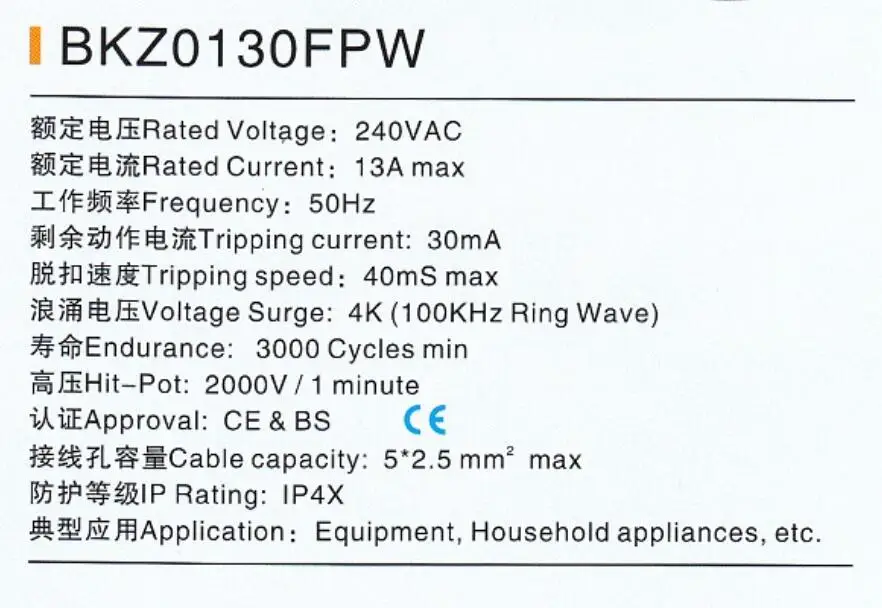

Spification data sheet:



Model Number: BKZ0130FPW Rated current: 13A max Frequency: 50Hz Tripping current: 30mA Tripping speed: 40mS max Voltage surge: 4K(100KHz Ring Wave) Endurance: 3000 Cycles min Hit-Pot: 2000V / 1 minute Approval: CE & BS Cable capacity: 5*2.5 mm sq max IP Rating: IP4X Application: Equipment, Household appliances, etc.





WHAT IS RCD Socket & Plug?

A residual-current device (RCD), or residual-current circuit breaker (RCCB), is a device that instantly breaks an electric circuit to prevent serious harm from an ongoing electric shock. Injury may still occur in some cases, for example if a human falls after receiving a shock. In the United States and Canada, the device is more commonly known as a ground fault circuit interrupter (GFCI), ground fault interrupter (GFI) or an appliance leakage current interrupter (ALCI). In the United Kingdom, these are better known by their initials RCD, and a combined RCD+MCB (miniature circuit breaker) is known as a RCBO (residual-current circuit breaker with overcurrent protection). In Australia, they are sometimes known as safety switches or an RCD. An earth leakage circuit breaker (ELCB) may be a residual-current device, although an older type of voltage-operated earth leakage circuit breaker also exists.

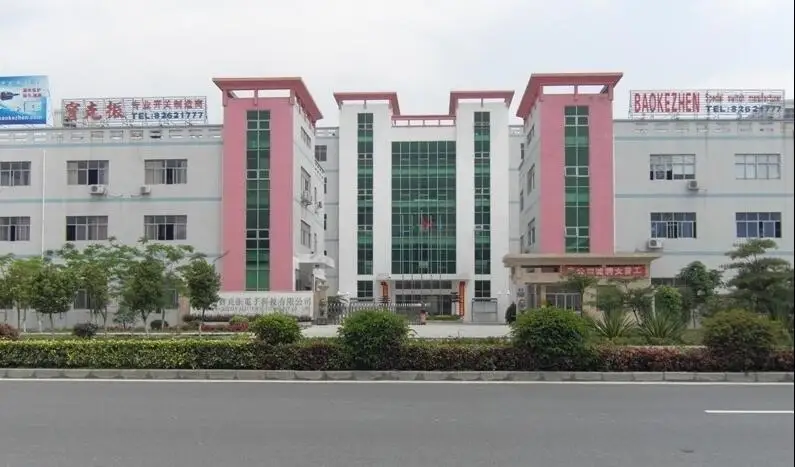

OUR COMPANY:

Dongguan Baokezhen Electric Tech Co.,Ltd. & Dongguan Baogang Appliance Tech Co.,Ltd. is a leading manufacturer and exporeter in China on RCD Socket & Plug, Appliance Switches. Our factory started in

1987, cover an area of more than 30,000 square meters, with 20 R&D Engineers and 300 skilled workers,

we are pround to work with many famous brands on the worldwide!
