CW62160Mx5000 heavy duty lathe machine


( 6000kgs load between 2 centers, DRO optional)




Brief Introduction



  • Compound sliding plate is provided, so parts in taper can be turned;

  • Standard spindle head: A2-15, spindle bore: 130mm

  • Headstock contains hydraulic clutch and hydraulic brake

  • Guide rail width:750mm

  • Largest load capacity between 2 core clamper (with steady rest): up to 5000kg

  • Order notice must be specified with: condition of installed taper imitated shape device

  • Guide rail hardness:HRC50, Depth1.5mm

  • Only provide left-hand wheel

  • Vertical and horizontal rapid shift handle for slide board boxes

  • Tailstock sleeve with a dividing rule should be specially annotated.





Main Technical Data







































































































Specifications



Unit



Parameter



Swing over Bed



mm



1600



Max length of work piece



mm



6000



Swing in Gap



mm



1650



Width of Gap



mm



600



Width of Guide way



mm



755



No. of Spindle Speed Ranges







21



Spindle Speed



mm/min



3.15~315



Spindle Bore



mm



130


100/160 OPT.



Spindle Nose







D13



Longitudinal Feed



mm/rev



0.1~12



Cross Feed



mm/rev



0.05~6



Metric Thread



mm



1~120



Module Thread



mm



0.5~60



Whitworth Thread



TPI



28~1/4



Diametrical Thread



DP



1/2~56



Max. Travel of Top Slide



mm



300



Main Motor Power



kW



22/30 opt.



Net weight



kg



16100








Free Std Accessories























































S.N



Name



Size



Note



1



4 Jaw chuck




For CW61125M lathe machine



2



Steady rest




For CW61125M  lathe machine



3



Follow rest




For CW61125M  lathe machine



4



Oil gun



Yes







5



Anchor bolt



Yes







6



Activity center



Yes







7



Wrench Tool



Yes







Main Usage


1. I.D. & O.D. cylindrical turning,


2. end face turning,


3. I.D. & O.D. cone turning,


4. grooving,


5. threading;

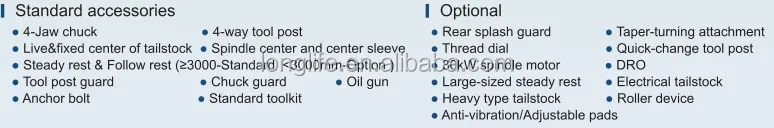

Optional Accessories


 Pls send inquiry to me for optioanl accessories and other further information about such heavy duty lathe machines.


heavy duty lathe.jpg

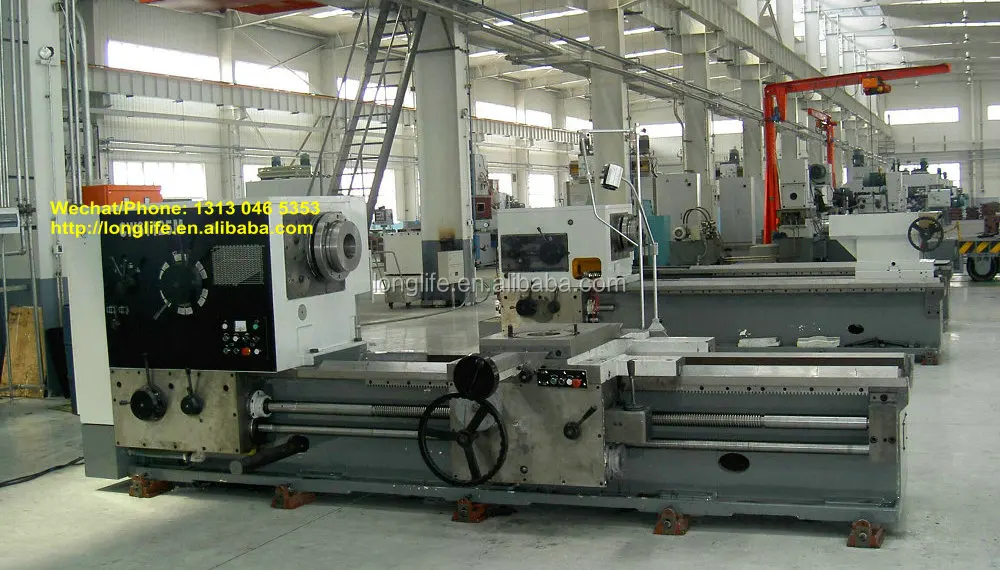

Workshop Production:

heavy duty lathe (3).jpg

heavy duty lathe (2).jpg
