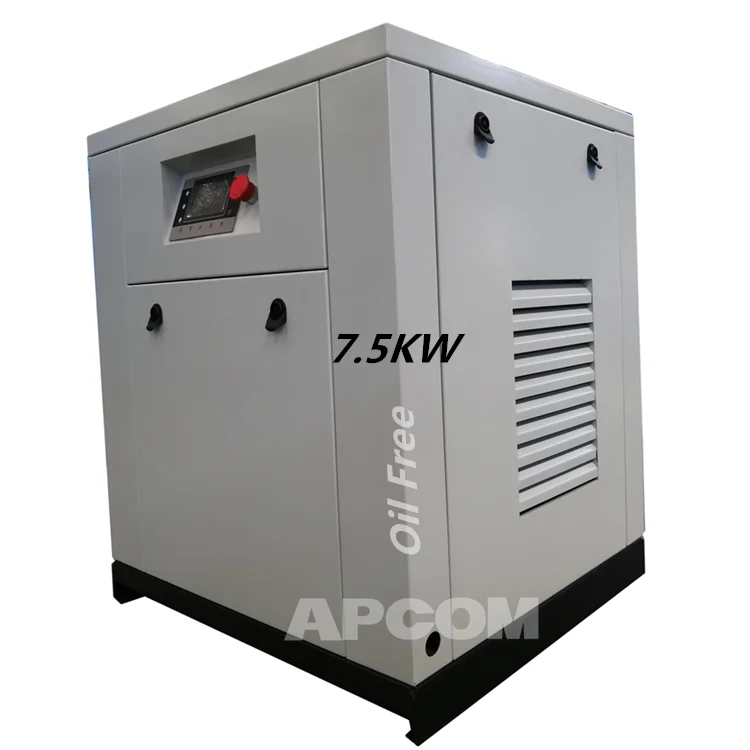

APCOM Low Noise 7.5kw 10hp Aircompressors 7.5 KW 10 HP 28 CFM Scroll Oil Free Air Compressor Air Compressor
- Category: Industrial Compressors & Parts >>>
- Supplier: Shanghai APCOM Compressor Machine Co. Ltd.
Share on (60727616654):
Product Overview
Description
Product

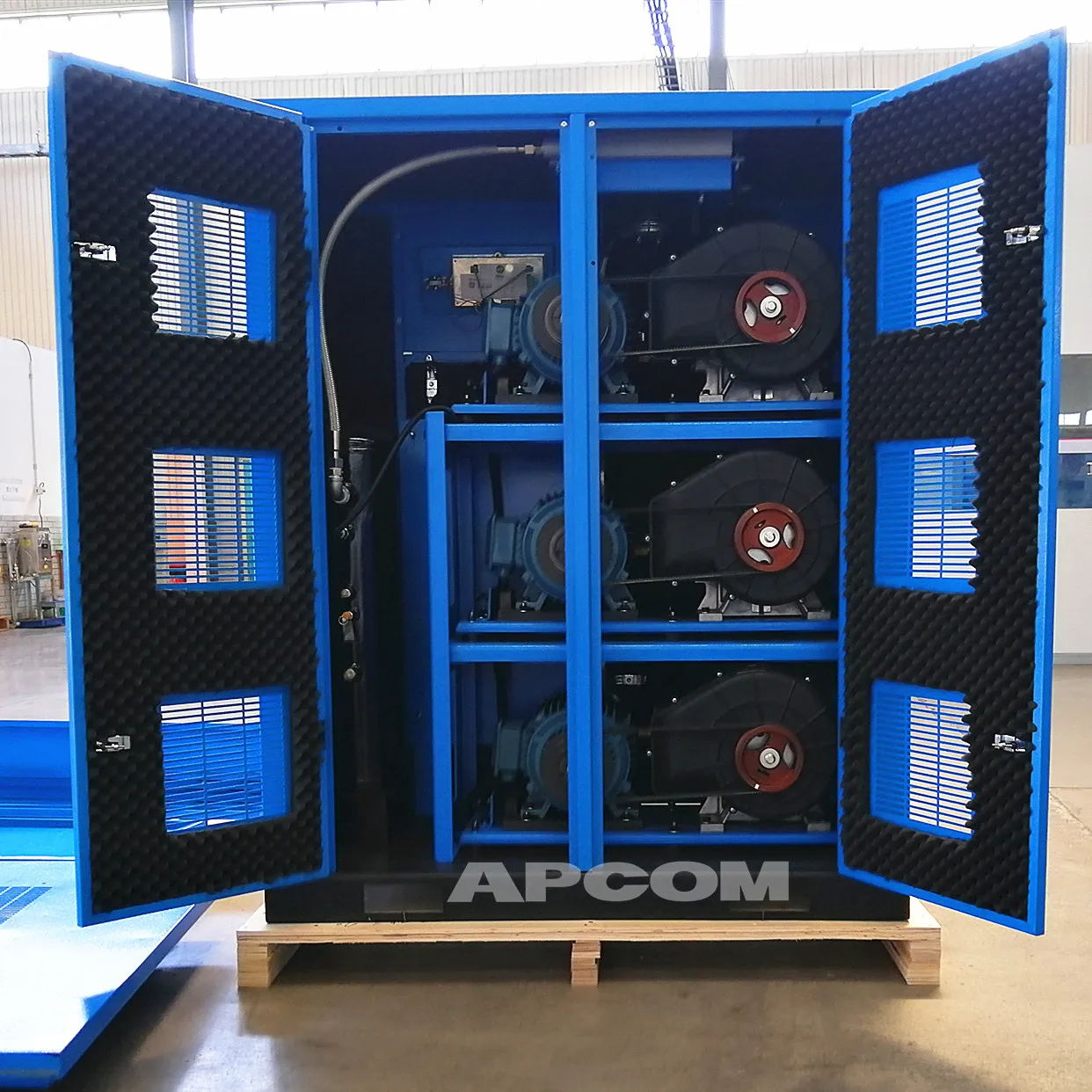

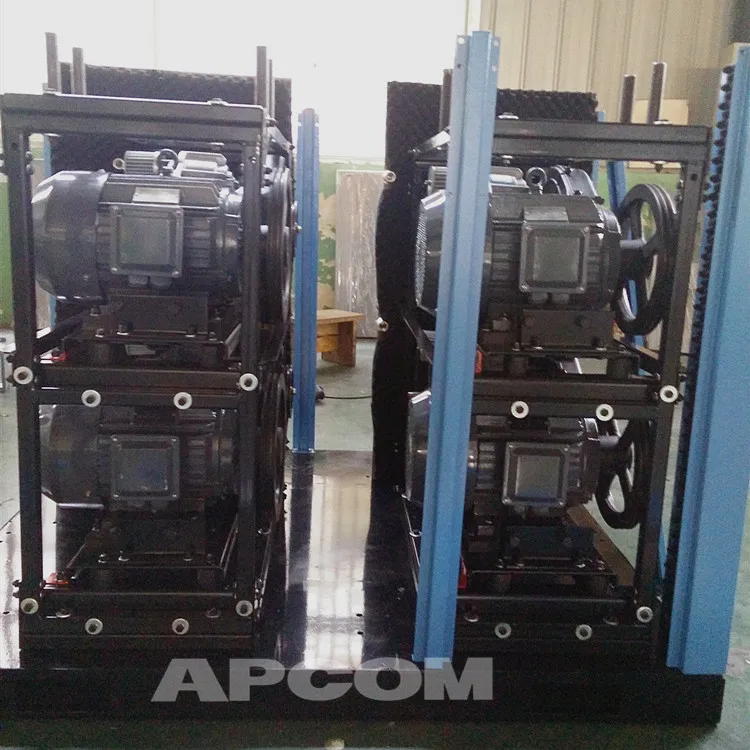

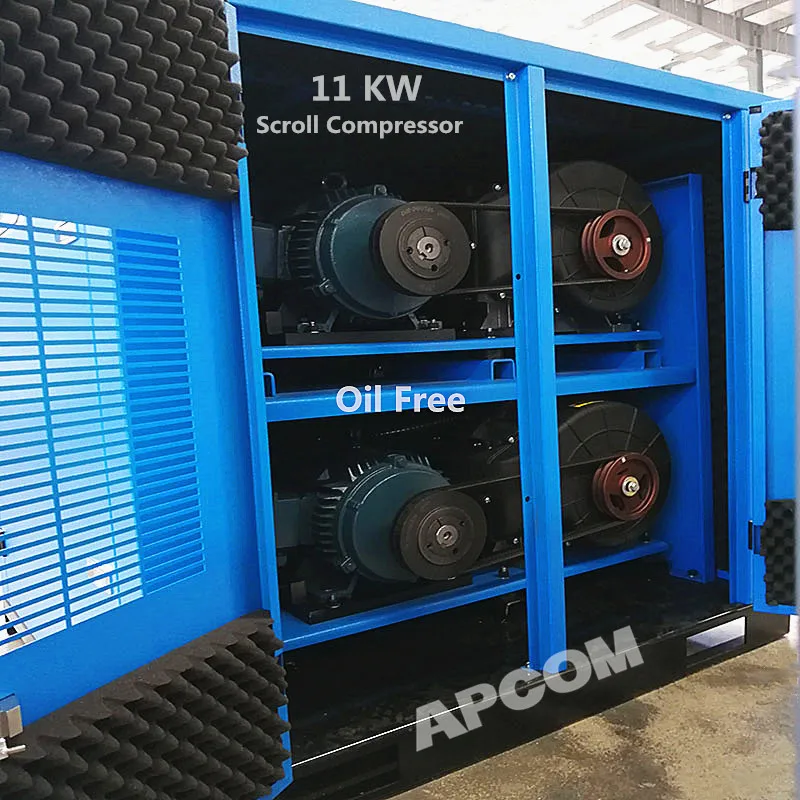

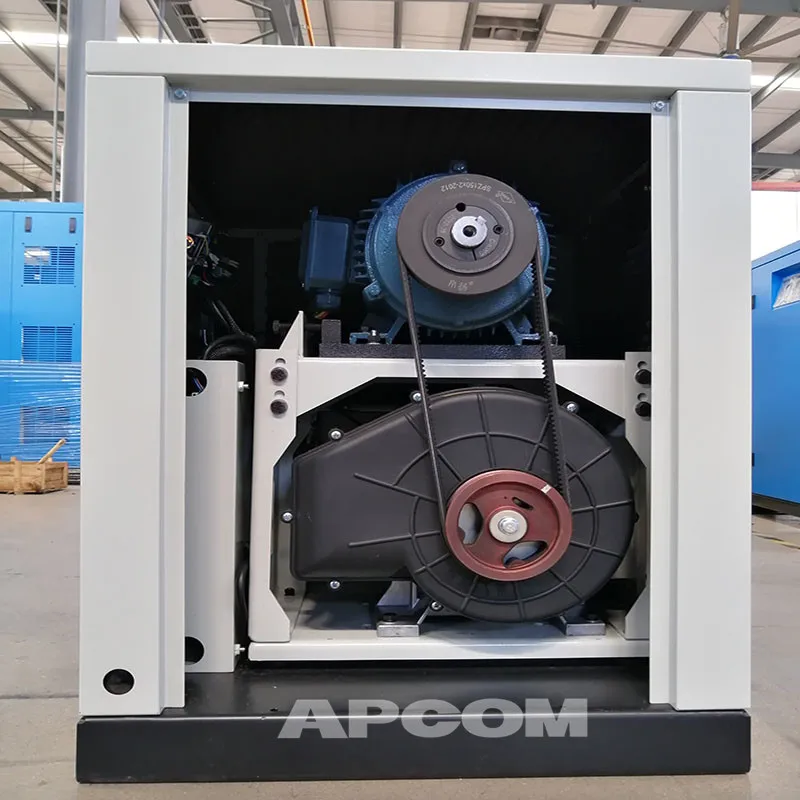

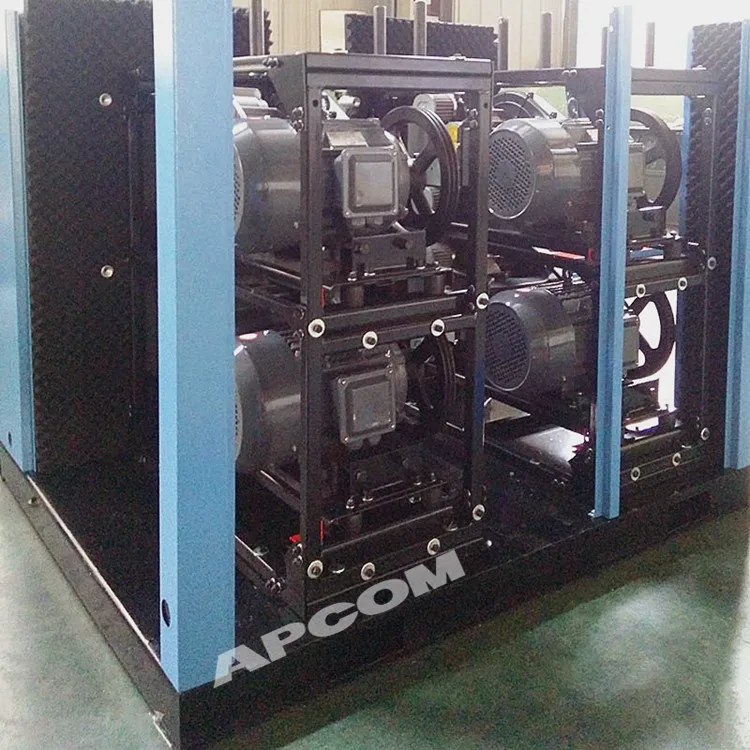

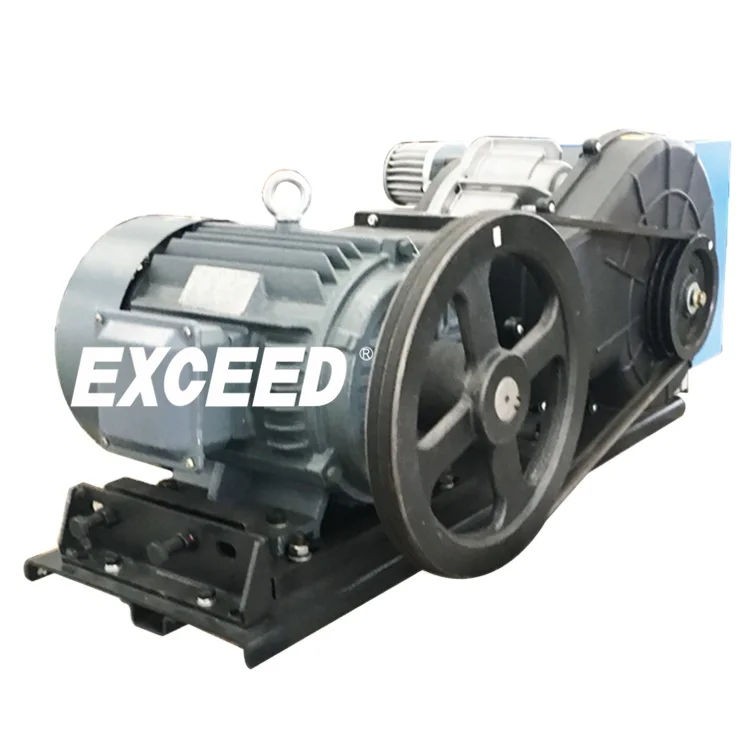

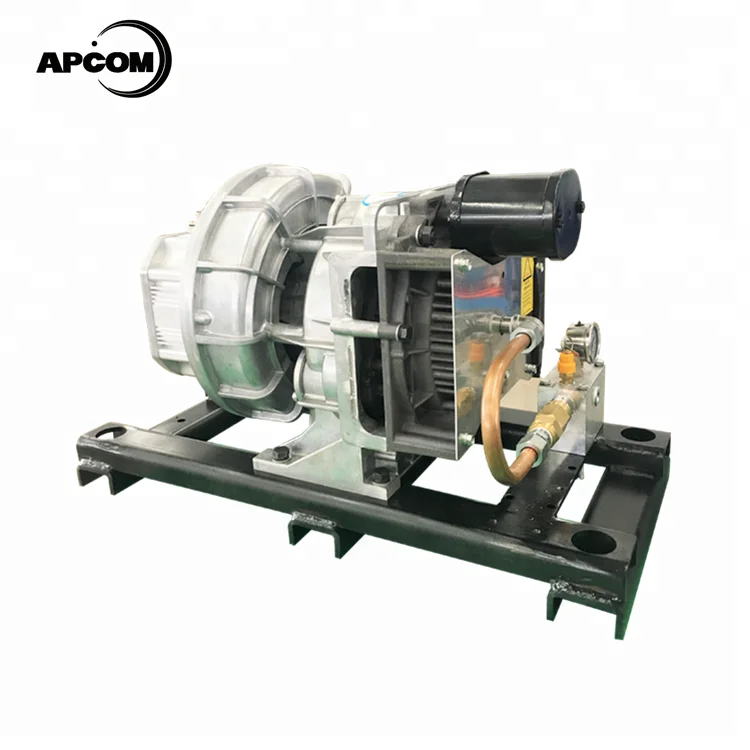

Scroll heads and moter
The gas from the suction chamber is gradually compressed by the later crescent compression chamber, and then the exhaust outlet at the center of the static disk is discharged. Features: low noise; excellent durability; cost saving; high reliability.

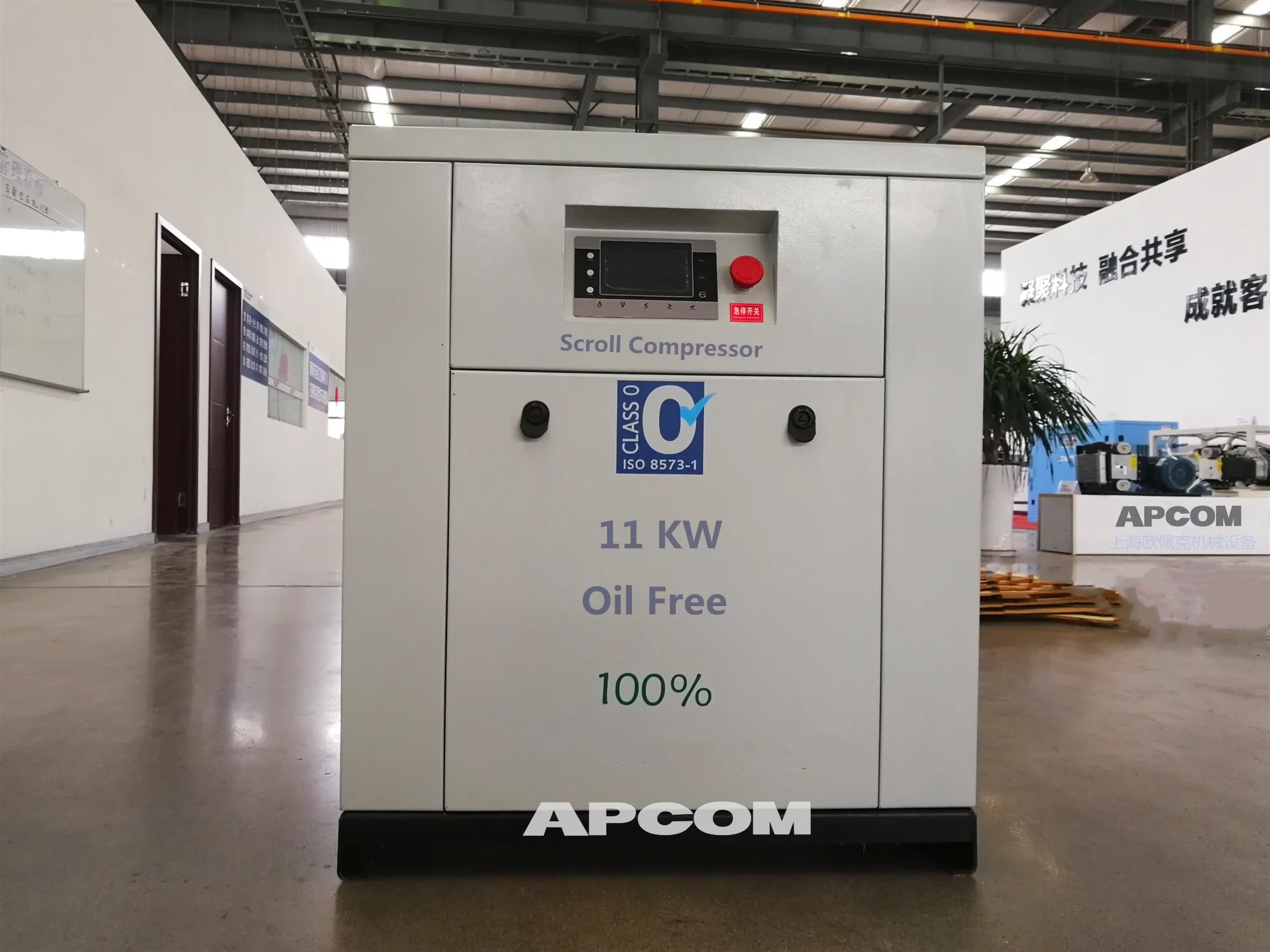

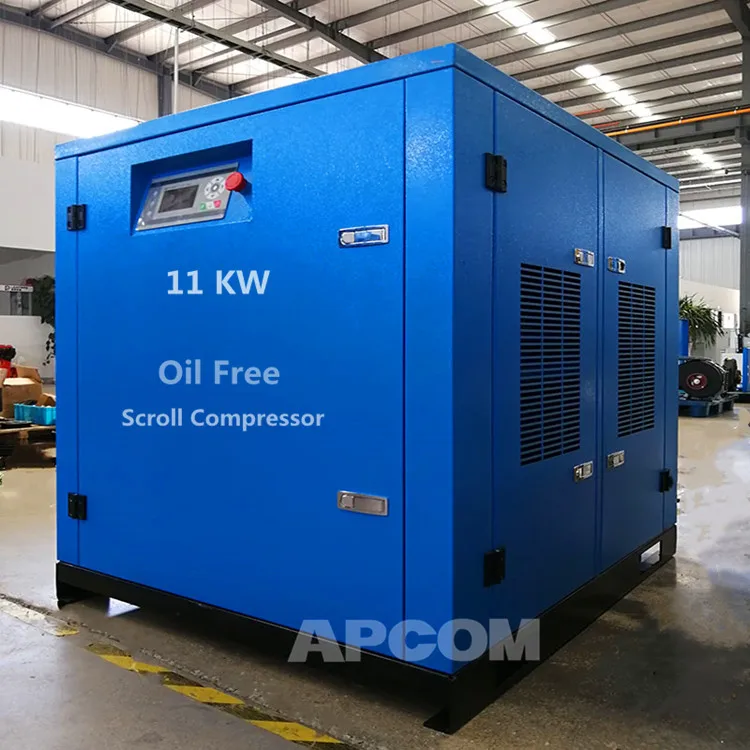

Power:5.5kw*2=11kw
Capacity :1200 L/min 42CFM
Pressure:0.8Mpa
Product Introduction
NO. | Model →Click | Power/0.8Mpa | Capacity (L/minCFM) | Size(L*W*H) cm | N.W. |
1 | HD-D04/08 | 4.0 KW/5.0 HP | 500 L/min 18 CFM | 72*76*112CM | 245KG |
1 | 5.5 KW/7.5 HP | 600 L/min 21 CFM | 72*76*112cm | 250KG | |
2 | HD-D07/08 | 7.5 KW/10 HP | 800 L/min 28 CFM | 72*76*112cm | 275KG |
2 | 5.5kw*2=11.0kw | 1200 L/min 42 CFM | 125*76*112cm | 440KG | |

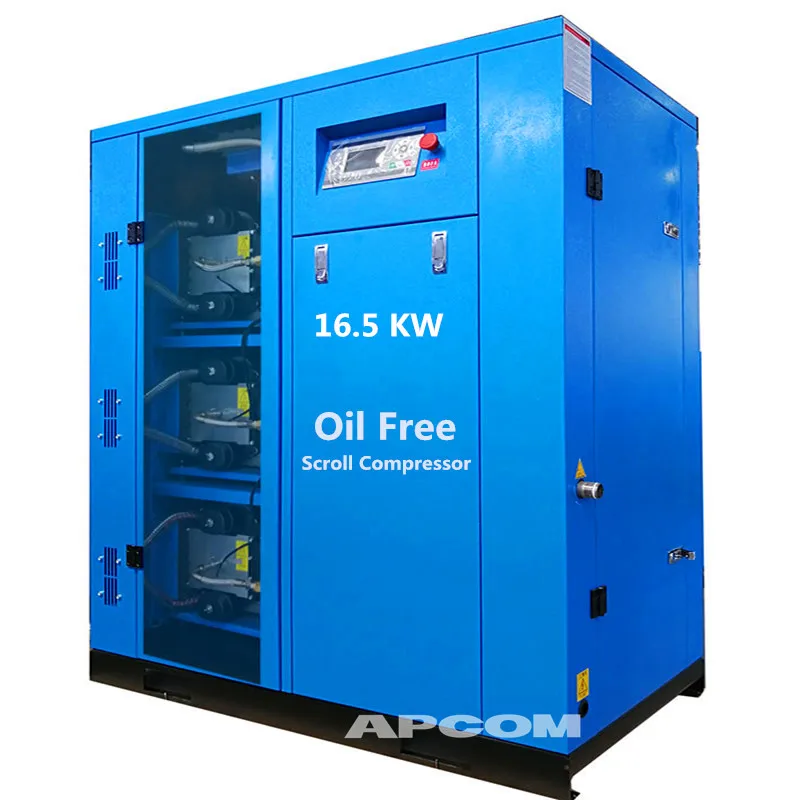

3 | 5.5kw*3=16.5kw | 1800 L/min 63 CFM | 125*76*156cm | 630KG | |

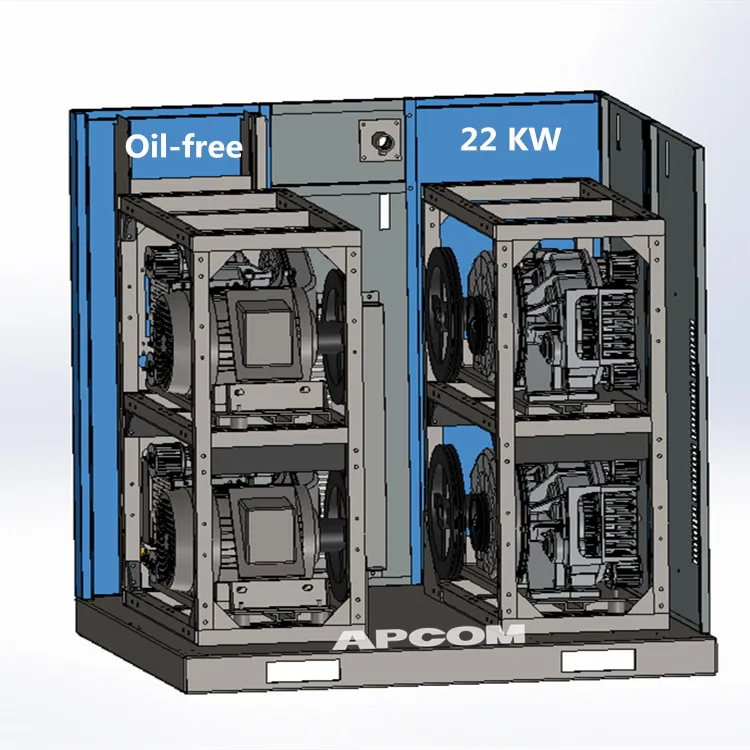

4 | 5.5kw*4=22.0kw | 2400 L/min 84 CFM | 125*136*112cm | 820KG | |
6 | HD-D36/08 | 5.5kw*6=33.0kw | 3600 L/min 126 CFM | 125*136*156cm | 1200KG |
8 | HD-D48/08 | 5.5kw*8=44.0kw | 4800 L/min 168 CFM | 125*136*178cm | 1590KG |
10 | HD-D60/08 | 5.5kw*10=55.0kw | 6000 L/min 210 CFM | 125*136*178cm | 1790KG |

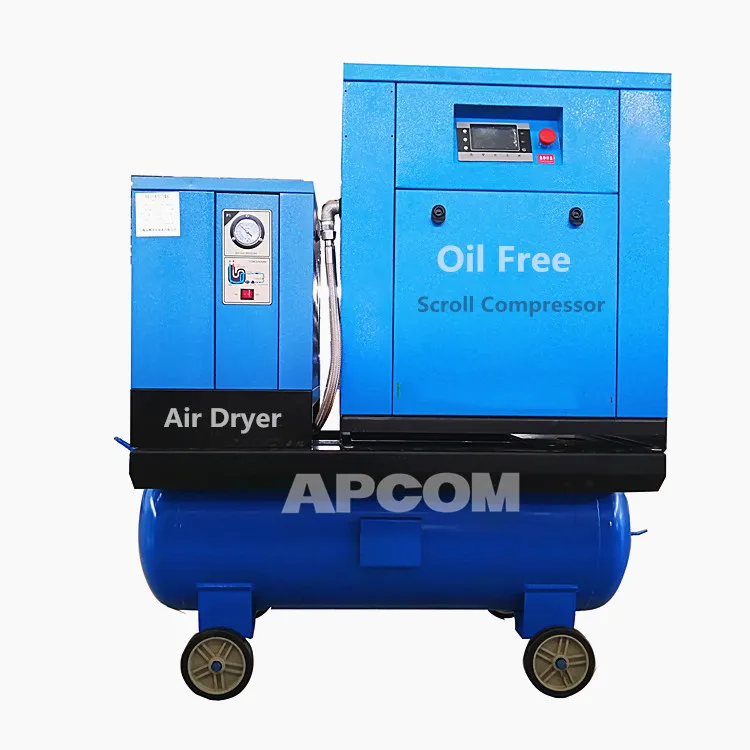

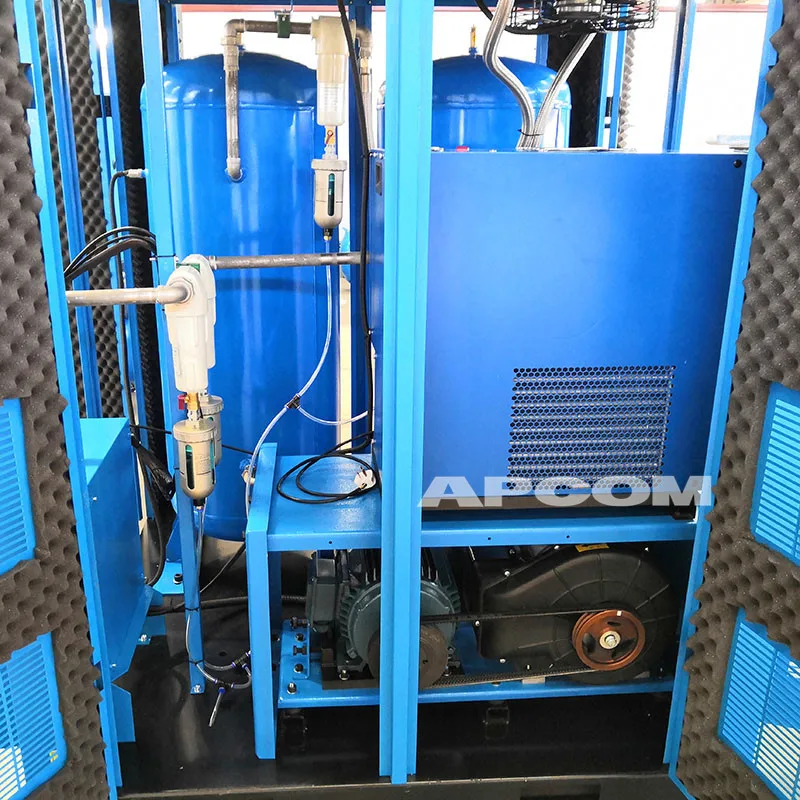

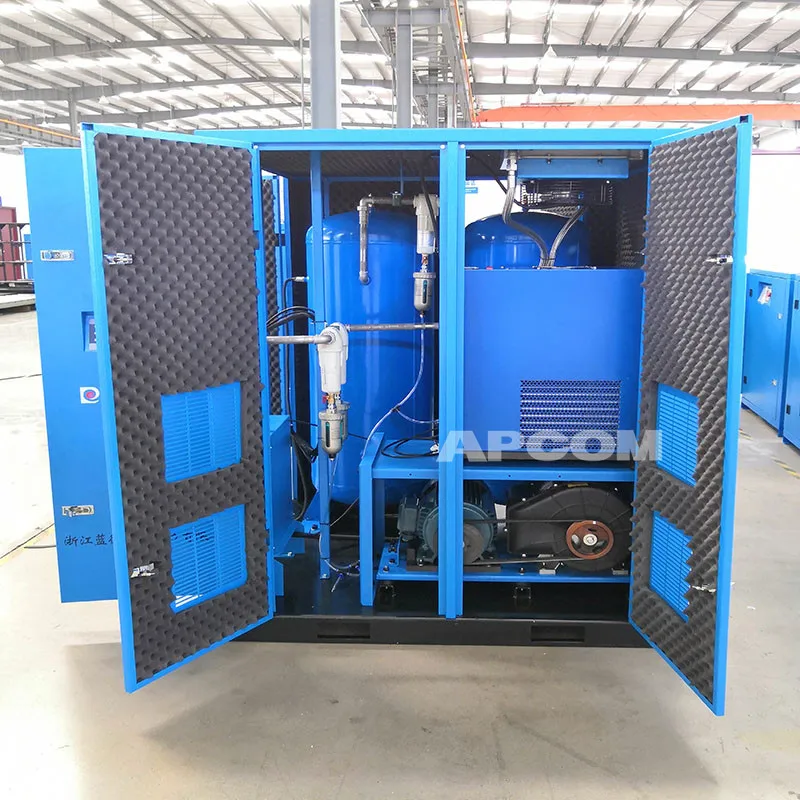

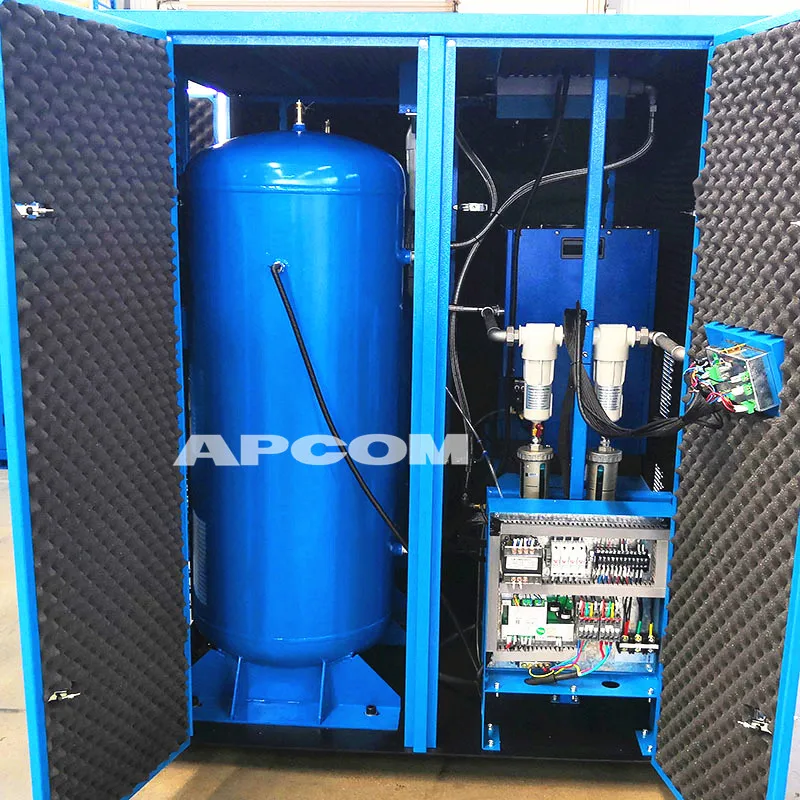

Intergated Scroll Compressor With dryer & Filter
All-in-one - Combined Scroll Compressor
