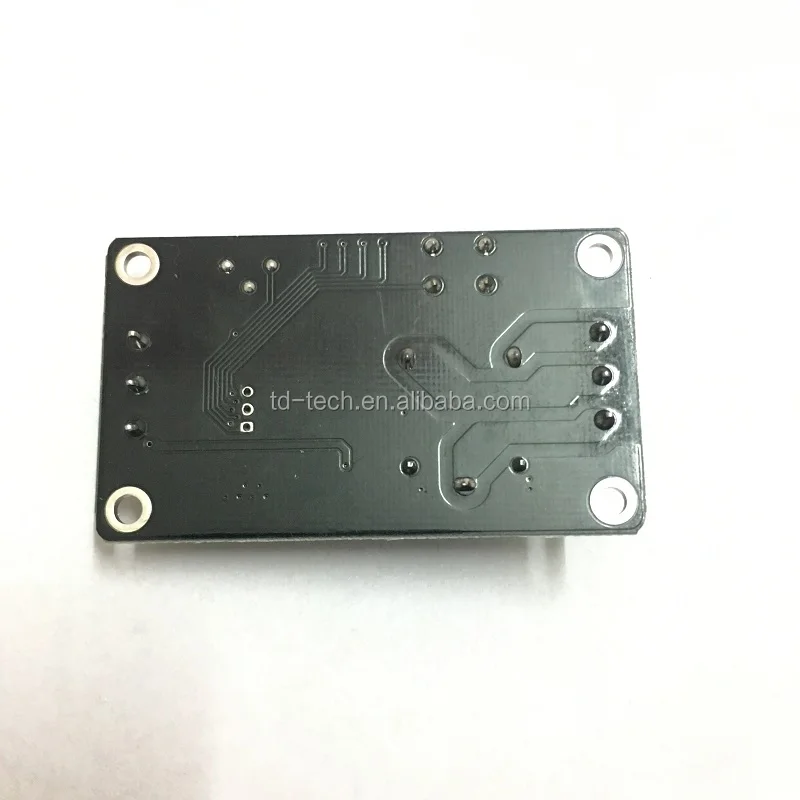

Taidacent 0.1 120S 5V 12V 24V 555 Timer Delay Self locking Trigger Relay Module
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60727639096):
Product Overview
Description
Taidacent 0.1-120S 5V 12V 24V 555 Timer Delay Self-locking Trigger Relay Module
1. With delay pull-in, delay disconnection, self-locking and trigger delay functions;
2. Equipped with the function of anti-reverse power connection, the module will not be damaged if the power is connected reversely;
3. There are three working voltage versions of 5V/12V/24V for users to choose;
4. Timing duration can be set arbitrarily between 0.1 second and 120 seconds;
5. The parameters can be saved, and the setting content will not be lost after power off.
2. Equipped with the function of anti-reverse power connection, the module will not be damaged if the power is connected reversely;
3. There are three working voltage versions of 5V/12V/24V for users to choose;
4. Timing duration can be set arbitrarily between 0.1 second and 120 seconds;
5. The parameters can be saved, and the setting content will not be lost after power off.
Parameter
Working voltage: DC 5V, 12V, 24V three options (should not exceed +/-10% of the nominal voltage)
Working current: less than 80mA at 5V (less than 1mA when the relay is not operating)
Less than 35mA at 12V (less than 1mA when the relay is not operating)
Less than 18mA at 24V (less than 1mA when the relay is not operating)
Working temperature: recommended -20℃—60℃ (limit range -30℃—70℃)
Load capacity: relay normally open port load capacity: DC 0-30V/10A, AC 0-250V/10A
Load capacity of relay normally closed port: DC 0-28V/10A, AC 0-125V/10A
Working current: less than 80mA at 5V (less than 1mA when the relay is not operating)
Less than 35mA at 12V (less than 1mA when the relay is not operating)
Less than 18mA at 24V (less than 1mA when the relay is not operating)
Working temperature: recommended -20℃—60℃ (limit range -30℃—70℃)
Load capacity: relay normally open port load capacity: DC 0-30V/10A, AC 0-250V/10A
Load capacity of relay normally closed port: DC 0-28V/10A, AC 0-125V/10A
Function
Function F1:
Power-on delayed pull-in: After a delay of T1 time from power-on, the relay pulls in, and a high-level pulse signal is given to the X1 interface at any time, this function resets and restarts operation;
Function F2:
Power-on delay disconnection: When power-on, the relay is closed, and after T1 is closed, the relay is disconnected, and a high-level pulse signal is given to the X1 interface at any time, this function resets and restarts operation;
Function F3:
Self-locking relay mode: Give a high-level pulse signal to the X1 interface of the relay, the relay will be closed, and then a high-level pulse signal will be turned off.
Function F4:
Level trigger mode: When the power is turned on, the relay is disconnected. Give a high level signal to the X1 interface. The relay will be closed immediately. After the X1 port signal disappears, the relay will still be closed. When the pull-in time T1 is reached, the relay will be disconnected.
Power-on delayed pull-in: After a delay of T1 time from power-on, the relay pulls in, and a high-level pulse signal is given to the X1 interface at any time, this function resets and restarts operation;
Function F2:
Power-on delay disconnection: When power-on, the relay is closed, and after T1 is closed, the relay is disconnected, and a high-level pulse signal is given to the X1 interface at any time, this function resets and restarts operation;
Function F3:
Self-locking relay mode: Give a high-level pulse signal to the X1 interface of the relay, the relay will be closed, and then a high-level pulse signal will be turned off.
Function F4:
Level trigger mode: When the power is turned on, the relay is disconnected. Give a high level signal to the X1 interface. The relay will be closed immediately. After the X1 port signal disappears, the relay will still be closed. When the pull-in time T1 is reached, the relay will be disconnected.

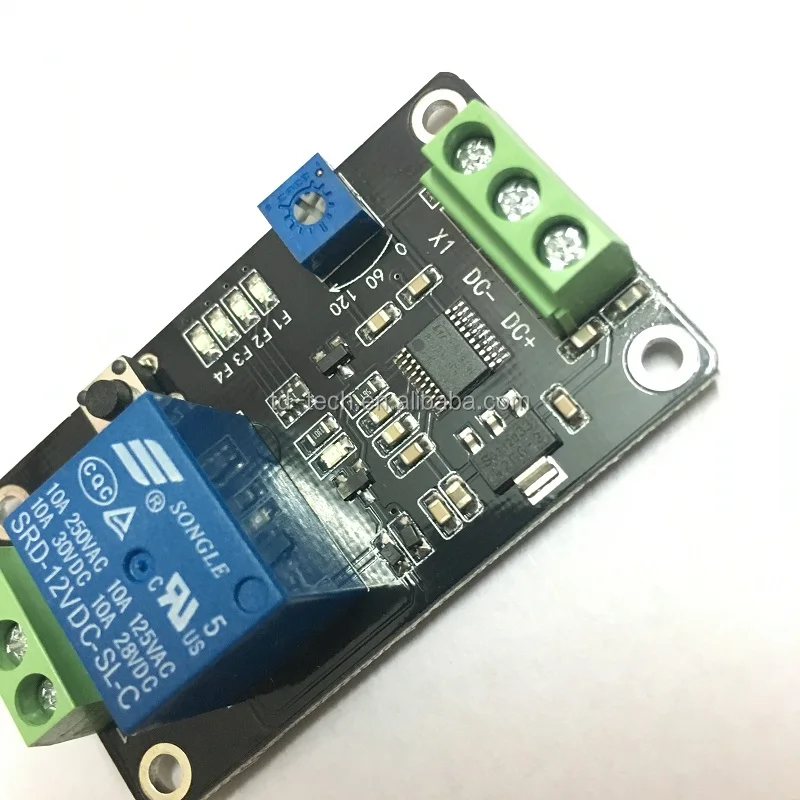

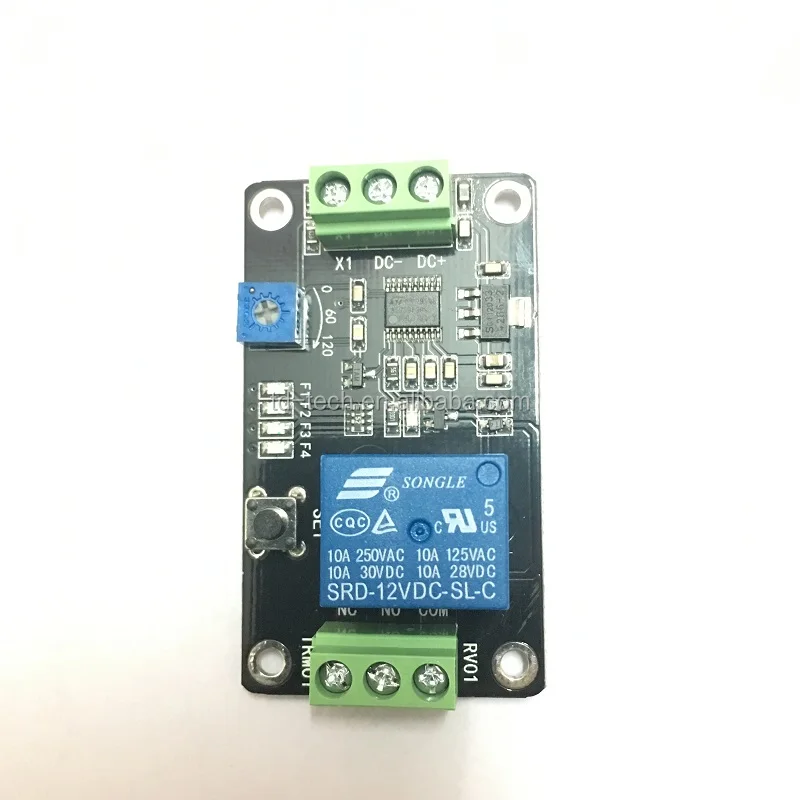

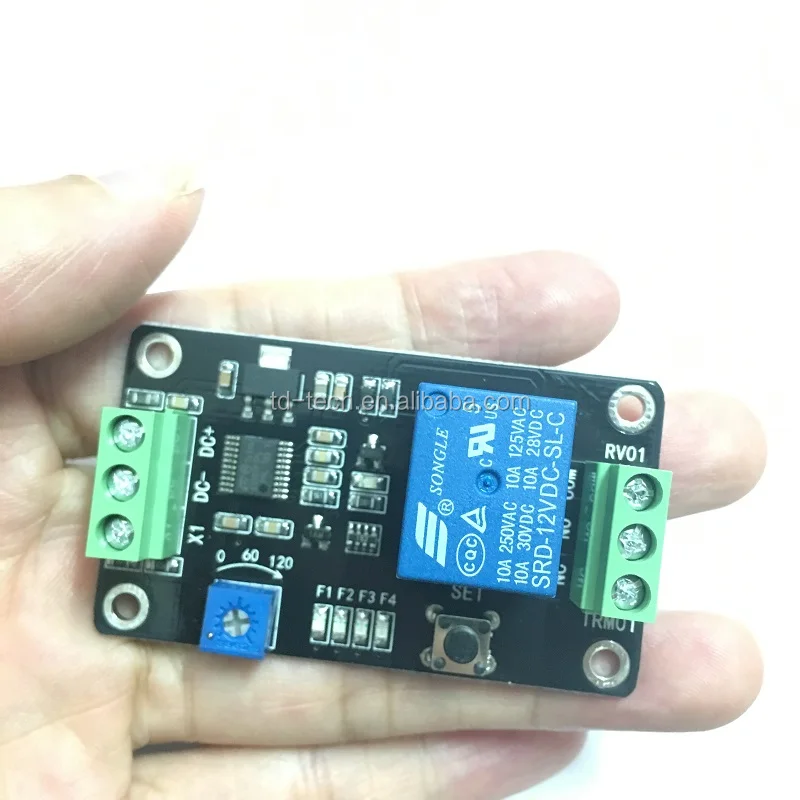

Interface
Module voltage/signal input terminal: There is a 3-wire interface, all interfaces have wiring terminals, which is convenient for users to use
1. DC+: DC power supply positive
2. DC-: negative pole of DC power supply
3. X1: Input signal detection interface
Relay load output terminal: there is a 3-wire interface, all interfaces have wiring terminals
1. COM: relay common interface
2. NO: Relay normally open interface, the relay is suspended before being closed, and shorted to COM after being closed
3. NC: Relay normally closed interface, short-circuit with COM before the relay is closed, and hang in the air after being closed
1. DC+: DC power supply positive
2. DC-: negative pole of DC power supply
3. X1: Input signal detection interface
Relay load output terminal: there is a 3-wire interface, all interfaces have wiring terminals
1. COM: relay common interface
2. NO: Relay normally open interface, the relay is suspended before being closed, and shorted to COM after being closed
3. NC: Relay normally closed interface, short-circuit with COM before the relay is closed, and hang in the air after being closed
Size

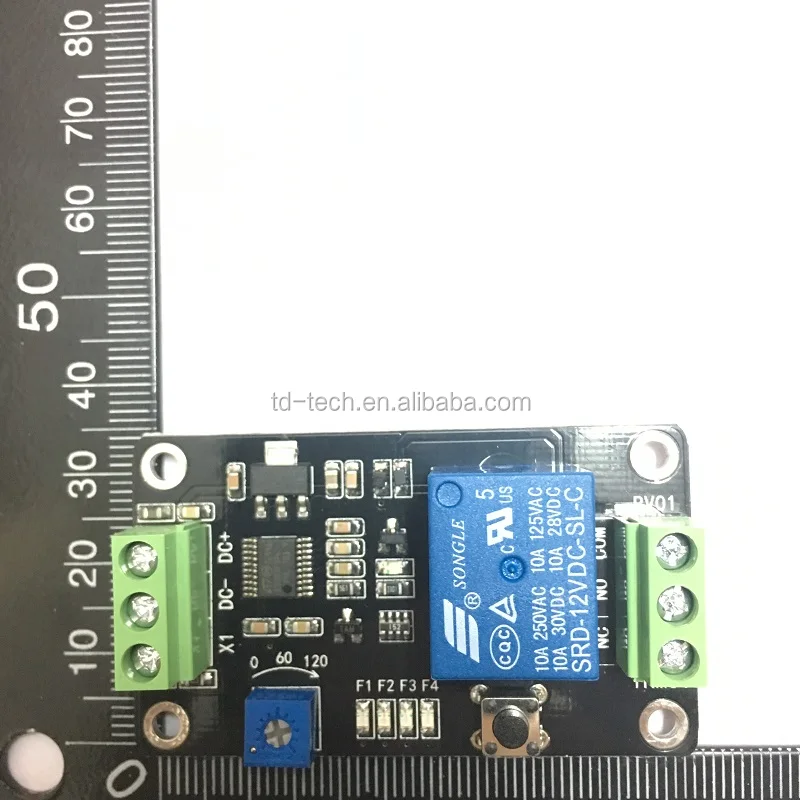

Dimensions: 60mm*35mm*20mm
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Model Number | TRM01 |
Usage | Timer Switch |
Type | Mini |
Voltage | 5V 12V 24V |
Packing & Delivery
Standard Box Package
