Good performance cast iron crusher machine

Product Overview

Description

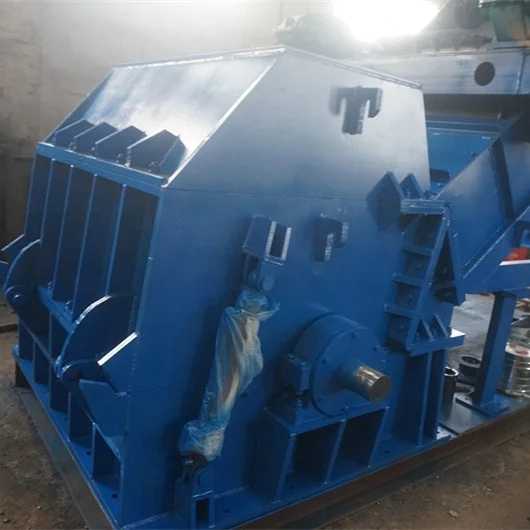

Cast iron crusher machine





Introduction of cast iron crusher machine



Cast iron crusher machine is one energy saving and environment-friendly crusher machine,mainly used for crushing waste metal,car shells,bicycle and motorcyles,etc.According to the user's requirements,the material is deformed and split into fine particles through the external force of the machine.The final product after crushed are chippings or uniform balls shape granule,which are easy to transport and steel making.



Main technical information for cast iron crusher machine



Model	HY-1300	HY-1600	HY-1800	HY-2000	HY-2400
Shell thickness	40mm	40mm	50mm	55mm	60mm
Sleeve thickness	30mm	30mm	40mm	40mm	50mm
Disc plate	Dia:800 thickness:10mm	Dia:1100 thickness:10mm	Dia:1200 thickness:100mm	Dia:1400 thickness:120mm	Dia:1800 thickness:150mm
Screen plate	Thickness:80mm hole dia:50-100mm	Thickness:110mm hole dia:50-100mm	Thickness:140mm hole dia:50-100mm	Thickness:160mm hole dia:50-100mm	Thickness:180mm hole dia:50-100mm
Hammer	Cr-alloy,38kg	Cr-alloy,45kg	Cr-alloy,55kg	Cr-alloy,75kg	Cr-alloy,90kg
Rotary axis	Dia:230mm,Cr42	Dia:260mm,Cr42	Dia:320mm,Cr42	Dia:360mm,Cr42	Dia:360mm,Cr42
Whole set power	250kw	400kw	530kw	650kw	1000kw
whole weight	23tons	32tons	60tons	80tons	120tons





Features of cast iron crusher machine



1.Waste metal is one regenerated resources, cast iron crusher machine can crush metal to small piece and then melt down steel making

2.High efficiency and stable working performace

3.When mixed with other scrap steel,comminuted steel can fill the gap and increase the feeding density

4.It has Hard Torsional Flex, high output, no manic sound, and wear-resistant

5.The natural depletion is very low and the utilization rate is very high

6.Low noise,no pollution,easy to operate and maintenance.



Raw materials of cast iron crusher machine



Internal metal breakage of motorcycles,cars,electric cars and so on.

Also can use bicycles,waste metal,aluminum alloy,color steel plate,metal parts,etc.

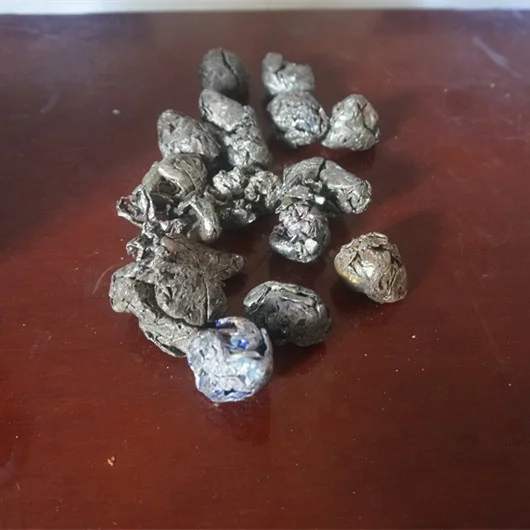

Final pellets of cast iron crusher machine



The final steel can be 2-8cm,screen mesh 5-10cm



Main accessories of Cast iron crusher machine



In this machine,the hammer and disc plate is spare parts

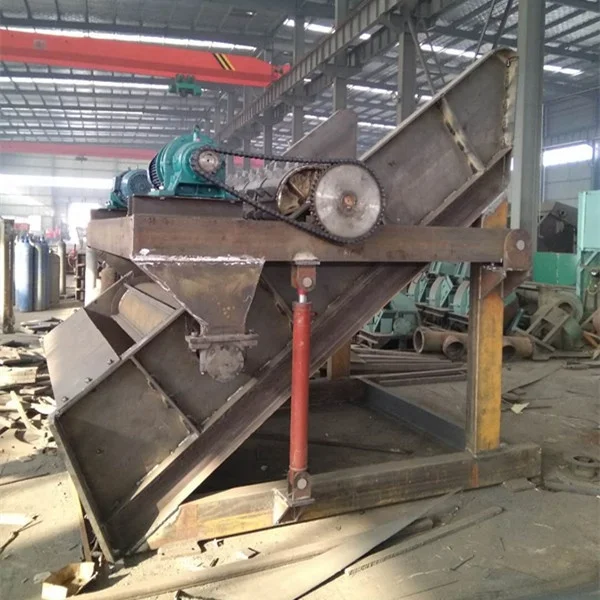

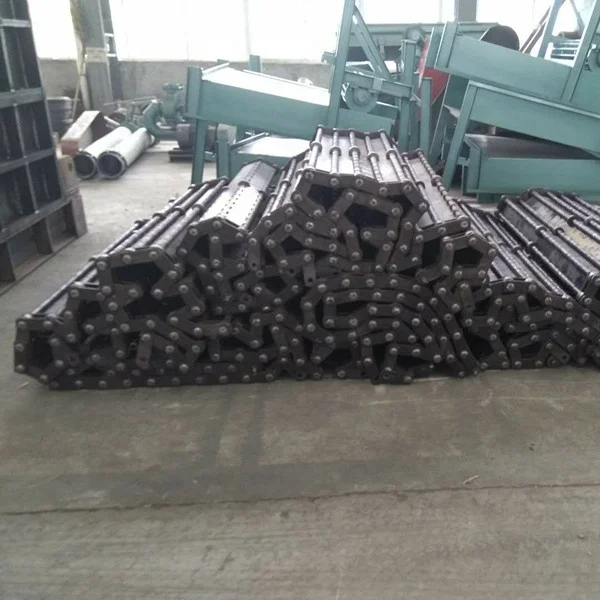

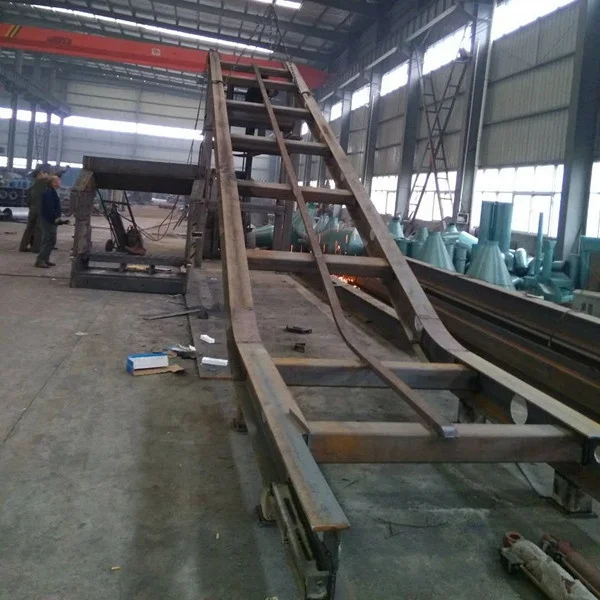

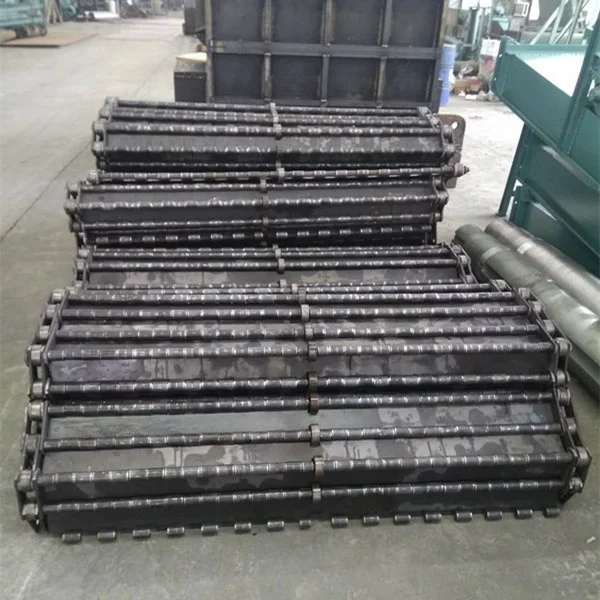

Semi-finished products of cast iron crusher machine







Welcome to visit our factory if you are interested in this cast iron crusher machine.
