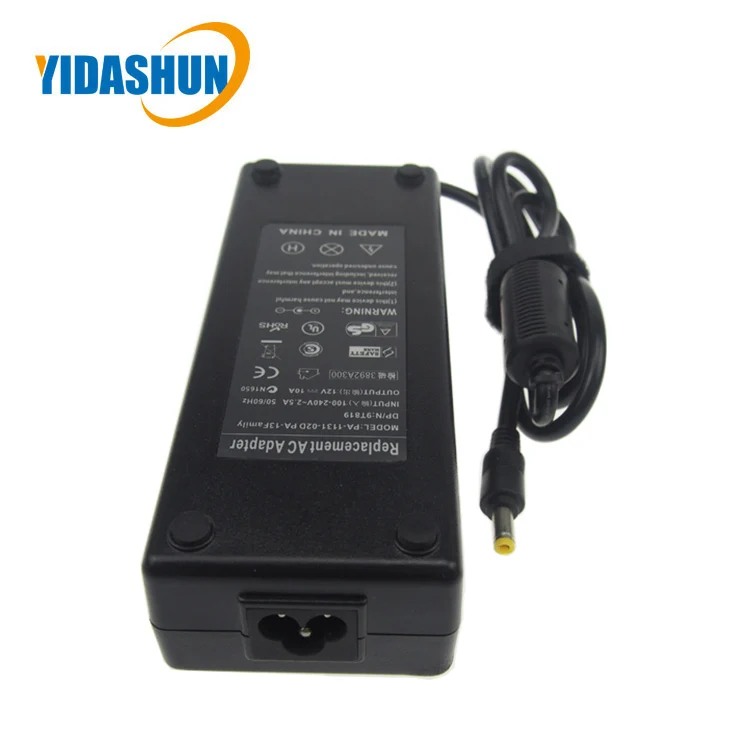

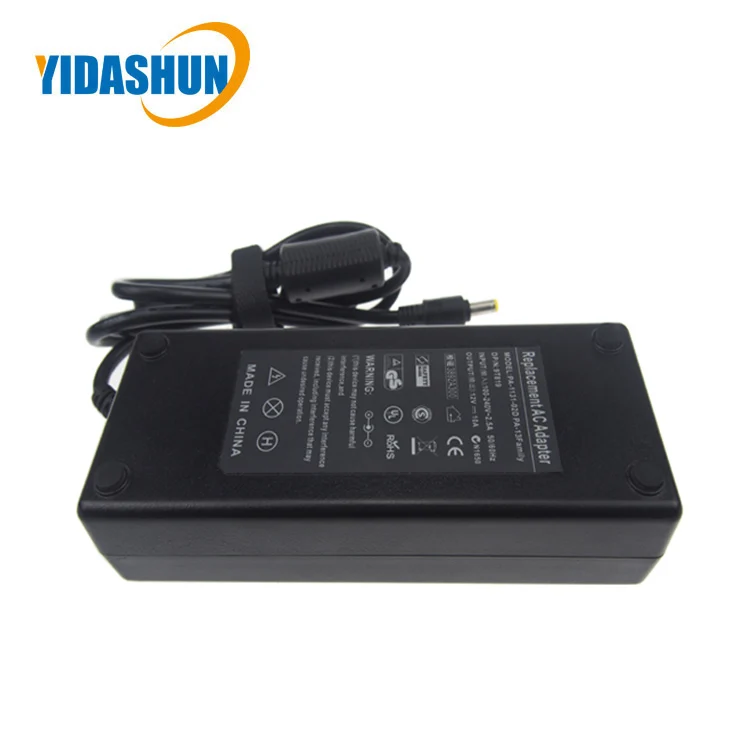

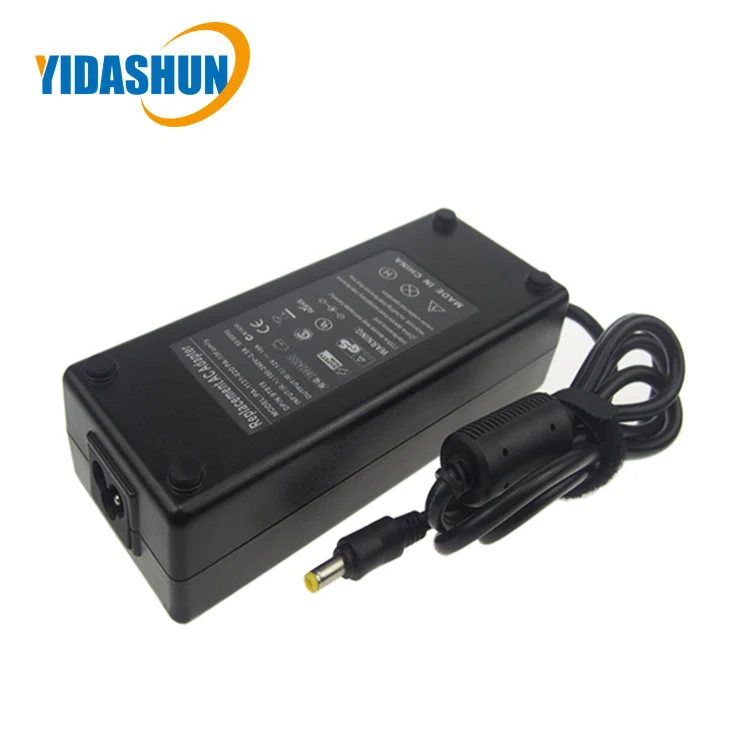

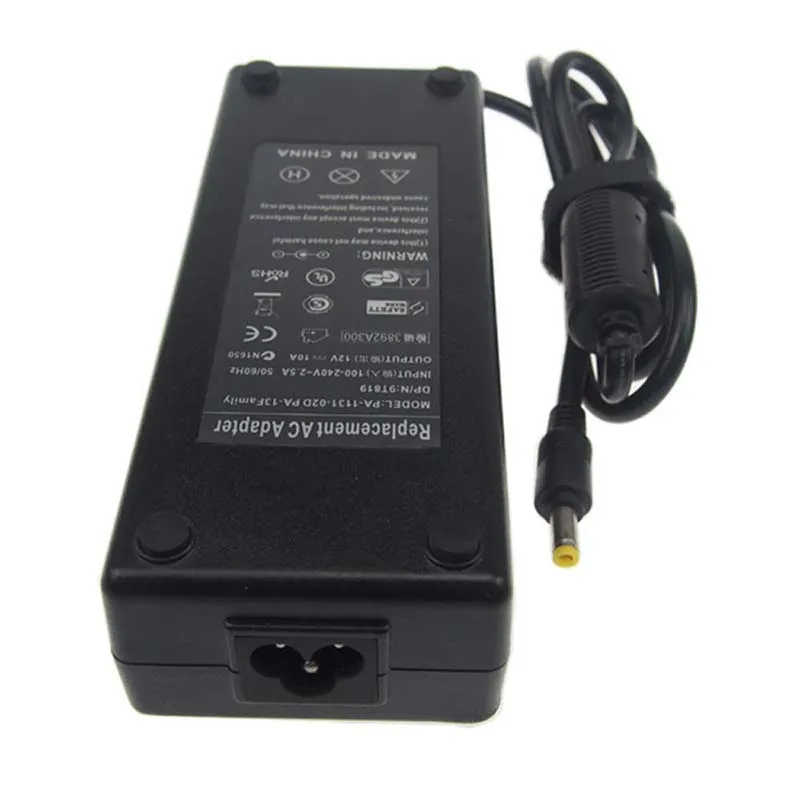

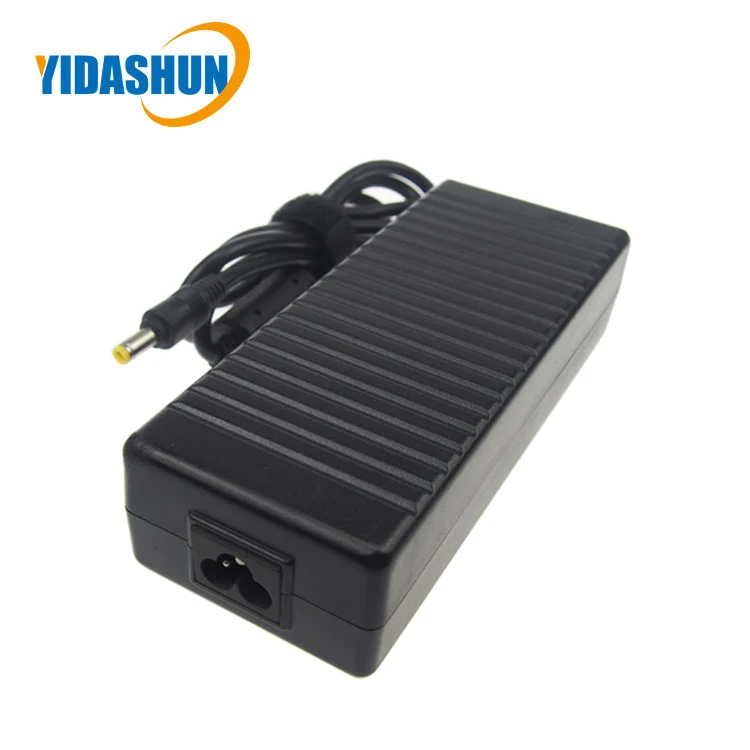

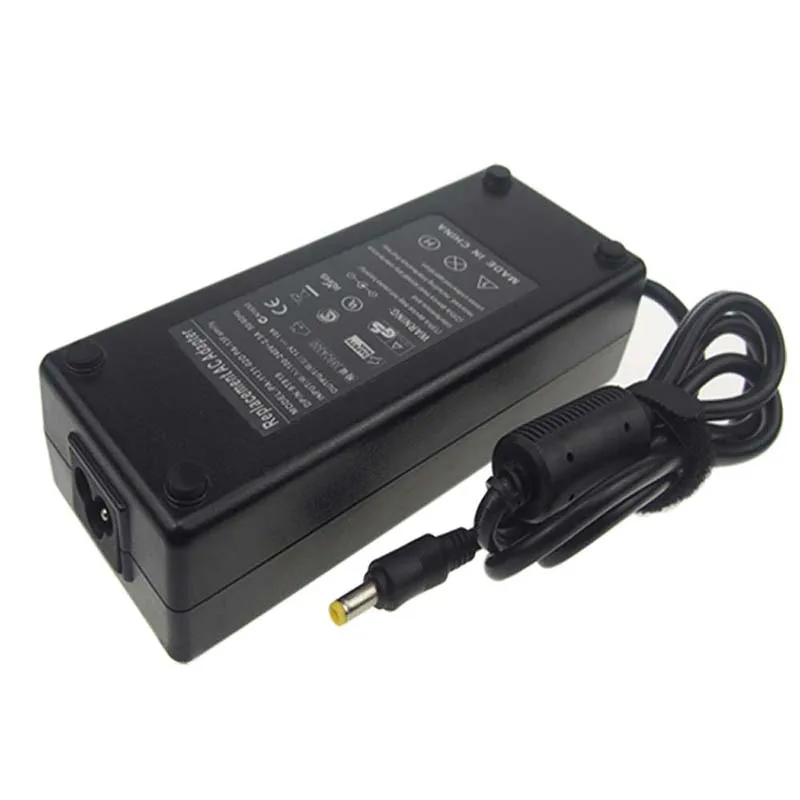

converter 220v to 12v 10a battery charger desktop AC DC power adapter for LED /LCD/ TV
- Category: >>>
- Supplier: Shenzhen Yidashun Technology Co. Ltd.
Share on (60727709459):
Product Overview
Description
converter 220v to 12v 10a battery charger desktop AC DC power adapter for LED /LCD/ TV
Product Description
Specifications
Specifications | |
Model No. | YLC23 |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage | 12V |
Output Current | 10A |
Output Power | 120W |
DC Connector Size | 5.5*2.5 mm |
Line Regulation | 2% |
Load Regulation | 5% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 1.0 mm2 Pure Copper |
Output Cable Length | 1.5m normally or customized requirement |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
CE, ROHS, FCC | |
Adapter Size | 16.6*6.5*3.9CM |
Adapter Weight | 590G |
Inner Box Size | 21.5*14.5*5.5CM |
Inner Box Weight | 60G |
PCS/CTN | 50PCS |
Outer Carton Size | 55.5*44*37.5CM |
Outer Carton Weight | 1100G |
GW/CTN | 33600G |
Package | |
Inner Box | Normally neutral brown box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Guarantee | 30 days |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, L/C, PayPal, western union |
Delivery Time | 3-5 days |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
| |
>> Products features:
♦ Power Input: AC100-240V Worldwide Input Voltage, Please verify carefully that the DC Output (12V 10A) and connector Tip size (in the pictures) match your original adapter before purchasing.
♦ For this plastic desktop adapter we can make from 12V 1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 12.5A...for
other output, we can also customized.
♦
♦With full power, can be used for led/LCD moniter/CCTV camera run constantly each day.
♦Each adapter you can choose your right stanard ac power cord with it.
Different AC power cable, dc connector size, AC plug for choose!
Packaging & Shipping
Packing details:
1. Regular package: each one with bubble bag,then 50pcs in one carton.
2. Individual package: inner box inside,50pcs/carton.
3. Customized package is accepted.
Delivery time: 1-3 days for samples,3-15 days for batch order.
Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )
INTERNATIONAL AIR MAIL
Payment:
Fast Delivery:
Different qty order will be required for different days .
Company Information
Certifications
FAQ
 | >>What is your warranty for adapters? We usually offer 1 year warranty. >>What is your MOQ and sample term? For normal items,our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs. If customized your products or package,MOQ is 1000pcs at least. >> How do you deal with defective rates? Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA. For big order, we can offer you spare parts. >> Can can accept OEM&ODM? yes,we can. We can customized the products,labels,package as your demands. we can make your logo on products or package. >> What is your payment terms? we accept T/T,paypal, western union, L/C,cash... |
