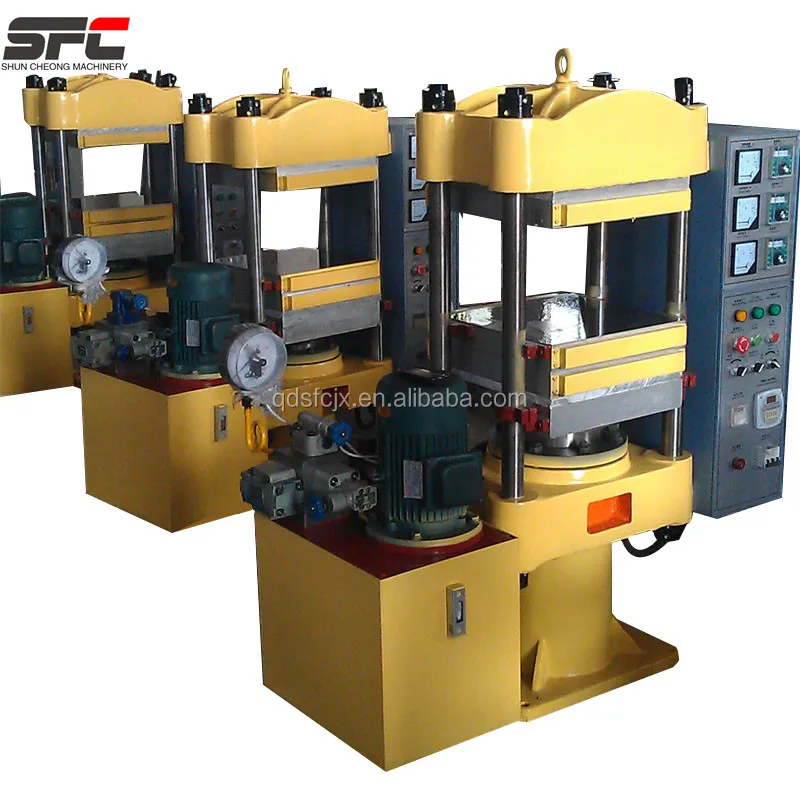

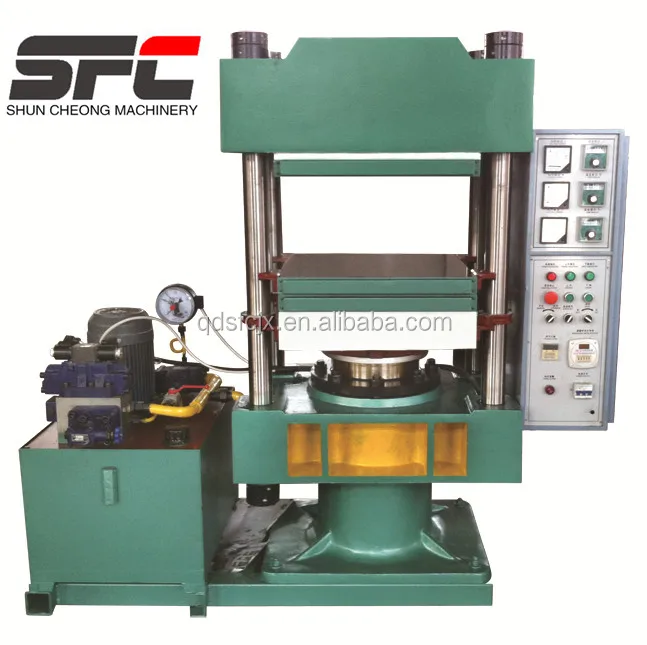

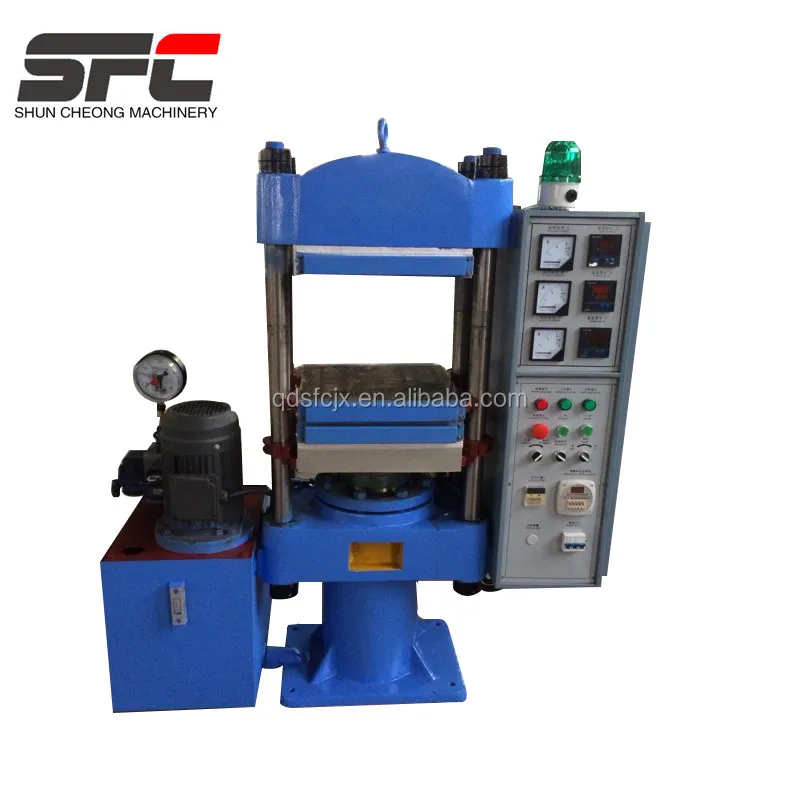

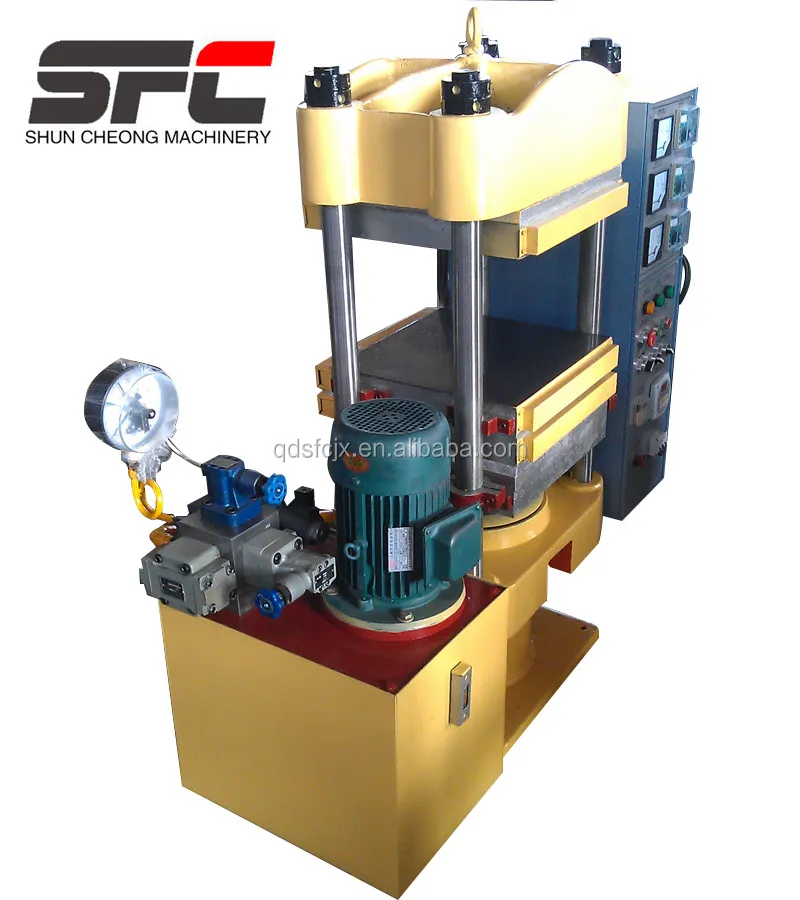

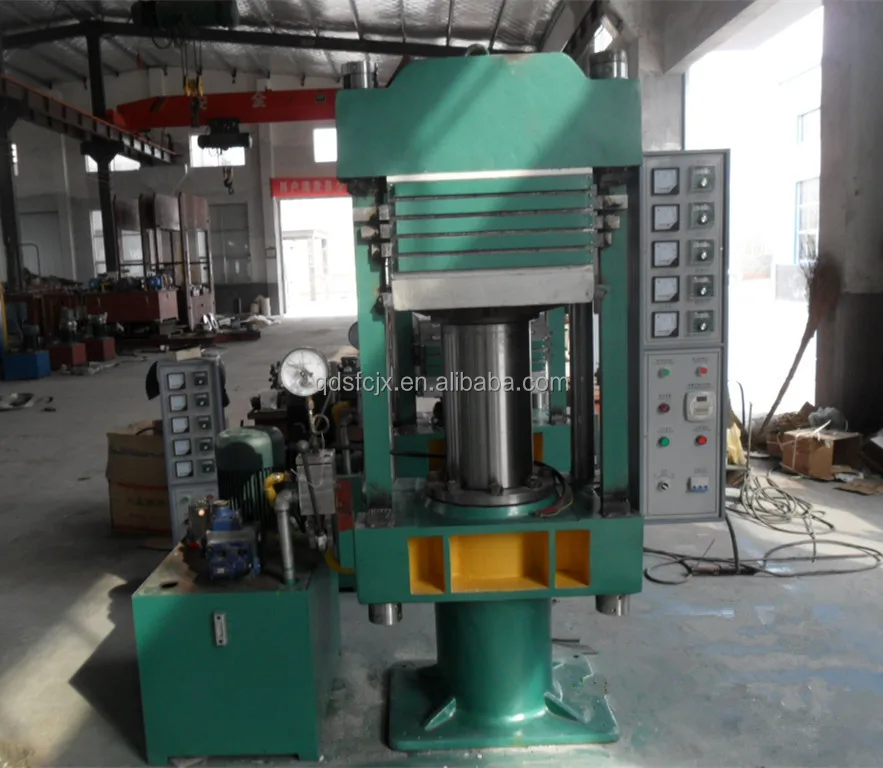

Good Quality Rubber Plate Vulcanizing Press/Column and Frame Structure Plate Vulcanizing Press

Product Overview

Description



Good Quality Rubber Plate Vulcanizing Press/Column and Frame Structure Plate Vulcanizing Press





Model	Total Pressure (MN)	Daylight (mm)	Working Layer	Piston Stroke (mm)	Motor Power (KW)	Dimension (L×W×H) (mm)
XLB-240×240×2	0.15	125	2	250	2.2	1200×350×1300
XLB-350×350×2	0.25	125	2	250	2.2	1400×480×1380
XLB-400×400×2	0.25	125	2	250	2.2	1600×500×1480
XLB-500×500×2	0.63	125	2	250	2.2	1750×600×1540
XLB-600×600×2	1.00	125	2	250	2.2	1880×720×1680
XLB-700×700×2	1.20	125	2	250	2.2	2000×850×1750
XLB750×850×2	1.60	200	2	400	3	2250×1200×2200
XLB-900×900×2	2.00	200	2	400	5.5	1400×900×2400
XLB-1200×1200×2	3.15	200	2	400	5.5	1685×1320×2450
XLB-1300×2000×1	5.60	400	1	400	7.5	2000×1860×2500

Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.









Rubber vulcanizing press advantages:

1. Simple and convenient structure, flexible operation, commodious space. The cylinder and plunger are made up of high quality materials.
2. Hydraulic station and electric cabinet are Located in both sides of the main engine.
3. Conveniently operations
4. Without oil spilling or off pressure.
5. CE Standards and ISO9001 SGS Certifications.



 3.Delivery &payment:

• Delivery lead time:  35-40 days since receiving the deposit

• Packing way:


•  1) wrapped with stretch film, avoid rubbing the paint off thesurface


•  2)  wooden packaging can be  customized


•  3) key parts, such as electronic control box, will be wrapped by shockproof  packaging materials, and then packed in wooden cases.

• Term of payment: T/T (30% deposit, 70% balance of B/L) ; L/C



4.Our service:

• Overseas service and technical support can be supplied


• We will get the machines dispatched within the stipulated time


• 24 hours online service, immediate response to your request


• Testing machine is available, make sure customer satisfied with machine's quality


• Help customer to design, make drawing,accept OEM rubber machine


• Arrange shipment and inform customer in advance 7 days before finishing the   order


• pass the ISO 9001:2008 , SGS, CE certificates



5.Related rubber vulcanizing press display:









6.About us:



•  Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer  with establishment in 2007, and have 10 years experience in making various of rubber machines area.

• our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...

• Market:  our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions
