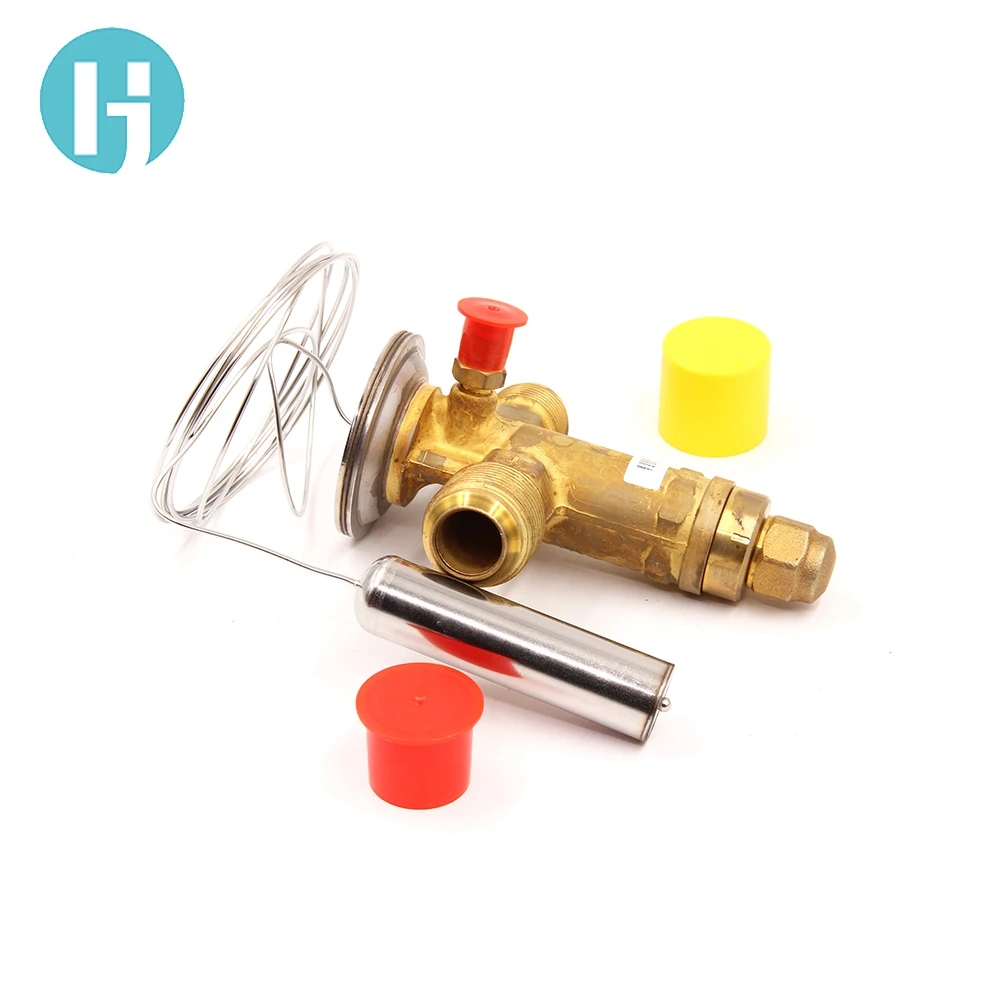

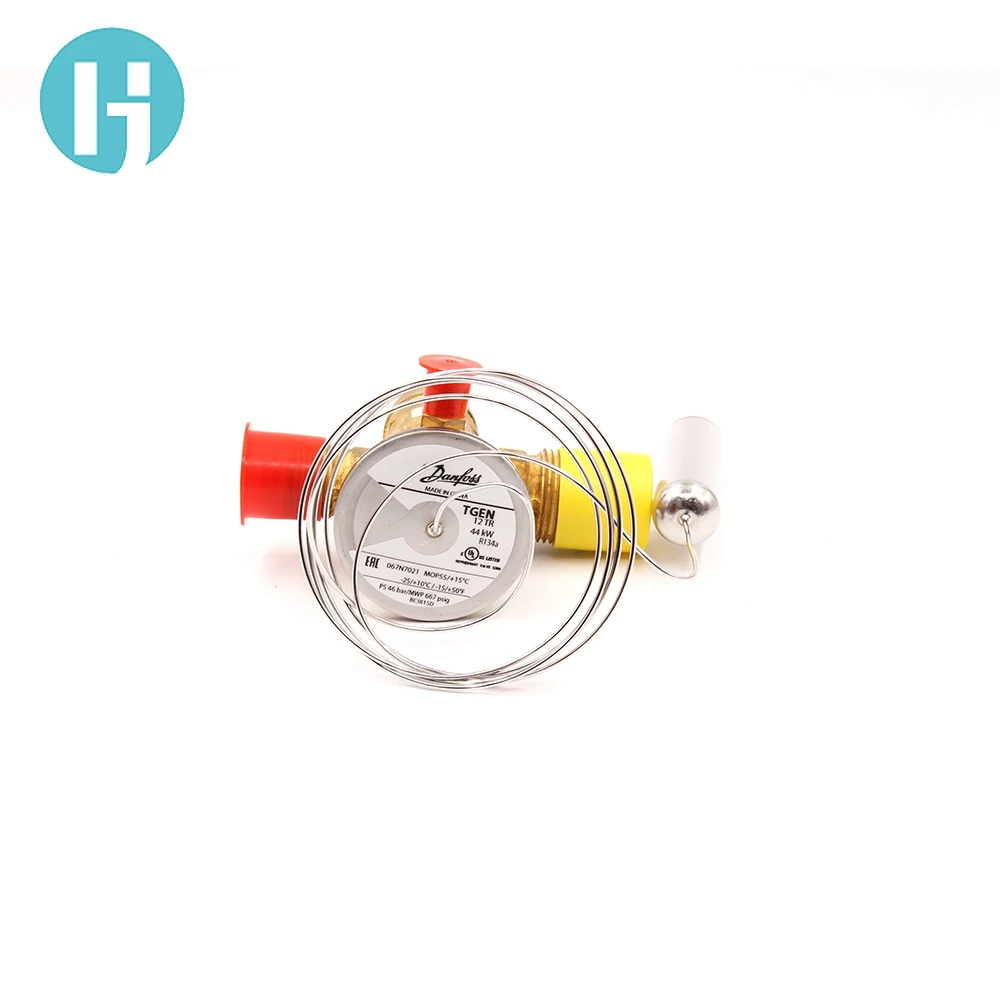

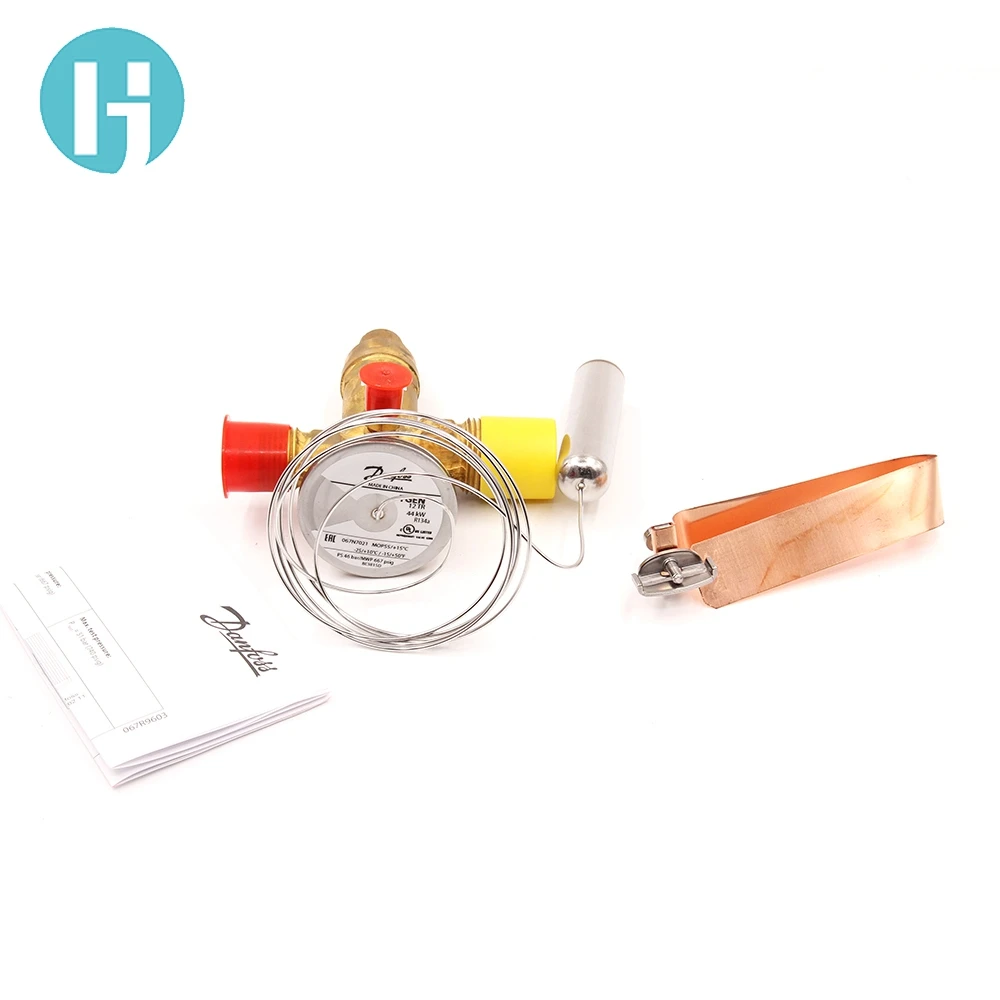

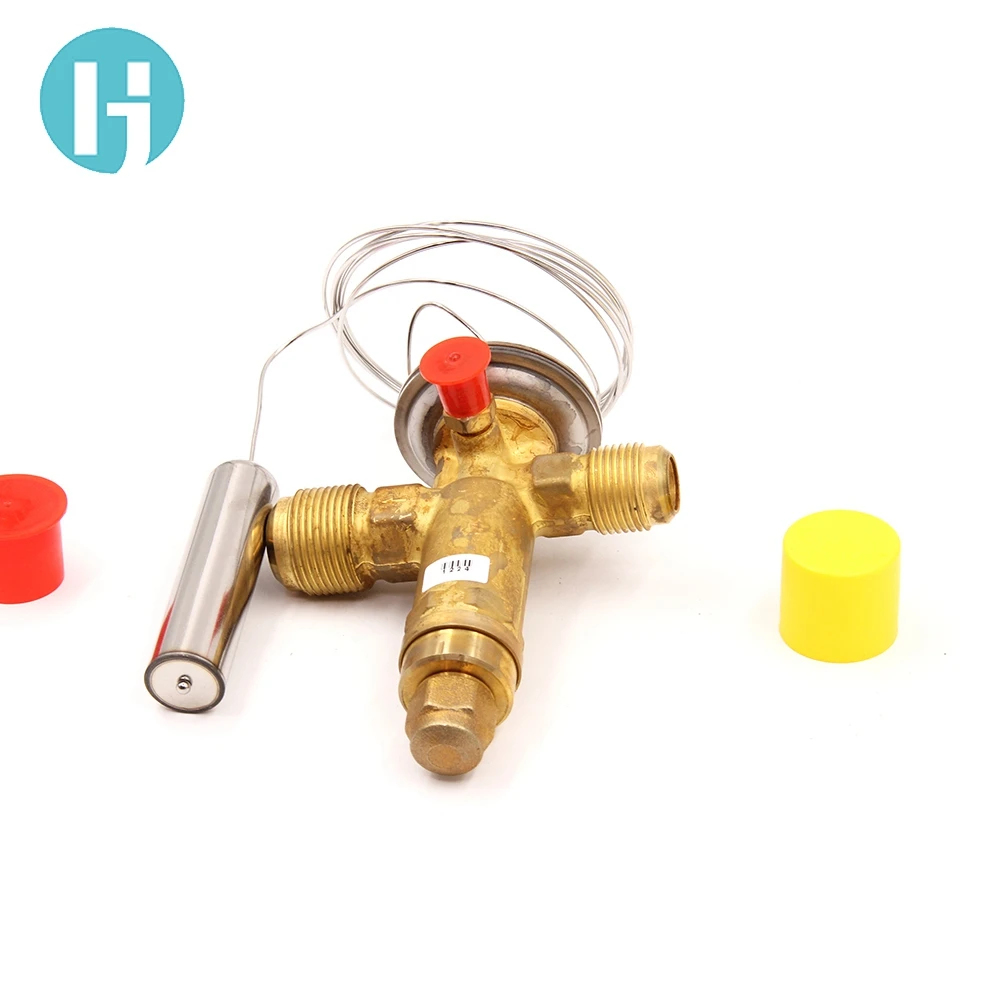

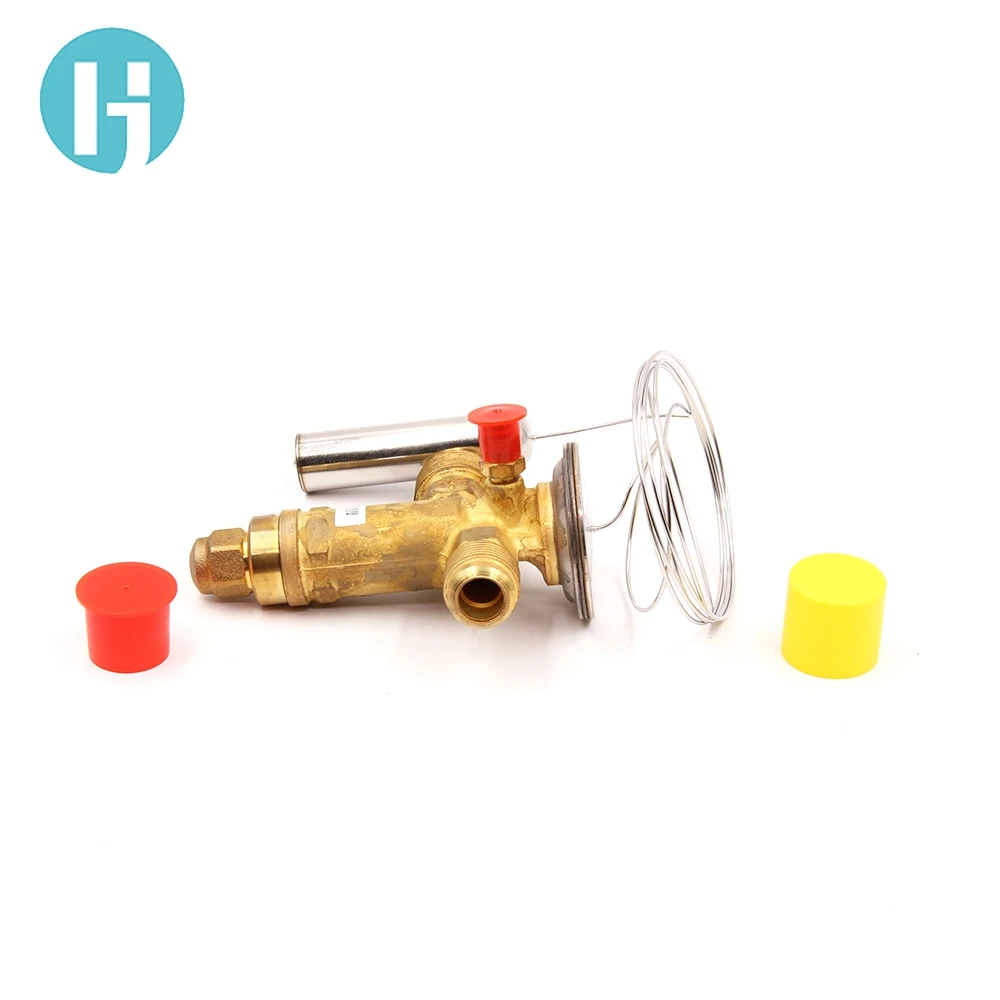

44 KW Thermal TGEN 12TR F Thermostat Yutong Bus Expansion Valves

Product Overview

Description

Expansion valve is an important component of the bus air conditioning and refrigeration system, installed between the cartridge and the evaporator.

1.Product Parameter

Brand
Model Number	TGEN 12TR-F
OEM Number	BE3815D/067N7021
Condition	New
Material	Brass
Capacity	12 TR
Power(W)	44 KW
Connector Type	SAE/ODF
Refrigerant	R134a
Temp range	-15 to +50℉ /-25 to +10℃
MOP	55 to +15℃
Pressure	MWP 667PSIG/PS 46 BAR

2.Product Effect

1. Throttling effect: high temperature and pressure liquid refrigerant throttling through the expansion valve throttling, a low temperature and low pressure of the mist of the hydraulic refrigerant to create conditions for the evaporation of refrigerant;
2. Control the flow of refrigerant: Once the liquid refrigerant into the evaporator, the refrigerant will be evaporated into a gaseous state, absorbing heat, reducing the temperature inside the bus. Expansion valve control the flow of refrigerant to ensure that the evaporator outlet is completely gaseous refrigerant.If the flow is too large, the outlet contains liquid refrigerant may enter the compressor to produce liquid hit; If the refrigerant flow is too small, premature evaporation is completed, resulting in Lack of refrigeration

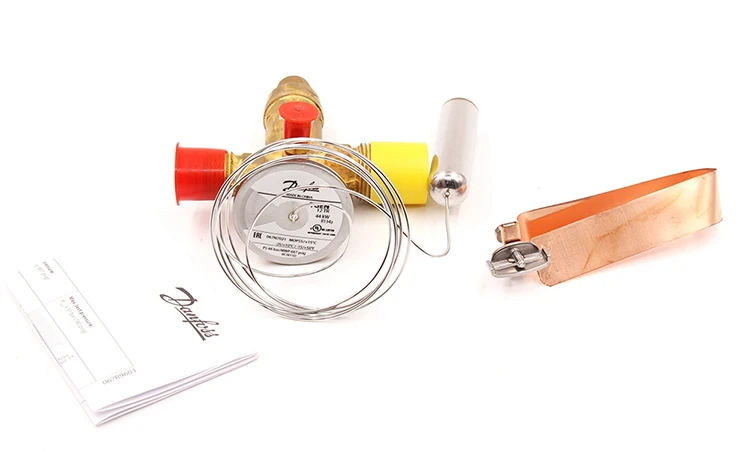

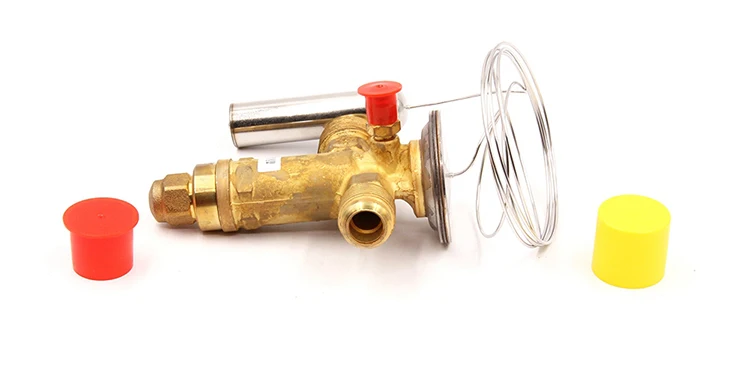

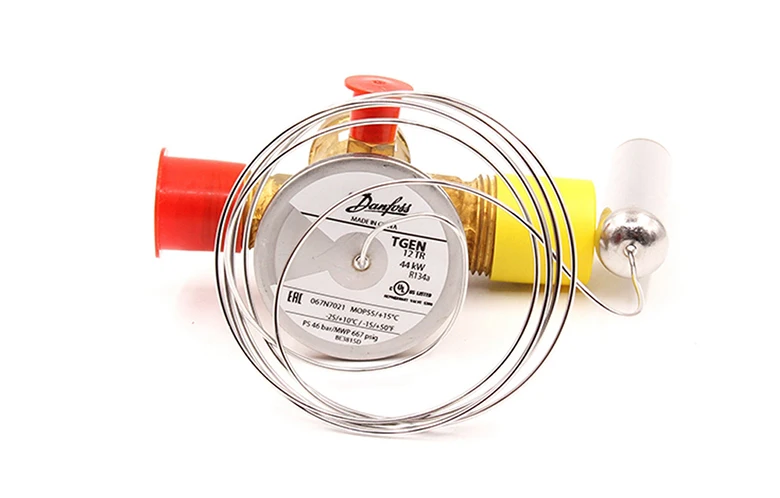

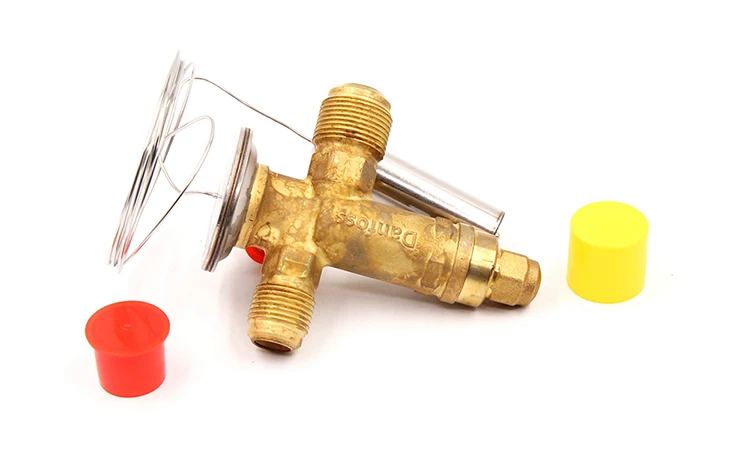

3.Product Details
