Dual band 2G 3G 4G cell phone signal booster, mobile phone repeater kit amplifier Dual signal band

Product Overview

Description

Why we should buy mobile signal repeater/ signal booster/ dual-band amplifier :



Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.

Unfortunately, there are still some places where one can find themselves “out of coverage”. Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:



Parking lots, tunnels

Big stores, office buildings

Cars, boats etc.

House in remote areas etc



How is  mobile phone signal repeater GSM/DCS/ 2G/3G/4G WORKING ?



•The outside antenna catches the low signal from the mobile base station and delivers it to the cell phone amplifier through the connection cable (coax).

•After the signal is accepted by the phone amplifier, the device amplifies it.

•Then this amplified signal goes through the connection cable (coax) to the inside antenna.

•And after that, the amplified signal transmits to the cell phone.



Main Feature:



Specification:



Model No		Dual-band-1
Parameter data		Uplink	Downlink
Frequency Range		890-915/ 1920-1980 MHz	935-960 MHZ 2110-2170 MHz
Output Power		20 ±2dBm	20 ±2dBm
Gain		65 dB	65dB
Bandwidth		Wide Band
Automatic Gain Control		>20dB
Ripple in Band		≤5dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 6 dB
VSWR		≤2
MTBF		>50000 hours
Power Supply		AC:90~265V, 50/ 60Hz;DC:12V 2A
Power Consumption		< 20W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female
Cooling		Heatsink Convection cooling

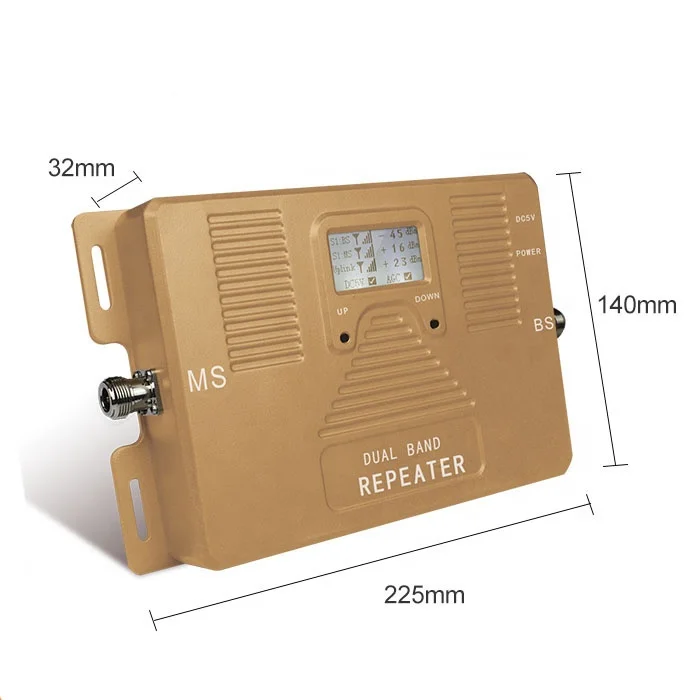

Dimensions (D x W xH )		225*140*32 mm
Weight		1.2kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10°C ~ 55°C

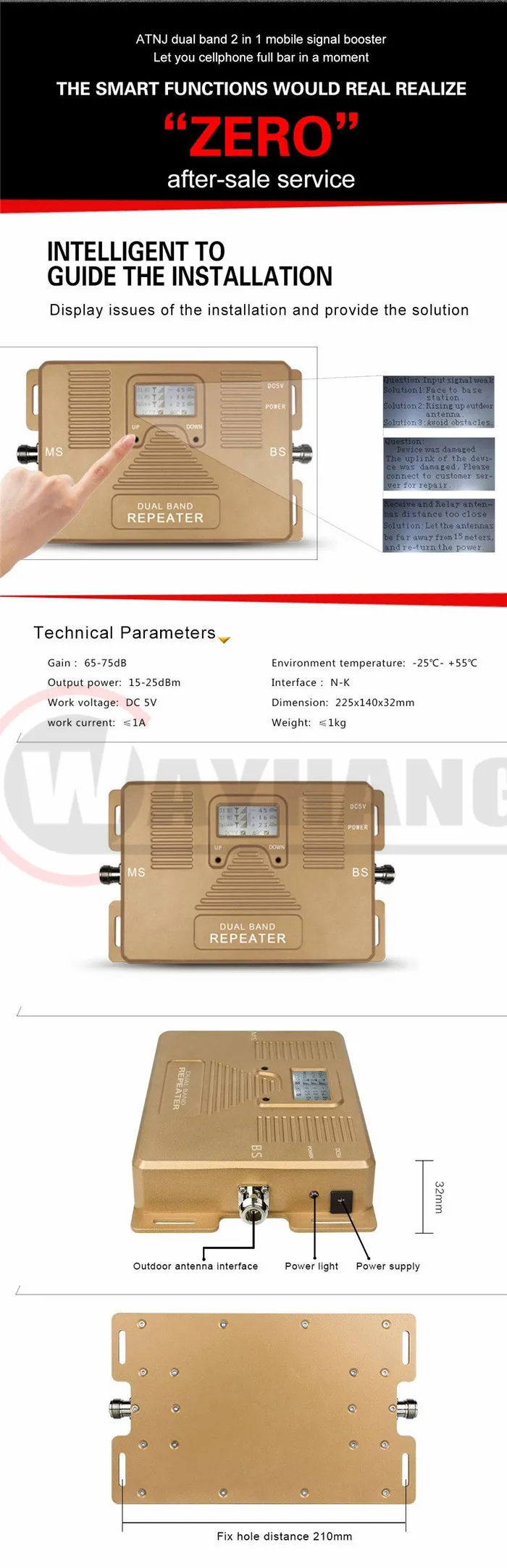

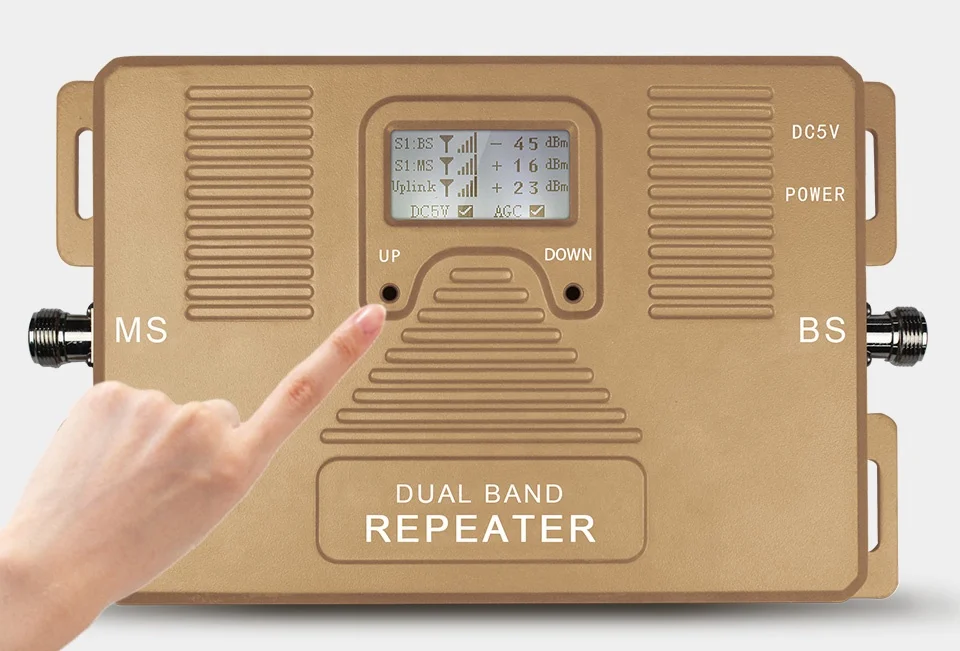

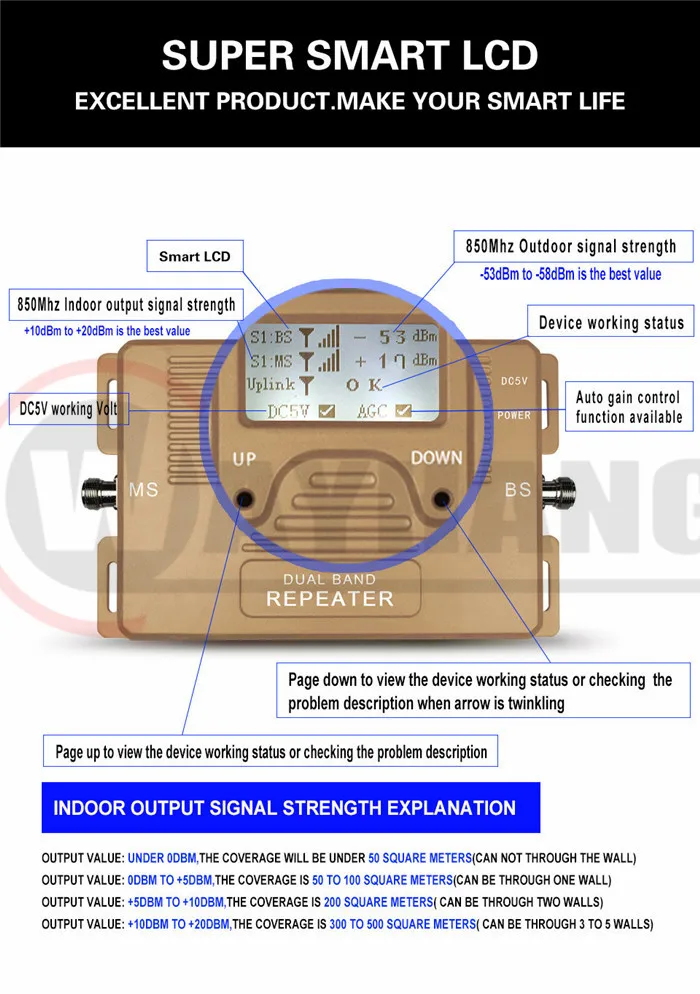

More Product PIC:

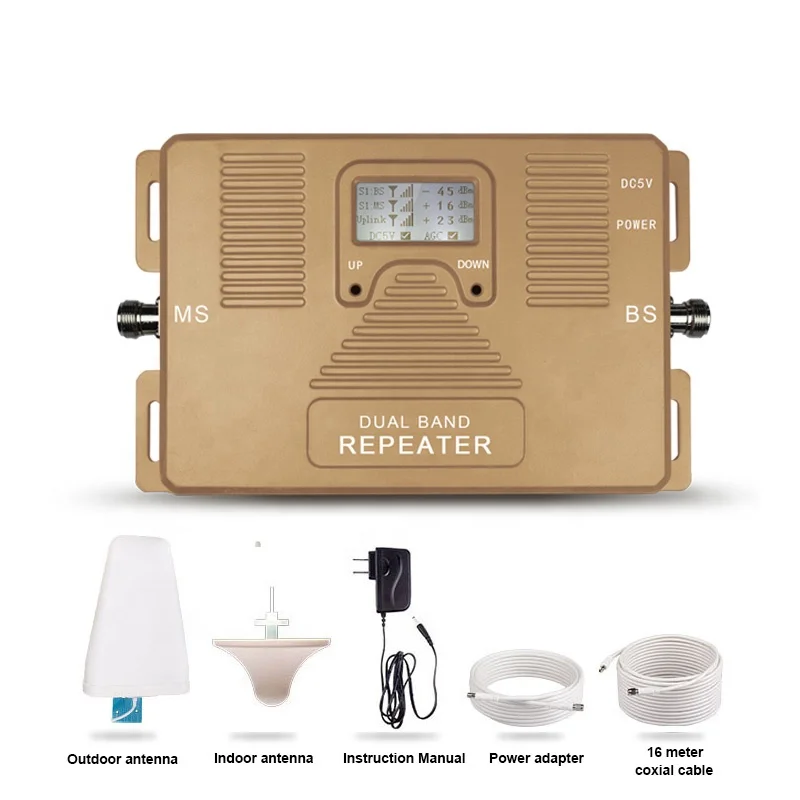

Package:

9dB outdoor antenna

3dB indoor antenna

RG6-50 OHM outdoor Coaxial Cable-5m

RG6-50 OHM outdoor Coaxial Cable-10m

mounting accessories

AC power suppl

user manual

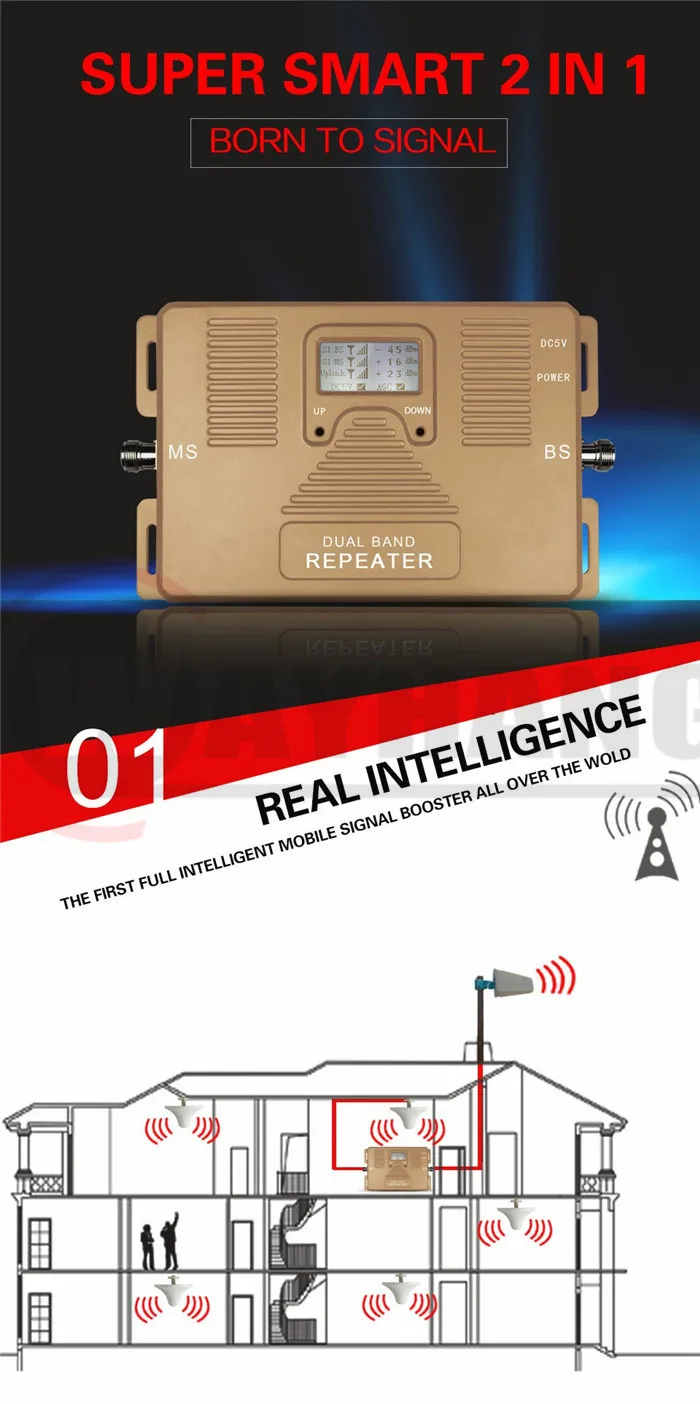

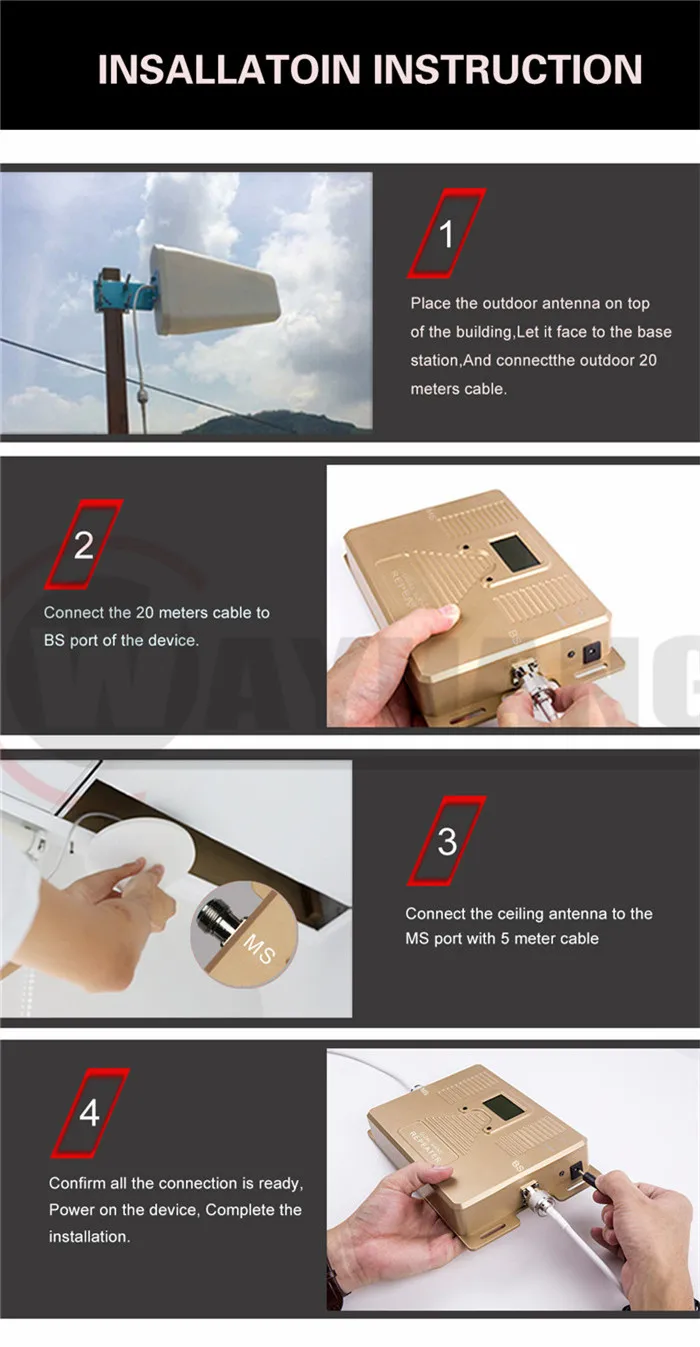

Signal repeater Installation diagram (very convenient and easy to install)

How should you install repeater (very easy and simple):

Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).



Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.



Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.



step 4: Mount your indoor antenna with signal repeater

step5:  Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.

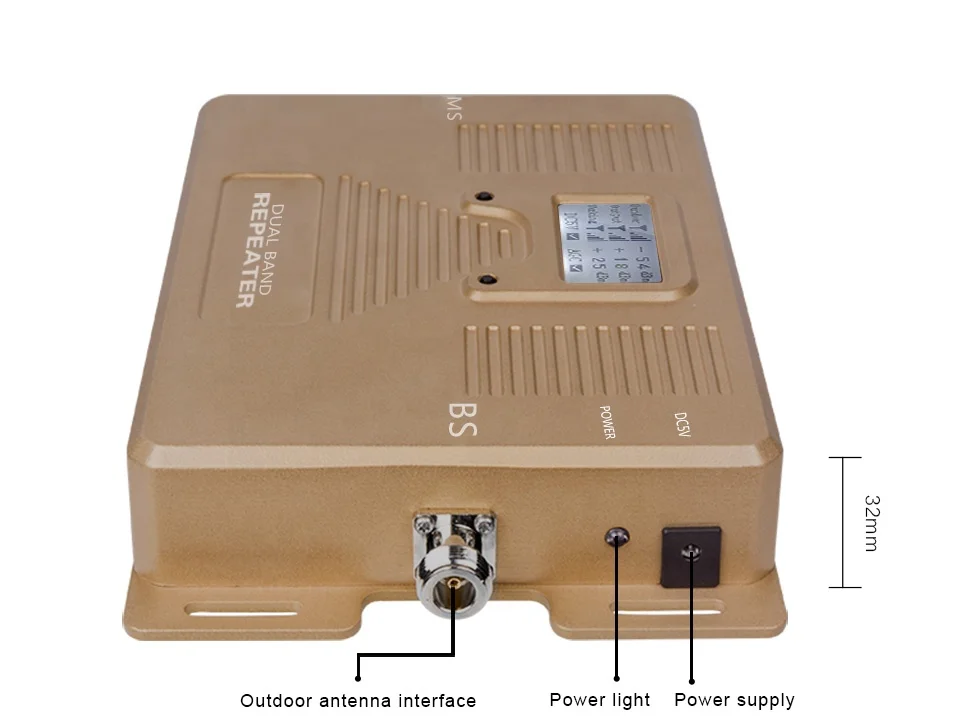

Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.



Signal problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
