Product Overview

Description

automatic different shape shampoo/oil /milk          bottle blowing making machine

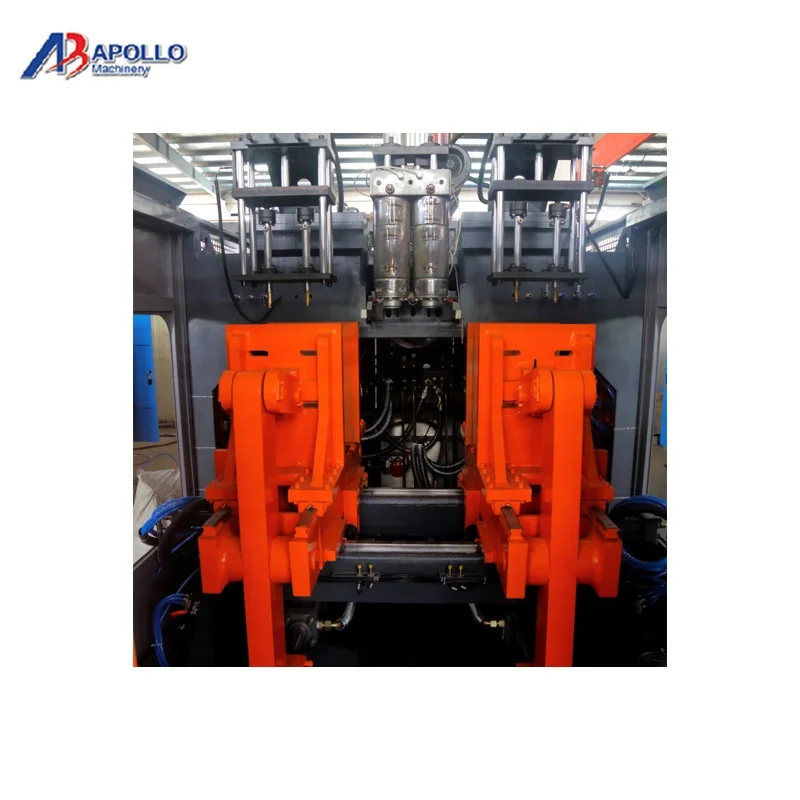

ABLB75II full automatic plastic blow moulding machine



ABLB75II full automatic plastic bottle blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles,detergent bottles ,cosmetic bottles, and other plastic containers not over 8L.



The features of this blow molding machine:

(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 8L.

(2)Double station single die head design,Stable and efficient.

(3)Most components of the plastic cask blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

(5)Multiple screw available for double layer or tranparent liquid lever line.

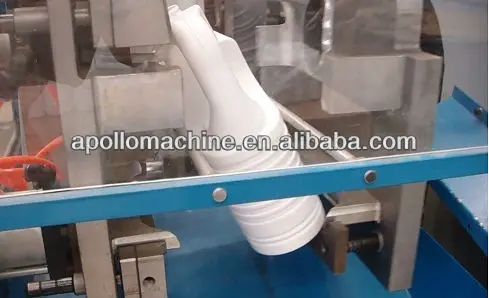

(6)Auto deflashing device available,can remove the extra parts of bottles.

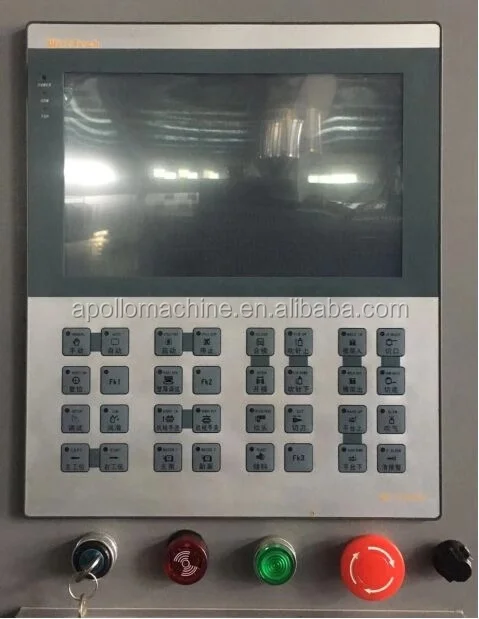

(7)Auto lubricant system controlled by PLC.

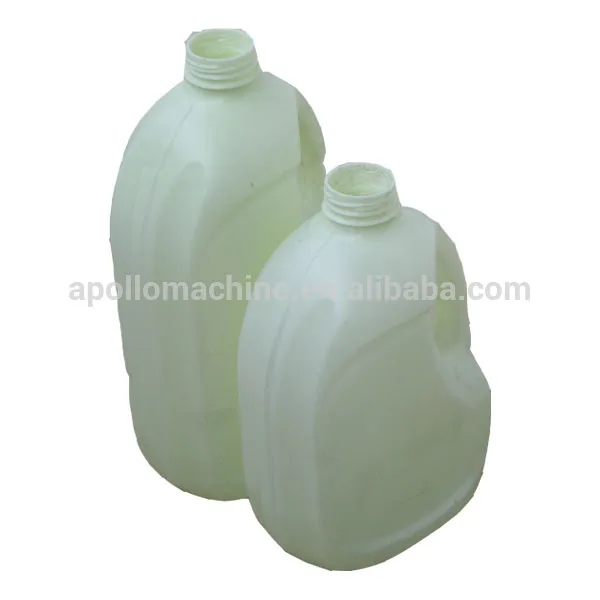

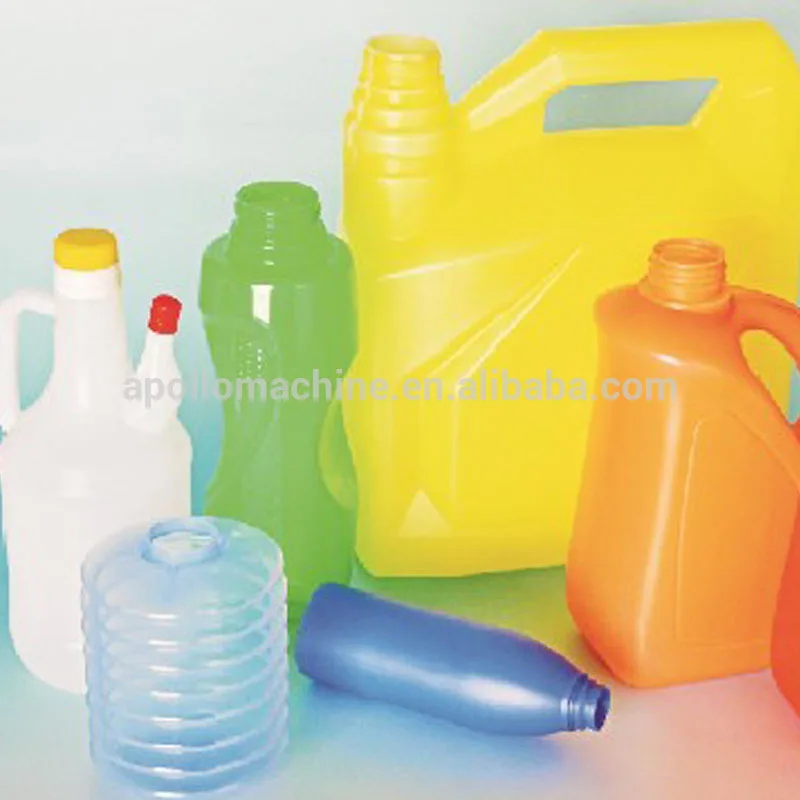

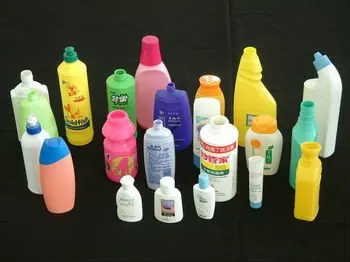

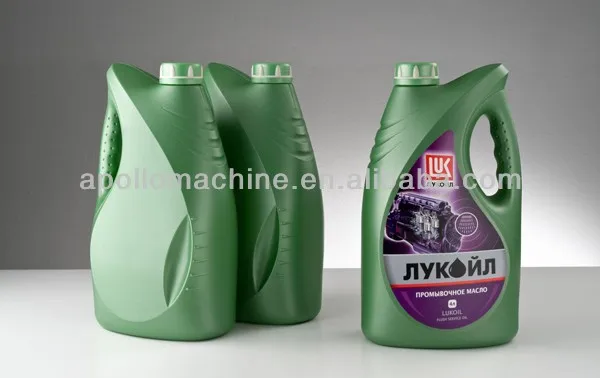

The products of  ABLB75II full automatic plastic cask  blow moulding machine

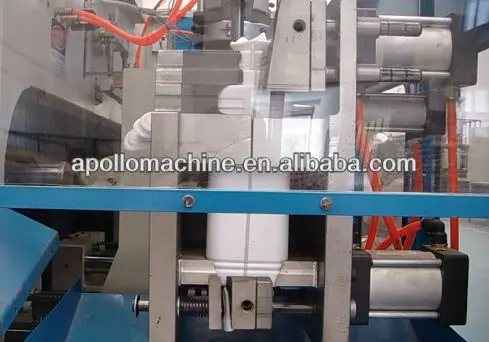

ABLB75II full automatic plastic cask blow moulding machine



ABLB75II full automatic plastic cask blow moulding machine

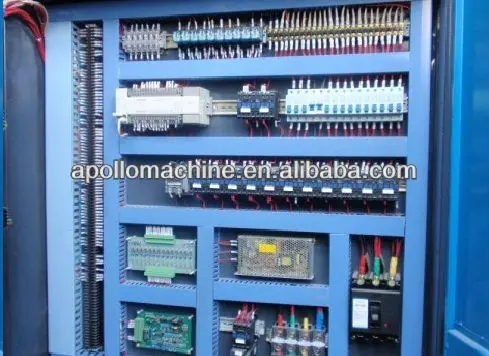

electronic parts
Name	Trader

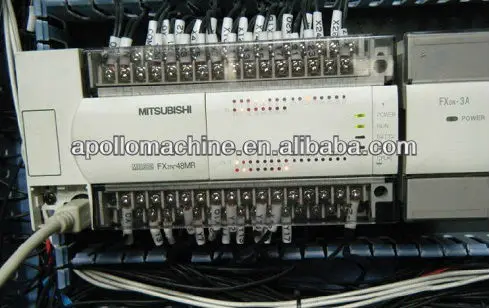

Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA

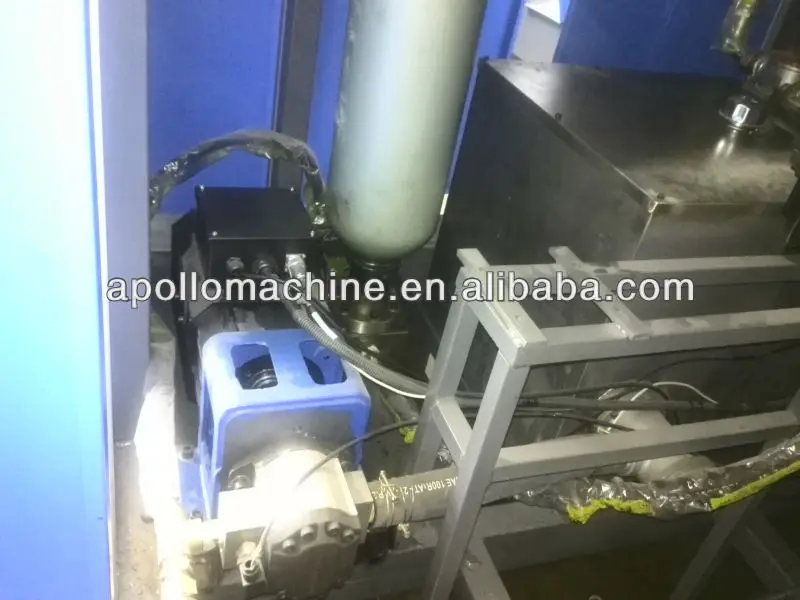

hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO



ABLB75II full automatic plastic cask blow moulding machine


Max. Product volume	8 liters
Output capacity	150~180pc/h
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	7 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	148-568mm
Mold stroke	400 X 450mm
Max.die diameter	160mm
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	3.8x2.2x2.8m
Weight of machine	8 ton
