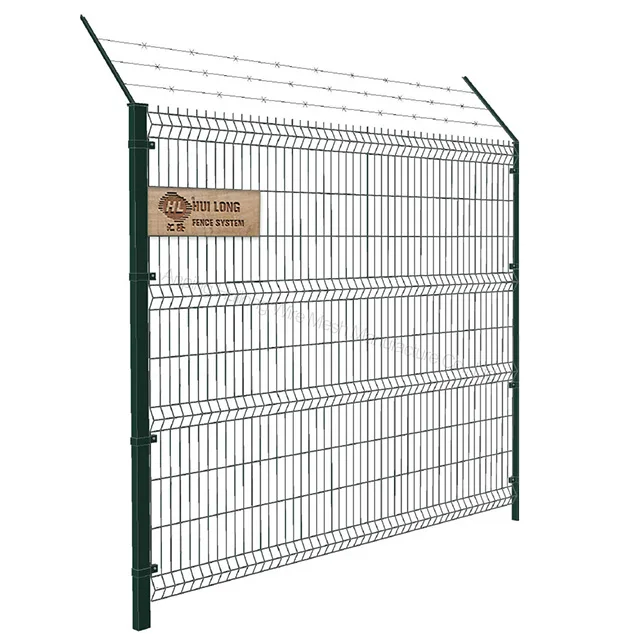

Popular welded wire mesh fence used wrought iron fencing for sale

Product Overview

Description

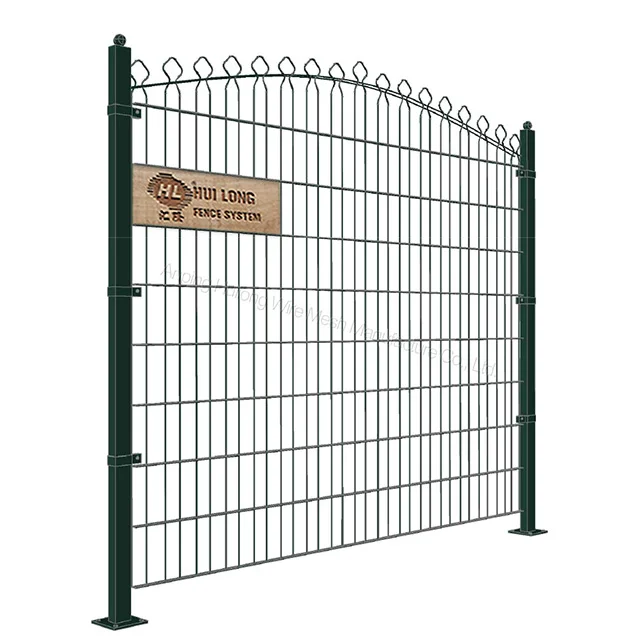

Popular welded wire mesh fence used wrought iron fencing for sale

1.Description Of Security Wire Mesh Fence



a)Material: Security welded mesh fence system manufactured from hard drawn wire and electro-resistance welded at every intersection.

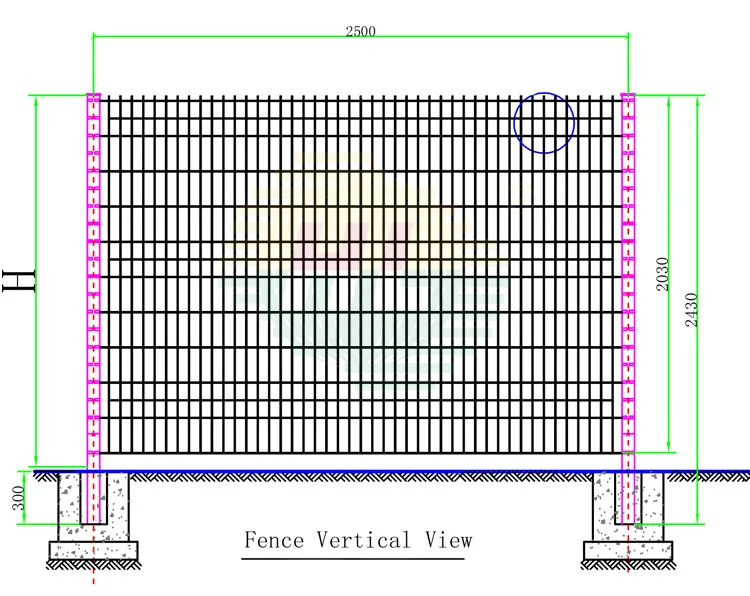

b)Welded mesh Fence Specification Detail(mm):

Fence Height	Panel Width	Opening	Wire Dia	Post Type	Post Fence
630 830 1030 1230 1530 1830 2030 2230	2500	50,55,65   100,200	3 3.5 4 4.5 5 6 8	Square post 1	40x60x1.5
					40x60x1.8
					40x60x2
				Square post 2	60x60x1.5
					60x60x1.8
					60x60x2
					60x60x2.5
				Peach post	50x70
					70x100

Click Here Get More Information.







c)Process:

 straight and cut the wire---trial-produce---quantity produce—Middle inspection—surface treatment.

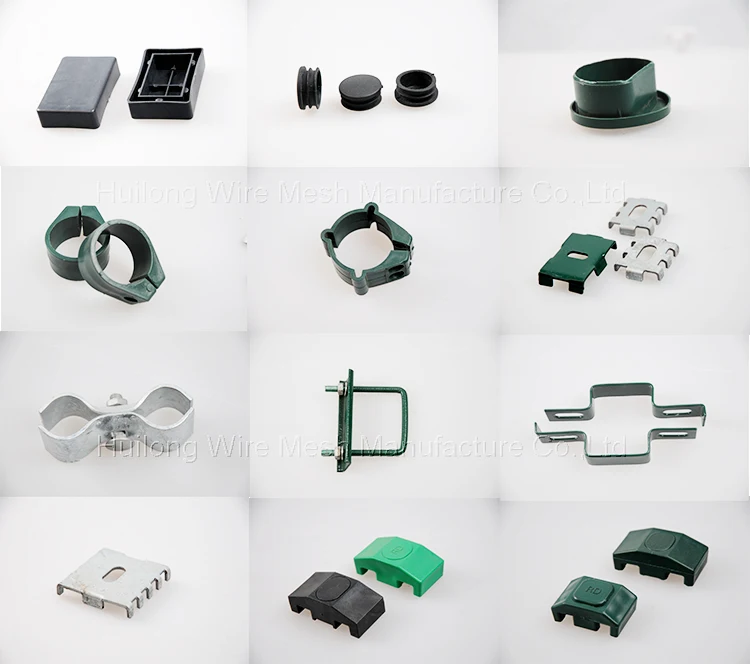

d)The accessory of Security Welded Wire Mesh Fence:

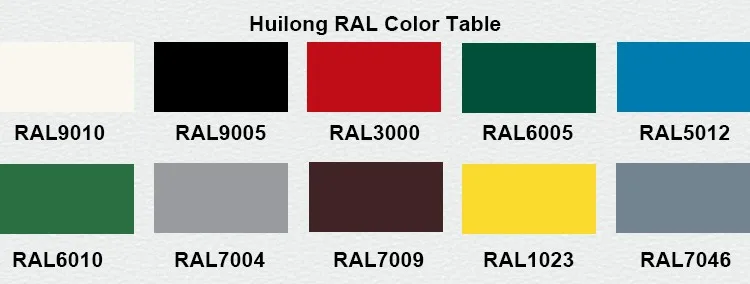

e)Security Welded Wire Mesh Fence Surface treatment:
1,use the hot-dipped galvanized (or electro galvanized) wire as material ,after welding, begin pvc or plastic spraying.
2,Use the low carbon steel wire welded the panel, then elctro or hot-dipped galvanized treatment, finally pvc treatment.
3,In Europe, generally choose the galvanized after welding or pvc after welding.

2.Germany Spary plastic product line:





3.Features Of Welded Wire Mesh FenceFence

ANTI-CLIMB:More small openings,no toe or finger holds.

ANTI-CUT: robust wire and welded joints make cutting very difficult.

BETTER VISIBILITY:flat,two-dimensional profile,easier to see through than chain link.

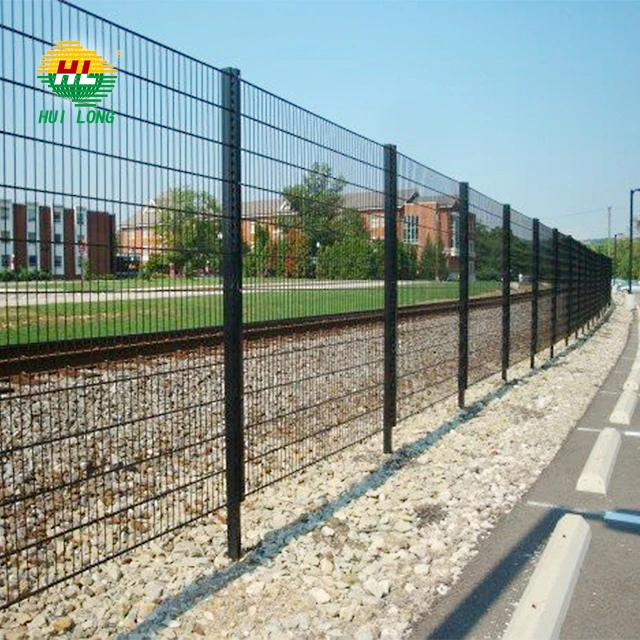

4.Application Of Welded Wire Mesh Fence

play ground, prison, airport, power system, shipping port, bedlam.
