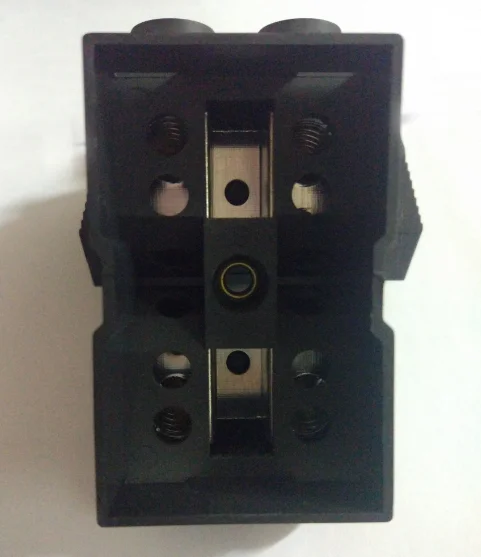

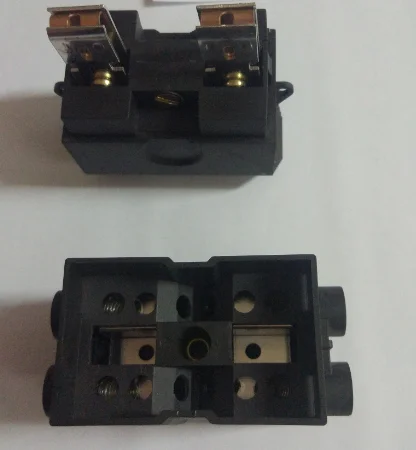

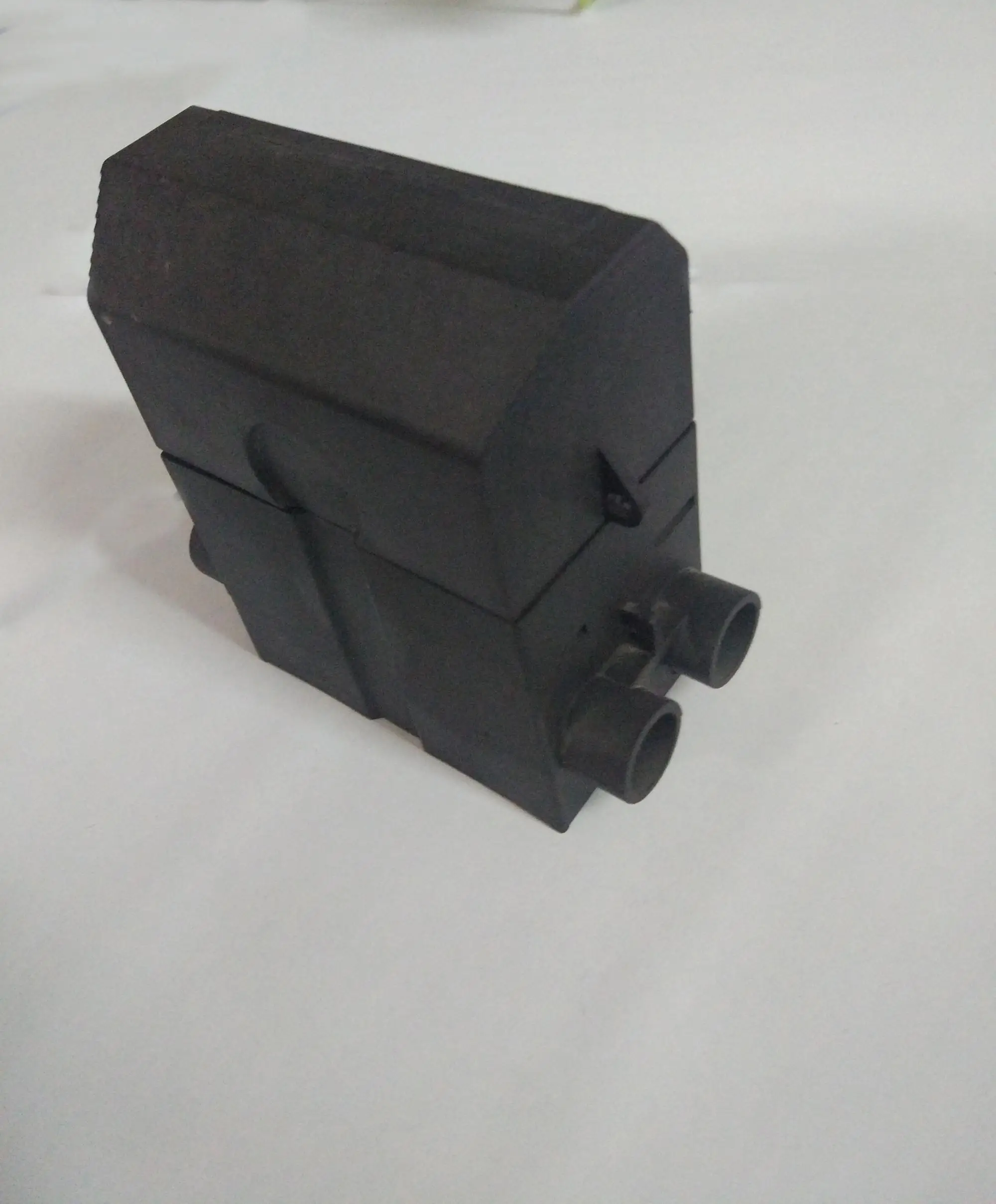

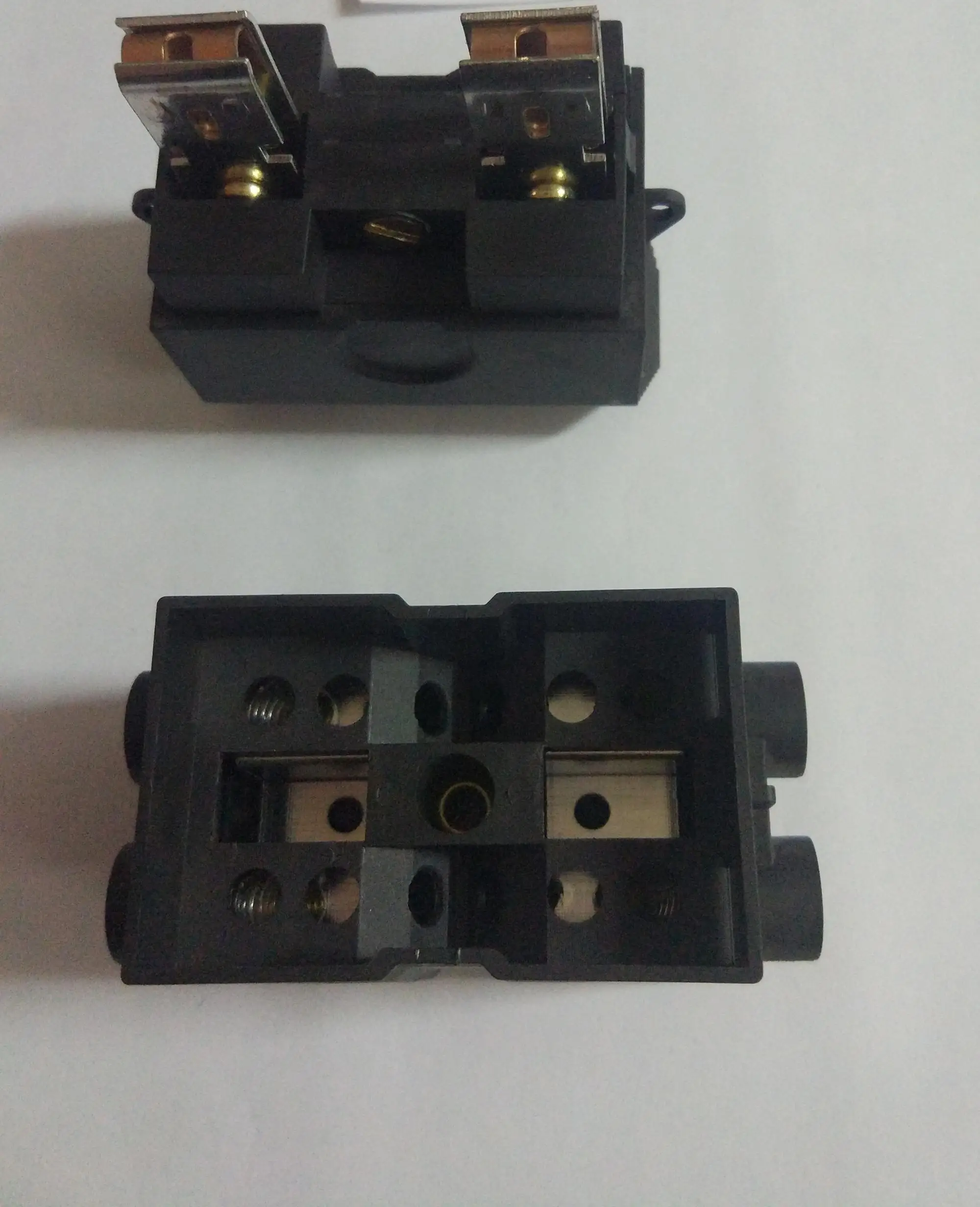

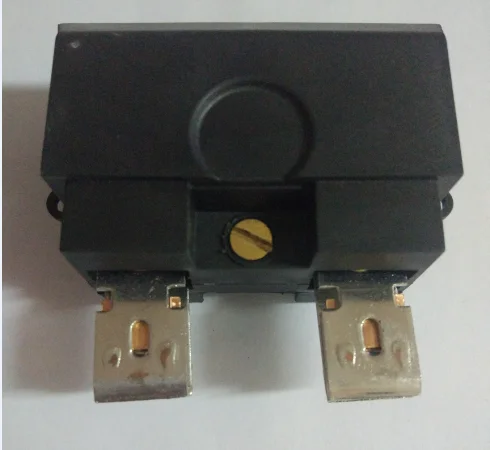

Новый тип малайзийского типа вырезанный предохранитель Люси вырезать 100A (бакелит вырезать предохранитель)

Product Overview

Description

cut out fuse 100A





APPLICATION :
1.This cut out are made of high grade phenolic moulding powder having high mechanical and dielectric strength.
2.The body possesser non-hygroscopic and non-tracking qualities.
3.Terminal contacts are of tinned brass with phosphor bronze back up compression spring capable of providing flawless service even after years of use.
4.It has features like: All components are inter-locked. Sealing provision to avoid unauthorized access. Common body from 15amps to 100amps.
5.Terminal are suitable for aluminium/copper conductors upto 35sq. mm loop in and loop out cabling contacts available.
6.The Insulated service cut out conform to BS 1361-1986 standard SRH fuses conform to BS1361.1986. The available current is 60# 60/80A, 100# 60/80A, 100# 100A, 100# 1P+N 60/80A, 100# 1P+N 100A.
