48VDC 220VDC 380VDC Professional Remote Data Center Intelligent Online Remote Battery Monitor for UPS
- Category: >>>
- Supplier: Hangzhou Huasu Technology Co. Ltd
Share on (60727943680):
Product Overview
Description
Product Description

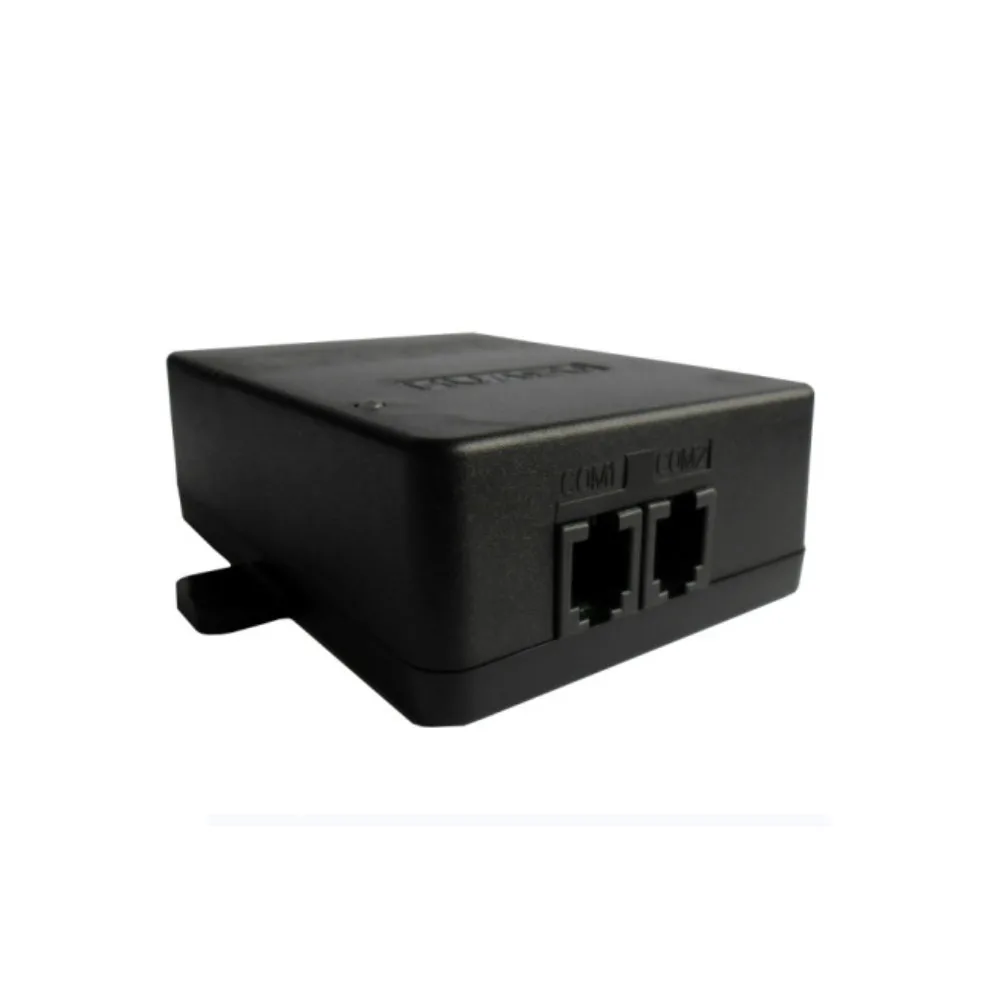

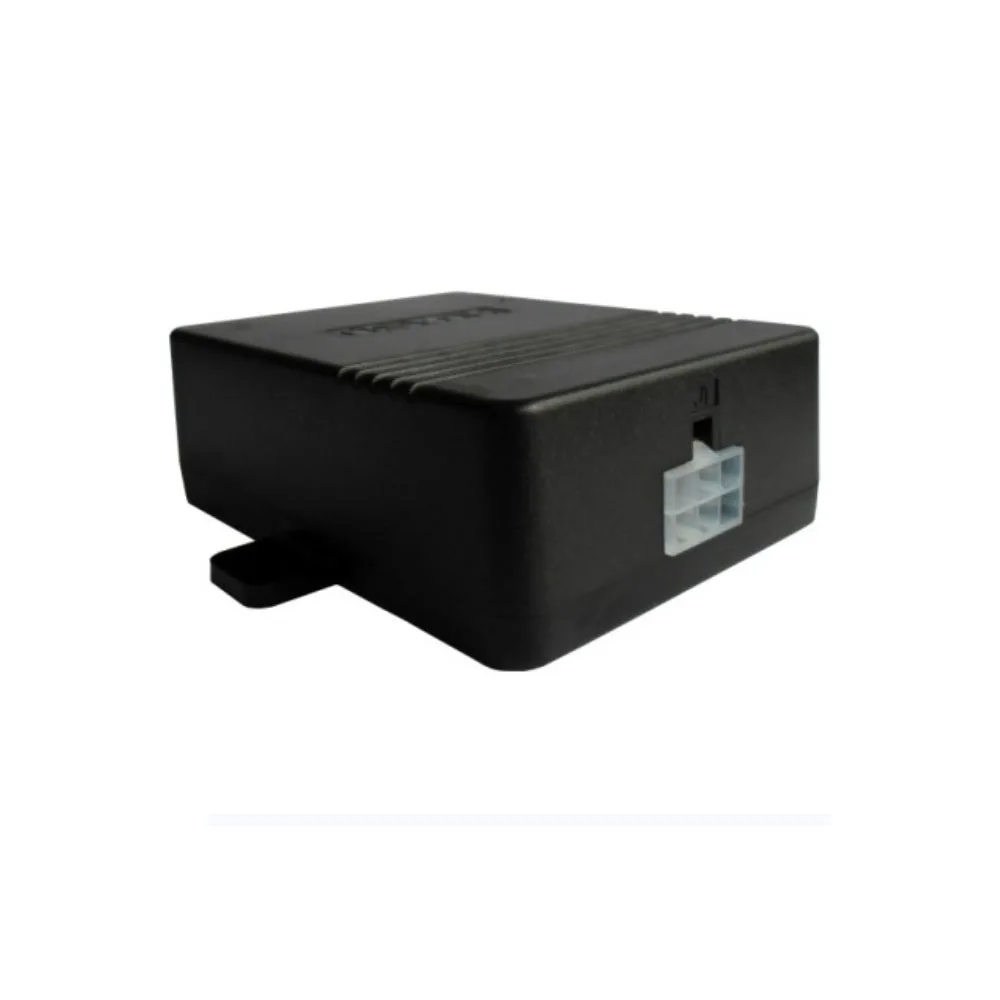

Our CELLCHECK intelligent battery monitor is designed special for single cell monitoring. It combines advanced technology with patented hardware for the most thorough stationary battery health analysis in the industry. The module can be pasted on the monitored battery's case directly or mounted an additional rail.
Product Name | H3G-TA Battery Monitoring System | ||||
Battery Type | 1.2V, 2V, 6V and 12V | ||||
Monitoring Parameter | Battery voltage, internal resistance, internal temperature, battery string current, voltage, ambient temperature | ||||
Used For | Lead Acid, Nickel Battery | ||||

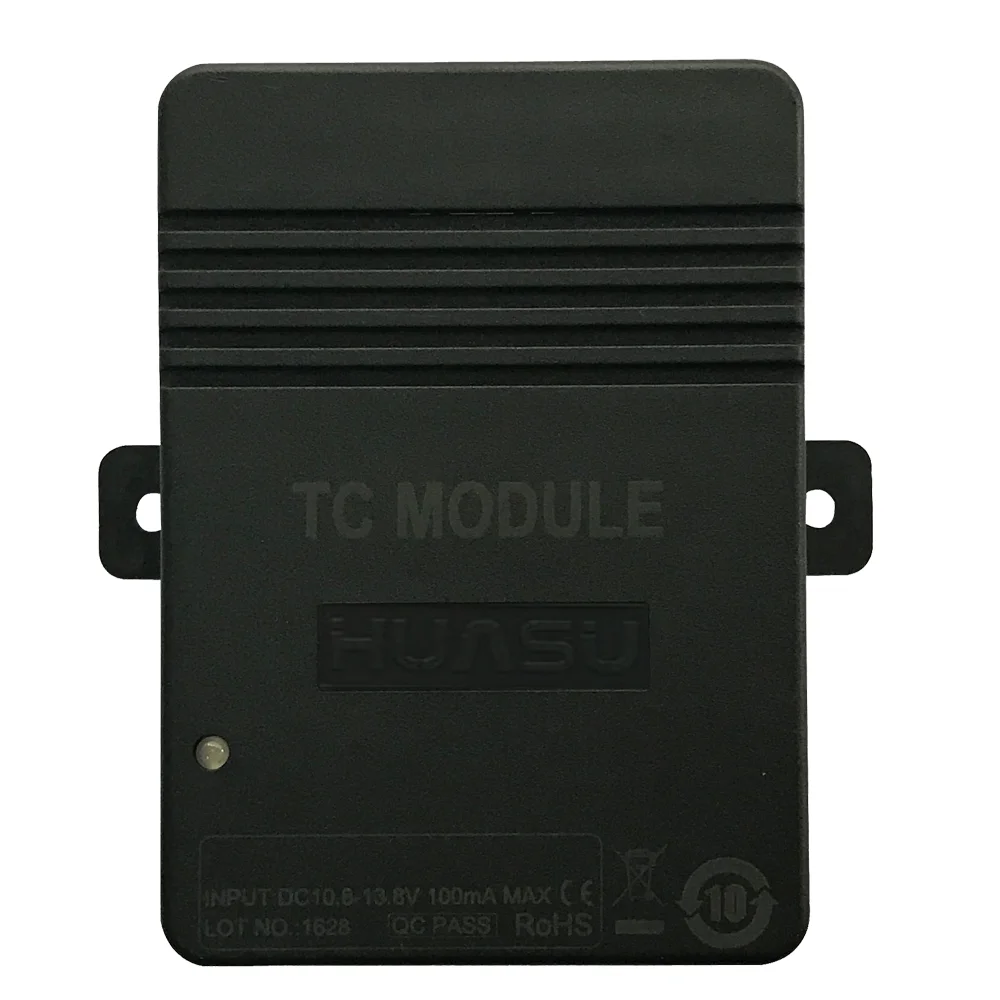

Power Requirements | CELLCHECK:powered from the battery, less than 60mA(2V) or 25mA(12V) CM module:85～264VAC,100V～370VDC or DC 48V TC module:DC8～13V,2W | ||||

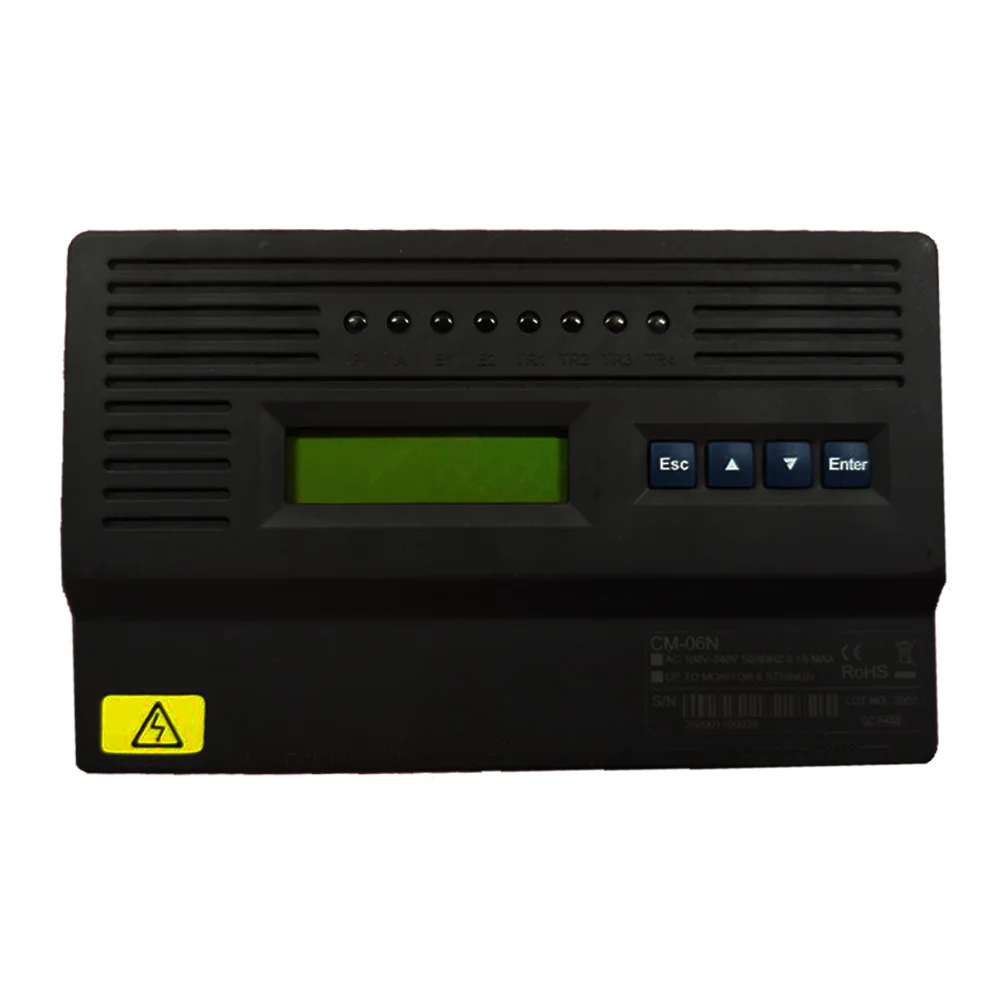

Communications Interfaces | TA Module:UART port, meet MODBUS protocolConverter CM module:RS485, Ethernet Port , meet MODBUS/RTU,MODBUS/TCP and SNMP protocol TC module:UART port, meet MODBUS protocol | ||||
Environmental | Storage temperature: -10℃~70℃,5%~90%RH Operating temperature:-5℃~50℃,5%~90%RH | ||||
Application | Datacenter/Communications/Transportation, etc. | ||||

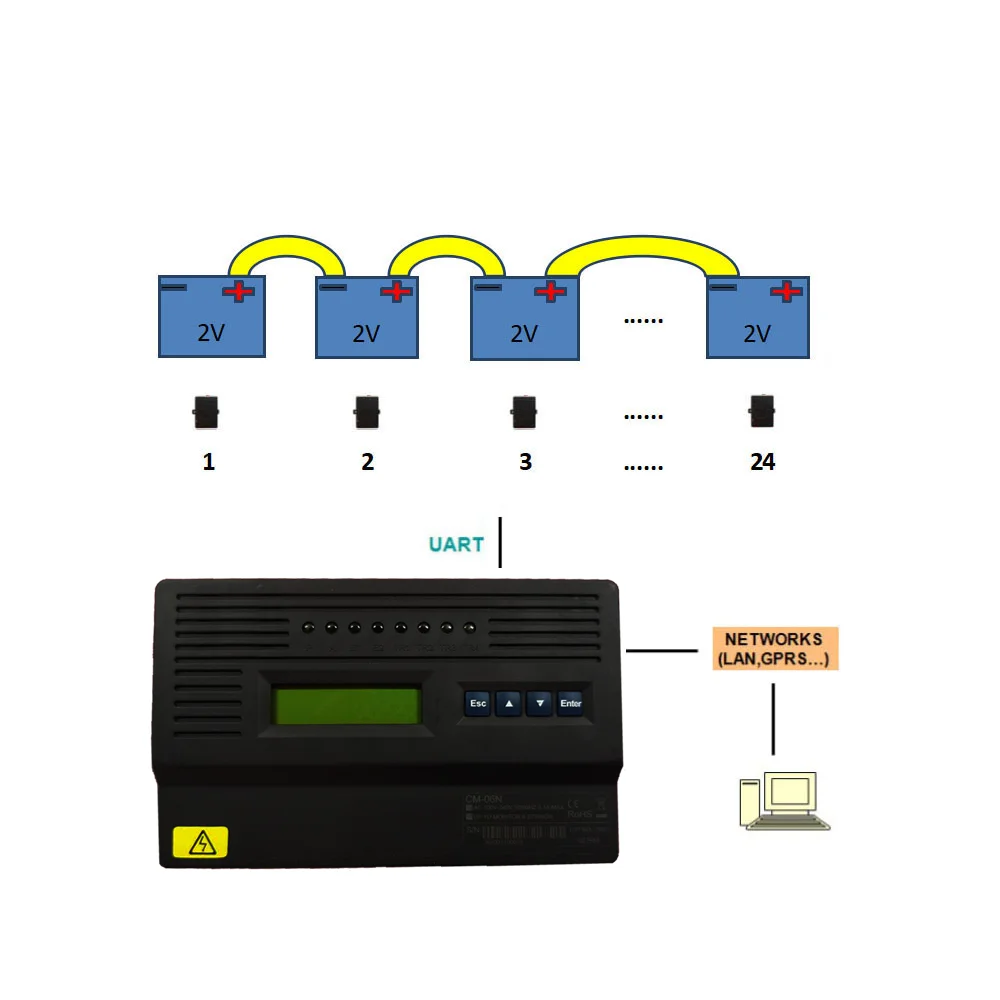

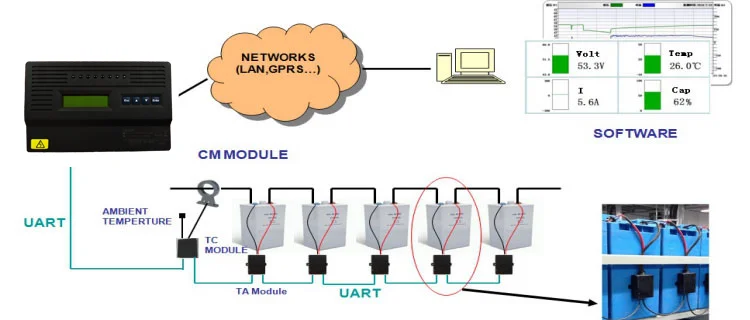

BMS Components
Overview
• Continuous 24/7 on-line monitoring
• One CELLCHECK monitor one cell, including battery internal resistance, voltage and temperature
• Software is available to collect data from CELLCHECK
• Serial port with Optical isolation, meet MODBUS protocol, easy to be accessed by UPS controller
• Easy to install without specialized training
UL VW-1 Test Method
All cables including voltage collecting cable, internal testing cable and other conneting cables are all flame retardant lines, and are in compliance with the fire retardant requirements specified in the UL VW-1 and GBT 18380.1 standard.
Packaging & Delivery
Standard Export Carton
Normal Size: 52.3*33.8*19.5
Main Products
Related Product
Application & Cases
• IT Enterprise &Data centers
• Telecommunications
• Battery supplied applications
• Utilities
• Fire &Safety system
• UPS Systems
• Transportations
• Storage Energy
• Remote monitoring
• Base Stations
Project Cases
User Name Battery Situation Installation Site
Our Partner
About US
At HUASU battery monitoring and management is all we do. We keep on researching it intimately, so you don't have to. Our company was established on year 2005, 4 generations (1.2V, 2V, 6V &12V concentrated system, cellcheck system, wireless system) BMS have been developed.
We provide BMS products and related services to the world, such as Vertiv (Emerson), Schneider, Eaton, etc.
Profession, specialty, refinement and particularity have been the keys to HUASU's success.
Contact us
Factory Add: 2nd& 3rd Floor of No. 3 Building, No. 1418-50 Moganshan Road, Hangzhou, China
Tel:+86-571-86693075
Fax:+86-571-87968969
Skype: huasu.joanna
Mob/WeChat/WhatsApp:+86-18324428238
Website://huasu-tech.com
LinkedIn: https://www.linkedin.com/in/joanna-chan-a22b9983
Facebook: https://www.facebook.com/huasu.joanna
Twitter: https://twitter.com/BMS_HuasuJoanna
Email: joanna@huasucn.com
Our Team
Our Certificates
ROHS CE（EMC） UL CE (SAFETY) ISO9001
Produce Line
FAQ
Q1. Why monitoring battery internal Resistance？
A: Generally, we confirm the battery situation through discharging of the battery. With this handling, we can work on the real capacity but it is very time-consuming. After doing some research, we find the internal resistance of the battery will be increased that due to various causes of capacity decline. If we regularly monitor the internal resistance of the battery and compare it with the initial internal resistance, it will be easy to detect the performance change of the battery and also find out the problem battery.
Q2. Why monitoring battery temperature?
A: Battery temperature is like human body temperature, when there is a problem with the battery internal temperature will tend to rise, generally like the battery internal part of short circuit, charging voltage is too high will cause temperature rise.
Therefore, the problem of battery pack can be detected as early as possible by monitoring the temperature inside the cell.
Q3. Can your products be discharged remotely?
A: Yes, the control unit can be controlled remotely, and the capacity unit can be controlled by the control unit to discharge the
battery. But when discharging, the battery pack needs to be operated manually or other control methods to separate from the power
supply system. We have done the whole system including the charger by technology project of remote control, but this method is not promotion, mainly is the present charger stability DC screen is not enough, manufacturers can not guarantee the safety and
effectiveness of the remote control function, easily lead to loss of control. At present, the technology of remote discharge
products in the market is not mature, as a pilot can, it is not suitable to promote, it is recommended that users do not use this
product at present.
Q4. How does the product solve the line interference and the environmental interference?
A: We have considered various interference conditions during the design , and special EMC is processing on the circuit which can
meet the requirements specified in UL and DL / T856 - 2004 , and we have corresponding EMC test reports.
Q5. The equipment can access to the third party system? How to access?
A: Yes. It is very easily access to your third party system. Generally, you only take one or two days to put programs. H3G system
comes with a special serial port for the use of third party system, support the MODBUS protocol. The specific access method and
communication protocol can be provided by our customer service department.
