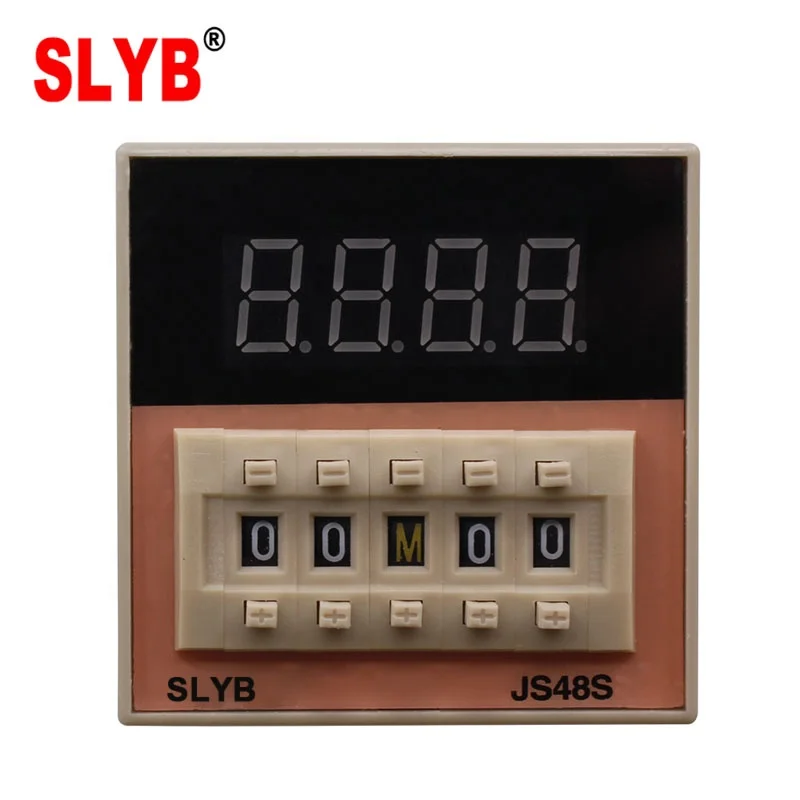

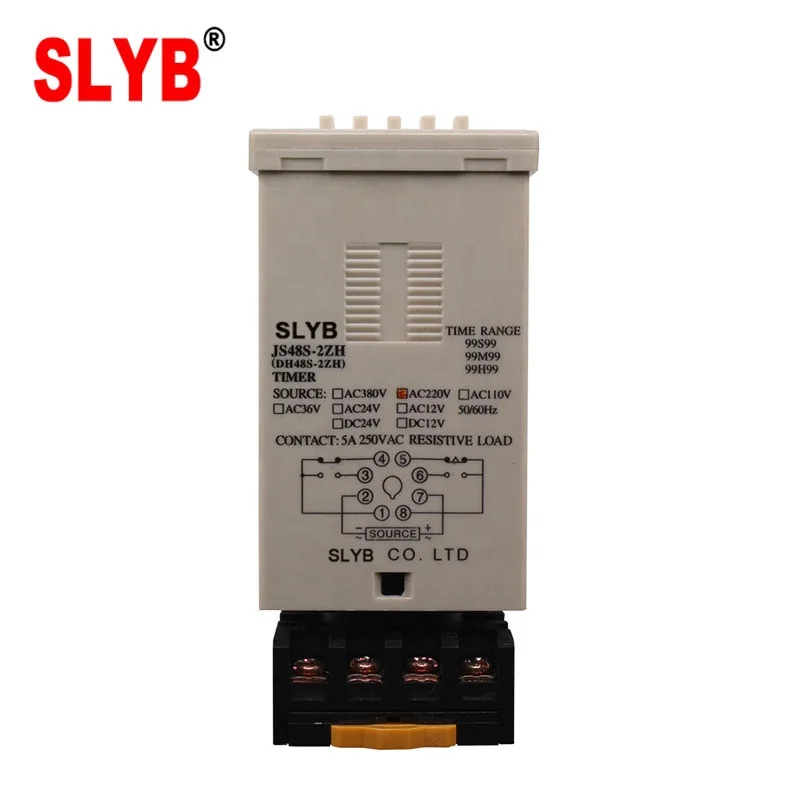

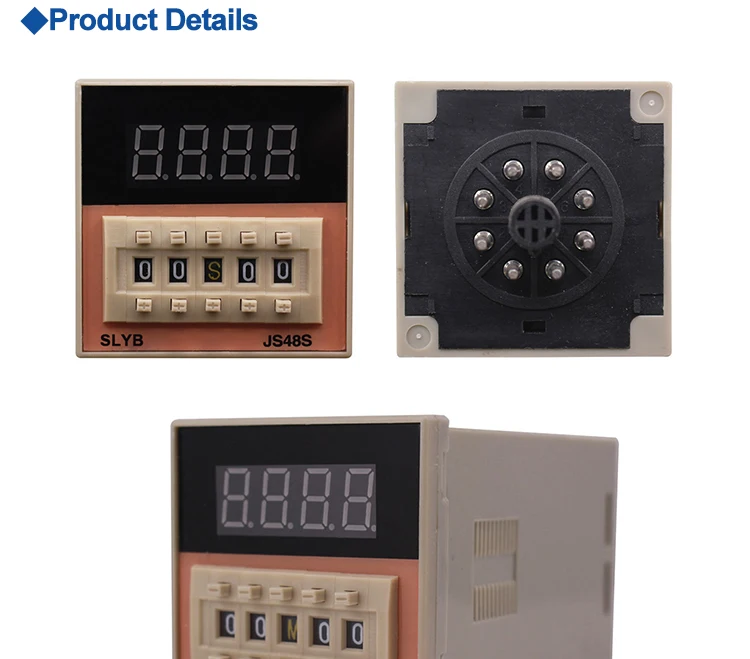

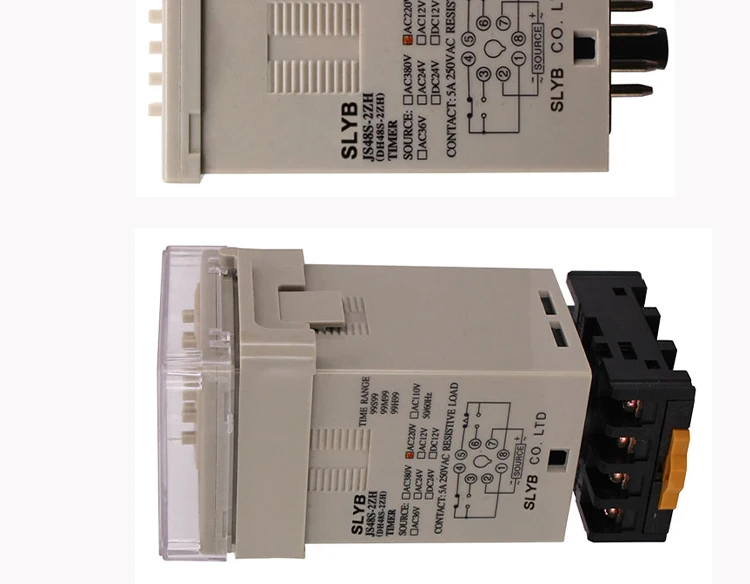

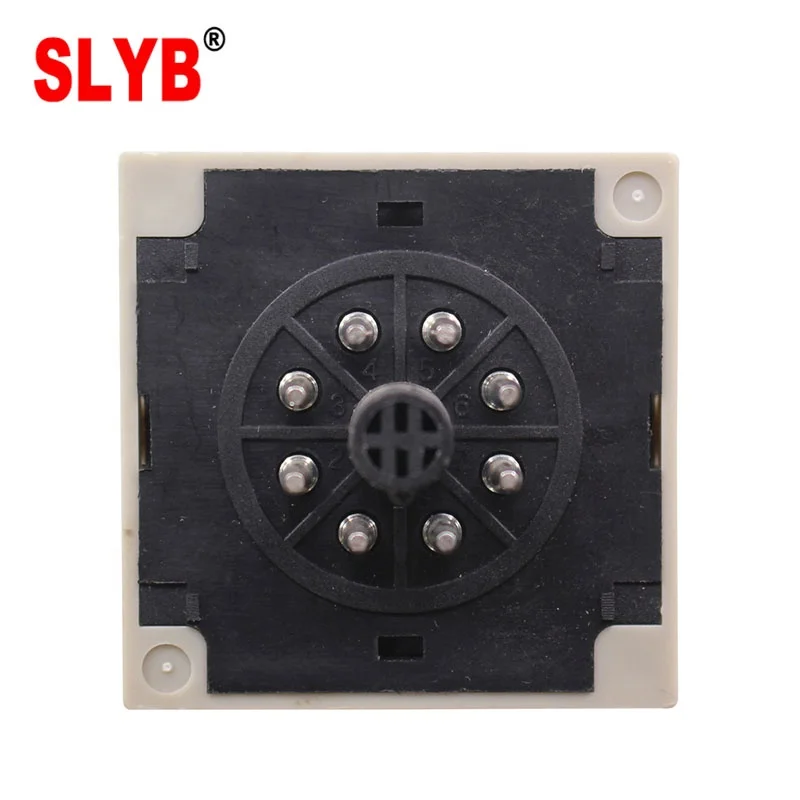

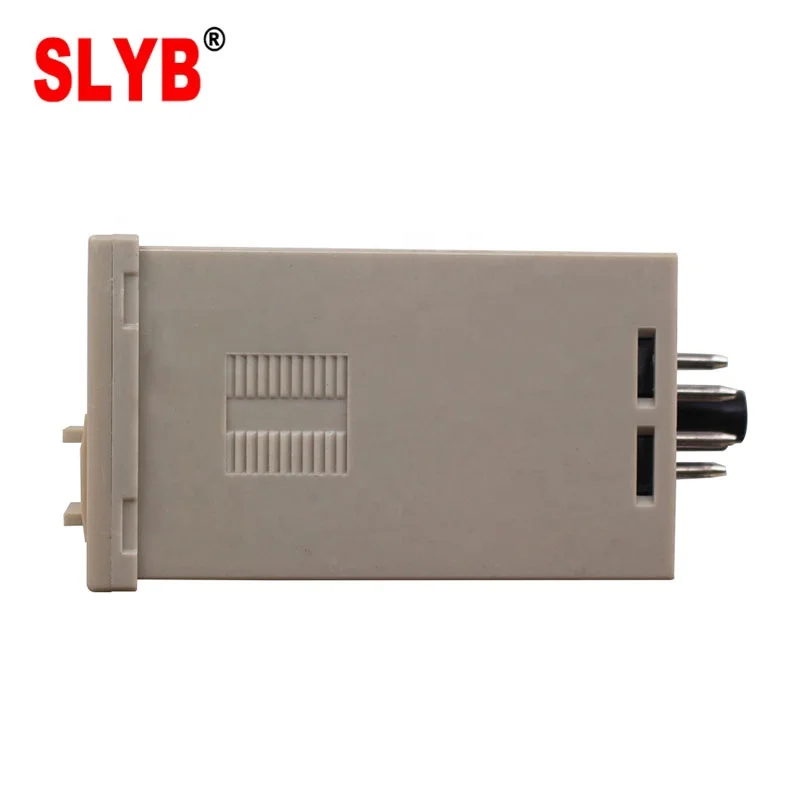

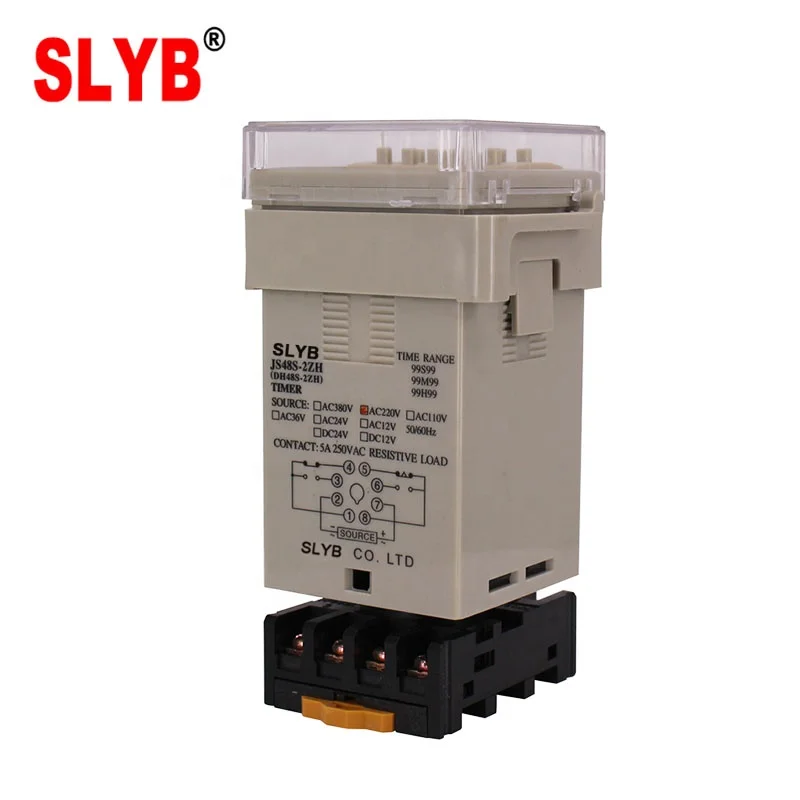

High Quality Mini Time Delay Relay JS48S 12V 8PIN Timer with Base
- Category: >>>
- Supplier: Yueqing Songling Electric Co. Ltd.
Share on (60727960107):
Product Overview
Description
Time Delay Relay JS48S
Product Description
Type | JS48S(DH48S) |
Voltage | AC:50Hz 36V,110V,127V,220V,380V DC:24V |
Working Mode | Cycle delay |
Contact Mode | Time Delay 2 Switch |
Mounting Mode | Panel mounting plug in |
Contact Capacity | AC220V 3A COS Φ =1 DC28V 5A |
Electric Life | 1*100000 |
Operating Temperature | -10℃~40℃ |
Time Delay Accuracy | ≤0.5% |
Time Delay Range | 1s~99s,1min~99min,1h~99h |
Humidity | 35%~85% |
Life | Mech:10^7 Elec:10^3 |
Outline Dimension | 48*48*95mm |
Weight | ≈200g |
