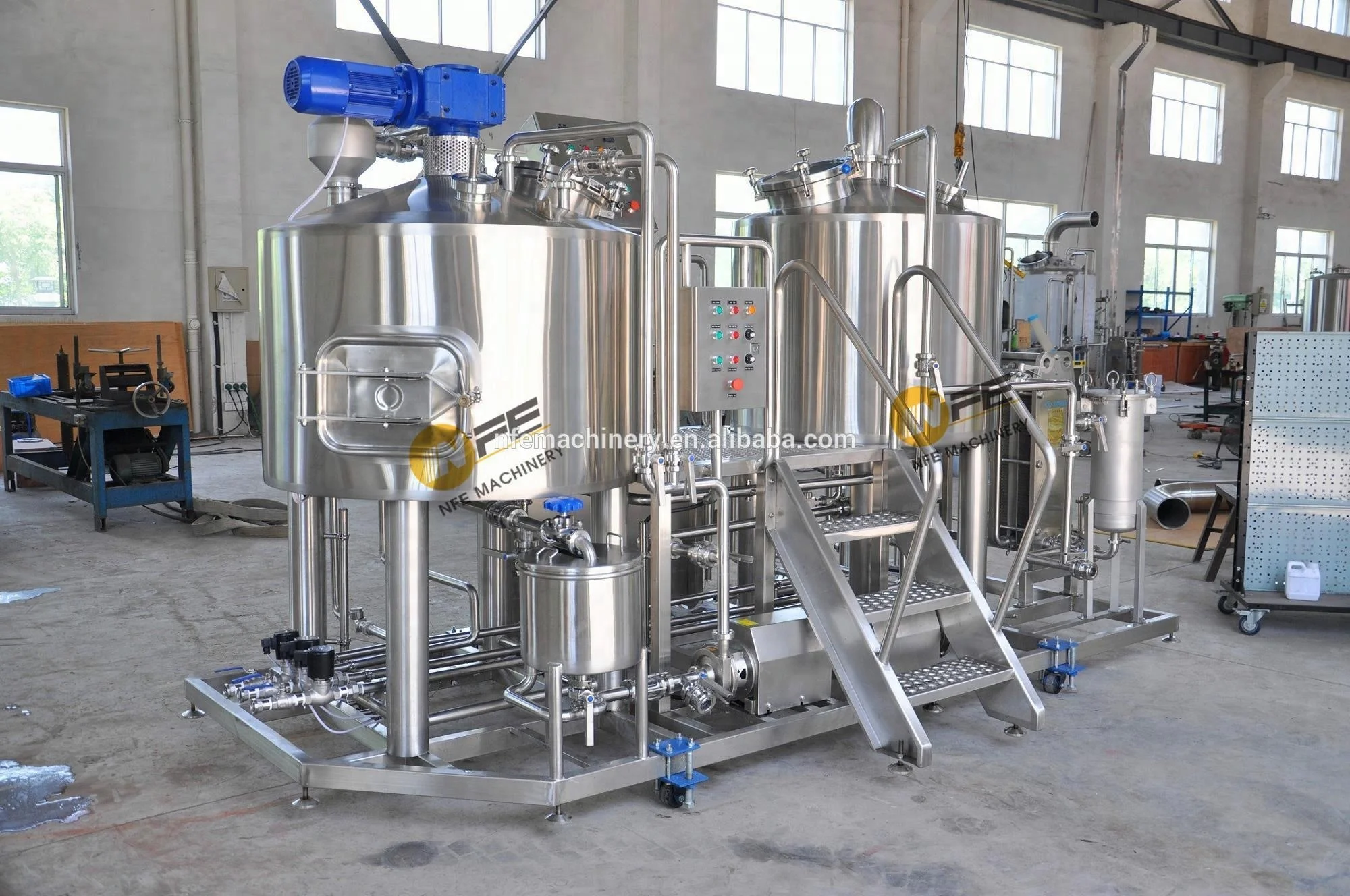

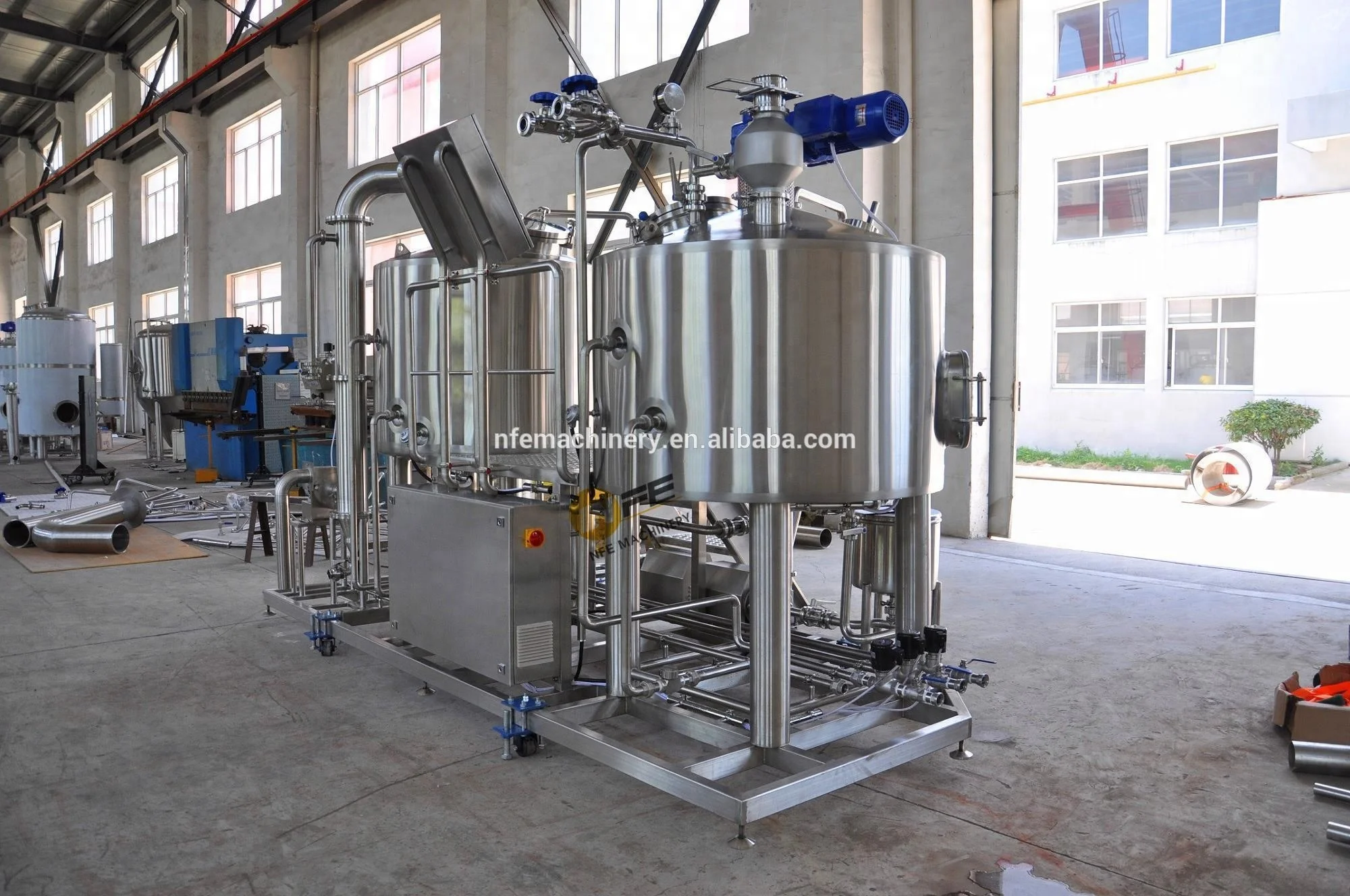

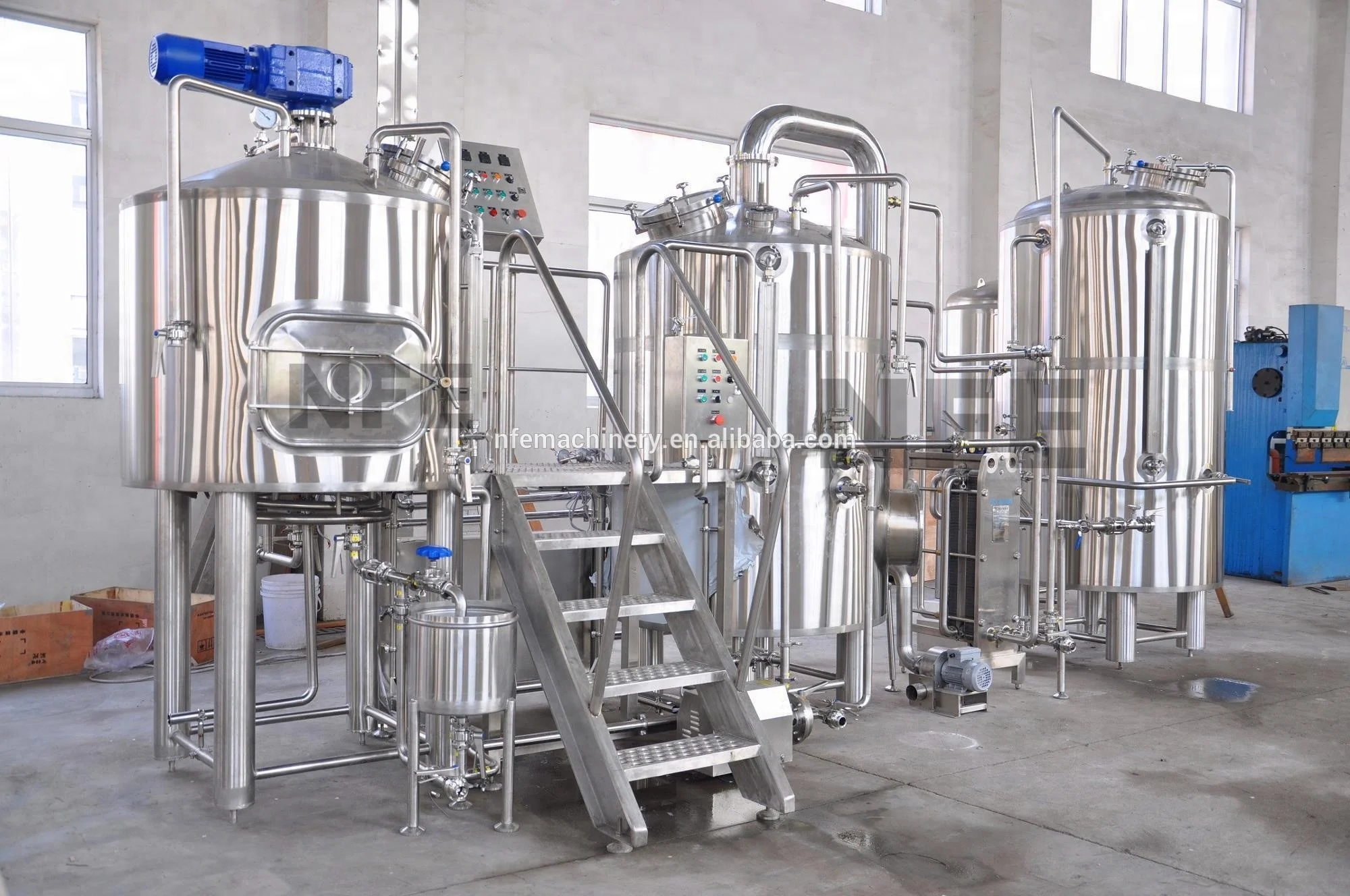

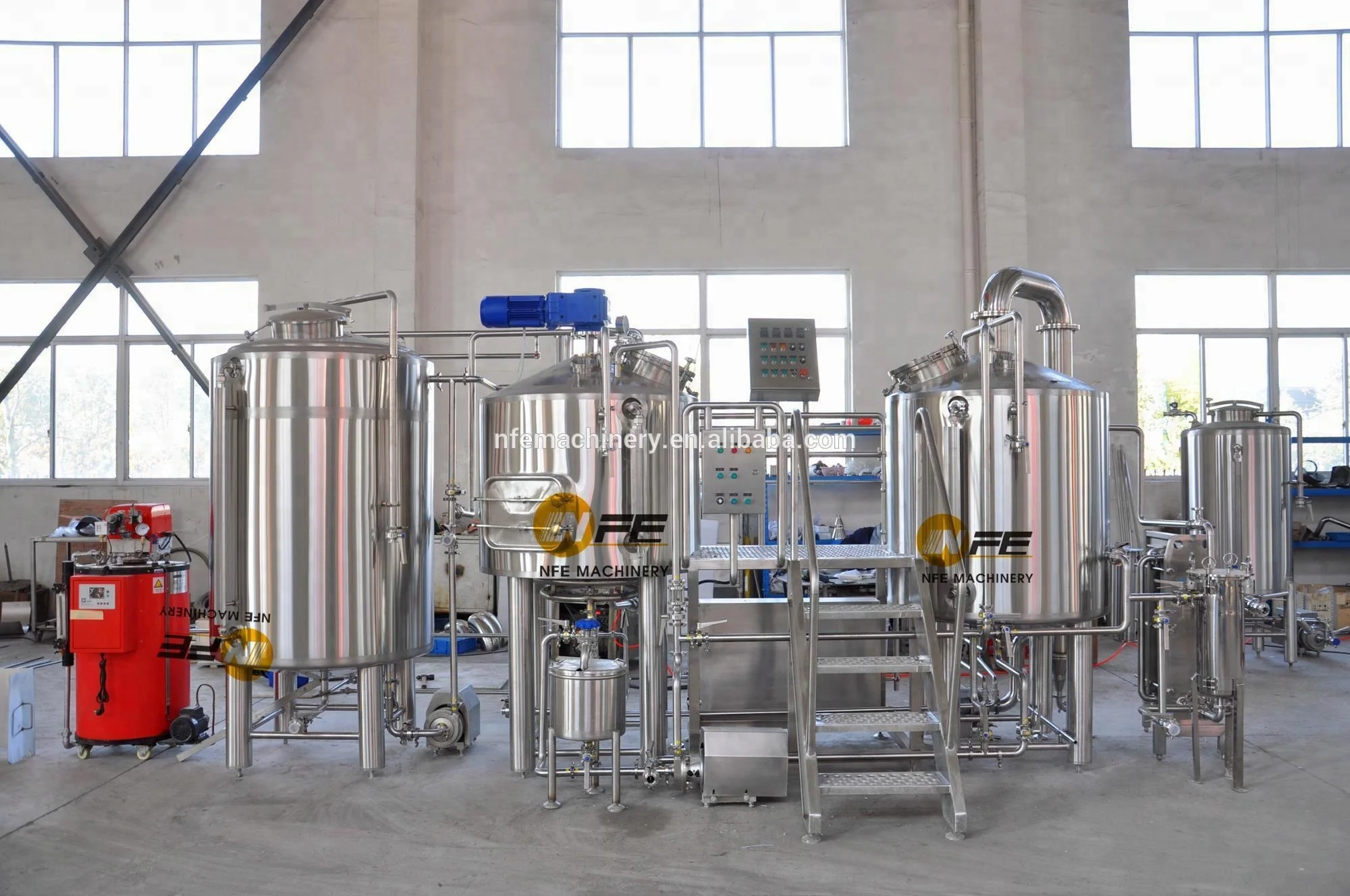

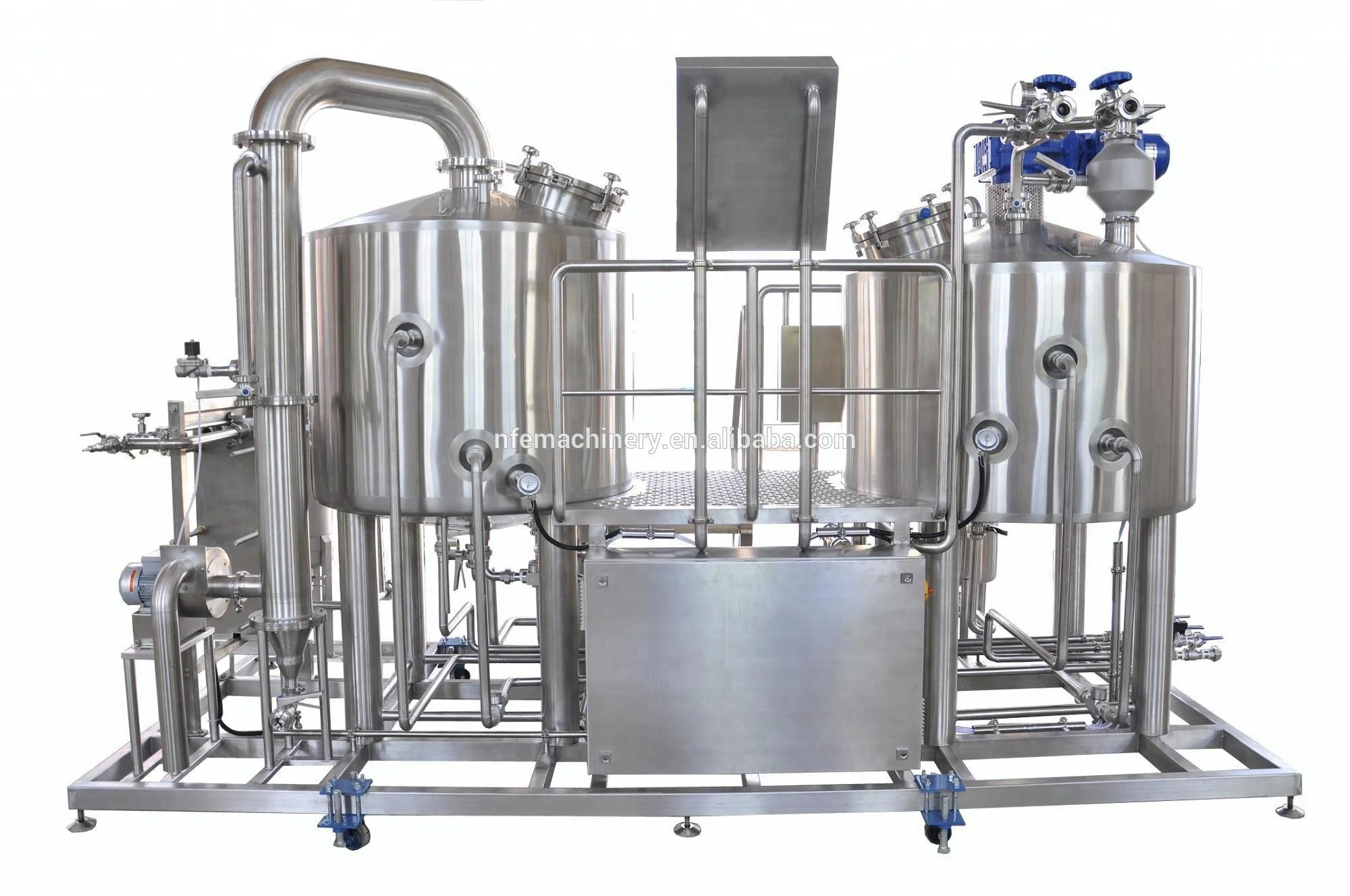

5bbl small mini beer processing brewery equipment machine
- Category: >>>
- Supplier: Jinan NFE Machinery Co. Ltd.
Share on (60728012283):
Product Overview
Description
Product Description

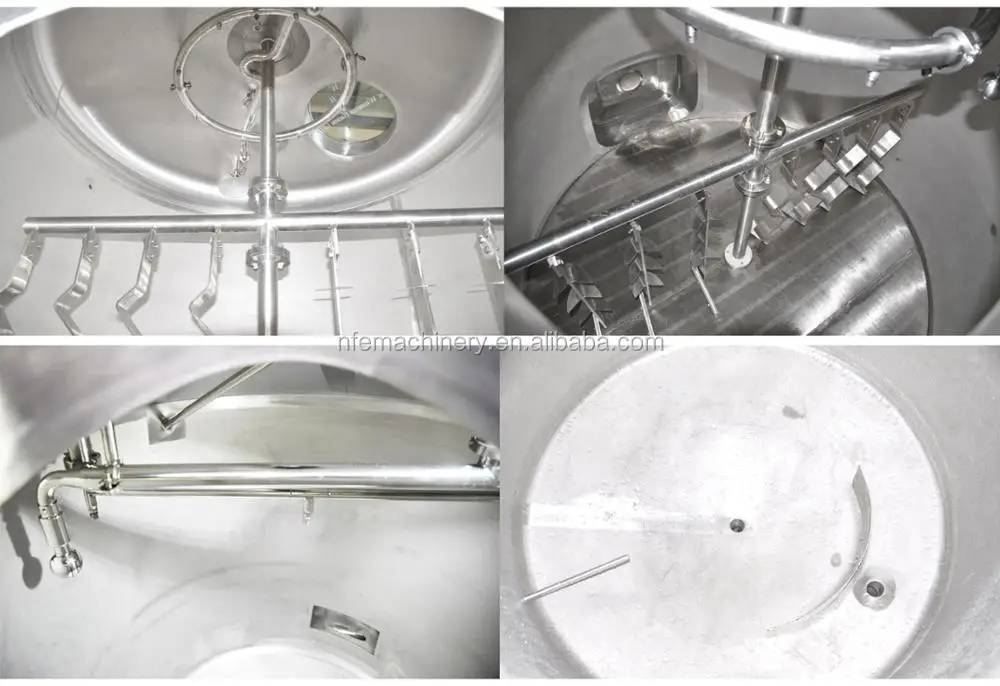

• Mash Lauter Tun with grist hydrator
• Kettle Whirlpool Tank with heating jacketed
• Grant Tank
• Stainless steel Platform
• Plate Heat Exchanger
• Sanitary Wort Pump x2;
• Wort Oxygenator;
• Semi-Auto Control Panel;
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
Or
•Interior surface to polished to RA≤0.22μm
•Exterior surface adapts satin polish.
Method of Heating Ways:
• Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
• Electric: Use electric heaters in jacket to heat the medium in the jacket
• Gas fired: Use gas burner at bottom to heat tank directly;
No | name | components | specification |
1 | Grain Milling Unit | Rolling Miller | Double roller |
2 | Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
Kettle/Whirlpool Tun | Steam Jacket on bottom and side/direct gas fired heating/electric heating | ||
Hot water tank | Steam Jacket heating/direct gas fired heating/electric heating | ||
Heat exchanger | SUS304 plate | ||
3 | Fermentation unit | Fermenter | Glycol cooling jacket on cone and bottom |
4 | Bright beer tank | Bright beer tank | Glycol cooling jacket on cone and bottom |
5 | Glycol Chilling Unit | Glycol Water Tank | Insulated conical top and sloped bottom |
Cold Water Tank | Dimple plate on side wall | ||
Chiller |
| ||
6 | Control unit | Brewing and fermetation process Controlling | Manual button control panel or PLC control with touch screen for special |
7 | CIP unit | Caustic Tank | electric heating element inside |
Sterilization Tank |
| ||
Transfer&Control |
| ||
8 | Others |
|
|
Certifications
Malt System: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER |

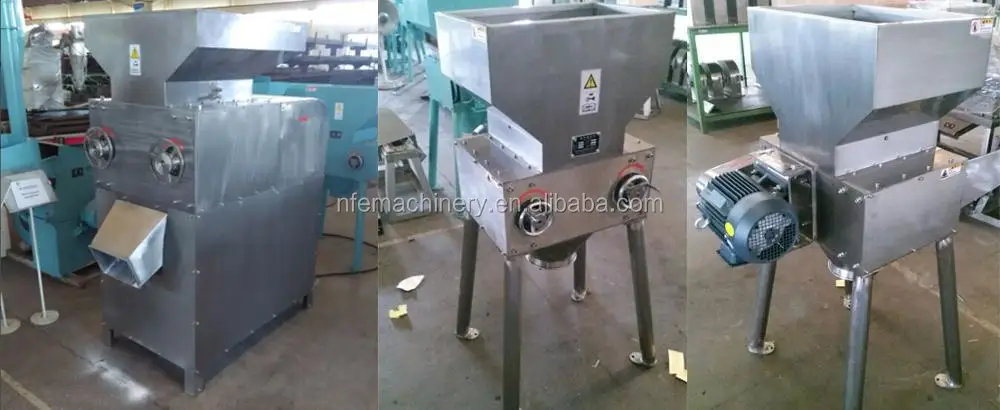

Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h |
|

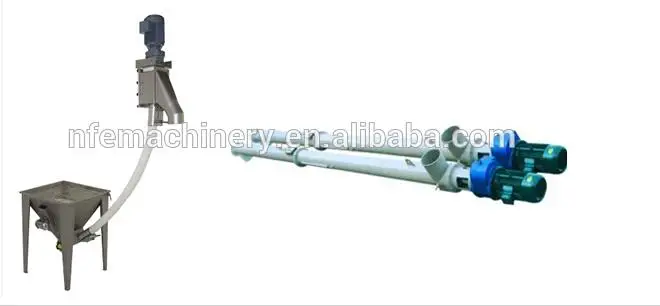

Flex Auger: PPR material pipe, stainless steel auger, motor |
|
Grist Hopper, Grain bin |
|

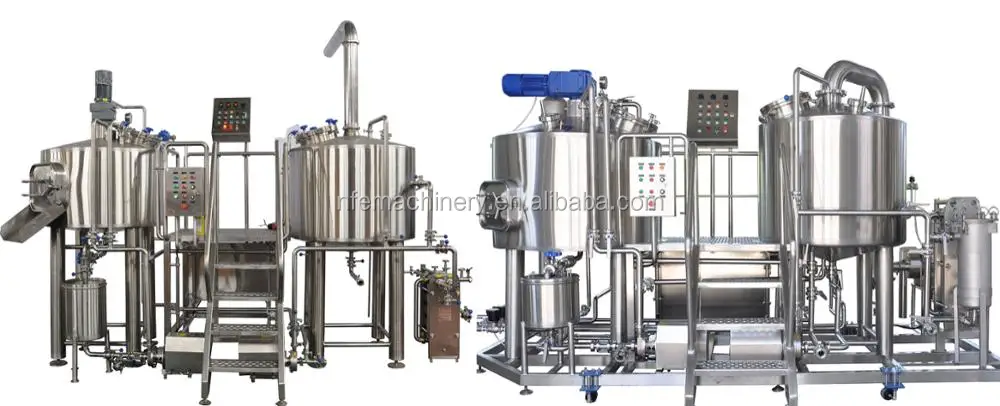

Brewhouse Equipment: Mash tank, lauter tun, brew kettle, whirlpool tun |
1. Brewhouse: two vessels, three vessels, four vessels brewhouse 2. Heating medium: steam heating 3. Insulation material: rock wool. Insulation thickness: 100mm 4. Mash tank; hydrator, mixer, steam heating jacket 5. Lauter tun: rake, agitator, false bottom, hydrator 6. Brewkettle, steam heating jacket, inner steam heating deivce 7. Whirlpool tun: whirlpool entry |
 |
|

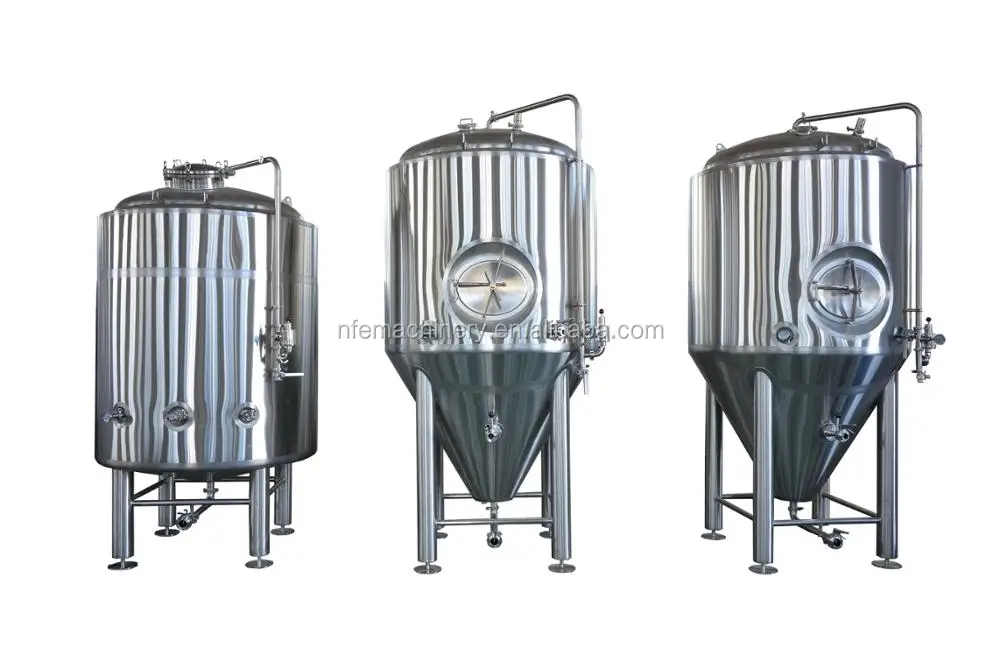

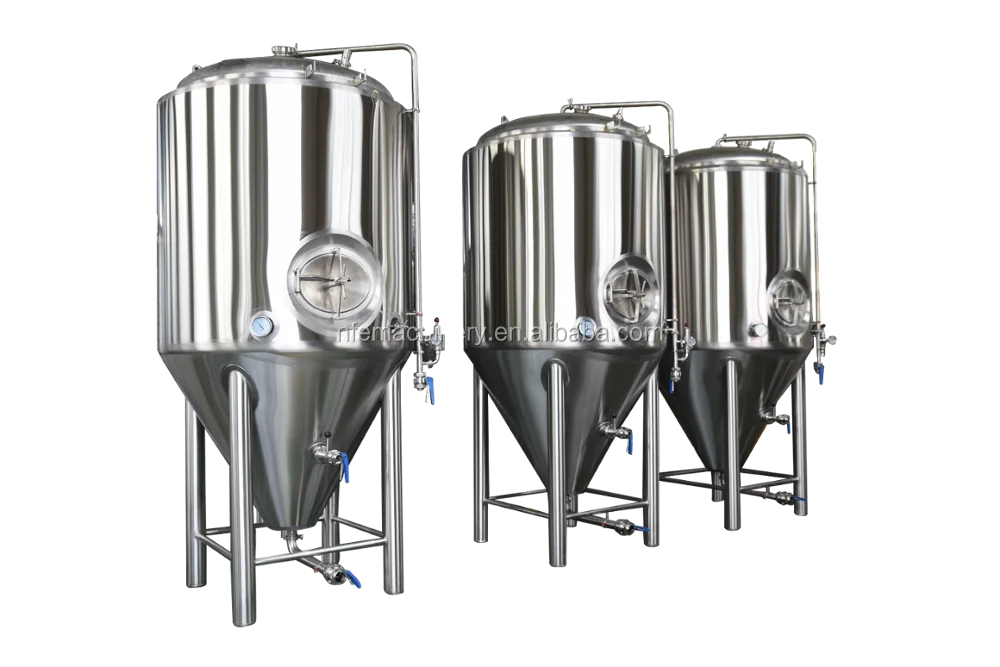

Fermentation Tank: 500L-500HL |
|
|
Bright Beer Tank: 500L-500HL |
|

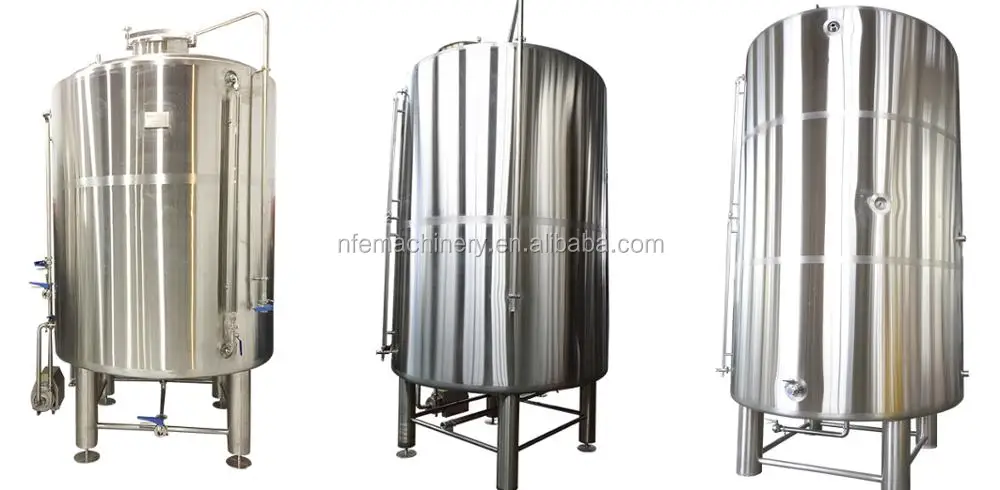

Hot/Cold water tank/Glycol tank |
|

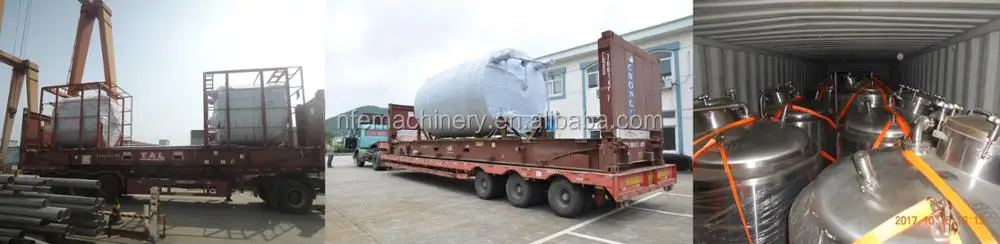

Packaging & Shipping
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
Our Services

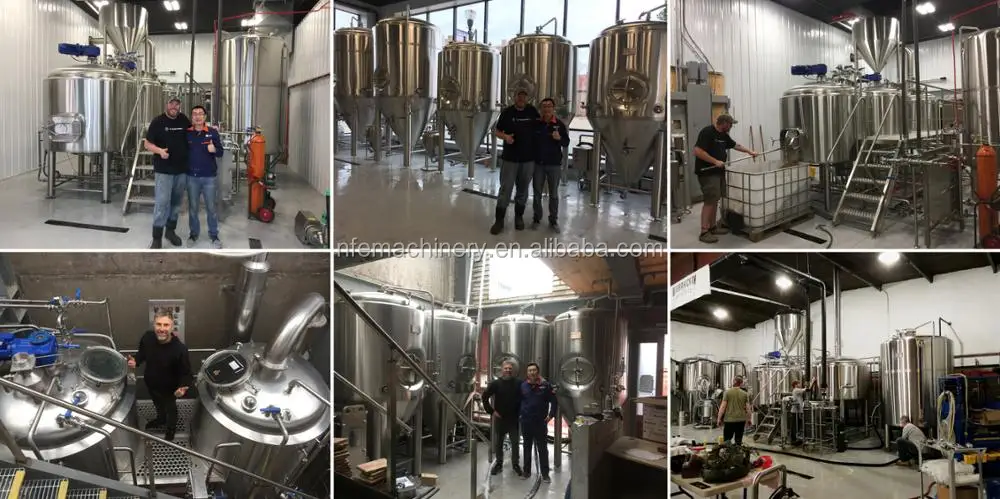

We provide turnkey system, onsite installation service for brewery projects
We are preparing to supply technology service at any time, will offer equipment handbook, electrical appliance drawing and machinery drawing to customers with the equipment.

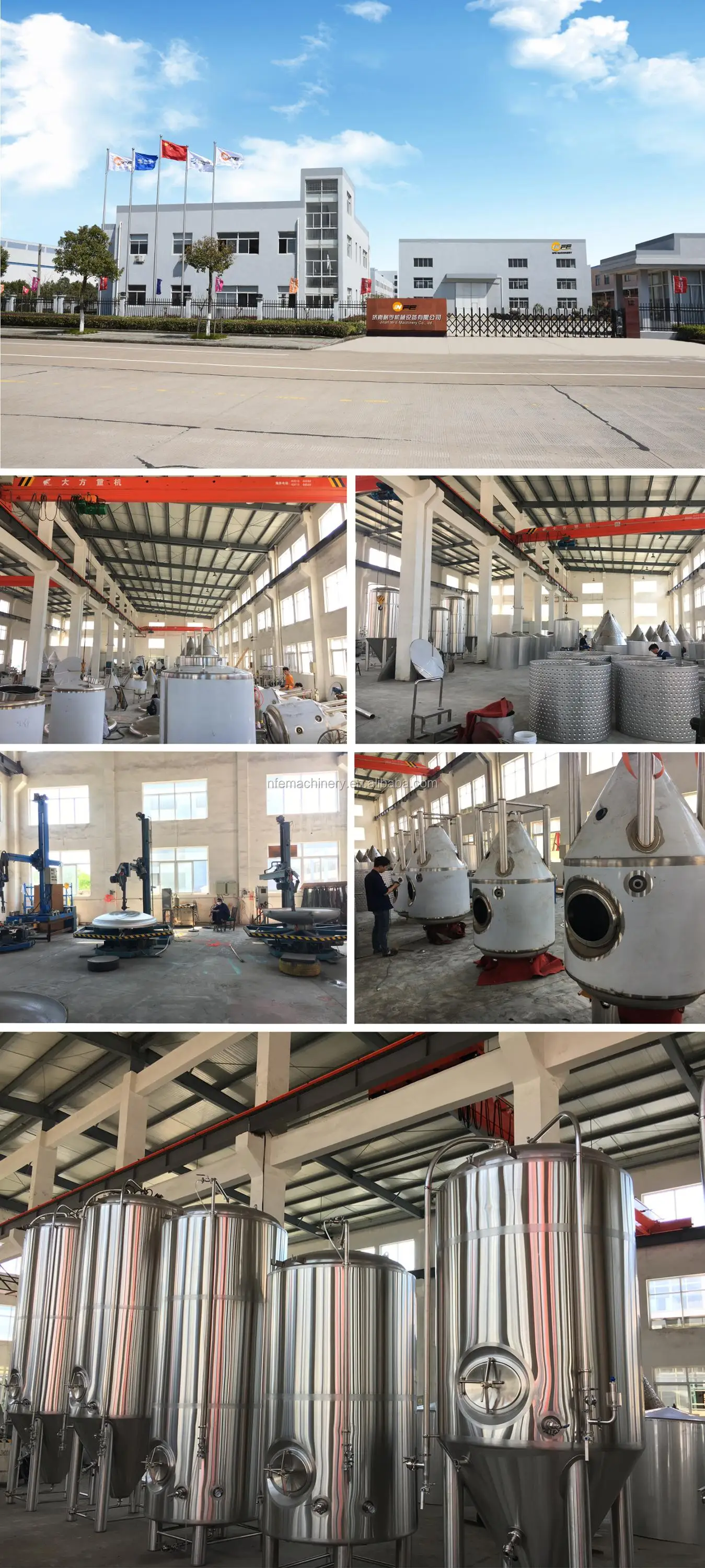

Company Information
Jinan NFE Machinery Co., Ltd is one of the leading manufacturers of beer brewing equipment, beer packaging machine, stainless steel vessels in China. NFE brewing equipment is confidant to keep pace with fast changing of international brewing market. Beer brewing equipment includes brewhouse equipment, fermentation equipment, yeast propagation equipment and cooling equipment etc. Beer packaging line includes beer bottling line, beer canning line and beer kegs washer and fillers.
