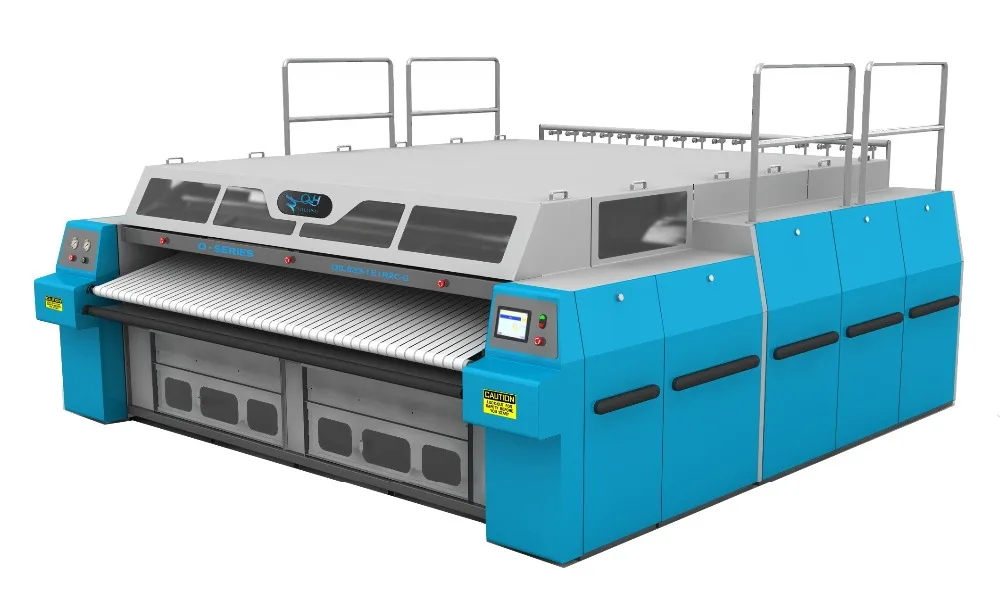

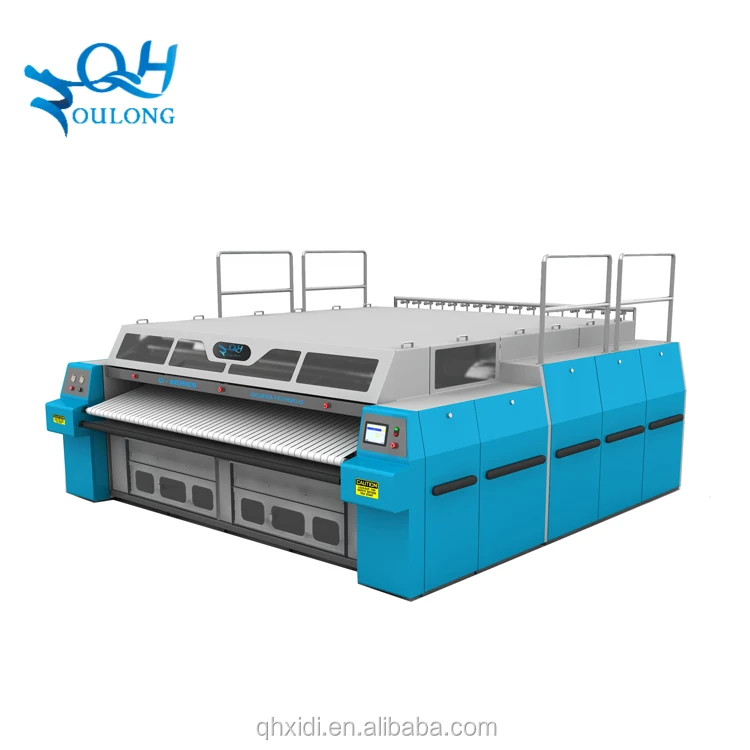

High efficiency and quality laundry automatic ironing machine for sale
- Category: >>>
- Supplier: Shanghai Qiaohe Laundry Equipment Manufacturing Co. Ltd
Share on (60728015639):
Product Overview
Description

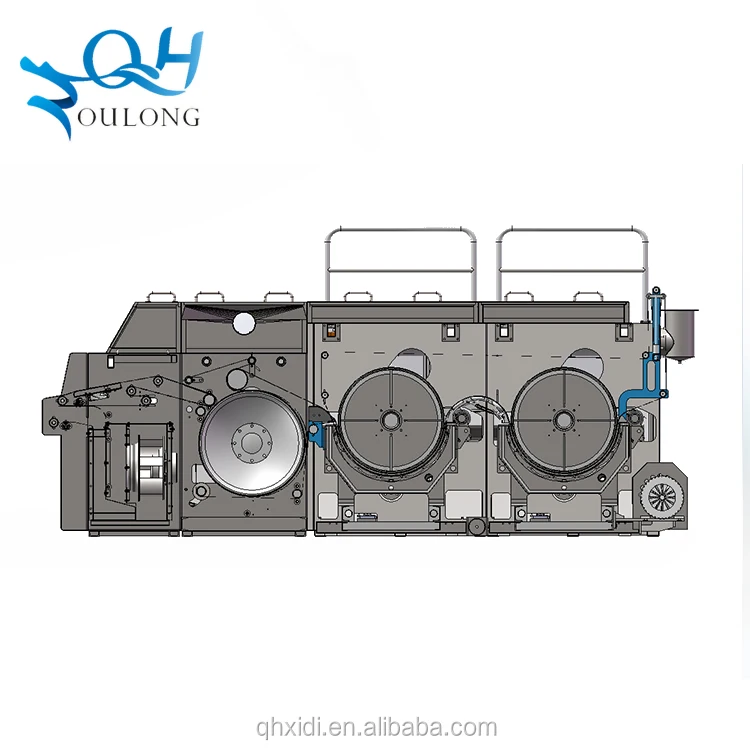

\\uD83D\\uDC99The roller, chest, bridge, support cylinder, connecting rod and balance shaft combine together to form an adaptive balance mechanism so that the pressure on drum and chest surface more even
\\uD83D\\uDC99Feeding rollers and drum drived by one motor, speed pulley directly sets and adjusts speed difference between drums to ensure high ironing quality
\\uD83D\\uDC99Adopt Japanese springs, UK high temperature,resistance padding, good friction and air permeability, chest pressure also adjustable, which also ensure the ironing quality
\\uD83D\\uDC99High efficient and built-in dehumidification system, it can reasonably set and distribute temperature and humidity for each drum and ensure water vapor taken out to achieve good ironing quality and save energy
\\uD83D\\uDC99Adopt unique multi heat chambers with both sides thermal cycle design, steam, thermal oil heat for option, chest surface temperature can reach to 200℃ when use gas or thermal oil heat, smoothly ironing and fast speed that reduce energy 25-35%, improve ironing speed by 30%
Item | Unit | OC833-1 | OC833-2 | OC833-3 | OC1333-1 | OC1333-2 | OC1333-3 | |||||
Cylinder diameter | mm | 800 | 1300 | |||||||||
Nr.of drum | pcs | 1 | 2 | 3 | 1 | 2 | 3 | |||||
Cylinder length | mm | 3300 | ||||||||||
Ironing speed | m/min | 5-20 | 5-35 | 5-50 | 5-30 | 5-45 | 5-55 | |||||
Drive power | kw | 5.1 | 9.1 | 13.1 | 10.3 | 19.5 | 28.7 | |||||
Fan power | kw | 1.5 | 3 | 4.5 | 2.2 | 4.4 | 6.6 | |||||
Chest air pipe size | mm | 180 | 220 | |||||||||
Length | mm | 4750 | 5000 | |||||||||
Depth | mm | 2120 | 3530 | 4920 | 2370 | 3850 | 5450 | |||||
Height | mm | 1580 | 1810 | |||||||||
Weight | kg | 4150 | 7750 | 10500 | 5500 | 10500 | 16000 | |||||
