China make GW3103 50 50mw VFL visual fault locator fiber tester

Product Overview

Description

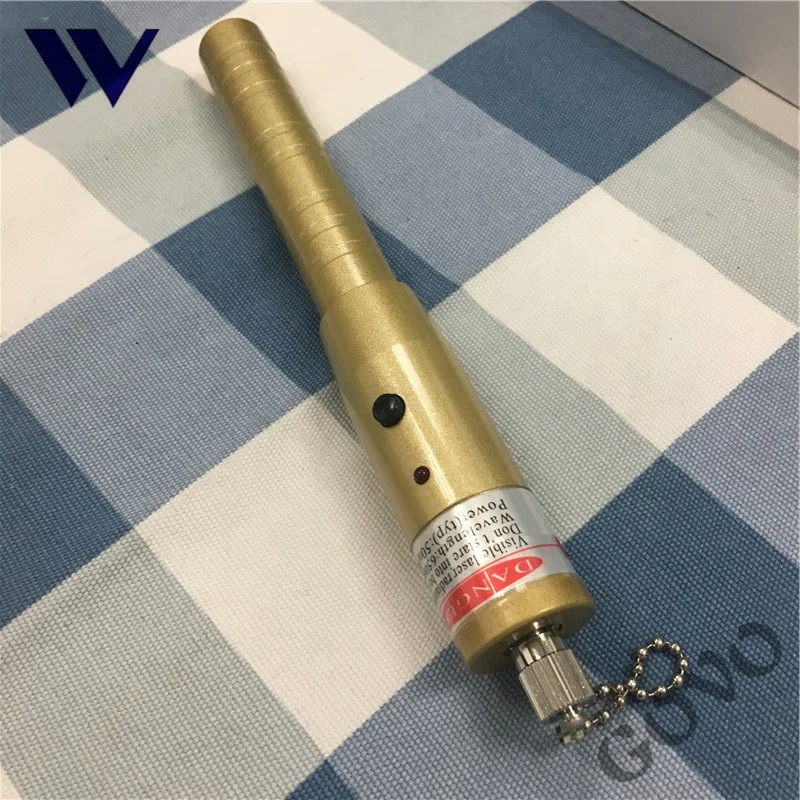

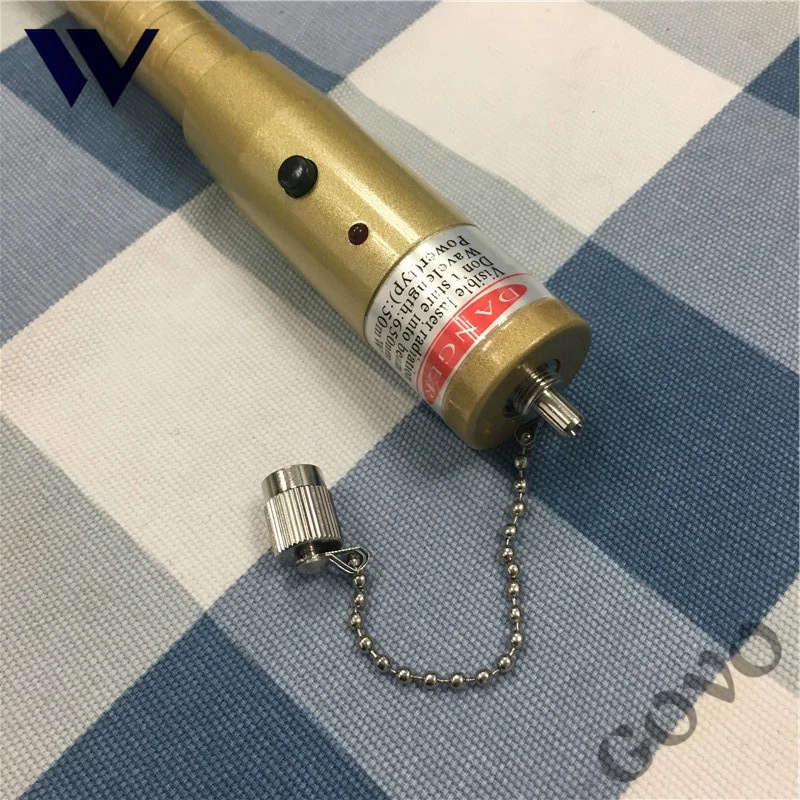

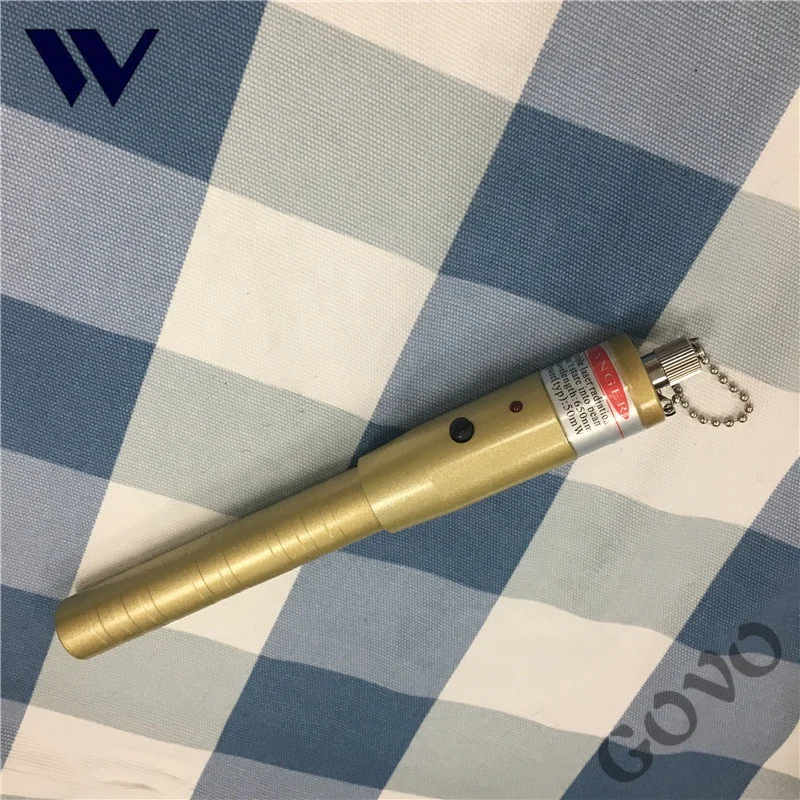

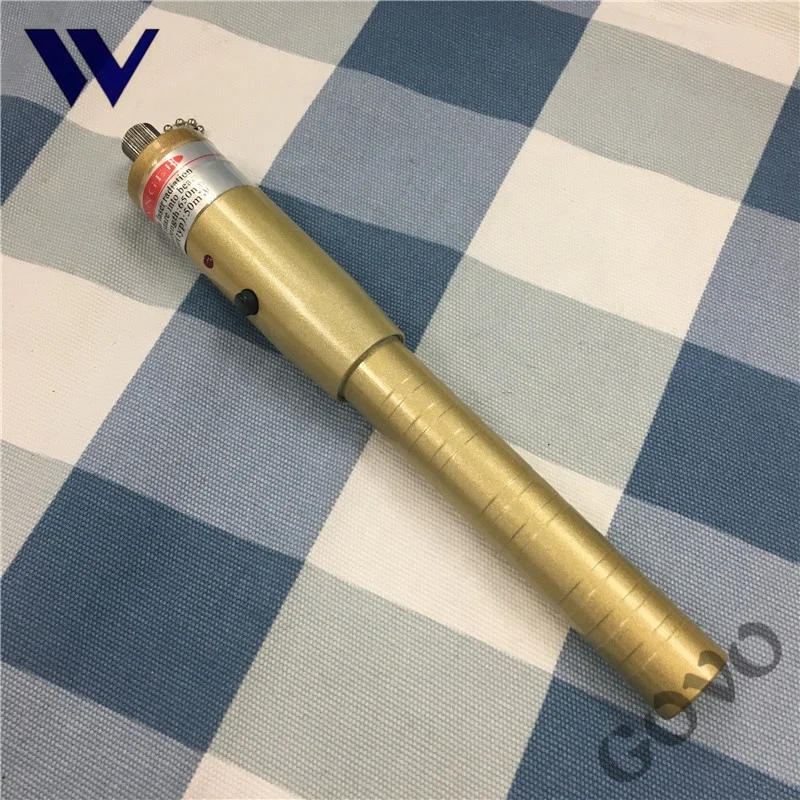

China make GW3103-50 50mw VFL visual fault locator fiber tester

Model GW3103-5 : 5mw, 5km

Model GW3103-10: 10mw, 10km

Model GW3103-20: 20mw, 15km

Model GW3103-30: 30mw, 20km

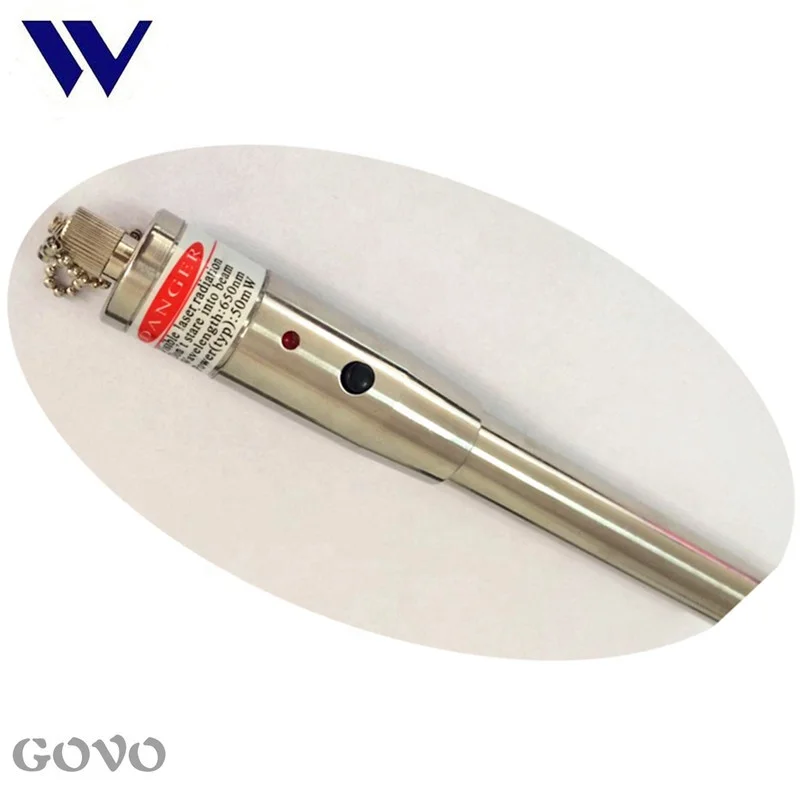

Model GW3103-50:50mw. 30km

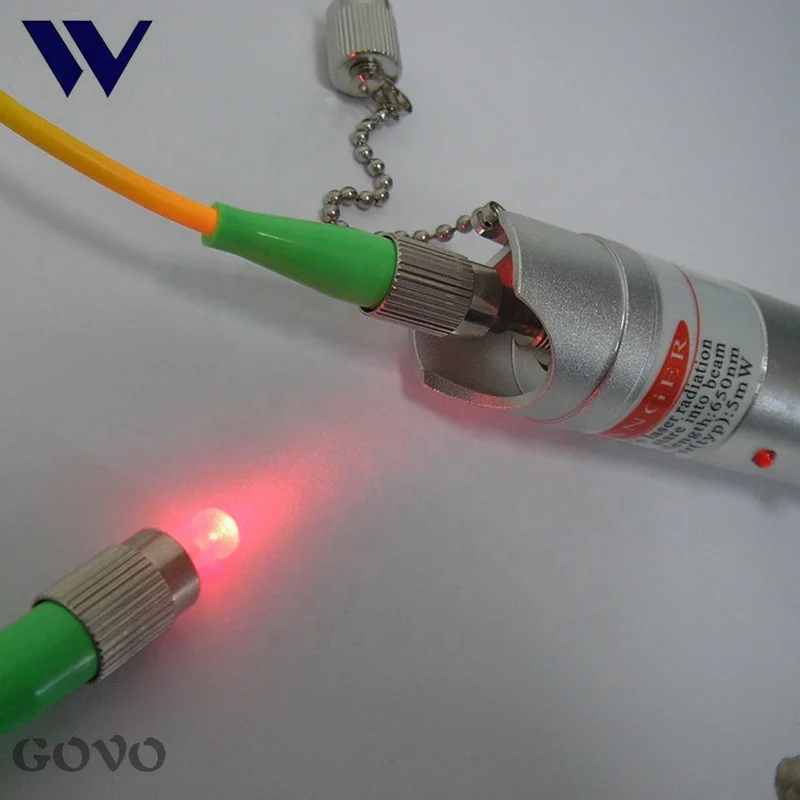

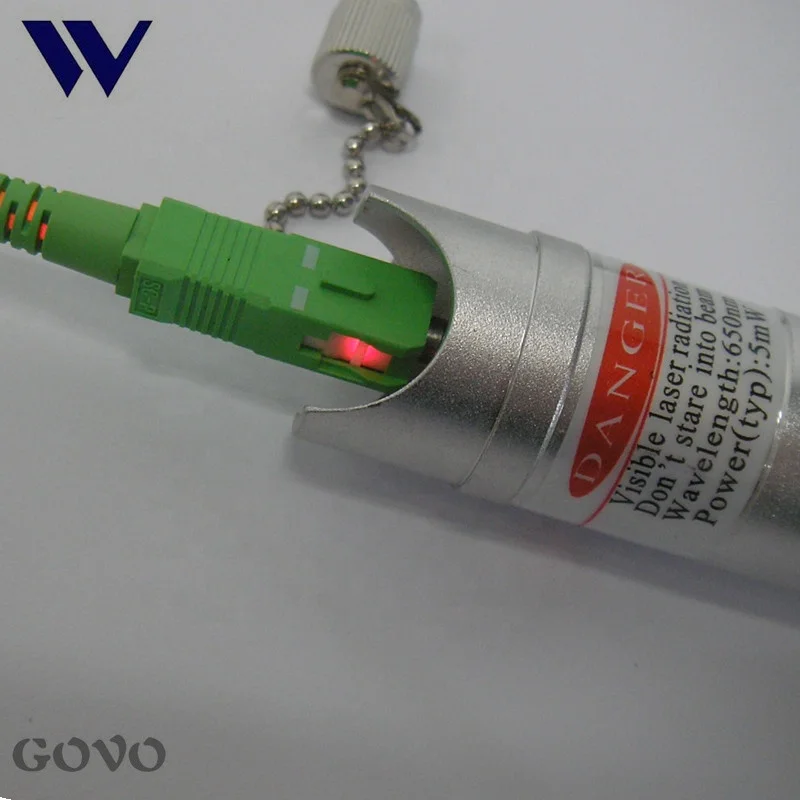

Pen-design Visual Fault Locator(VFL), pen-size and light, outputs the visible red laser, and can be used for locating optical broken point which OTDR can’t find and area of high loss caused by bending. It is suitable for both single mode and multimode fiber.



Wavelength of optical source	650+10nm
Applicable fiber type	single mode, multimode
Output power(mW)	1, 5, 10, 20 Optional
Power Supply	Battery: 2 x 1.5V AAA Alkaline
Output port	Universal adaptor for connectors with 2.5mm ferrules (Optional)1.25mm adaptor FC (Male)-LC (Female)
Working temperature:	-10~+45°C
Storage temperature:	-40~+70°C
Material of the shell:	Cu-alloy or stainless steel
Emitter Type	FP-LD
Weight	120g(Without battery)





•  2.5mm universal connector


•  Operates either in CW or Pulsed


•  Constant output power


• Lower Battery warning


• Long battery life


• Crash-proof and dust-proof design for laser head


• Laser case ground design prevents ESD damage


•  Burning testing to ensure the reliability.


• Portable and rugged, easy to use



1 piece of GW3103VFL; 1 piece of user manual;1 piece of soft carrying bag.
