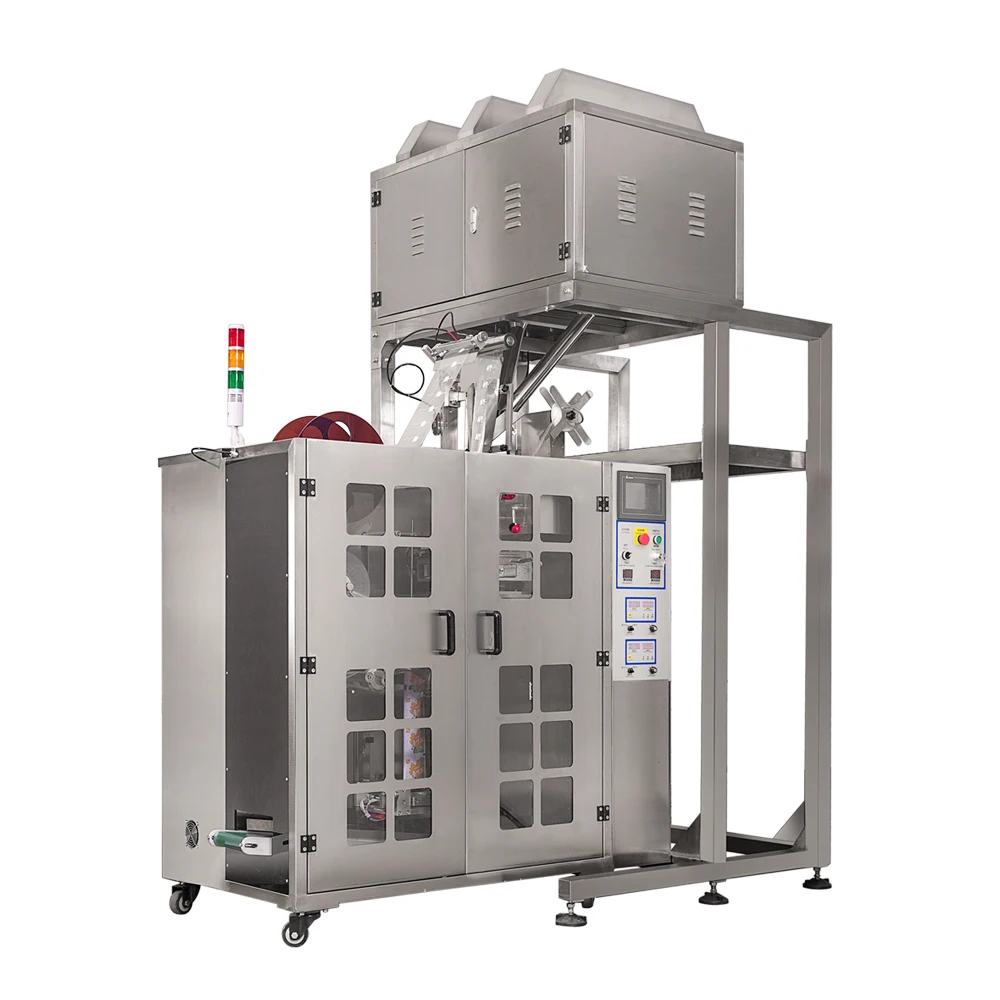

C21DX Non woven tea bag packing machine with outer envelope for Vietnam tea

Triangle tea bag packing machine is suitable for inner Triangle/flat bag with outer envelope, and for packing multi-material product such as loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.

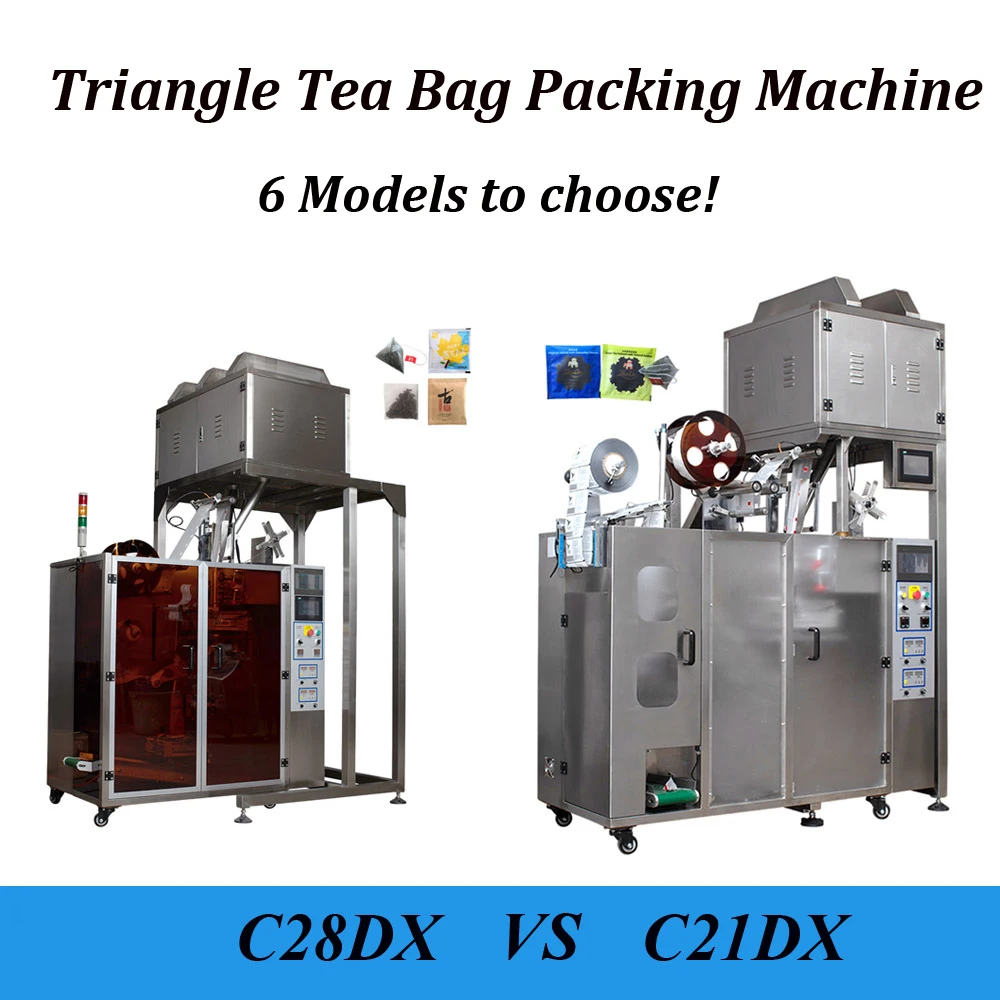

We are a manufacturer and specialized in Tea & Coffee Packing machine, and able to manufacture: 6 Models of Triangle Tea Bag Packing Machine, 4 models of Drip Coffee Bag Packaging Machine, and 6 models of Filter Paper Tea Bag Packing Machine, etc

We are Triangle Tea Bag Packing Machine Manufacturer, Drip Coffee Bag Packaging Machine Supplier, Automatic Filter Paper Tea Bag Packing Machine Exporter, Pyramid Teabag Rolls Tagging Machine Factory, etc.

The Features of automatic Triangle tea bag packing machine:
1. This packing machine can pack inner and outer bag automatically, which would highly improve the working efficiency.
2. This automatic packing machine adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
3. Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.
4. All parts in direct contact with tea are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.
5. The packing materials of pyramid bag is nylon, non-woven fabric material imported from japan, and it is non-toxic, no bacteria, heat-resistant high quality food grade material.
6. The automatic packing machine adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing materials.
7. Optional devices: date printer.

Technical Data



 Application:

It is suitable for inner pyramid bag with outer envelope, and for packing multi-material product such as loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.

Feature:

1 It can make inner and outer bag automatically, which would highly improve the working efficiency.

2 Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.

3 Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

4 All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.

Standard Technical Data

Technical data
Type:	Tea Bag Packing Machine Series
Product model:	C21DX
Product name:	Automatic Pyramid Tea Bag Packing Machine with outer envelope
Packing Material:	Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material. Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film
Filling range:	1~10g/bag, accuracy:±0.1g/bag
Filling method:	Electric scale
Packing roll width:	140mm, 160mm, 180mm
Sealing length:	50, 60, 70, 80mm

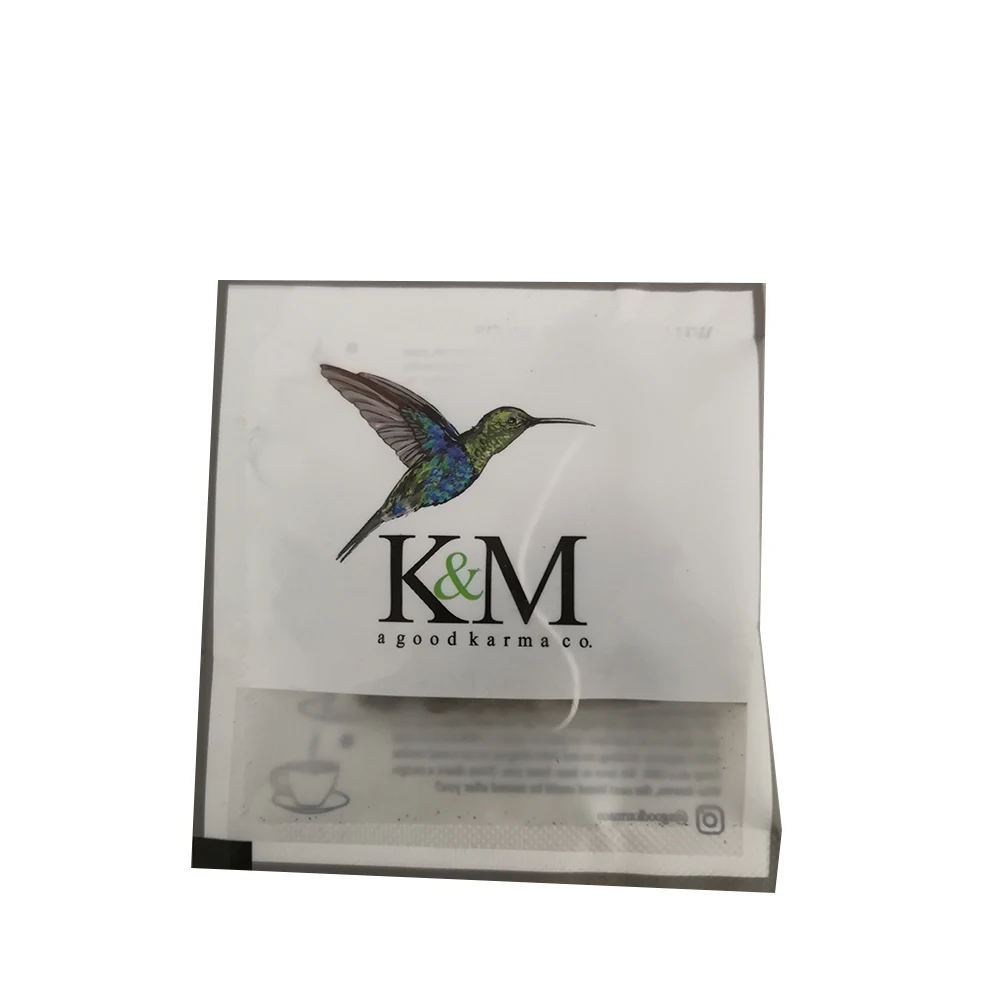

Outer bag size	W: 80-100mm; L: 90-120mm
Sealing method:	Inner Pyramid Bag by ultrasonic sealing and cutting

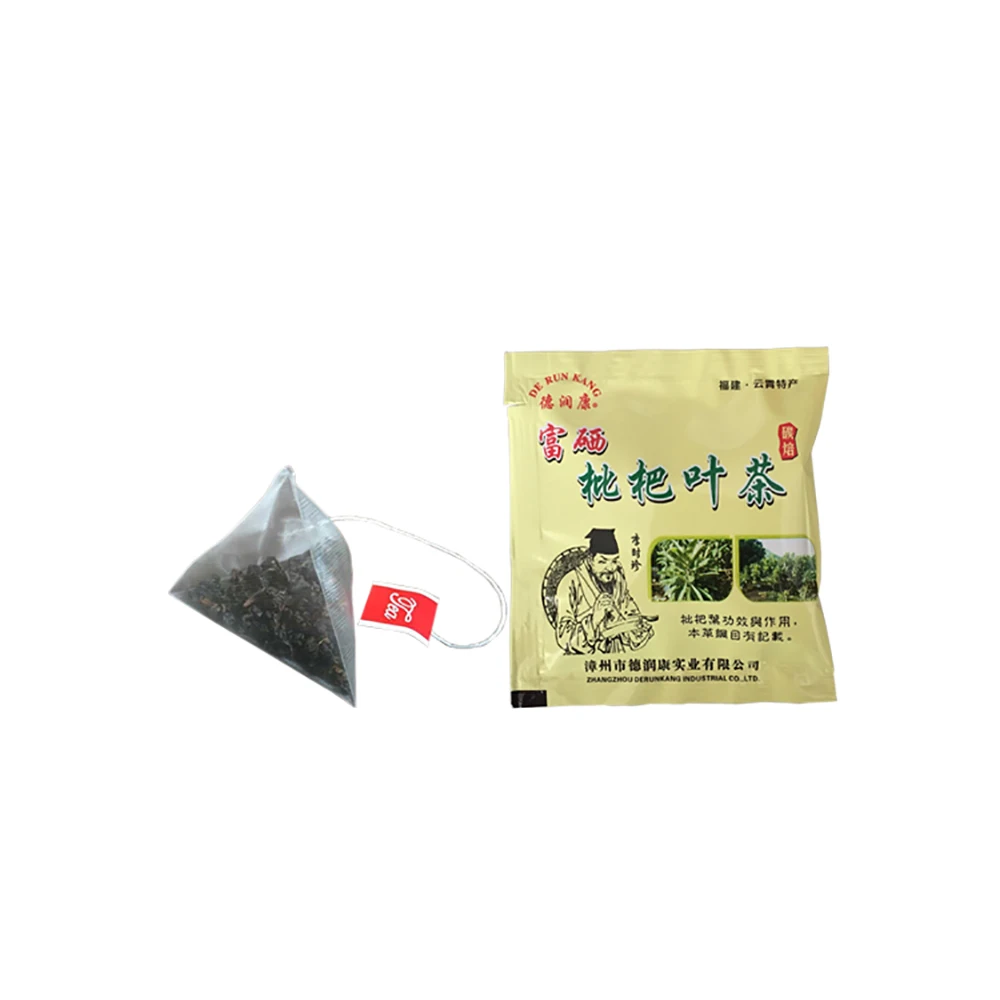

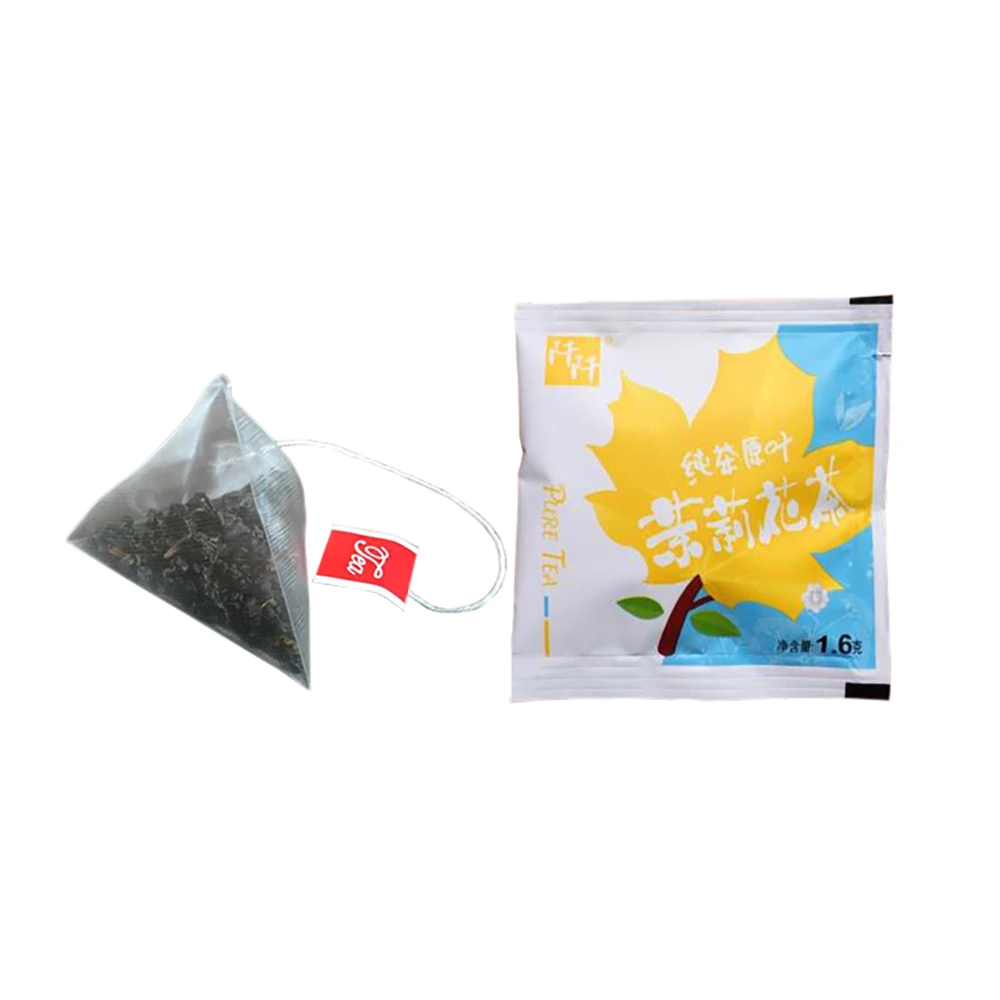

Bag type:	Inner pyramid bag with outer envelope
Quantity of sealing device:	2 sets
Packing speed:	30-60 bags/min
Motor Power:	380V, 50HZ, 1.5KW
Air supply:	0.6Mpa (Can be equipped with air compressor)
Weight:	500KG
Dimension:	3000*900*2300mm(L*W*H)
