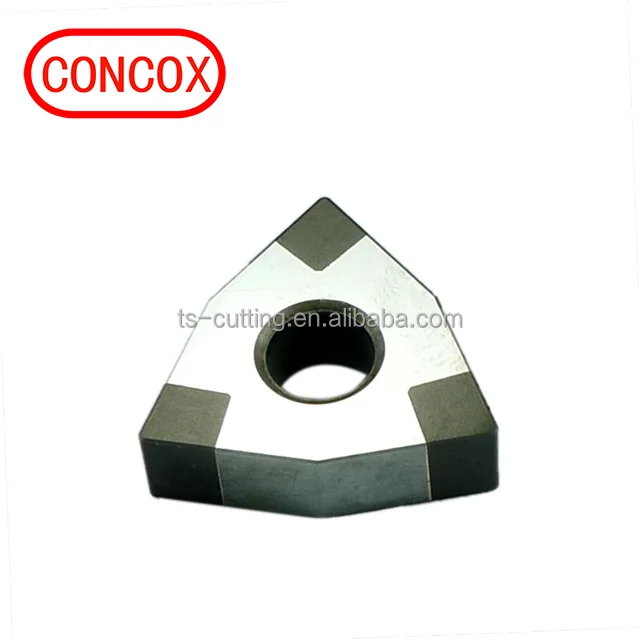

CONCOX CBN WNGA080404L Diamond lathe tools cnc inserts SIX tips
Diamond lathe tools cnc inserts WNGA080404L One or three CBN tip insert
Material
Vc:(m/min)
Ap:(mm)
fv(mm/rev)
Heat Treatment Steel(HRC45-68)
Rough Turning 80-130
1.0-2.5
0.1-0.5
Finish Turning 80-180
0.1-1.0
0.03-0.2
Milling 70-500
0.1-1.0
0.05-0.3
Cast Iron
Rough Turning 500-1000
0.5-3.0
0.3-0.6
Finish Turning 600-3000
0.05-0.5
0.05-0.5
Milling 600-5000
0.5-3.0
0.1-0.3
Hardened Cast Iron
Rough Turning 40-100
1.0-4.0
0.1-0.5
Finish Turning 40-1200
0.1-1.0
0.1-0.3
Milling 100-200
0.1-2.5
0.1-0.2
Hardened Material(Co18%↑)
Rough Turning 20-25
0.2-1.0
0.1-0.4
Finish Turning 20-35
0.1-0.5
0.1-0.3
Milling 20-25
0.1-0.6
0.1-0.3
Nickel Cobalt Base Alloy
Finish Turning 80-150
0.05-0.5
0.03-0.2
Milling 100-200
0.1-1.5
0.05-0.3
Packing&Delivery
Packing Details: 1, One plastic packs one pieces,10 pieces per group 2, Use air bubble to encase the plastic pipes 3, Put goods encased with air bubble paper into the carton box
Delivery Details : 1, No need coating & in stock --- 1 day after we get the payment 2, Need coating & in stock --- 1~3 days after we get the payment 3, Customized Products --- Depends on production procedure 4, Large quantity order --- more or less 30 days
Certifications
Trading Procedure
Company Introduction
Lin Tong Sheng Cutting tools Co., Ltd. was established in 1997. Our products include the cutting tools and mechanical fittings, such as drills, mills, screws, reamers and so on. Based on the principle of business continuity, now we have a leadership role and excellent reputation in cutting tools field in Taiwan.
In recent years, we started to expand our business into overseas market and now we added throw-away mill cutters, cutter bar, cutter head, ER sleeve and more different products and more complete. In addition, our own brand "CONCOX" are created with high- quality inserts and tools to fit more needs and service more customers.
This long-established trading company for over 30 years always persists the quality, consummation service and provides the various countries' trade mark innovation fine product, wins the faith of customer and the long-term cooperation support. We have rich stock, the sizes are complete and creates the profit with the manufacturer, altogether growth is our common goal!
