Контроллер высоты плазменной горелки HP125

Product Application

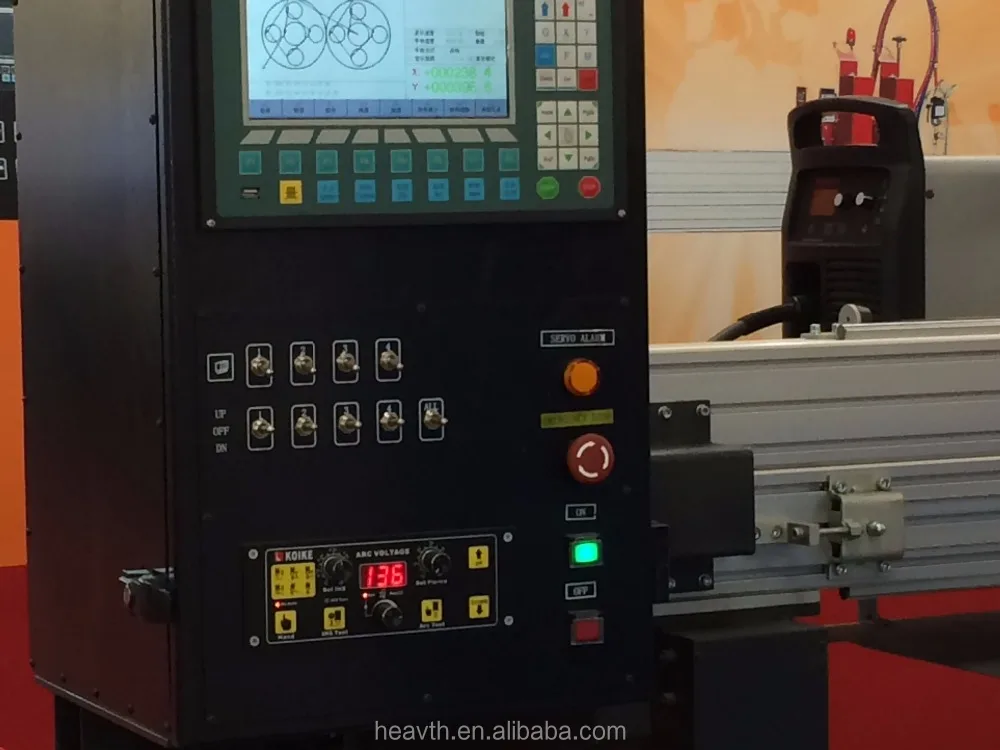

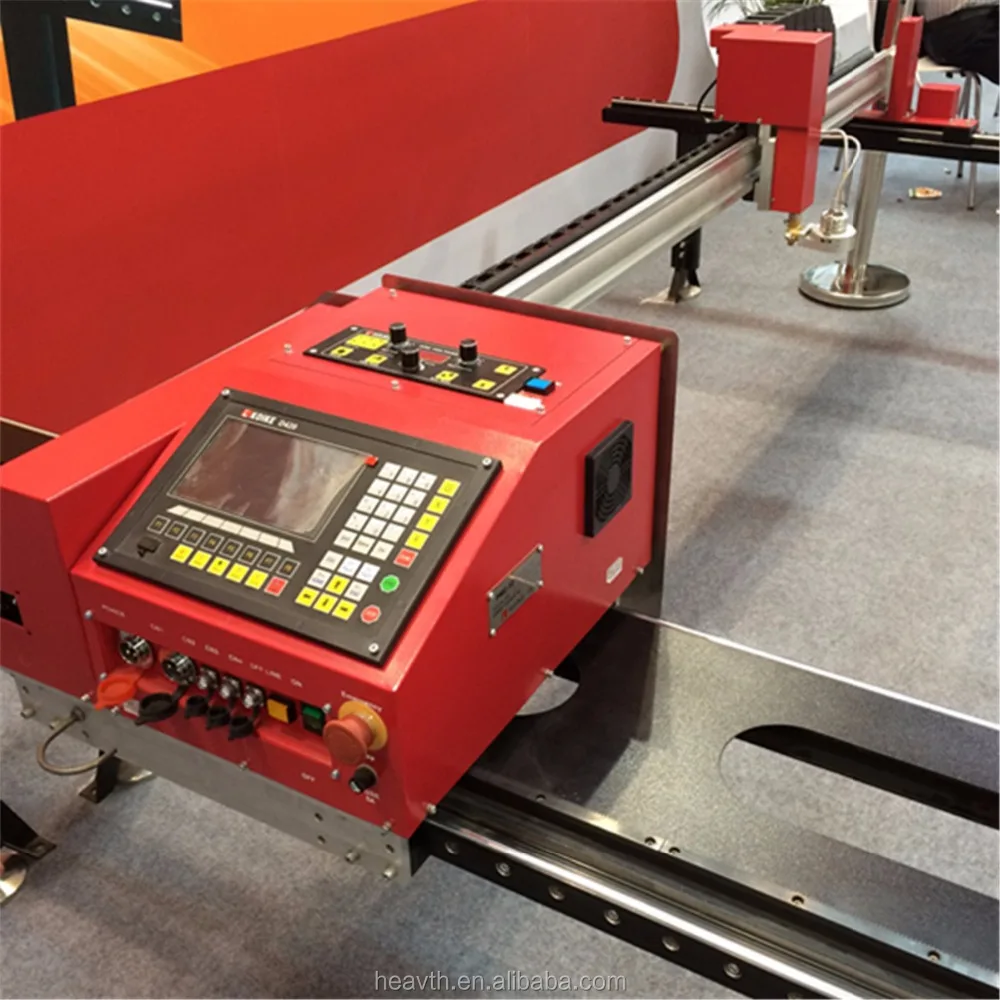

HP125 torch height controller is equipped with constant current plasma source. When the distance gets farther，the arc voltage increases; On opposite, the arc voltage will decrease. HP125 torch height controller will inspect the voltage change, then control the distance between cutting torch and material via the lift motor.
Generally, the instruction will list all the cutting parameters for some type of plasma. The user can refer to these parameters. Adjust the voltage in controller to match the selected current. The torch height will keep constant under regular speed.

Technical parameter
\tWorking Voltage: DC24±10%，Please prepare a isolated power, do not shared with others such as electronic valve . Especial pay more attention the DC 24V
\tLift motor: DC24V DC motor
\tDrive mode: PWM H-bridge
\tOutput current：3A
\tWorking temperature: -10∽60℃
\tIHS style: Switch inspecting IHS and Shield IHS
\tRunning transfer: Alternative Arc transfer and pierce transfer
\tInput arc voltage:1:1 or 50:1
\tAccuracy: ±1V∽±5V，adjustable

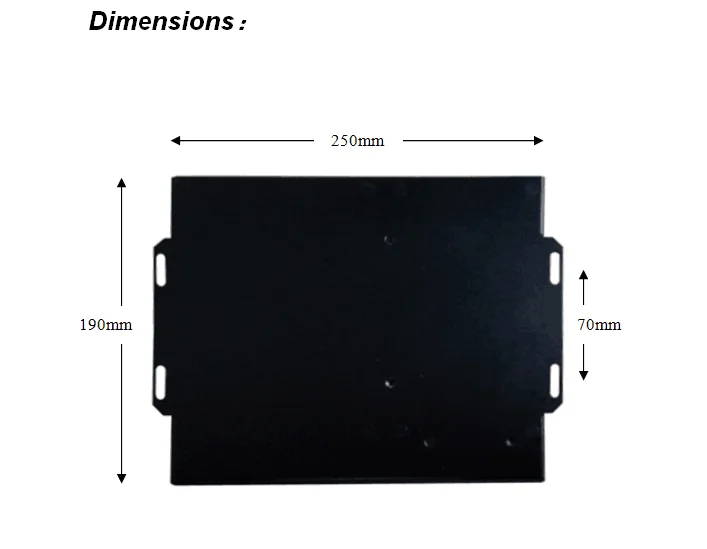

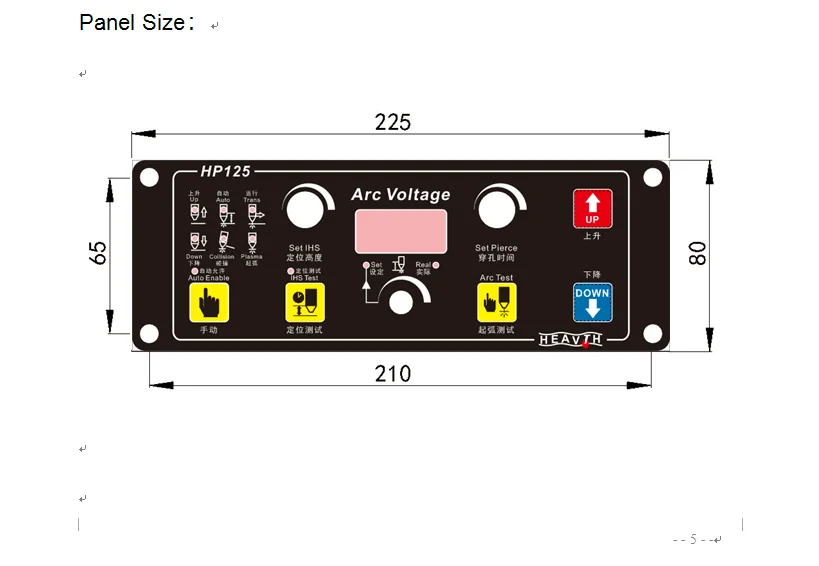

\tDimension: Length, Width, Height: 225mmX191mmX80mm
\tWeight：\t0.8kg
\tProtection class: IP64, to prevent dust entering.

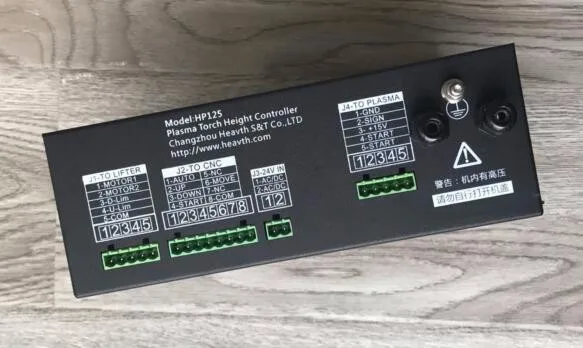

\tInstallation connector: 2-pin, 4-pin, 5-pin, 8-pin
\tInstallation position: Keep away from heat, air convection good place.

Main Features

IHS Type：Torch shield, Proximity switch
Features：MCU core, Rich function, 2EDG plug
Isolation Type：Inside ArcV Isolate, Power circuit, I/O port

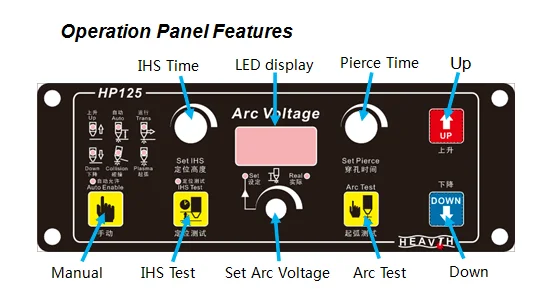

Function：Double LED display, Panel test, I/O Part definition

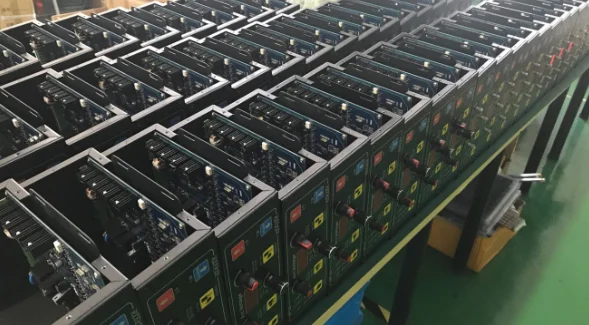

Machine Parts

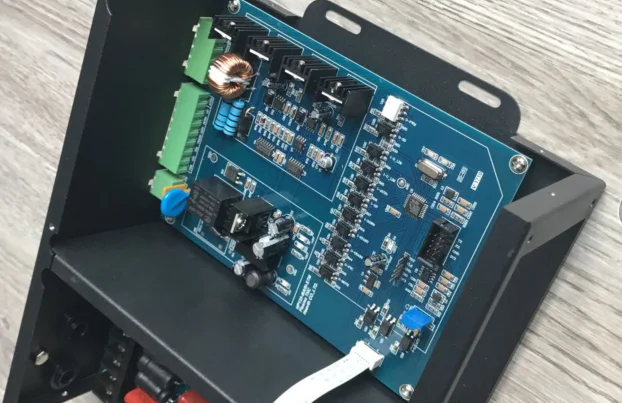

Name: Main board

MCU control, complete function, good isolation performance, adjustable internal parameters, can better match the torch lifter

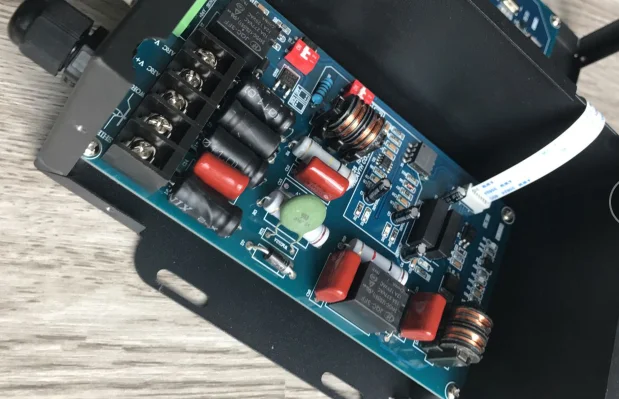

Name: ISO board
Isolated divide board, isolated IHS board, circuit power supply isolation, input arc voltage optional

Name: I/O pulgs
2EDG plugs, complete functions,Part of interface level optional.
