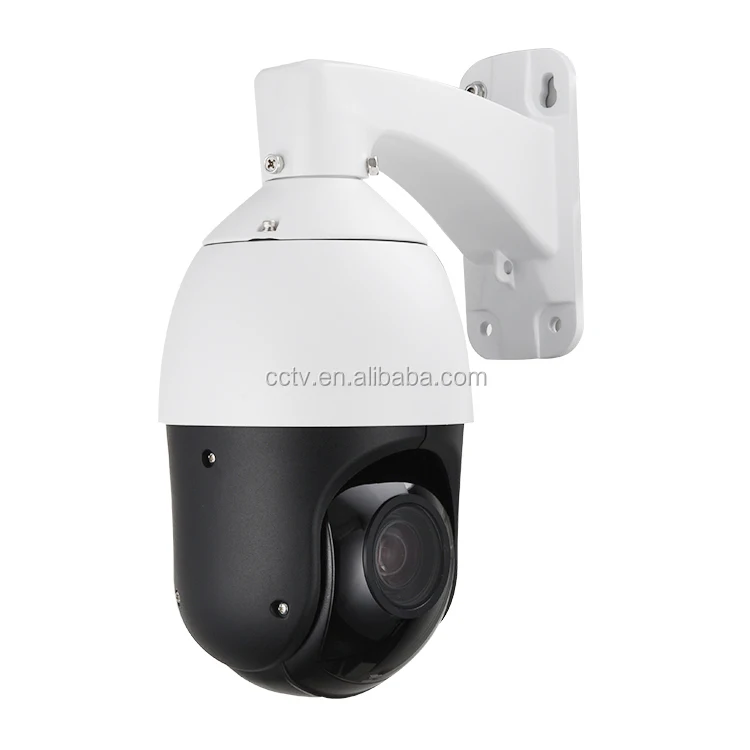

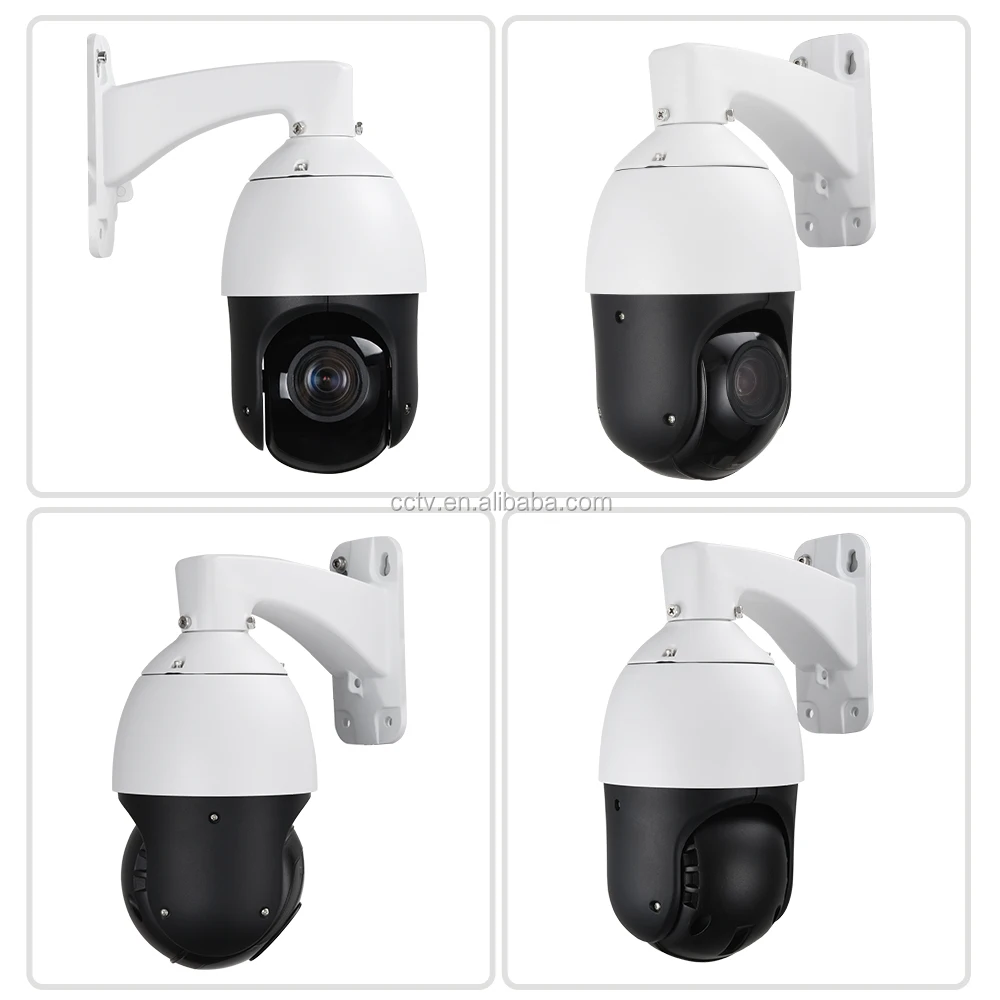

Model

NDR-405-H520H

Camera

Image Sensor

1/2.7" CMOS OV5521

DSP

Hi3516D

Minimum Illumination

Color: 0.005Lux, B/W: 0.001Lux,0 Lux with IR

3D NDR

Support

WDR

Support DWDR (0-100 Digital adjustment)

Electronic Shutter

1/25~1/100000

Day Night Mode

AUTO ICR Color to B/W

Focal Length:

4.7-94mm,20X Optical Zoom

Horizontal visual angle

50.2°-2.9°(Wide~Tele)

Resolution

2592*1944/5MP

Main Stream

25FPS/30FPS:(2592×1944),(2592×1520),(1920×1080)

Sub Stream

25FPS/30FPS:(640×480),(325×288),(176×144)

Video Compression

H.265/H.264 High profile / M-JPEG

Network protocol

HTTP ,FTP,SMTP,UPnP,SNMP, DDNS,NTP,RTSP,RTP,TCP,DHCP, PPPoE

Interface protocol

ONVIF 2.4

PTZ Control

IR Distance

100m

Horizontal Range

0°~360° continuously

Vertical Range

-15°~90°

Horizontal Speed

0.05°~100°/s

Vertical Speed

0.05°~100°/s

Max Speed

100°/S

Preset

256

Patrol scan

4pcs(10 preset for each)

L/R Scan

1pc

Horizontal Scan

1pc

Power-off memory

Support

PARK Action

Watch position/ Area Scan /Horizontal 360°scan/ Cruise

Watch position

Support

Wide angle speed limit

Focus / speed automatic matching function

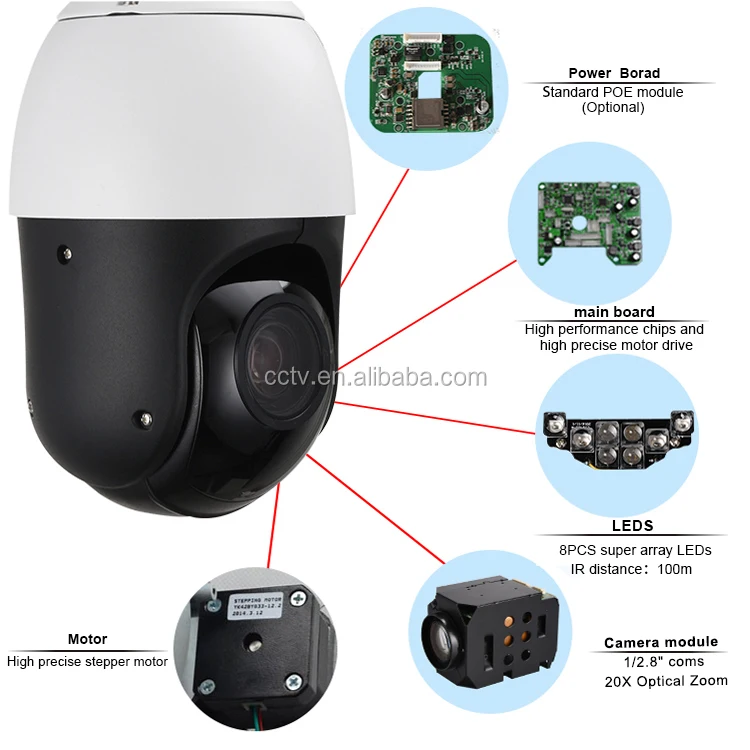

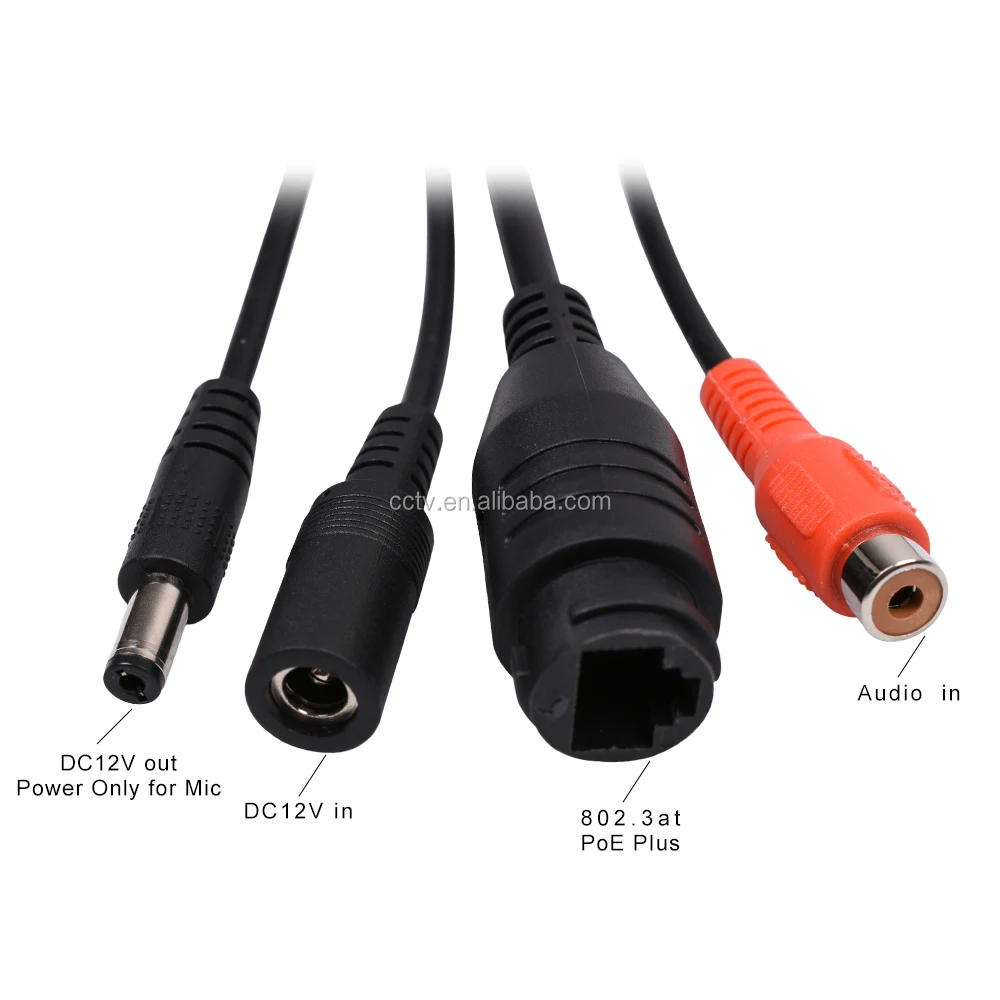

POE function

POE supply voltage

DC48V

POE supply PIN

1,2(+),3,6(-)  /  4,5(+),7,8(-)  Auto adaptation

General

Power

DC12V/2A

Consumption

<15W

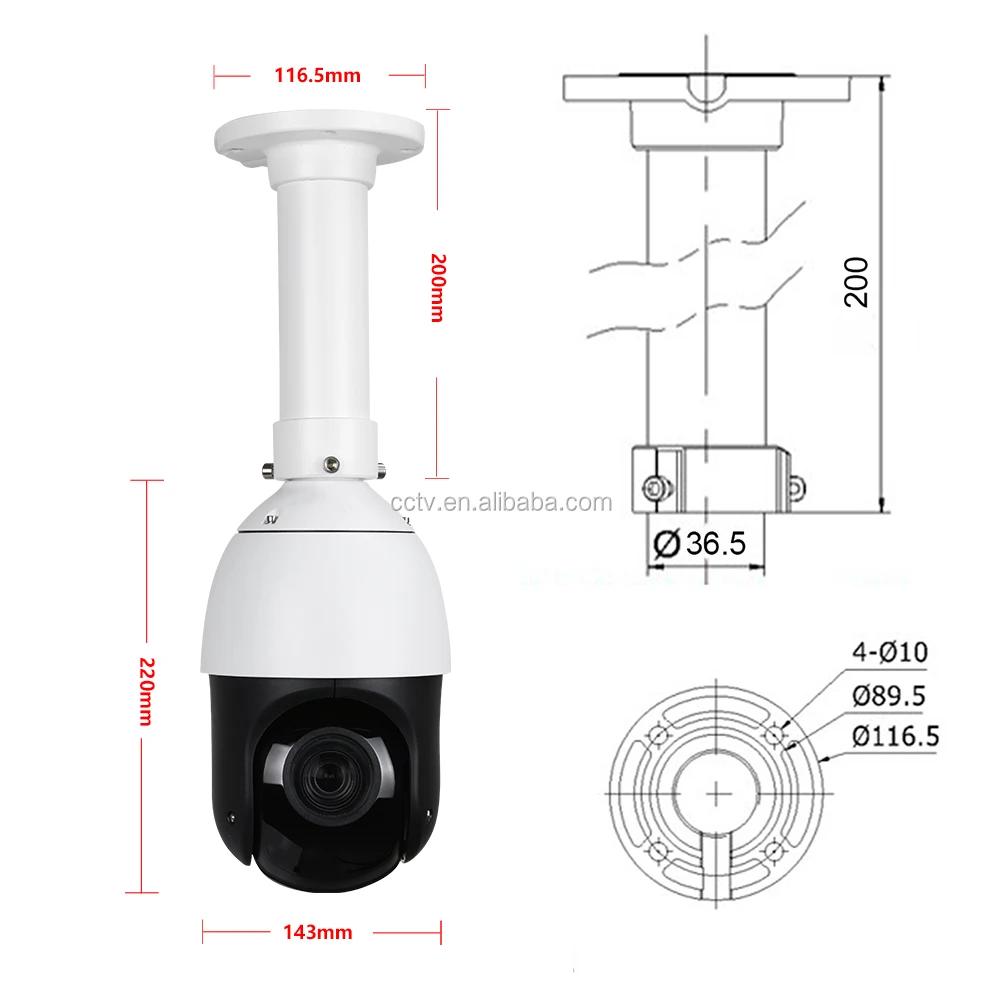

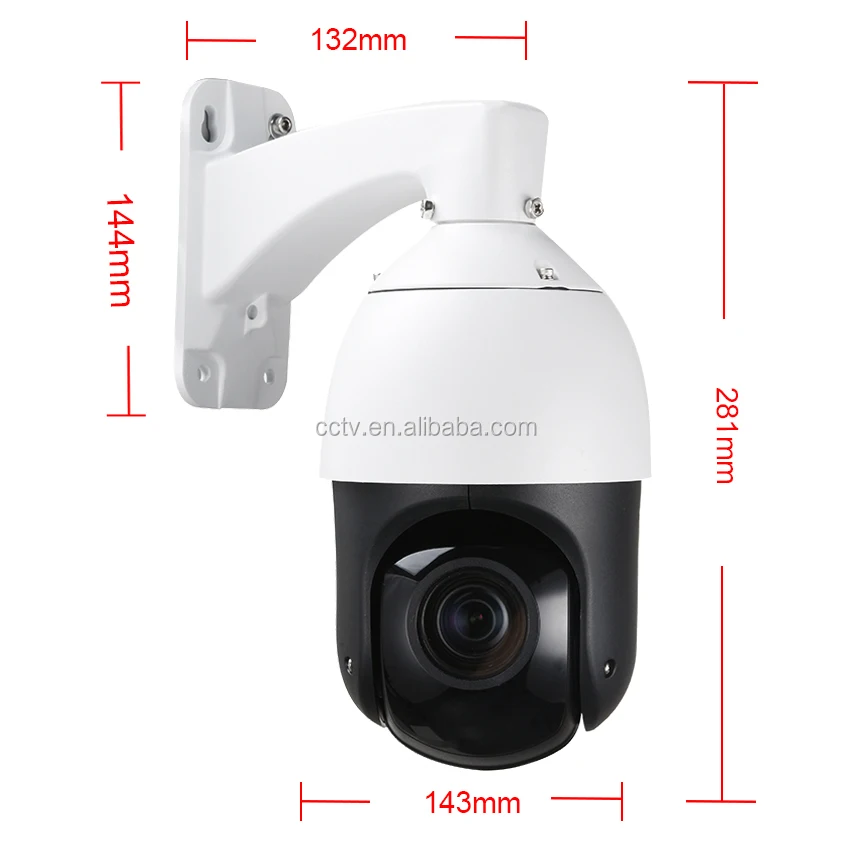

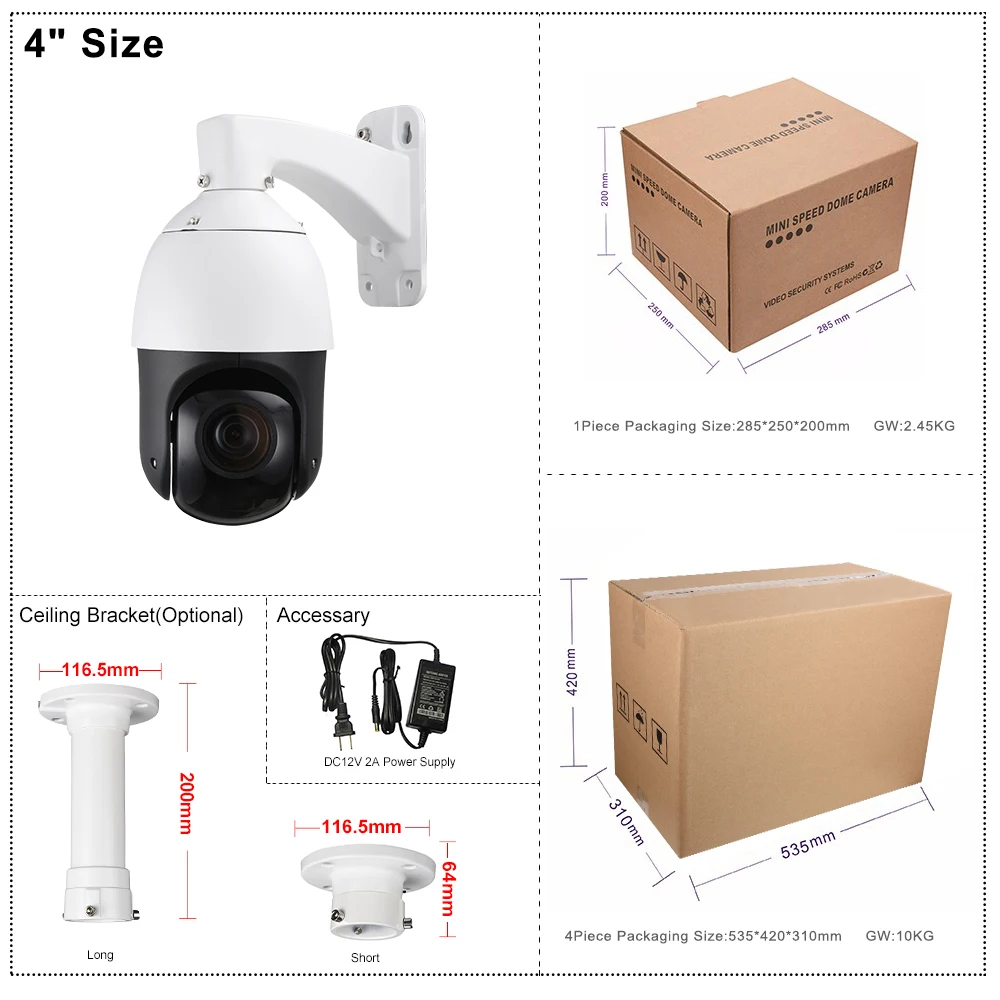

Mounting

Wall mounting or lifting

work environment

temperature :-20~60℃;humidity<90%

Protection level

IP66 waterproof,4000V lightning protection

GW

2.45KG
