CNC BTA deep hole drilling and boring machine for hydraulic cylinder

Product Overview

Description

CNC BTA deep hole drilling and boring machine for hydraulic cylinder



Brief of the CNC BTA Deep Hole Drilling and Boring Machine:

• The machine has the functions of drilling , boring , pull boring , trepanning and rolling
• The machine is with Fanuc CNC system  (Other brand is optional)
• The machine is driven by Rack and Pinion, which is with long life-span
• The machine has drill box , so both tool and workpiece can rotate in opposite direction . It helps to improve the hole processing accuracy and workping efficiency .

• Oil box and small parts of the panels are spray plastics treatment.(powder painting)

• Warranty time : One year normal use

Details for each part of the CNC BTA Deep Hole Drilling and Boring Machine :

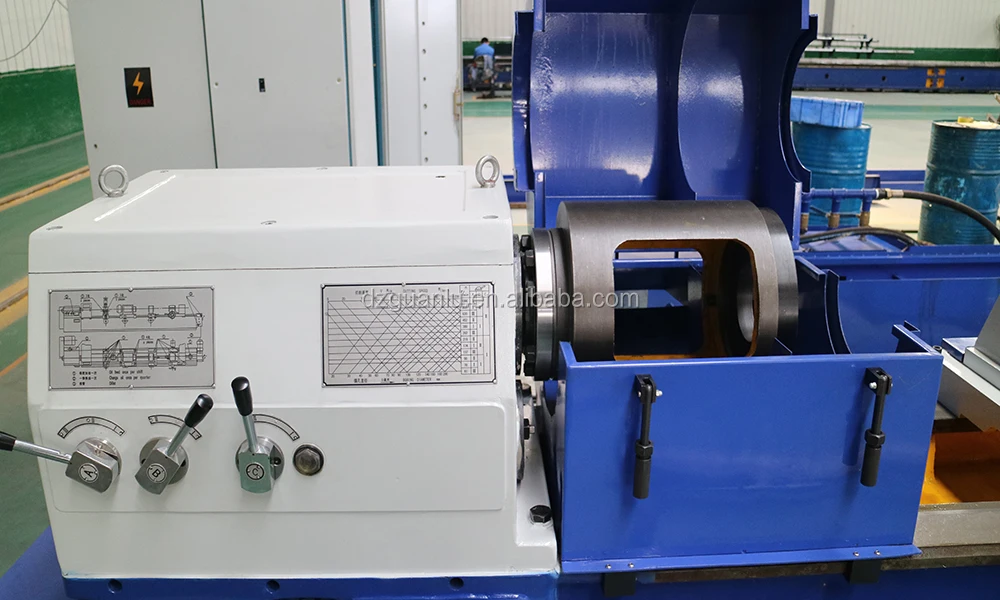

1) Adopt front chips removal method when boring. It means the chips will remove from the hole on the clamp body of headstock .

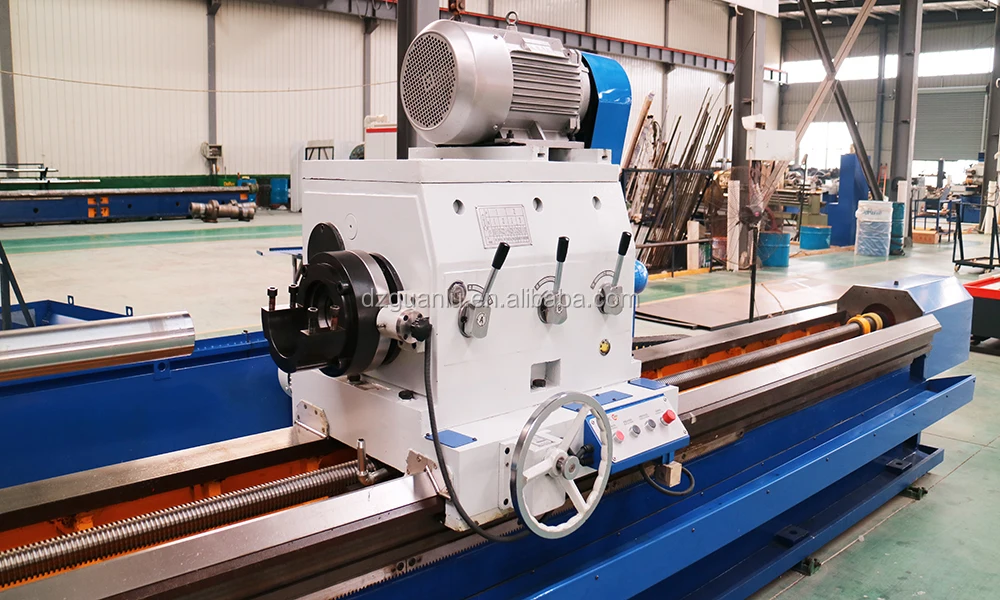

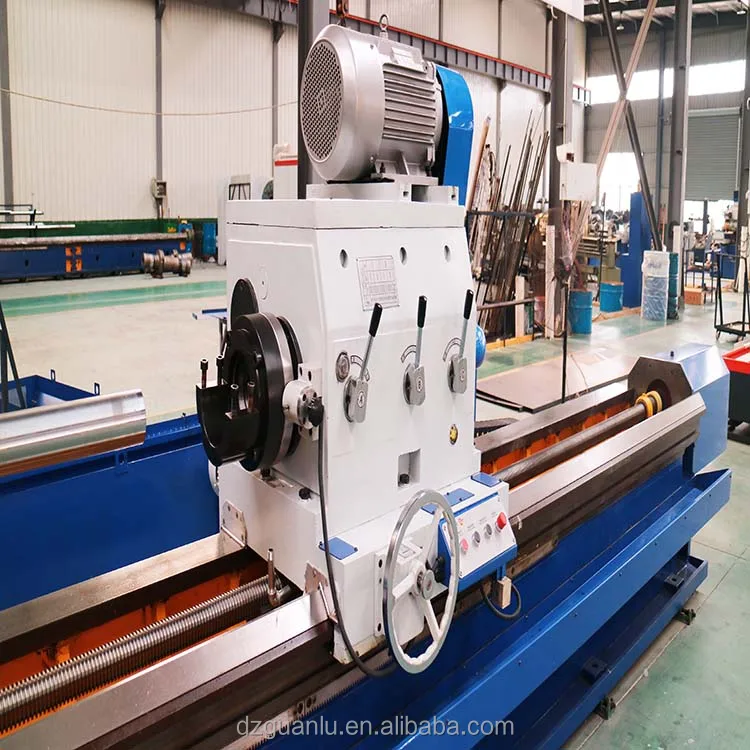

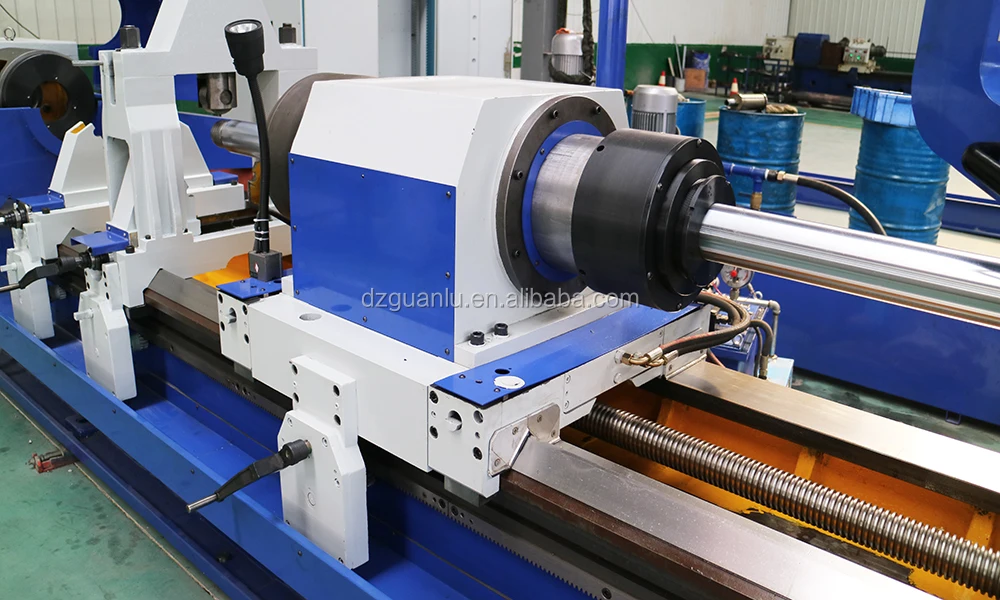

2) Headstock drive the workpiece to rotate , three phase AC motor driven, main motor power is 30kw, rotary speed range is 61-1000r/min . Three-jaw chuck is assembled in front end of spindle .



3) Tooling spindle is driven by 22kw three phase AC motor ,rotary speed range is 40-500r/min, 12 steps .



4) Tooling infeeding adopts servo motor ,servo speed reducer, rack and pinion structure ,stepless speed can be realized .

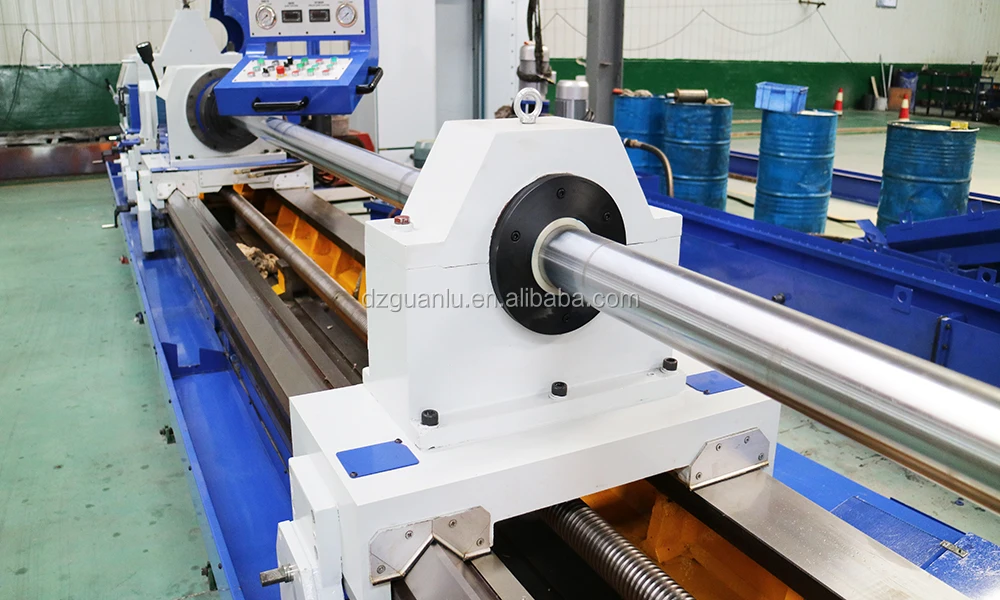

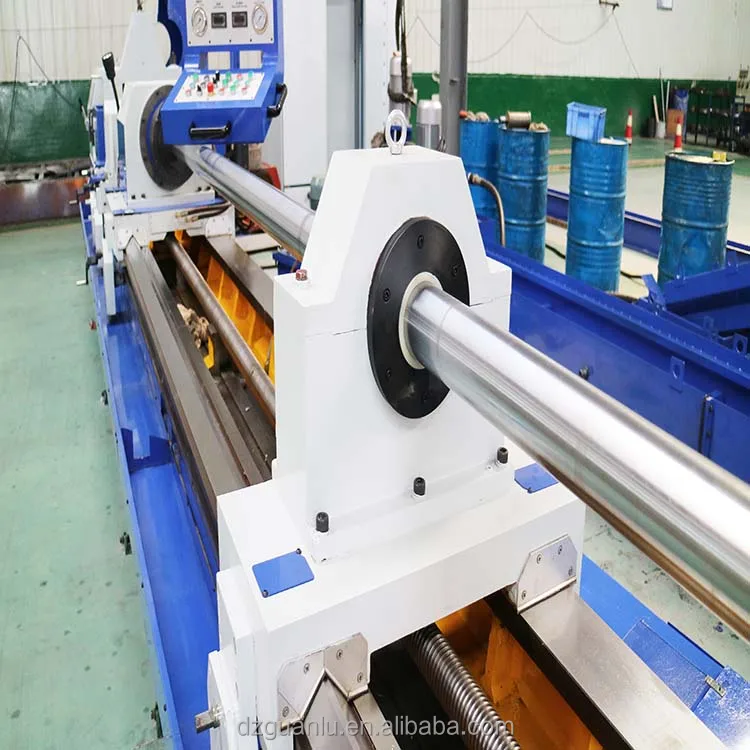

5)The machine is equipped with one set drill bar support rest , which is assembled with hitching

and pulling structure, pull the drill bar support rest back to original position when the processing finished and returning tooling ;

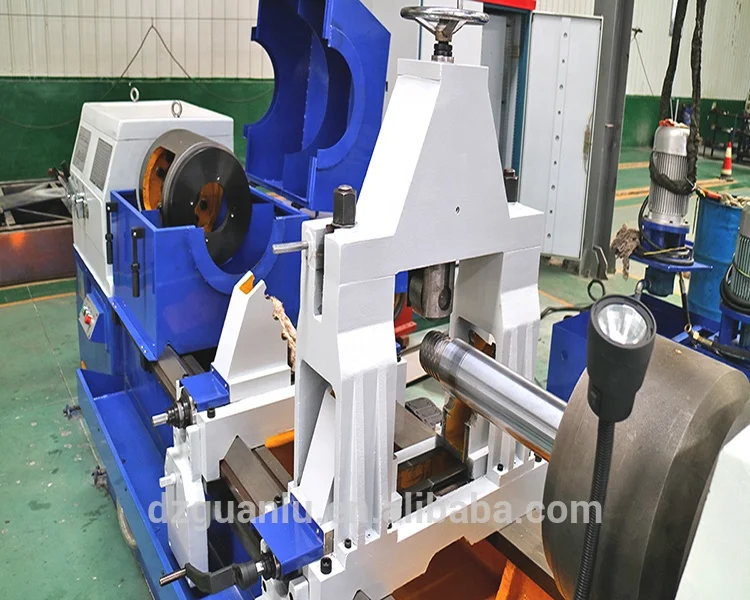

6) Equipped with one set center rest to support the workpieces .

7) The Oil pressure head does axial movement under the control of servo system to tighten and loosen the workpiece; The collect is assembled in front end of oil pressure head .

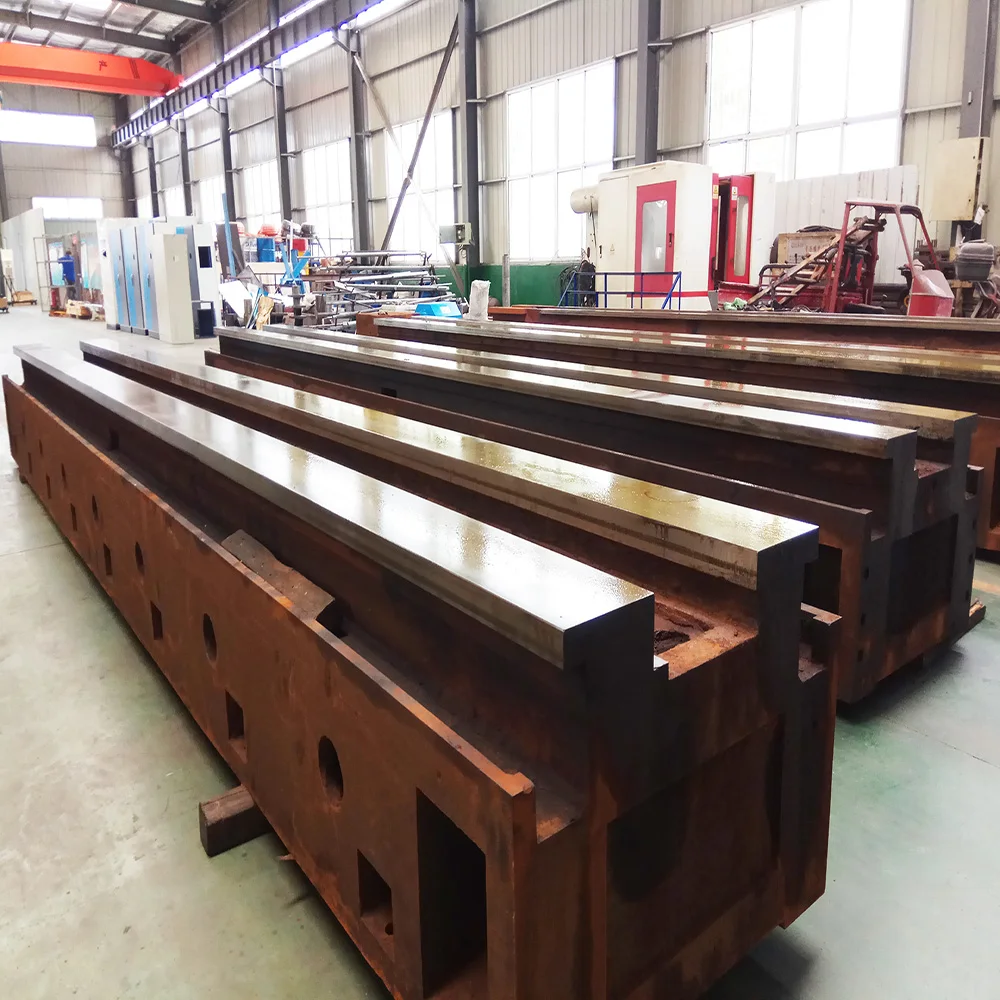

8) The machine bed is casted by super casting iron HT300, through middle frequency quenching , time aging and precision grinding treatment , with very high strength and rigidity .



Workpieces machined by the CNC BTA deep hole drilling and boring machine :

Strict Qaulity Control System of the CNC BTA Deep Hole Drilling and Boring Machine:





Our service for the CNC BTA Deep Hole Drilling and Boring Machine :



Company Information :

  Our factory is established in the year 2010 . We have our own Technical Team and our engineers have very rich experience . We keep learning and absorbing the advanced technology from European famous brands.



 We manufacture the machines following :

• BTA deep hole drilling and boring machine
• Deep hole honing machine
• Deep hole skiving roller and burnishing machine
• Gundrilling machine
• Relative tools

If any products above interested you , please contact us !
