High quality 2M 246 1 microwave magnetron price, microwave magnetron

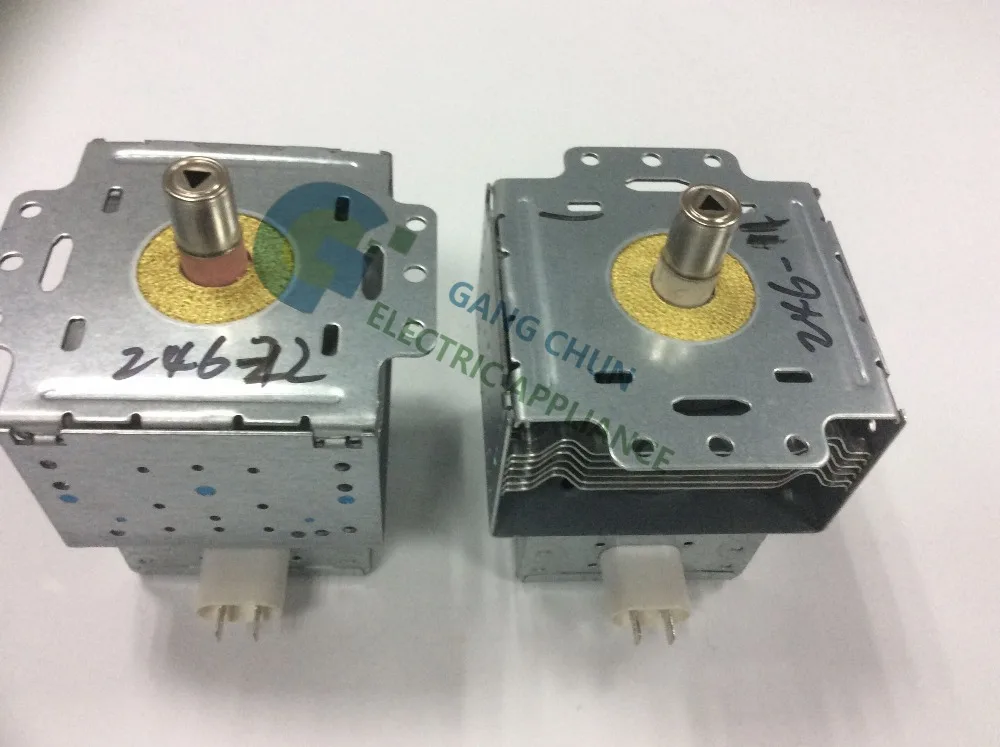

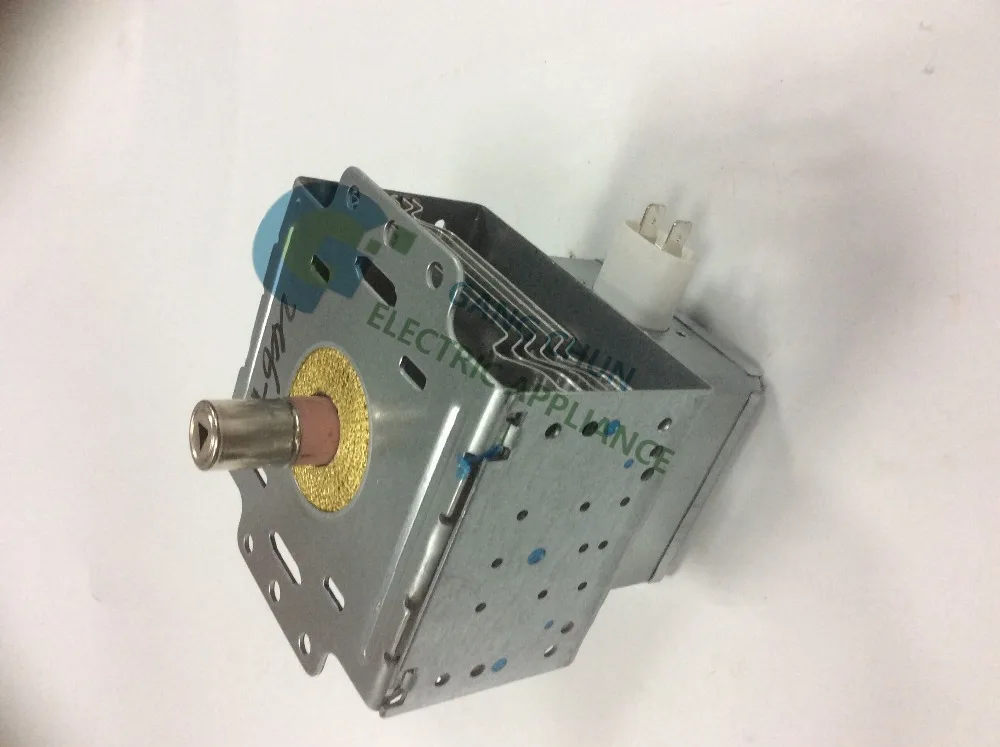

High quality 2M 246-1 microwave magnetron price, microwave magnetron
High quality 2M 246-1 microwave magnetron price, microwave magnetron
High quality 2M 246-1 microwave magnetron price, microwave magnetron

High quality 2M 246 1 microwave magnetron price, microwave magnetron

Share on (60728132809):


Price:$3.00 - $5.00

Quantity:


Product Overview

Description


Product Name:


            2M 210 Microwave Oven Magnetron





The style have m24fb-210A,2M 213,2M214 and 2M 246.



Material can customizable.


Various style for choice

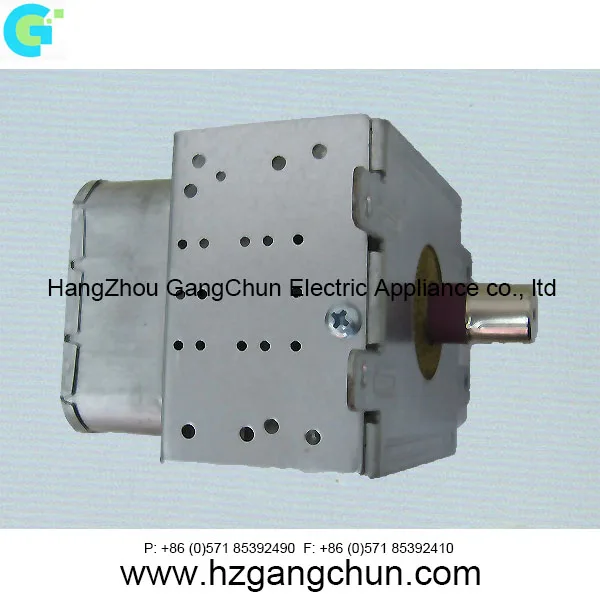

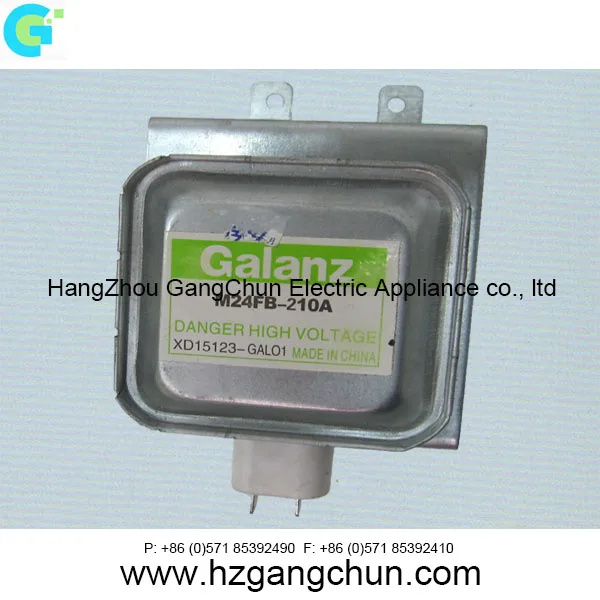

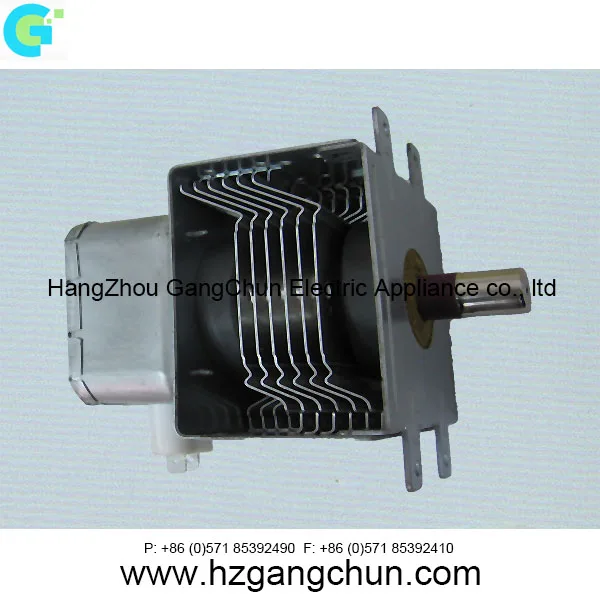

MW006MW005MW004


Product Principle:

Magnetron microwave system is one of the most widely crossed-field oscillating tube, share common features "M" type device: big power, high efficiency, low voltage, small size and low cost.

Product Specifications:























































Symbol


Nominal


Min


Max


Unit


( Filament voltage )


If


10.5


8.0


12.0


Aac


( Peak anode voltage )


Ebm


4.40


4.15


4.60


kVp


( Average output power )


Po


1030


960


1080


W


(Frequency)


Fo


2460


2450


2470


Mhz





















































Symbol


Value


( Filament voltage )


Ef


3.15Vac


( Warm-up time )


Tk


8sec


( Anode current )


Ib


330mAdc


( Load VSWR )


σL


1.1Max


( Cooling airflow )


Q


1.0m3/min


( Power supply )


( Single-phase , No filter is full-wave rectifier )








All the parts we offer is new and original .
