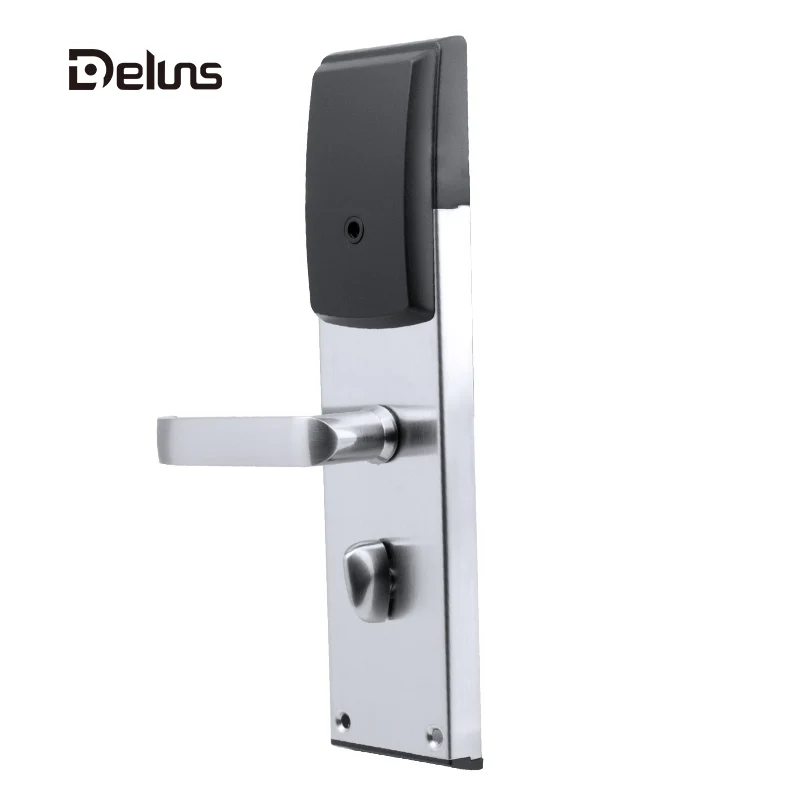

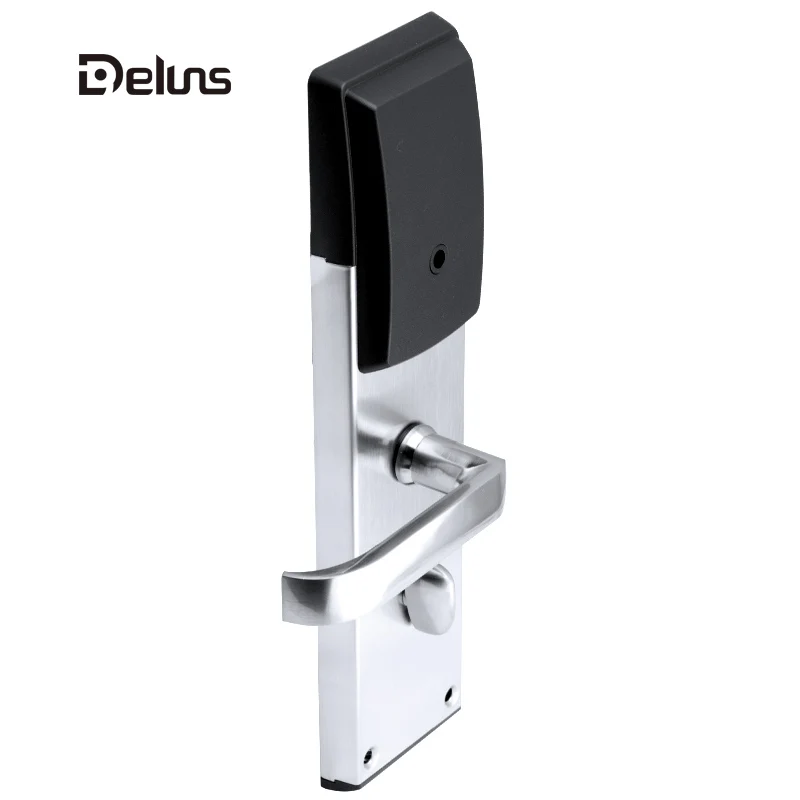

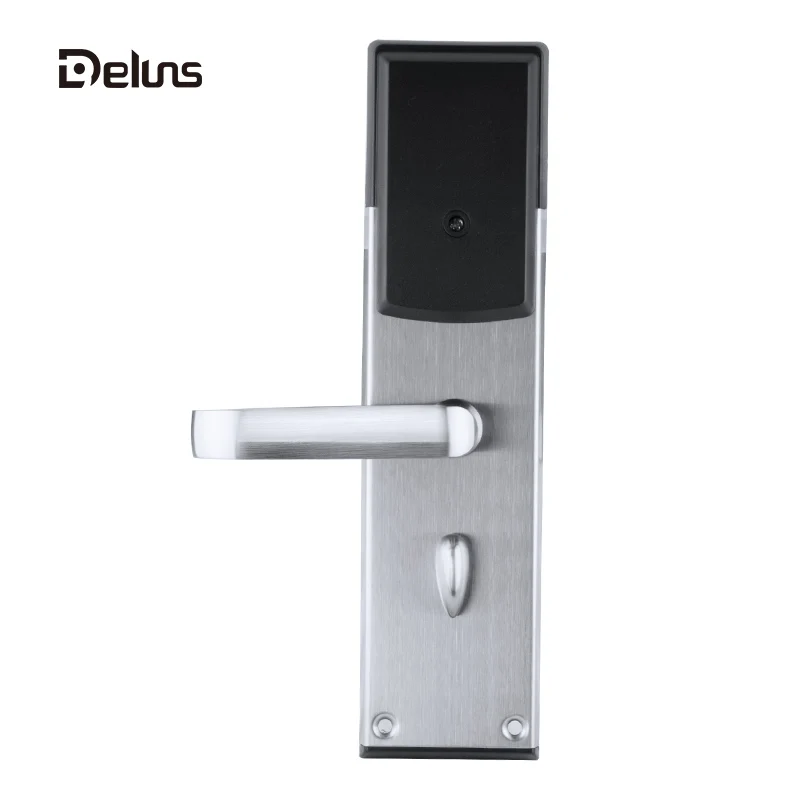

Deluns smart electronic rfid card online hotel lock management used M1 system security digital locks factory
Product Description
Feature
Card Unlock
Anti-panic egress with safe handle
Sound & Light notification
Low battery alarm
Unlock records recorder
Mechanical override keys (emergency)
Power supply
4AA batteris
Material
Zinc alloy
Quiescent Current
<15uA
Operating temperature
-20~60c
Mortise material
Steel+Zinc alloy
Reading distance
0~5cm
open tyep
Card&Key
Door thickness
38~50mm
Batteris life
normal working 20000tims
Reading time
<0.5s
RFID Card Technology
Card type:
RFID MF1 S50 card
Card detect
Microwave detection, reliable and advanced
Feature
Non-touch, high safety, high cost, can make all-purpose card
Power supply
DC4.5V~6.5V,3~4 1.5V AA alkaline battery
Typical static current
< 30μ
Action current
< 145mA
Low voltage alarm
Yes
Typical card reading distance
10mm~50mm
Unlock record
200~1000 items
Hotel system
Normally,this system is composed of the bellowing parts:
1.Lock (qty = guest room)---For open the door

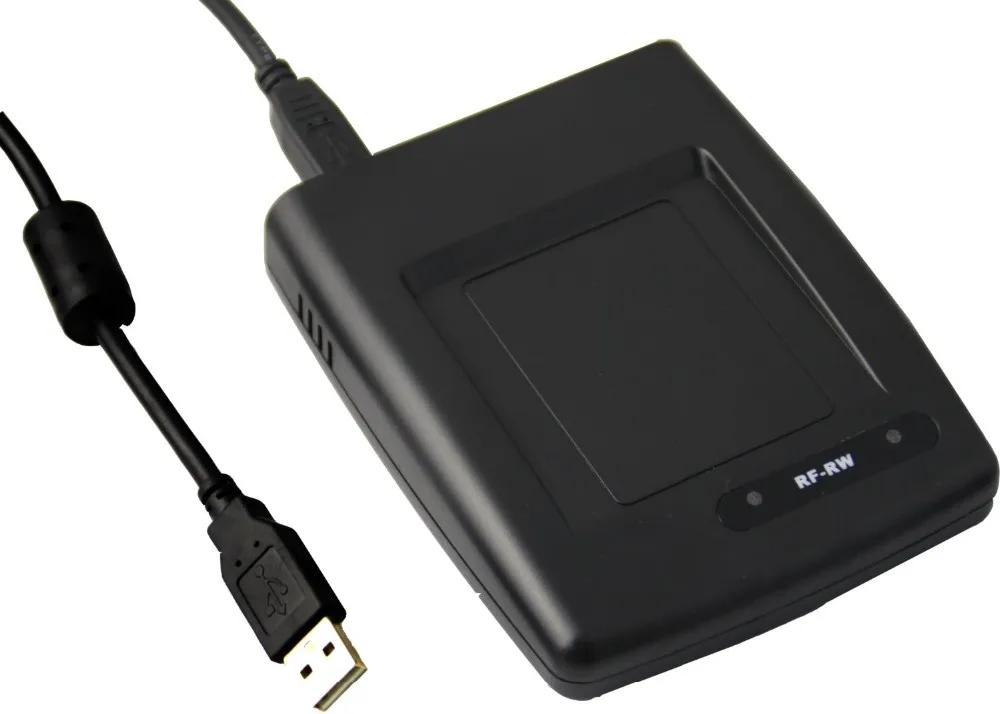

2.Encoder (1pcs/hotel ) ---For issuing all kinds of cards
3.Switch (qty = guest room)---To get the power
4.Cards (qty = 3 times of guest room)-----For open the lock

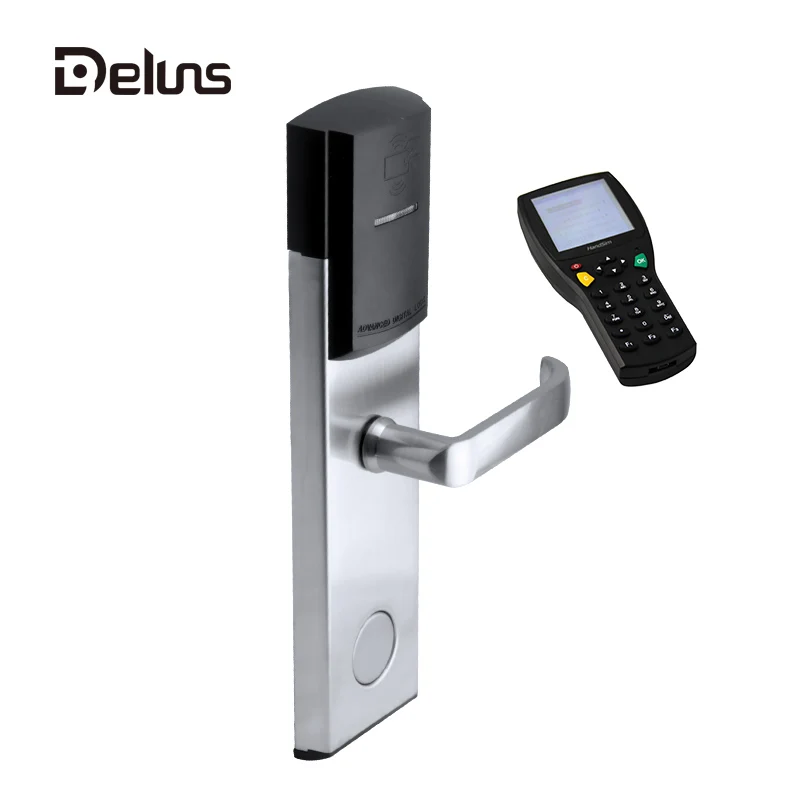

5.Data collector (1pcs/hotel, optional by customers)-----For getting the time and times of the entrance information from the lock
6.Self developed software (1 disk, with customer's language, free of charge)----For setting the program the whole system.
Software
Certifications
FAQ
Q1.How does the lock get powered and how long can it last?
This lock is powered with 4 AA battery, 4 pcs new alkalinity batteriescan be used over 10,000 times opening, about 12 months.
Q2.What to do when battery is run out?
Lock will “beep” to prompt when power is lower than 3.5V,please change the battery when it alarm. Lock still can be opened about 200 times after it prompt.If battery is not working,use the backup key to open the door.
Q3.How to open the lock if the card is not work or there is something wrong with the electronic part?
