Product Overview

Description

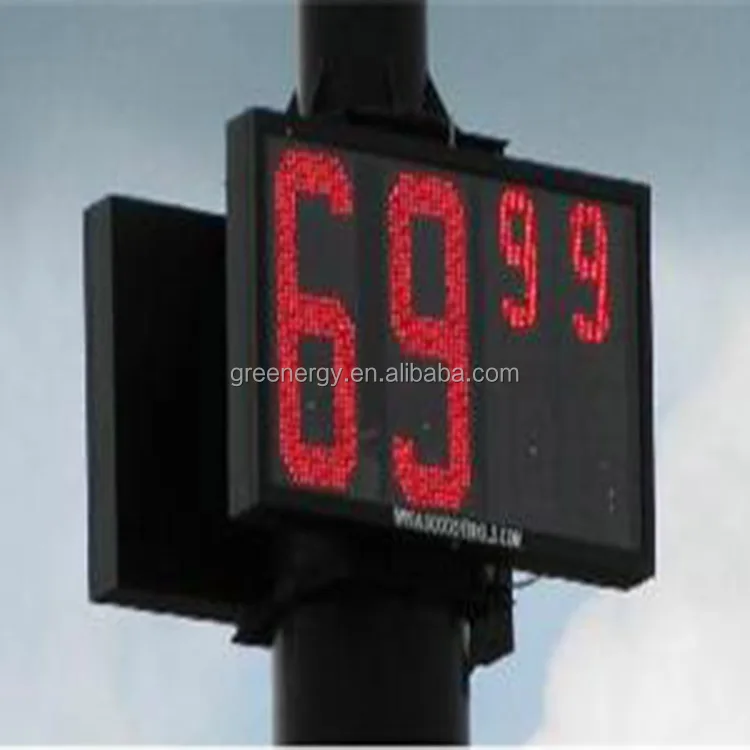

Outdoor Led Clock /time/date /temperature Sign led sports timer display!





Parameters:

Item	Technical Parameters
Color	Red, amber, green, blue or white
Digit height	4'',6", 8", 10", 12", 16", 24",32'',36", 40", 48", 60",64'', 72" etc.
Digit design	4'',6", 8",10'', 12",15'',18",20'',22'',24'' standard digit;
Brightness control	Auto-dimming by sensor
Display Dimming	Over 16 levels of automatic intensity adjustment
Viewing Angle	60~120°
Service Access	Front or rear access
Master/Slave	Single/Double/Three sides
Casing Material	Aluminium Frame , Iron Cabinet
Waterproof Level	IP53(Indoor use)
	IP65(outdoor use)
Temperature sensor	Our standard product is defaulted with economical temperature sensor;
	All-weather temperature sensor is available for more exact request.
LED Driving mode	Static constant current
Power Input	110/220VAC , 60Hz/50Hz
PC Communication	RS232
	LAN(TCP/IP)
Communication Distance	Max.15meters for RS232, 1200meters for RS422
Remote control type	RF remote control (Standard)
	(RF wireless remote control with communication range of 100m.)
Lifetime of LEDs	> 100,000 Hours
Installation method	Hanging, mounting or per custom design
Working Temperature	Outdoor: -40°C to +50°C; Humidity: 10%-80%RH

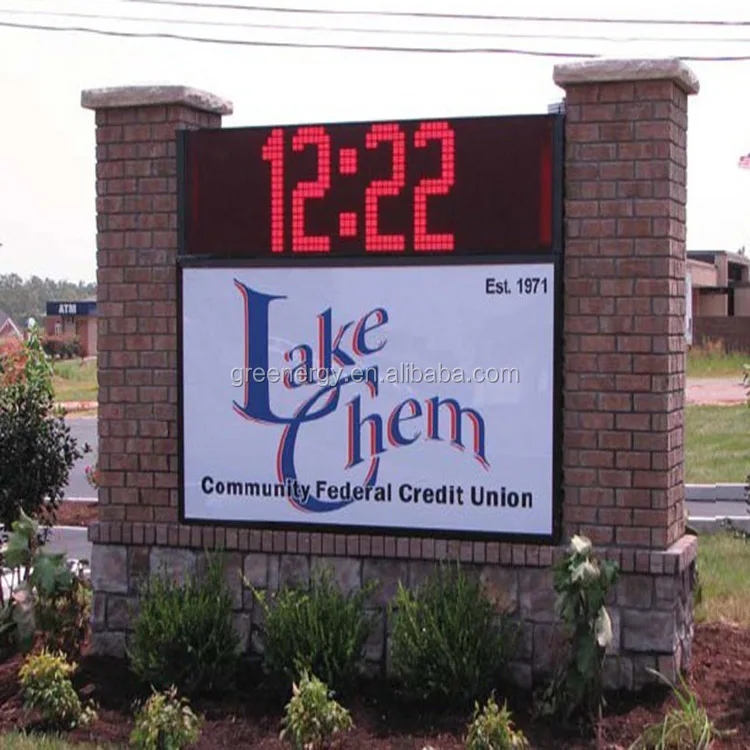

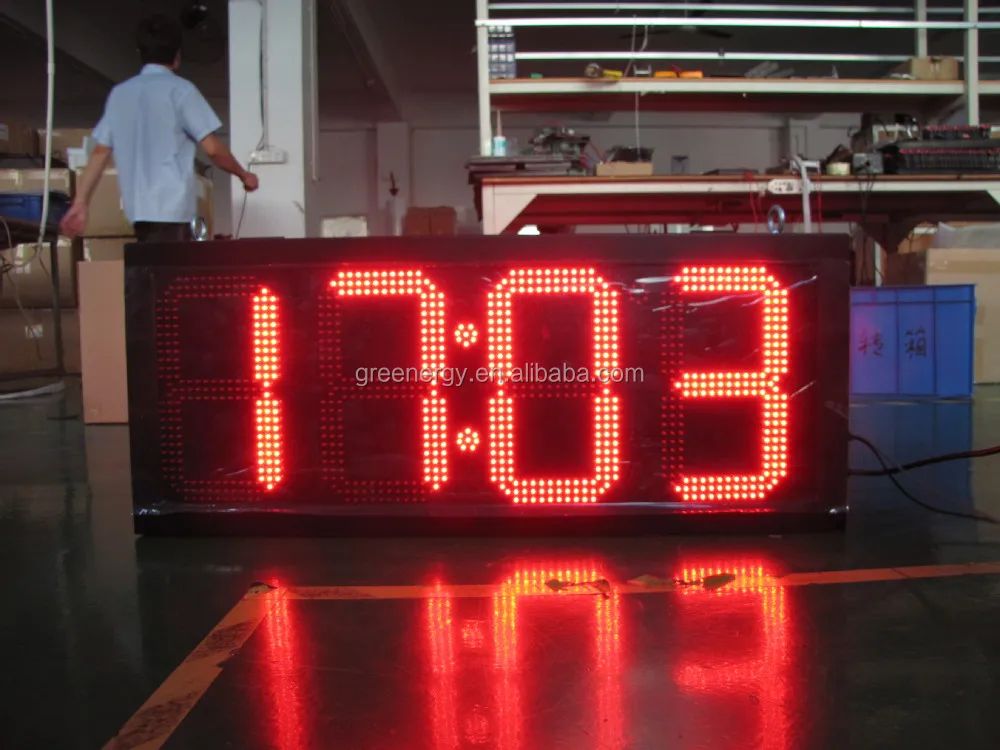

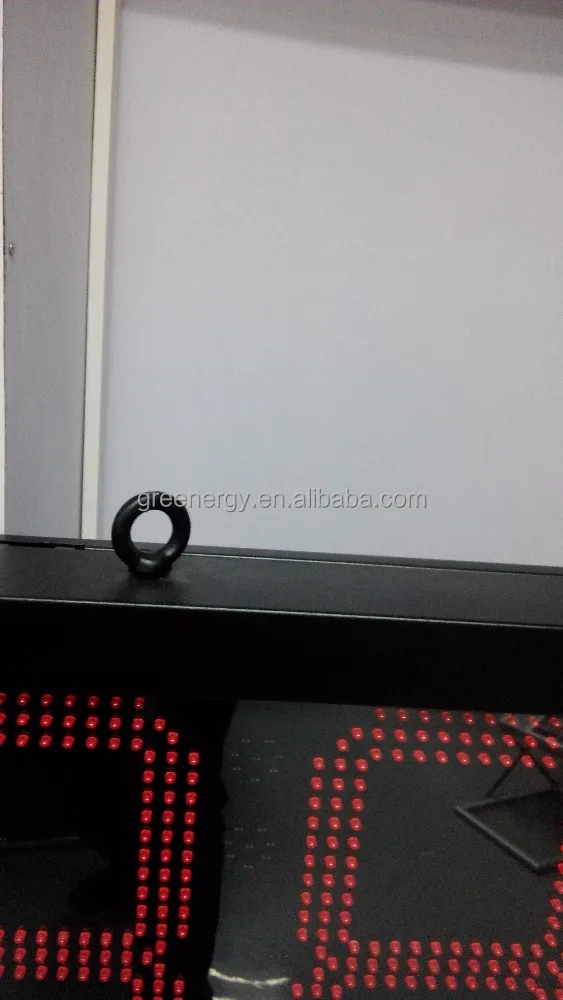

Pictures:

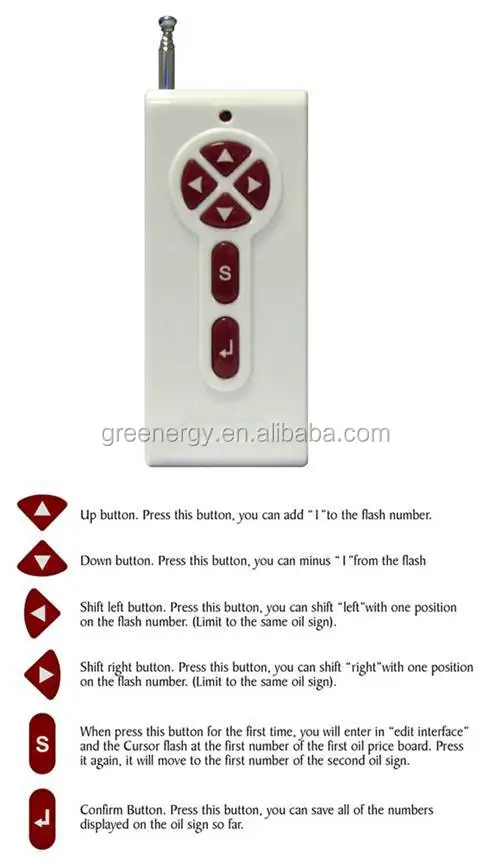

RF Remoter:

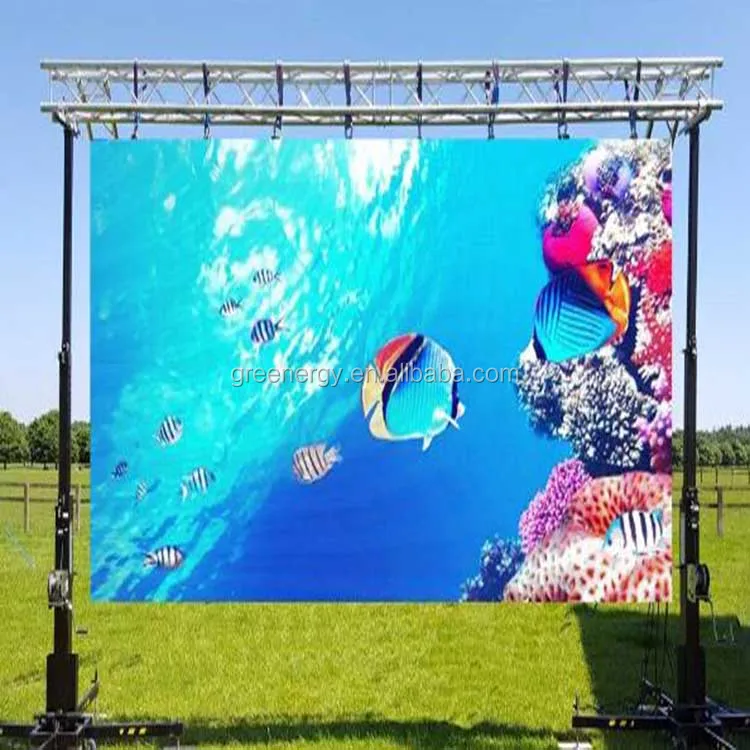

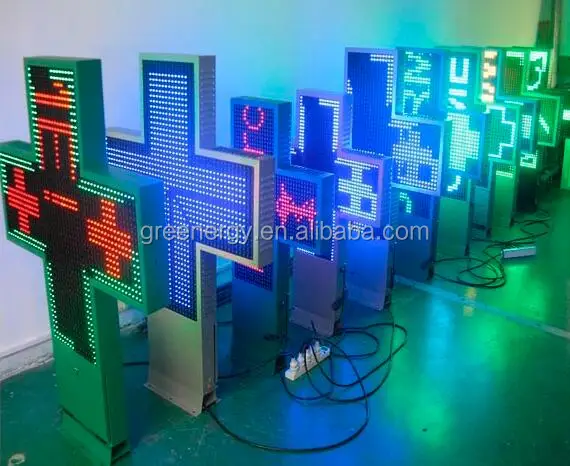

Other led display:













Packing in wood case:
