Top quality commercial plants tomato paste sauce processing making machine
Shanghai Triowin Intelligent Machinery Co., Ltd a professional tomato processing machine manufacturer and exporter in China.which can provide top quality commercial plants tomato paste sauce processing making machine.
.
Introduction of tomato processing line:

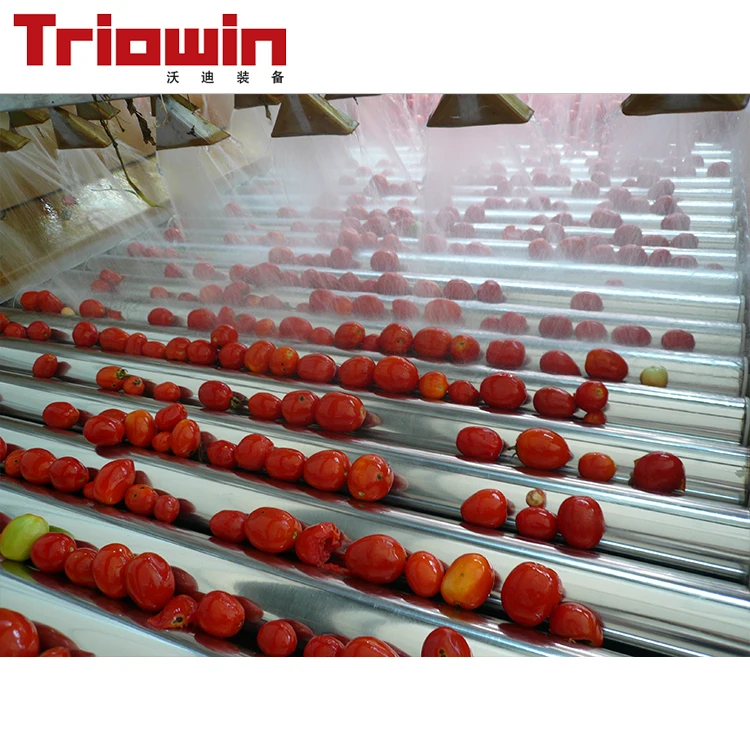

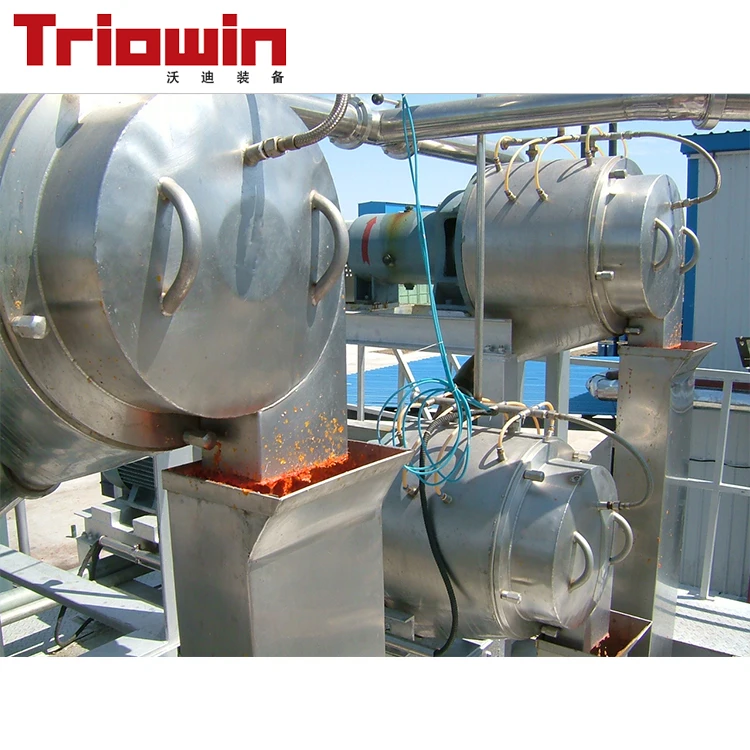

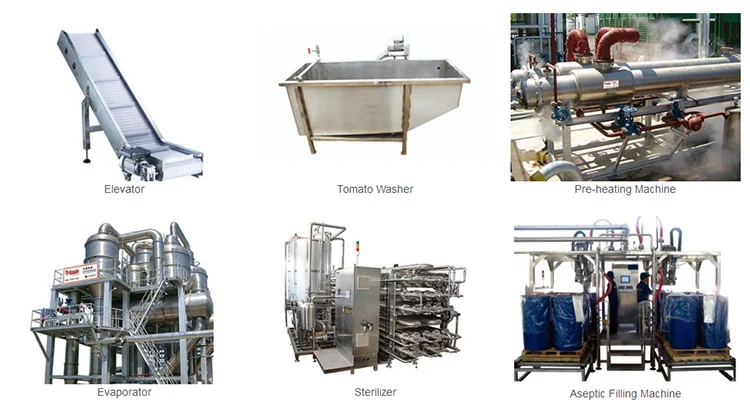

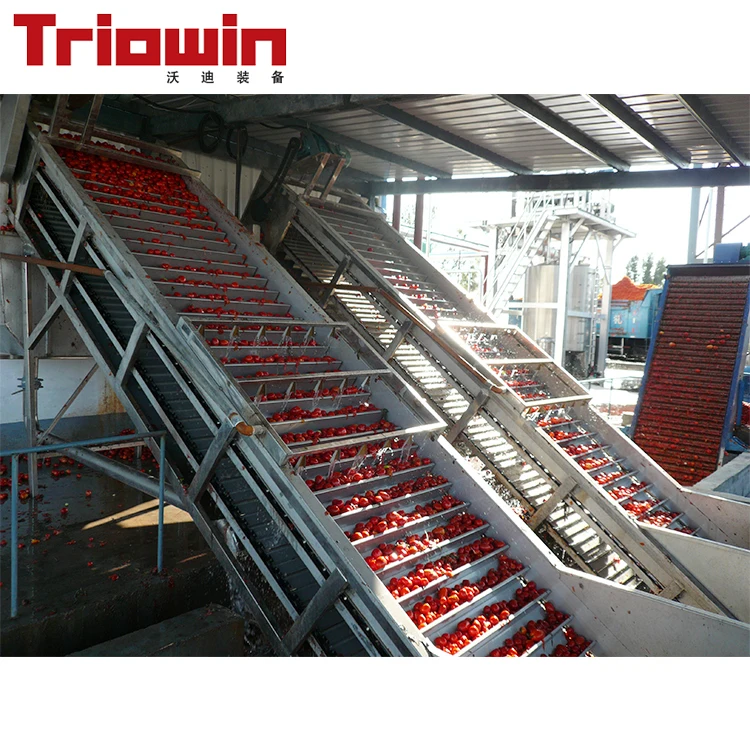

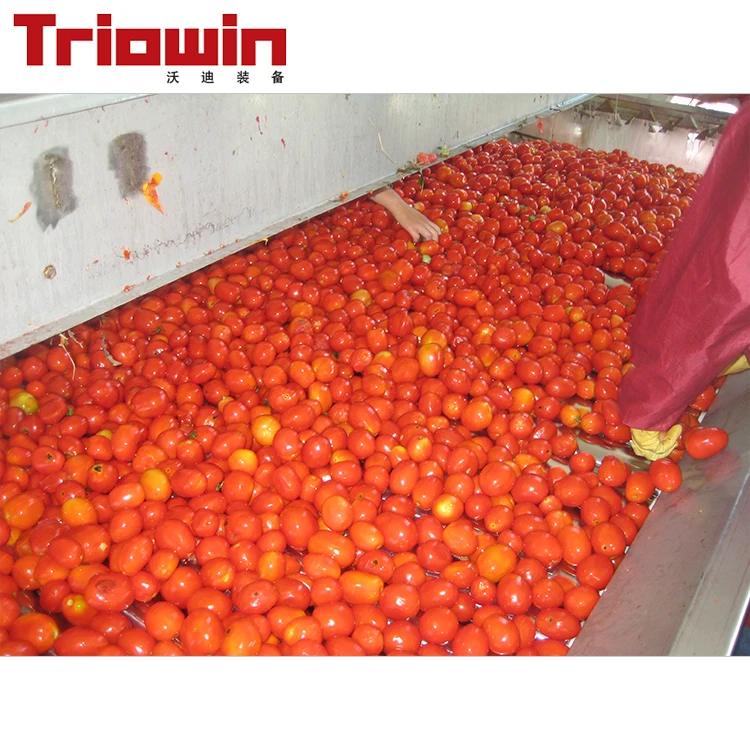

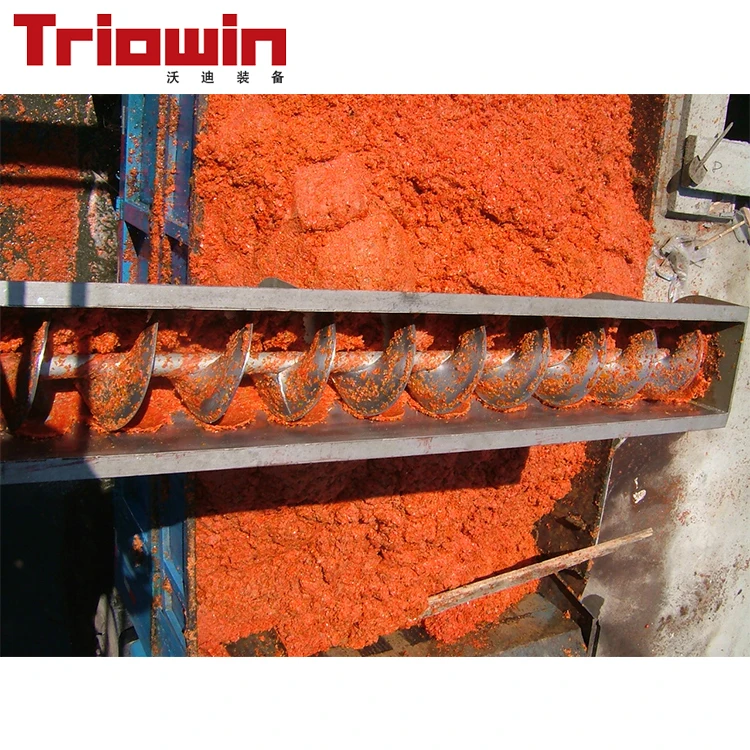

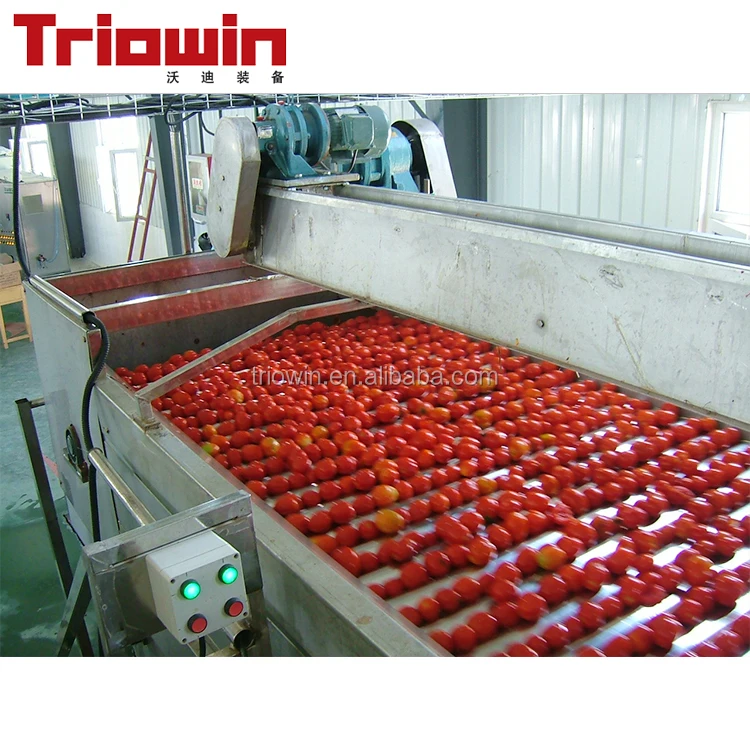

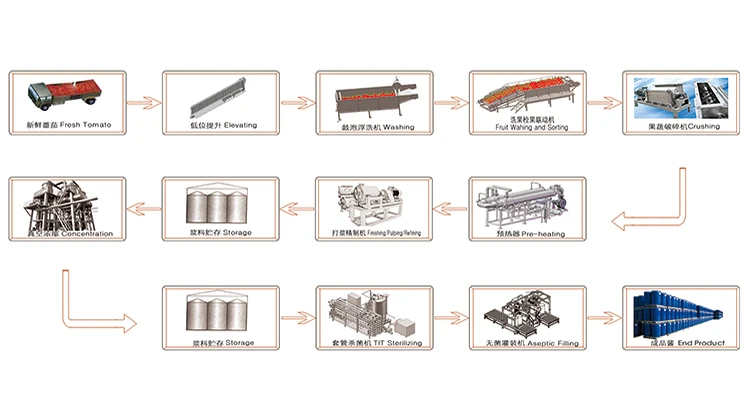

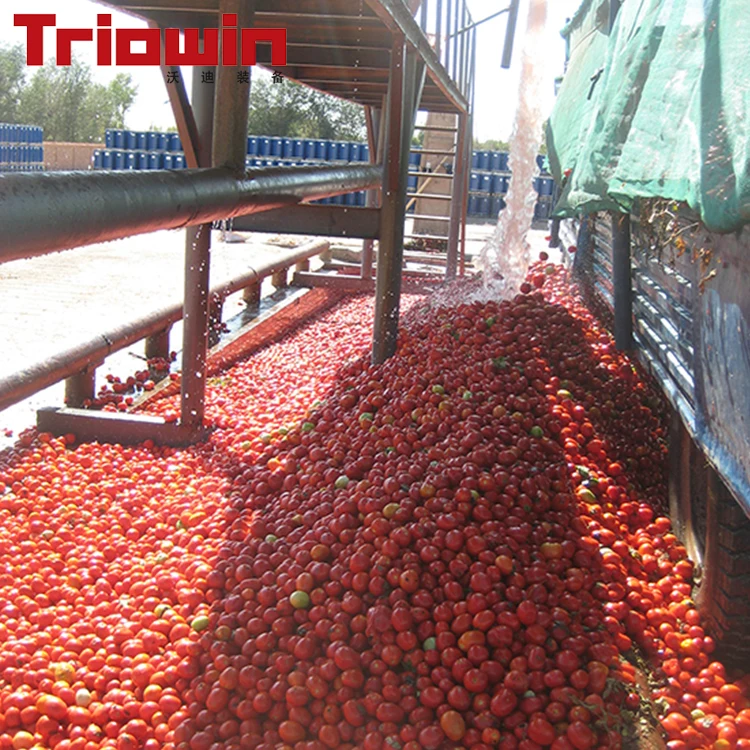

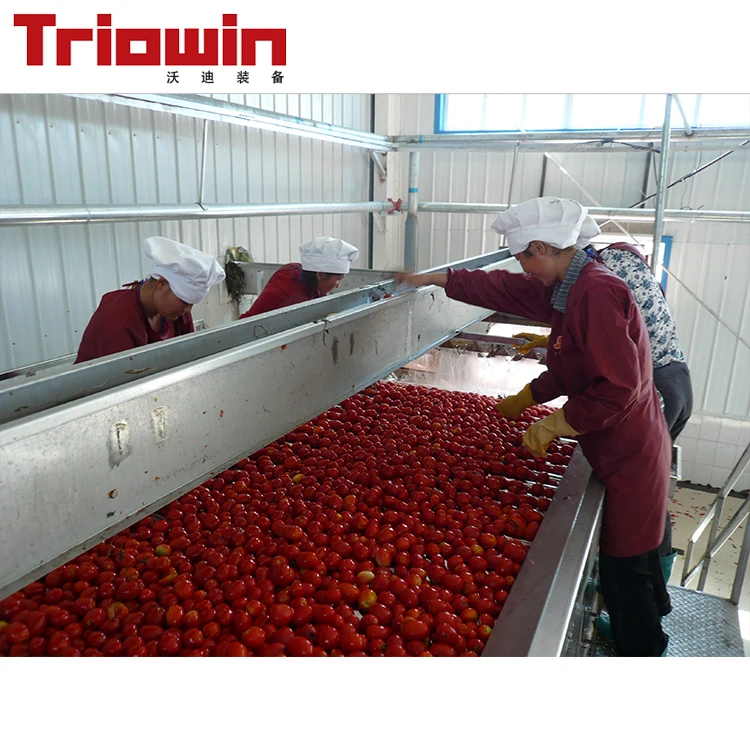

Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It ismainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.
Raw material handling capacity(t/d) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 |
Evaporation Form | Double | Double | Three vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum | Three vacuum |
Water Consumption | 7.1 | 13.1 | 21.6 | 44.3 | 65.7 | 44.3 | 65.9 | 65.9 | 79.08 |
Power(kw) | 83.8 | 151.5 | 412.4 | 636.2 | 955.4 | 1291.6 | 1411.1 | 1558.1 | 1869.7 |
Steam Consumption(t/h) | 1.665 | 3.87 | 5.22 | 9.14 | 15.01 | 20.2 | 24.62 | 29.15 | 34,.98 |
Compressed Air Consumption(t/h) | 66.2 | 66.2 | 66.2 | 72.2 | 72.1 | 72.2 | 72.2 | 72.2 | 86.84 |
Cooling Water Consumtion(t/h) | 125 | 317 | 307 | 585 | 825 | 1075 | 1410 | 1630 | 1956 |
Application of tomato processing line:
Shanghai triowin offers complete process line on turnkey basis to produce the following end products from tomatoes.
1. Tomato Puree from tomato processing plant
2. Tomato Paste from tomato paste processing plant
3. Tomato Ketchup/Sauces from tomato ketchup puree plant
4. Tomato Juices from tomato juice processing plant
5. Tomato Powder from tomato powder processing plant
Triowin provide the best top quality commercial plants tomato paste sauce processing making machine for your processing project and the prefect solution for your industrial production.If you or your clients have the distributor of tomato processing machines,and if you need further information or help,please contact us freely.
