3D Pen Filament Winding Machine , Filament Rewinding Machine , Automatic Samples machine

Share on (60728242572):


Price:$7,000.00 - $8,500.00

Quantity:


Product Overview

Description

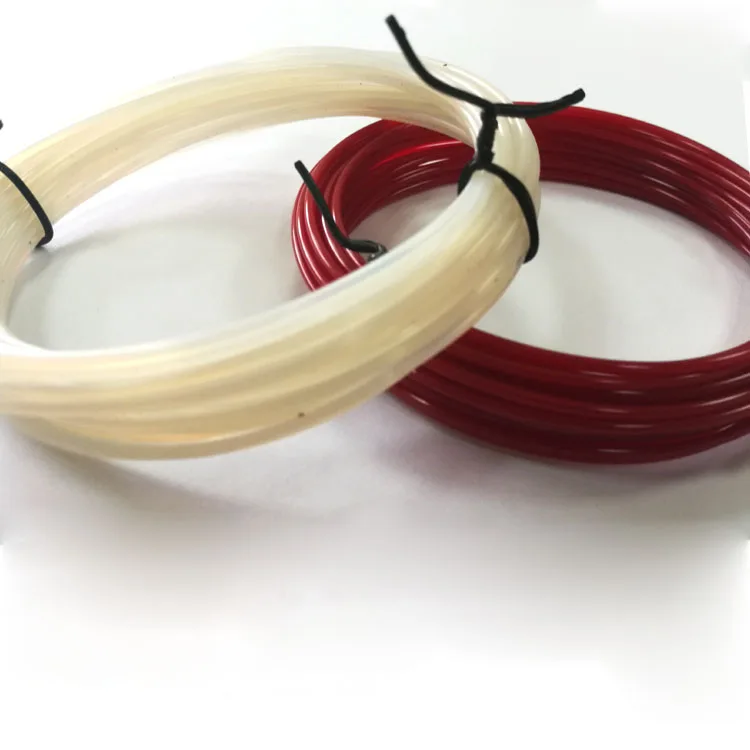

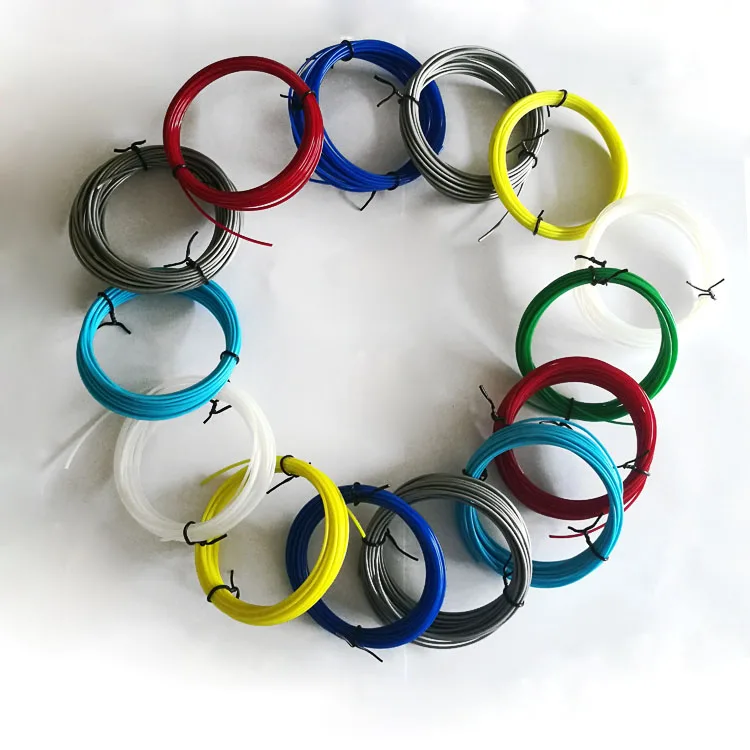

                                                       3D Pen Filament For 3D Pen


                        3m 5m 10 m 20 m  25m

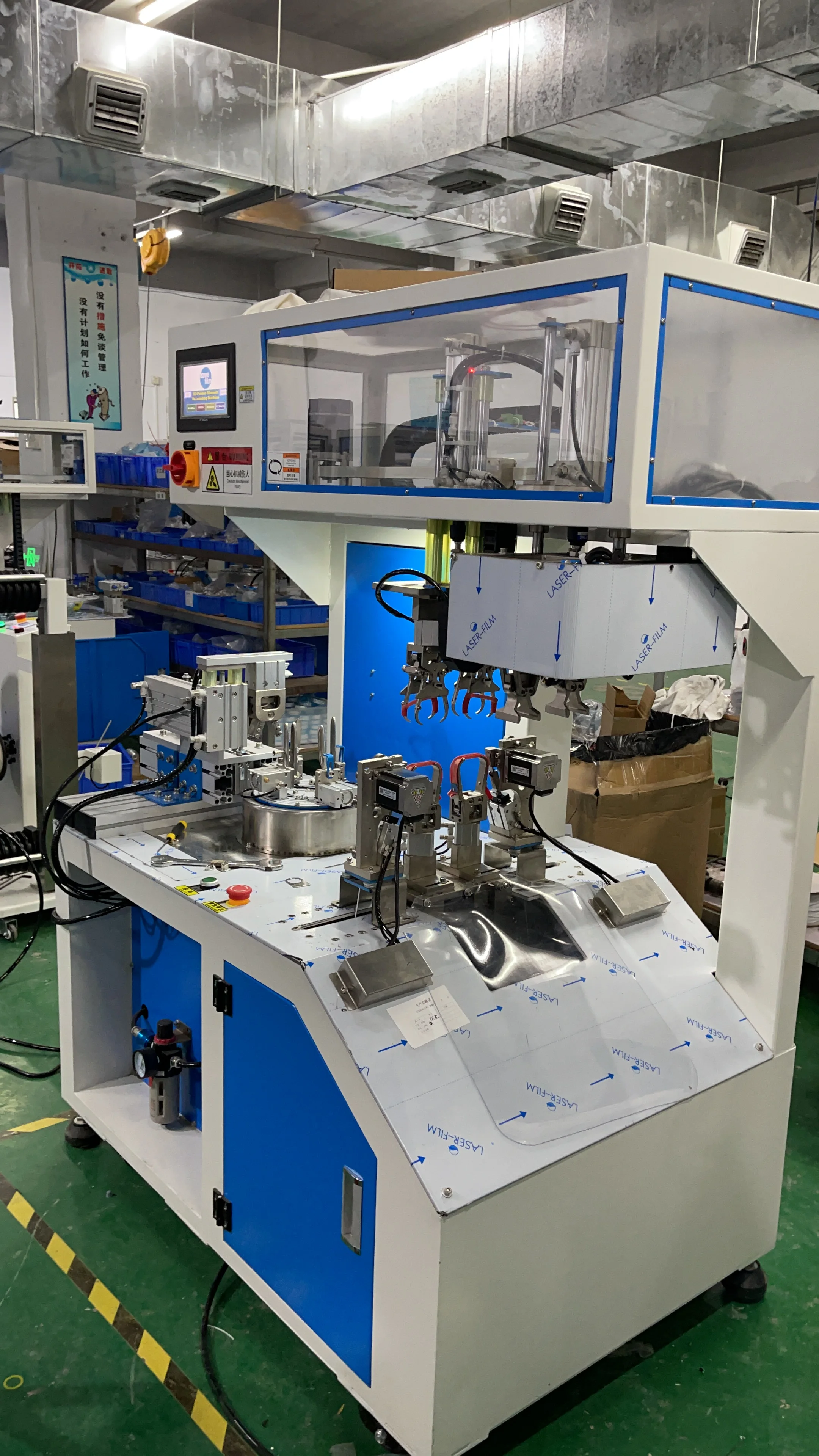

Fully automatic 3d filament winding machine automobile 3d pen filament coil winder machine










1,Fully-Automatic 3D pen filament and sample 3d filament winding machine using the excellent intelligent technology and precision to manufacturing. It can be 100% accurate to all output products and the ideal parameters set by the user, and at the same time, it has automatic release line. Line, winding, cable tie with integrated operation process, without any manual assistance, just should setting the corresponding parameters before operating,

2,The high efficiency of work for the automate filament winding machine is more than 10 times faster than manual work. It is saving the huge labor force and the end of history for hurting fingers of human being, also greatly saves the high budget of using labor, by this way, you will get more competitive price for 3d pen filament and samples filament than others in the market.








Characters;




1.The machine is controlled by LCD screen display. Speed of winding cable, number of circle can be set up at random according to users' requirement.

2,This machine can display actual production quantity at any time, also set up quantity of each carton. When the quantity reach setting quantity, machine will automatically alarm and shut down.

3,As one of the life style for the modern humans, the high efficiency, intelligence, environmental protection and convenient property is accepted and loved by more and more people.Making the users to maximize benefits at a lower budget

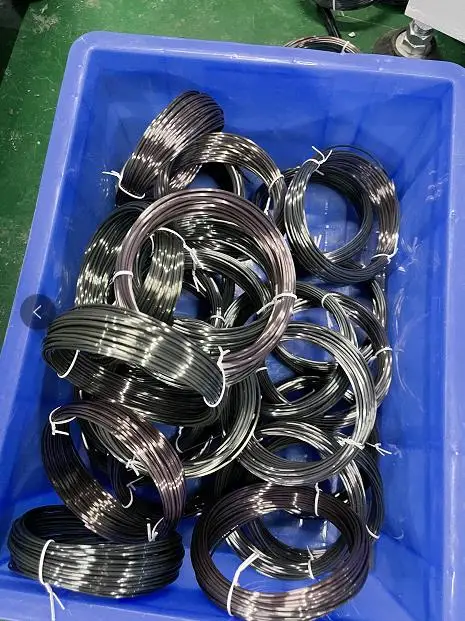

filament samples.jpg




















































































 Name :


Full-Automatic Sample Filament and 3D Pen Filament  winding machine


Model No :


SHSJ-2


The Finished Filment Appearance:


Circle with two tie


Produce Speed:


600pieces /h


Finished Filament Circle Diameter:


80mm


Build Volume for Filament:


10-50g


Finished Tie Filament Diameter:


45mm


Sutable Tie for Packaging:


PVC Cable Ties


Filament Front Part Stays Long:


≤50mm


The End of Long for The Filament:


≥50mm


Main Motor:


Servo motor and Stepping motor


Voltage Request:


110-220V /5A


Aerostatic Press Machine:


Normal Aerostatic Press Machine


Atmospheric Pressure request


0.4-0.6Mpa


Machine Size :


155*70*160cm


Packages Size :


160*77*165cm


Net Weight :


150kgs


Gross Weight :


250kgs








 If you need more information about this machine , pls contact with me freely .


Best Regards


Ms Candy Tang


Sales Engineer


008615118427012


More than 10 years experiences on the filament machine !!!!
