high pressure threaded electric water pressure regulator valve

Product Overview

Description





high pressure threaded electric water pressure regulator valve



Product Specification

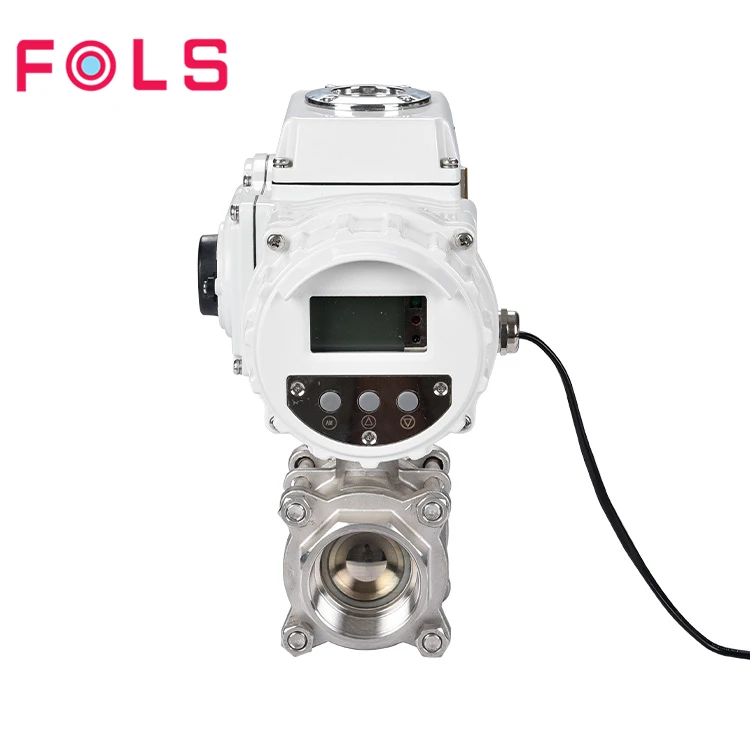

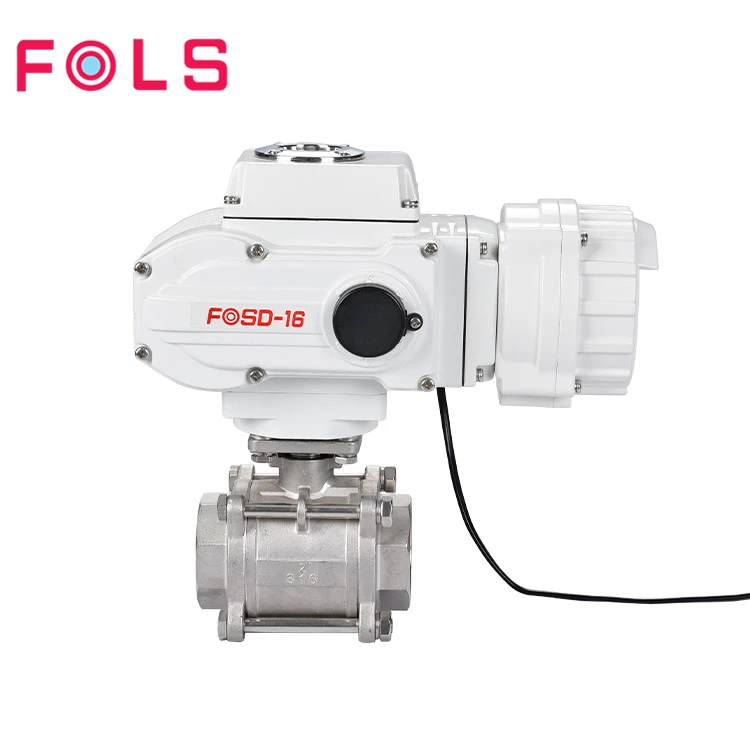

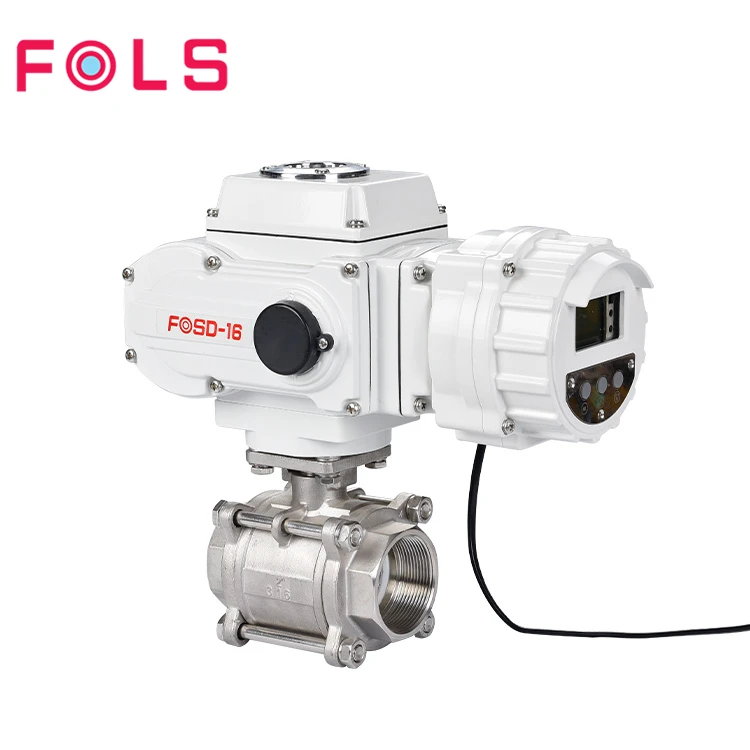

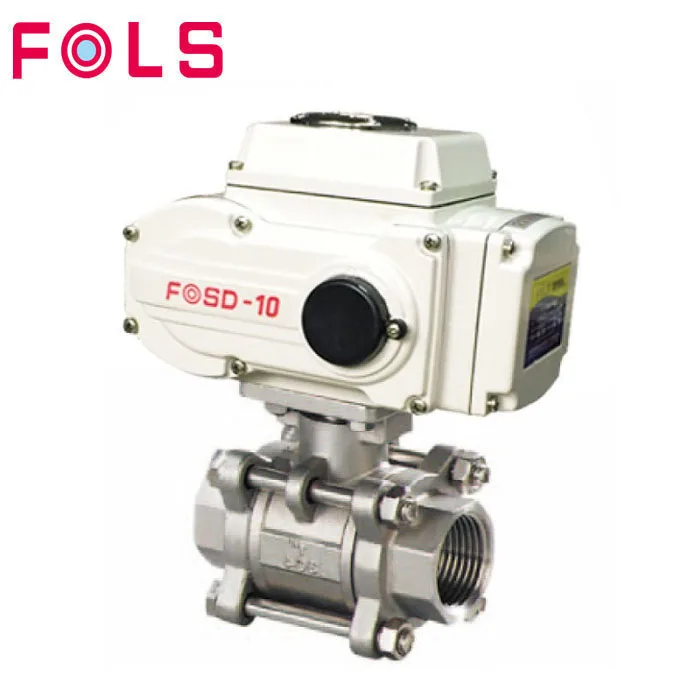

3 pieces ball valves with electric actuators
Electric 3 piece ball valve is equipped with FOSE series electric actuator, it needn’t extra servo amplifier, accept 4-20mA or 1-5 V DC input signal to regulating the medium. The 3 piece design ball valve is characterized by strong function, small volume, light weight, reliable performance, simple equipment, strong flow capacity, especially suitable for the medium that contain slurry, fiber, widely used in paper making, sugar industry, petroleum, chemistry, metallurgy, air-condition, fire protection, water supply and industrial automation and so on.





Body
Nominal size: DN15-DN80
Body material: WCB, 304, 316, 316L
Connection type: Thread
Pressure class: PN16-PN4.0MPa
Structure type: Floating ball core Valve components
Seat material: PTFE: -30~180C
PPL: -30~250C
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: Water, oil, steam, etc Performance





Specification of Electric Actuator

Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Insulation resistance	100M/500VDC
Pressure withstanding	1500 VAC ,   one minutes
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit options	A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style
