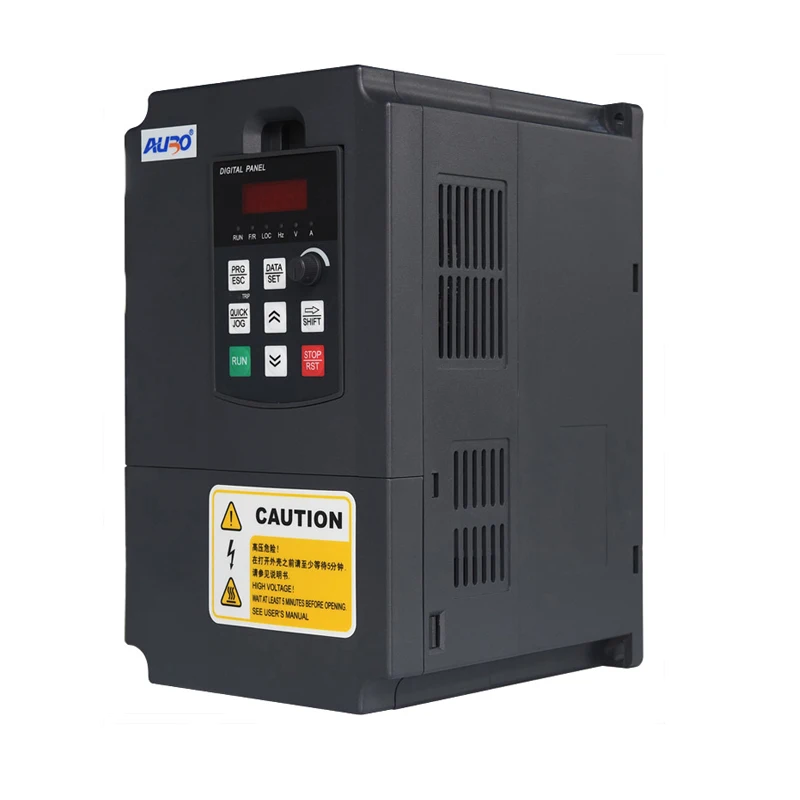

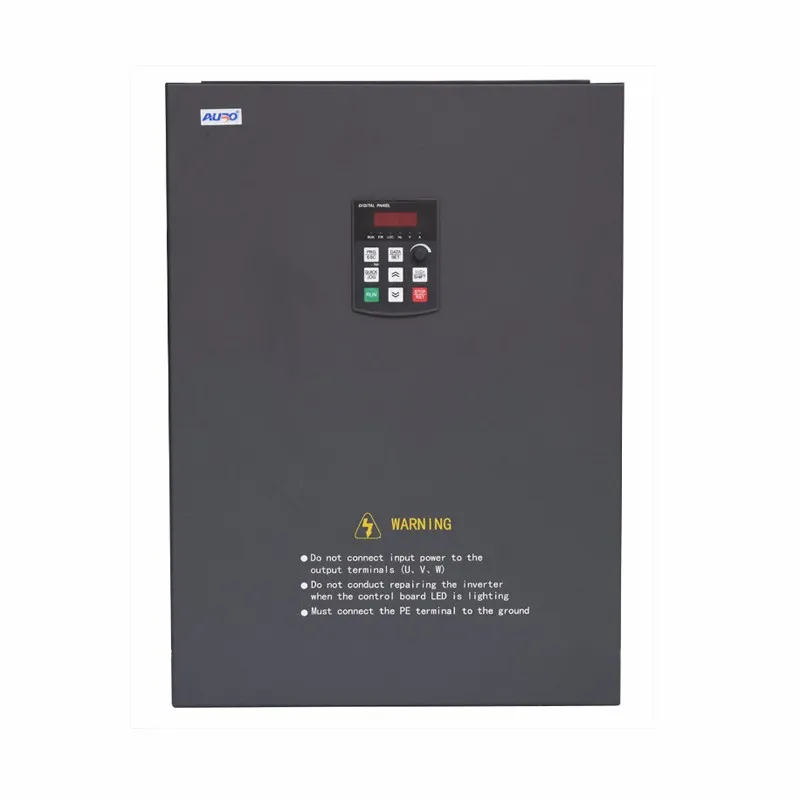

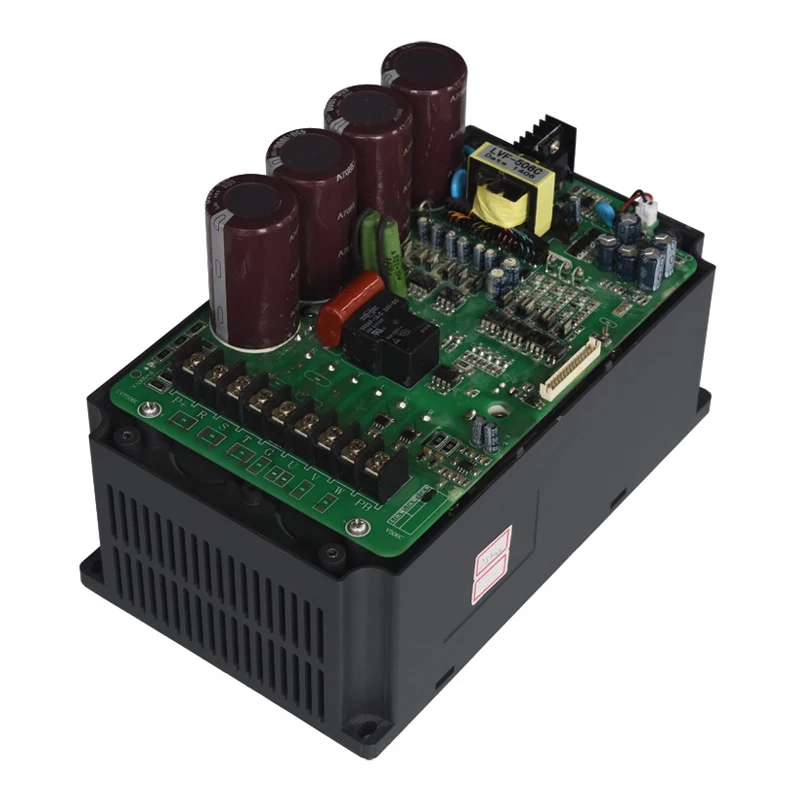

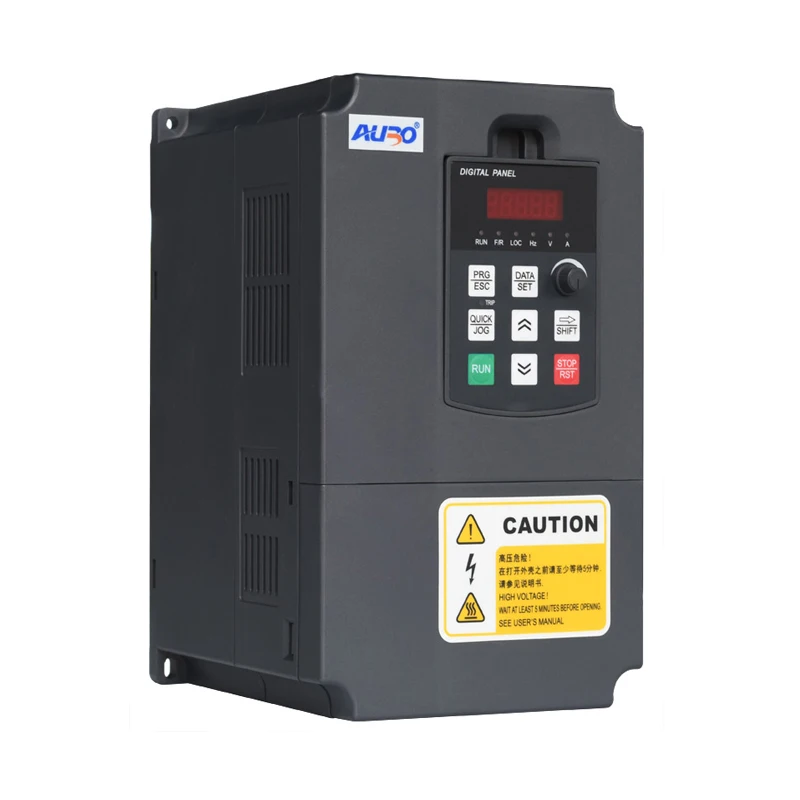

Three phase Inverter Frequency Converter 4 kw from 50hz to 60hz

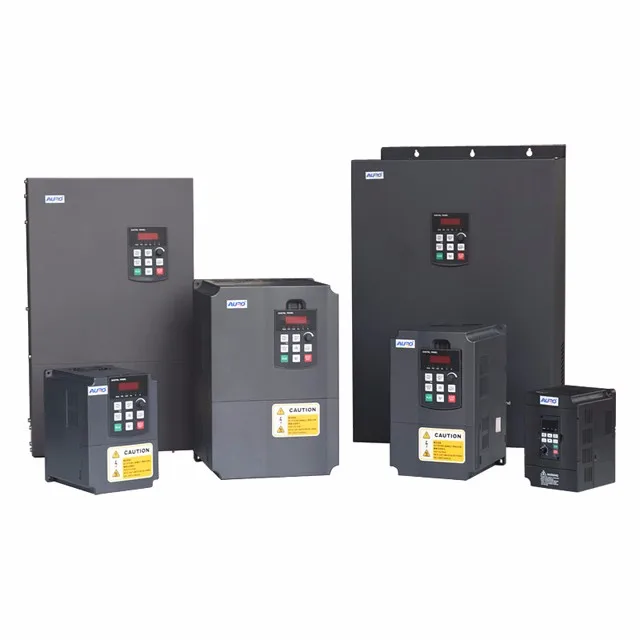

AVF580 series VFD is a universal high-performance current vector frequency converter, for realizing asynchronous motor and permanent magnet synchronous machine control, the product has programmable function and background monitoring software, communication bus function, powerful. Can be used for textile, paper, drawing, machine tools, packaging, food, fans, pumps and a variety of automated production equipment drive.

Product Introduction
\t
MODEL
\t
AVF580 SERIES
\t
Power Supply
\t
0.4kw to 450kw
\t
Rate Voltage
\t
220v~690v
\t
Input Freqeuncy
\t
50HZ/60HZ
\t
Output Frequency
\t
0~320HZ
\t
Phase
\t
Single or Three Phase

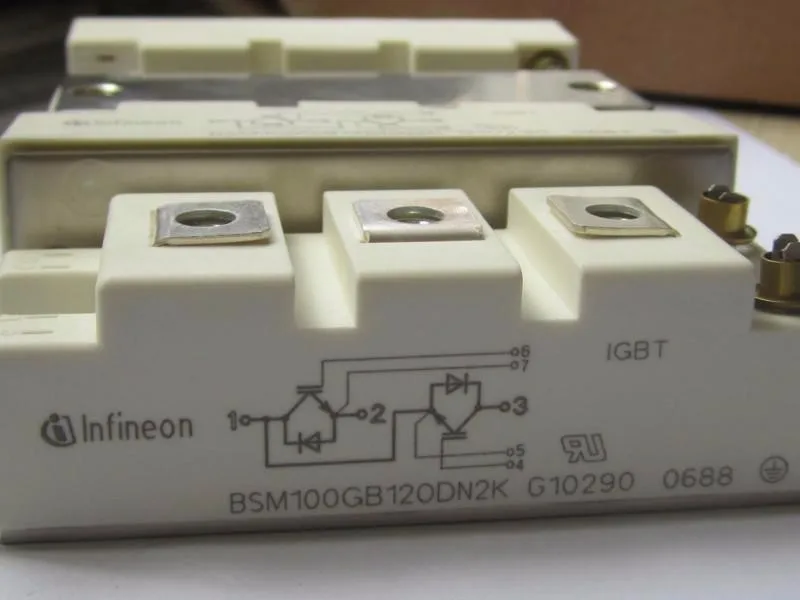

Excellent IGBT Module

Selection of the German brand IGBT( Insulated Gate Bipolar Transistor Module ), to ensure high-performance product quality.

Good TI Chip

Import integrated circuit (TI Chip), excellent product quality.

SMT PCBS

Focus on the production of circuit board manufacturers (our partners), specializing in the production of circuit boards, industry leading brand! Rapid manufacturing, on time delivery, trustworthy!

Product Parameters
\t
ITEM
\t
SPECIFICATION
\t
ITEM
\t
SPECIFICATION
\t
Max Frequency
\t
Vector control:0~300HZ
V/F control:0~320HZ
\t
Carrier Frequency
\t
0.5kHZ~16kHZ
Self-adjustment
\t
Input Frequency Resolution
\t
Digital:0.01HZ
Analog：Max Freq.*0.025%
\t
Control Methods
\t
SVC,FVC,V/F control
\t
Overload Capacity
\t
G Type:150% FLC for 60s;180% FLC for 3s
P Type:120% FLC for 60s;150% FLC for 3s
\t
Simple PLC
\t
Through the built-in plc or control section to achieve up to 16 speed operation
\t
Built-in PID
\t
To facilitate the realization of process control closed-loop control system
\t
AVR(Automatic voltage adjustment)
\t
When the grid voltage changes, can automatically maintain the output voltage is constant
\t
Multi-motor switching
\t
Four sets of motor parameters, can achieve four motor switching control
\t
Multi-threaded bus support
\t
Modbus,Profibus-DP,CANlink,CANopen.
\t
Multi-encoder support
\t
Support differential, open-circuit integrated electrode, UVW, rotary transformer, cosine and other encoders.
\t
QUICK/JOG







\t
Functional quick button to be defined by user freely
\t
Voltage auto-tuning
\t
When the power supply viberates, the output voltage is kept constant automatically
\t
More than 25 protections
\t
Over current, over voltage, under voltage, over temperature, phase loss, over load, etc.

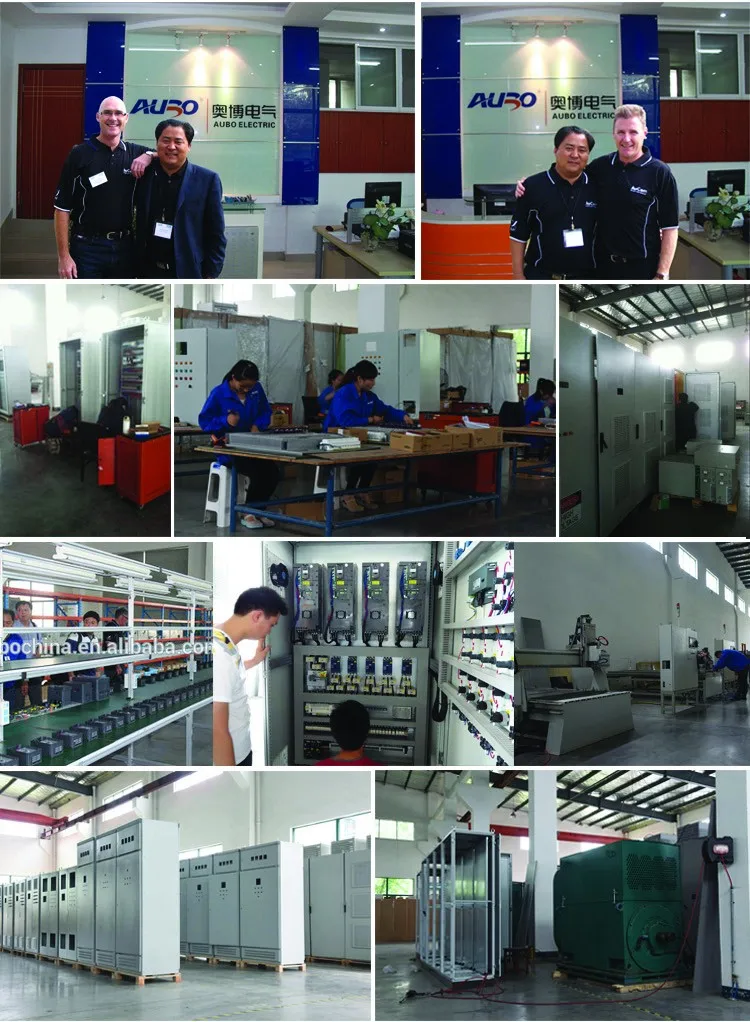

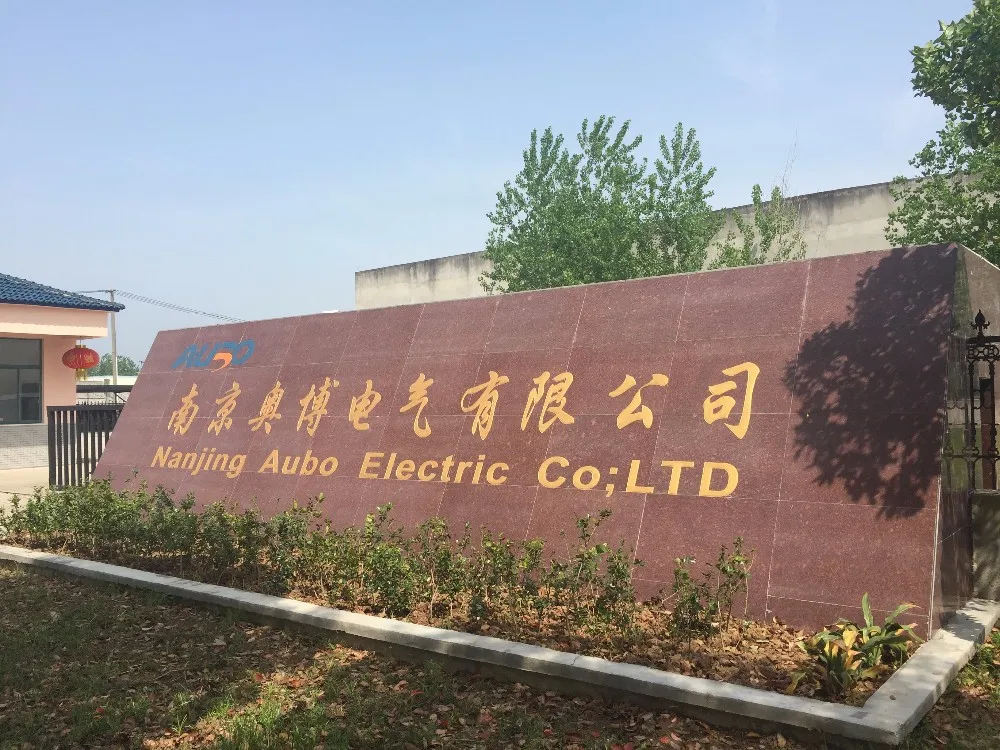

Company Show
Why Choose Us

About us

we are professional manufacturer for 16 years.
We have 16 years’ experience of OEM and ODM.
We got 8 patents in the electrical industry.
We got the title of provincial science and technology enterprises.

Equipment & technology

Perfect assembly line
Complete testing equipment
Three check procedures
Professional Team in industry.

Service

We guarantee 100% in 12 hours response.
Powerful Production Capacity.
High voltage products support on-site installation and commissioning

Certificates
Contact Us
Main Products

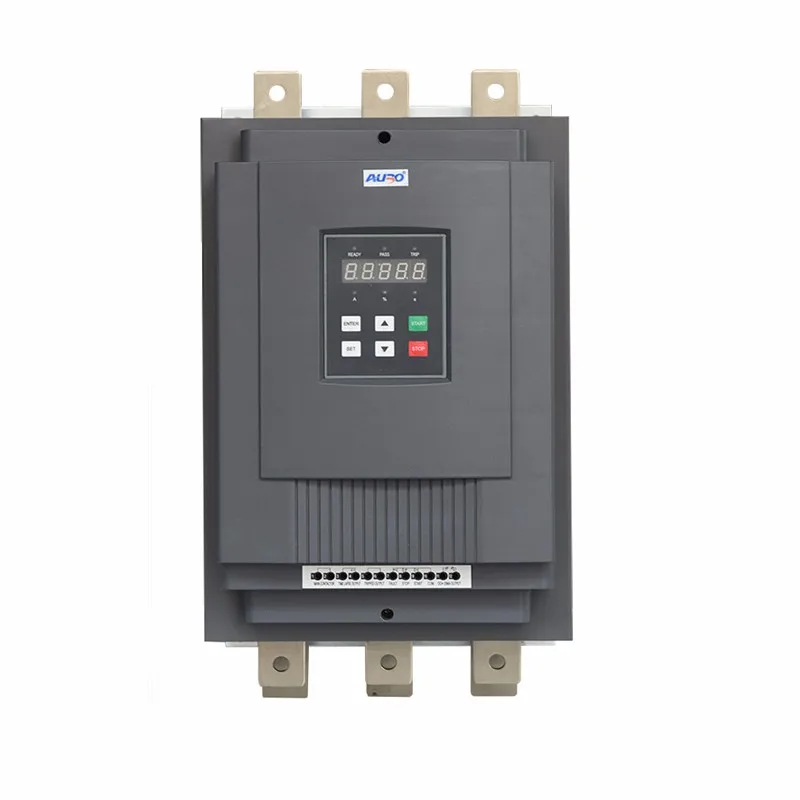

Low voltage Soft Starter

Mid. Order: 1 unit more quatities, more cheaper FOB Price: US $ 100~1500/package

Medium voltage soft starter

Mid. Order: 1unit more quatities, more cheaper FOB Price: US $ 30000~40000/Carton

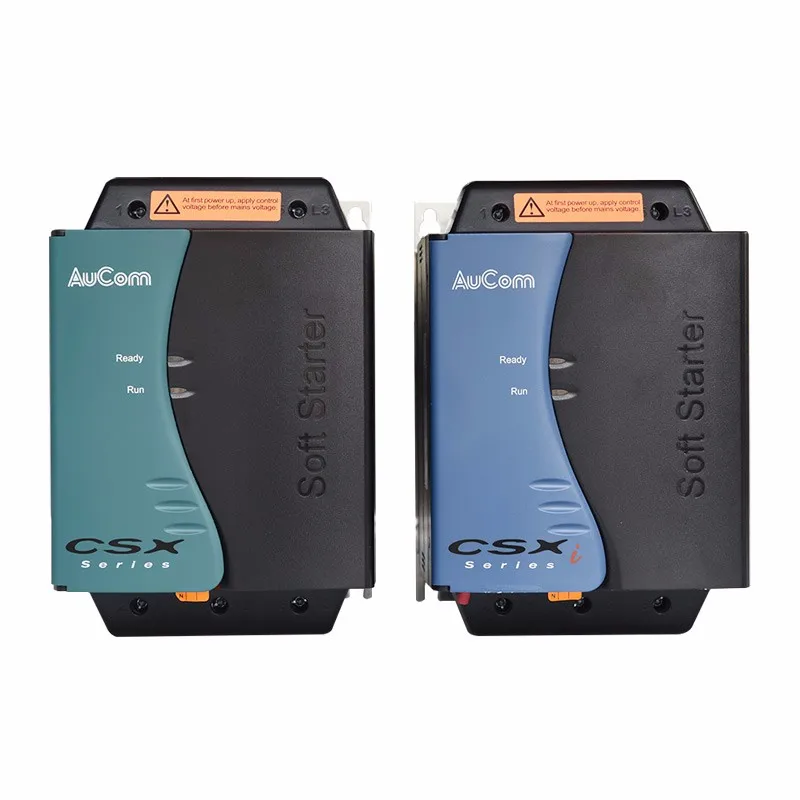

Aucom Low votlage soft starter

Mid. Order: 1unit more quatities, more cheaper FOB Price: US $ 300~2000/package

High power Low voltage VFD

Mid. Order: 1 unit more quatities, more cheaper FOB Price: US $ 500~1000/package

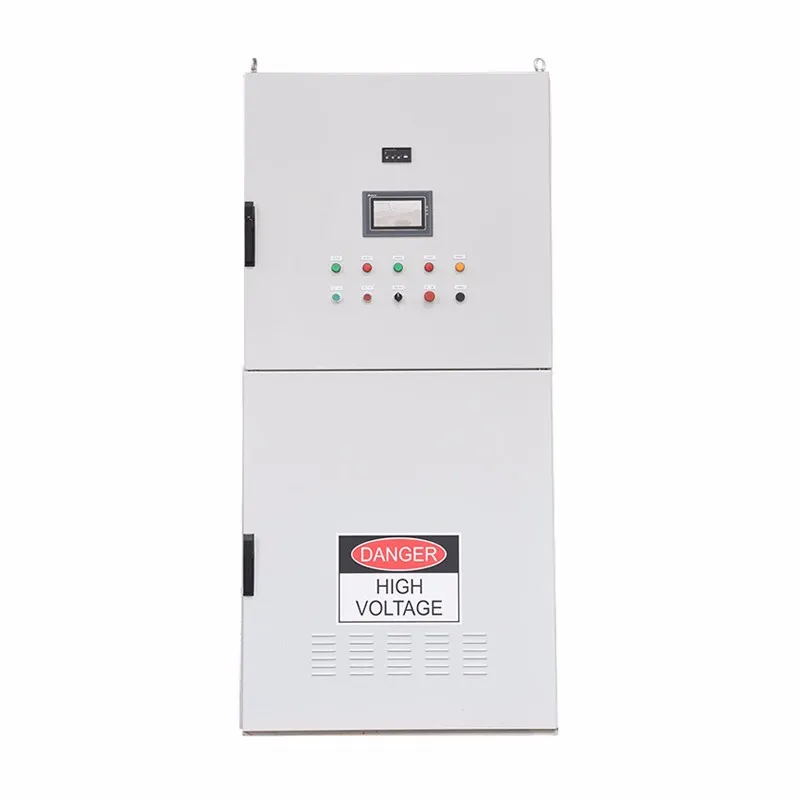

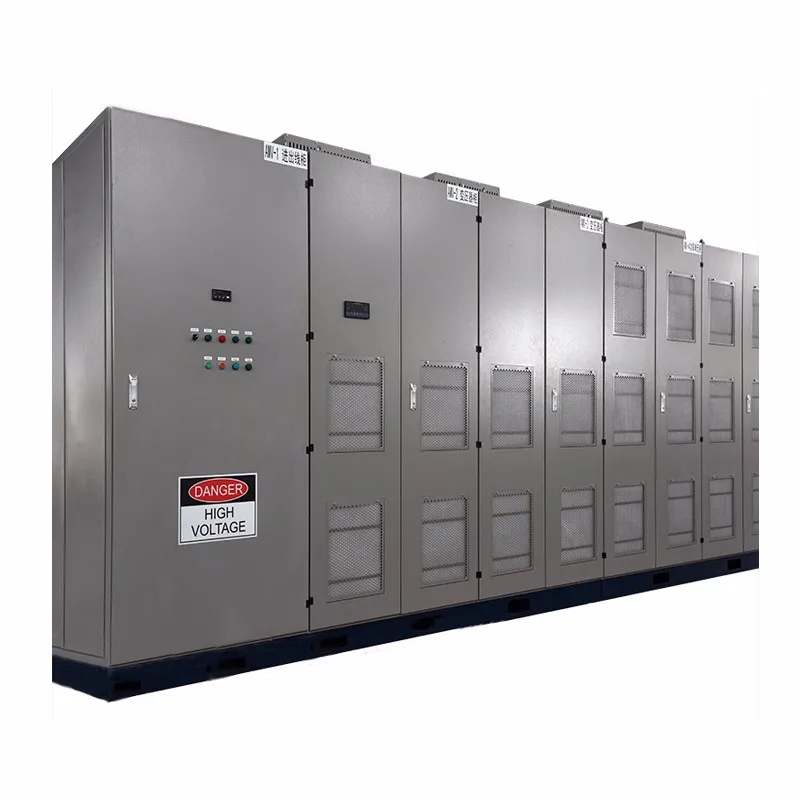

Medium voltage Variable Frequency Drive
