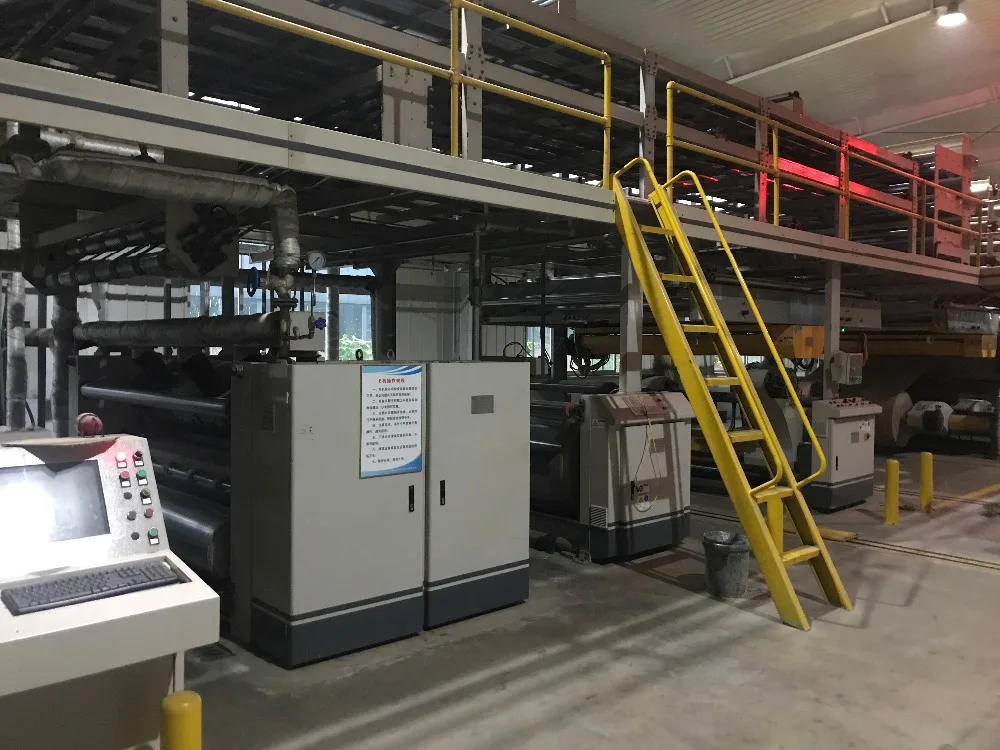

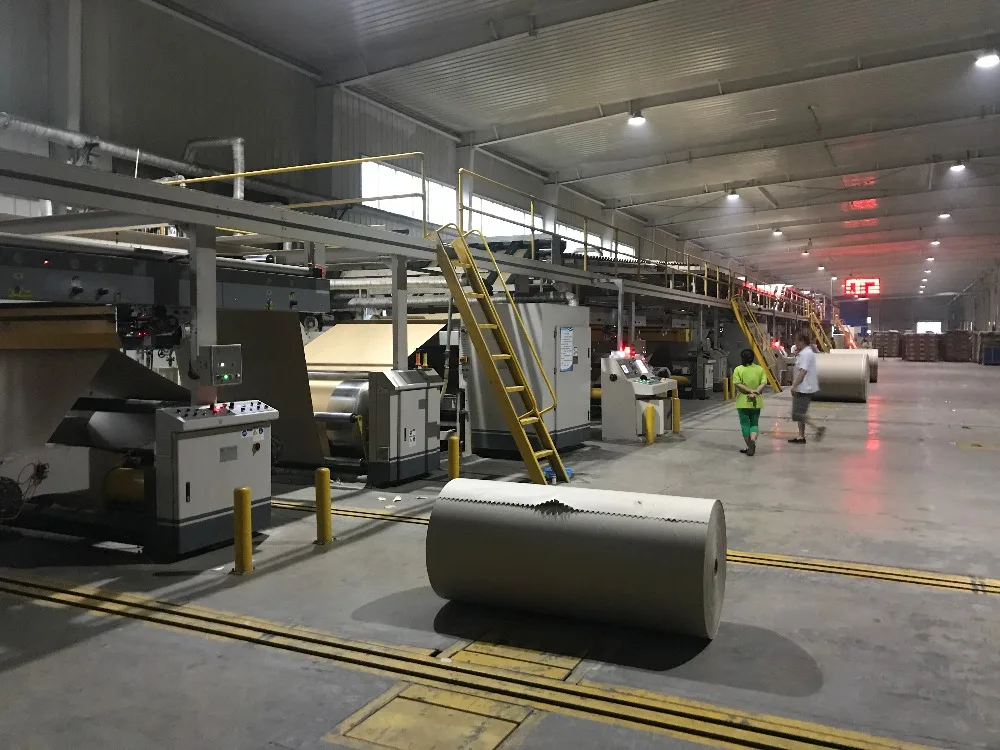

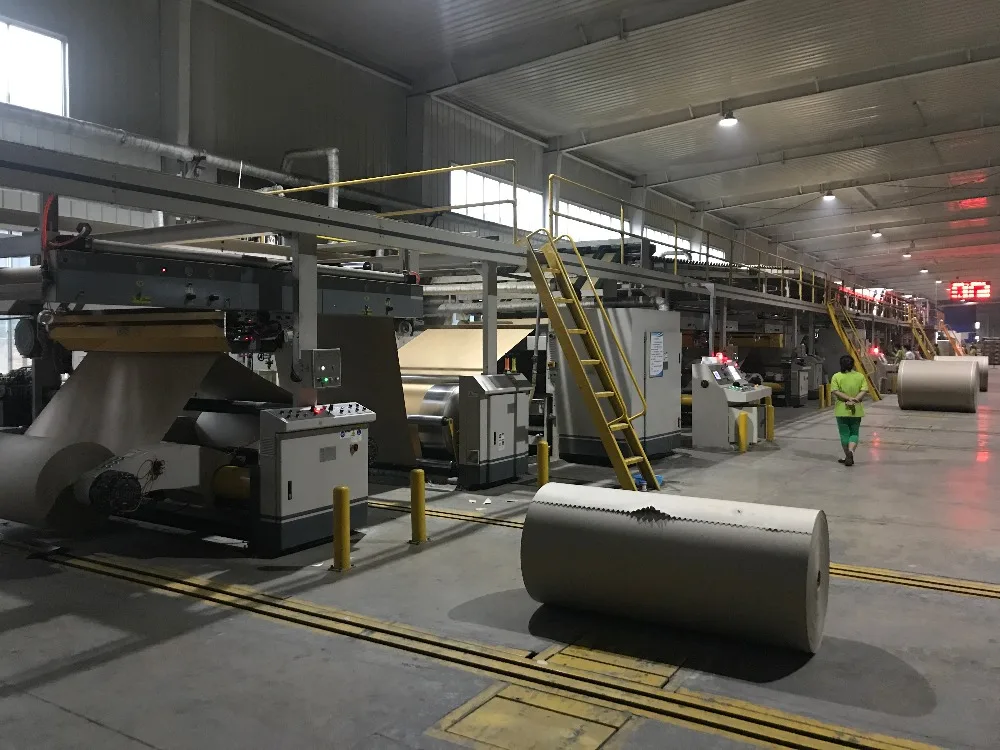

HRB corrugated cardboard production line with A B C D E flute 3 5 7 layer

Product Overview

Description

Type seven layer corrugated roller cardboard production line

Device configuration and technical instruction

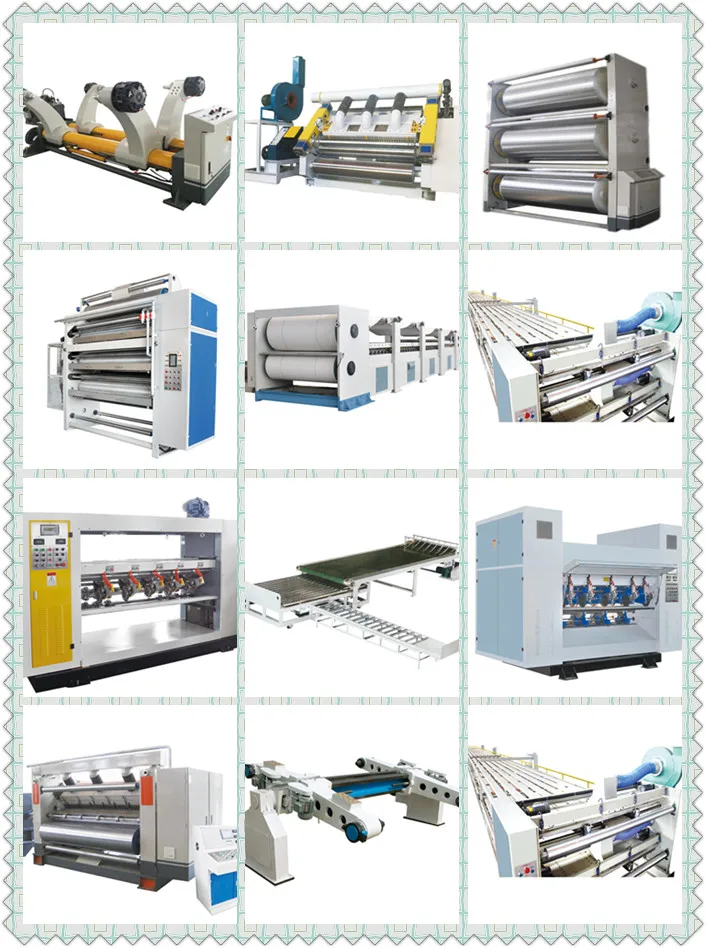

Equipment nameEquipment name	Remark
Hydraulic shaftless mill roll stand	Spindle  240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.track length6000mm,trolley used 10mm plate welding.
Top paper preheat cylinder	roller 900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
Core paper preheat cylinder	roller 900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
Fingerless type single facer	Corrugated main roller 380mm,material with 48CrMo alloy steel,tungsten carbide dealing,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way.
Triple preheater	roller 900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
triple glue machine	Glue roller diameter 320mm.Each independent frequency motor drive,PLC adjust glue gap and HMI.
heavy type conveyor bridge	200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction.
Double facer	Tungsten alloy steel, five knives eight lines,zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.
NCBD thin blade slitter scorer	Full AC servo control, energy storage brake, helical blade structure, helical gear transmission,oil-immersed gears pressure protective,10.4-inch touch screen display.
NC cutter helical knives	Full AC servo control, energy storage brake, helical blade structure, helical gear transmission,oil-immersed gears pressure protective,10.4-inch touch screen display.
computer gantry automatic	Servo drive platform lifting, three section of frequency transport,automatic points stack discharge,Imported high-strength belt output, out paper side standard transport aircraft.
Glue station system	Customers -owned pipeline.Glue configuration is composed by carrier tank,main tank,storage tank,and send plastic pump,back plastic pump.
Gas source	Including 0.6m³gas tank 1 unit.Air pump,pipeline is prepared by the customers.
Steam system	Steam system components used in all GB valves.Including rotaty joint,upper and lower dispenser.traps,pressure table and so on.Customer-owned boilers and pipes.
Electrical control cabinet system	Electronic control system:The entire line speed mechanism adopts electromagnetic speed motor.Cabinet surface paint electrostatic spray ,Wearable and beautiful.The main contacts relays using france schneider brands.



Type: seven layer corrugated paperboard production line:

1.The maximum production width of the corrugated cardboard:1800mm

2.Design speed:100m/min

3.Economic speed:60-80m/min

note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)

Paper rating of not less than B grade      Paper moisture content of about:11%±2%

top paper:100—250g/m2         core paper:100--250g/m2

corrugated paper:100—200g/m2

1.Flute-type combination:A ,C, B, E(as customers’ requirement)

2.Steam the necessary requirements:

amount of steam 2500—3000Kg/Hr the highest pressure:1.2Mpa

common pressure:0.8-1.1Mpa

6,power supply:380V 50Hz Three-phase four-wire system

7,equipment installed total power:about150KW The actual power consumption:about 80KW(full speed)

8,equipment covers:about95m×11m×5m(Specific length of foundation Figure prevail)

9,Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position

10,Equipment applicability,Available in A, B, C class domestic or imported paper Paper
