Magnesium Anode Rod cleaning for Pressurized solar water heater

Product Overview

Description

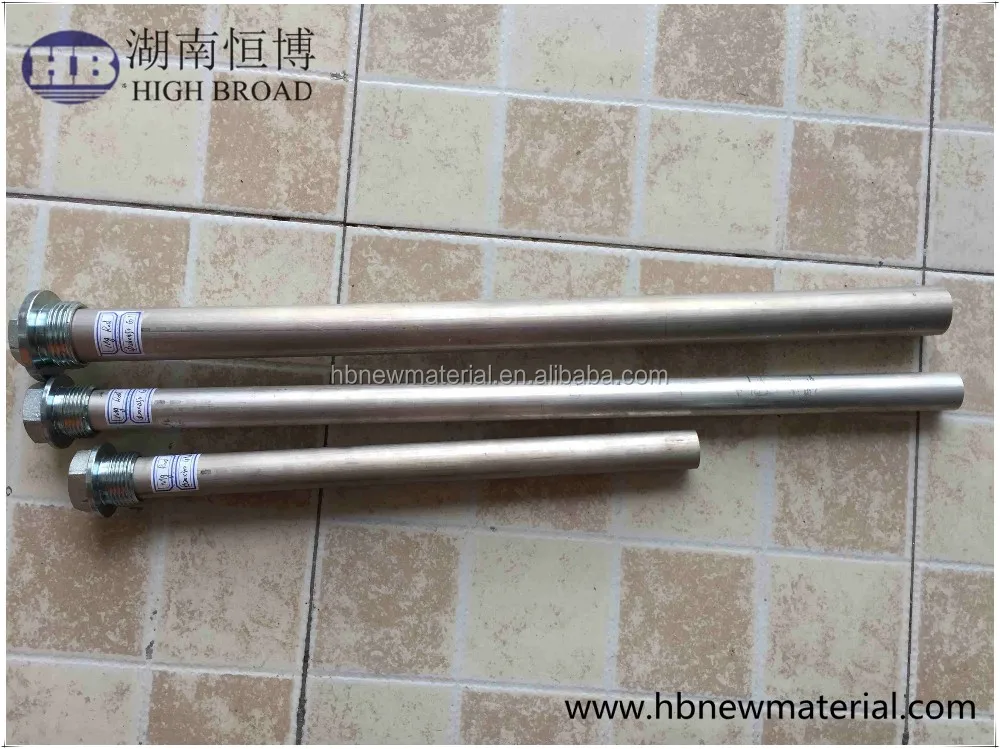

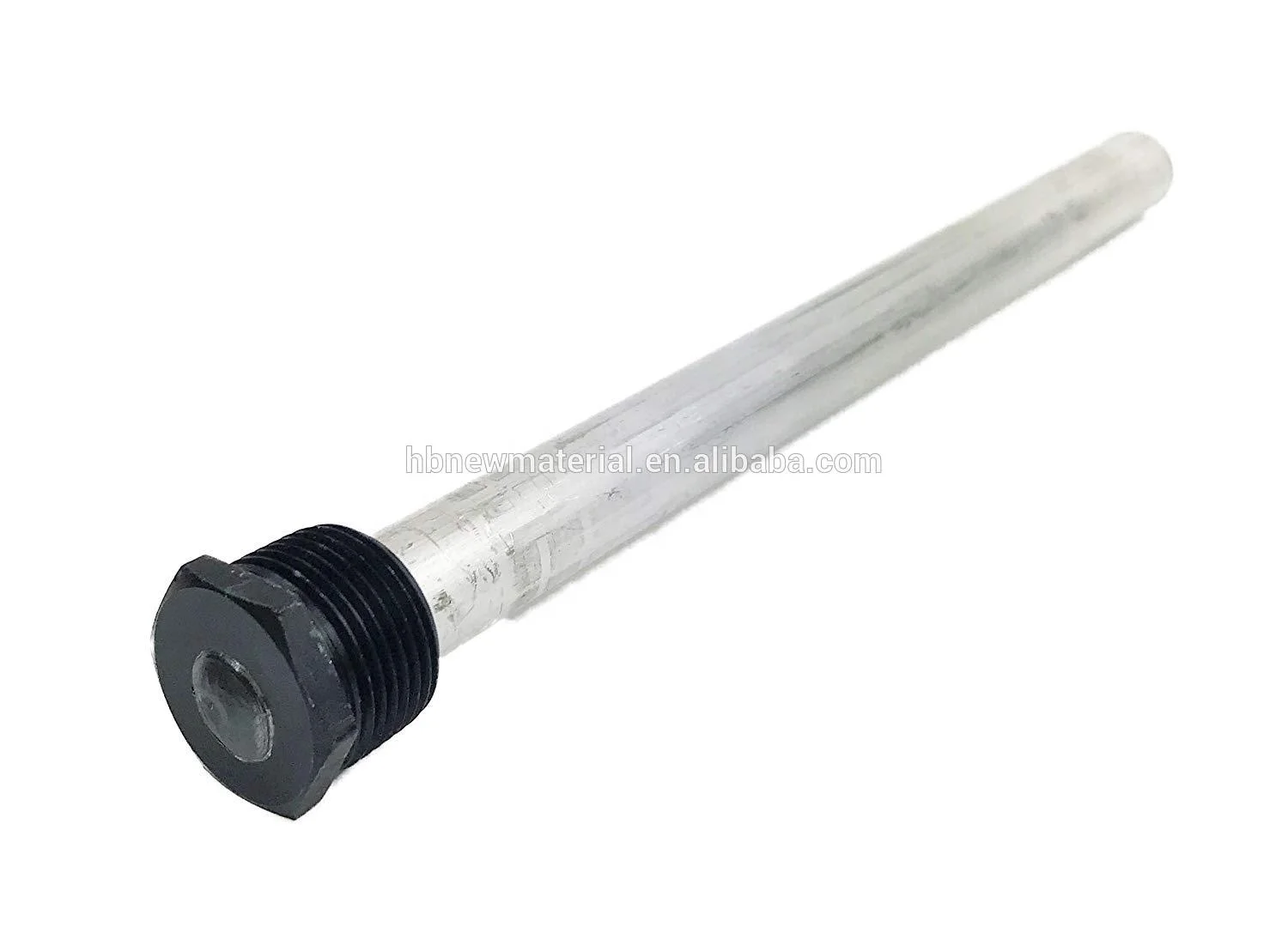

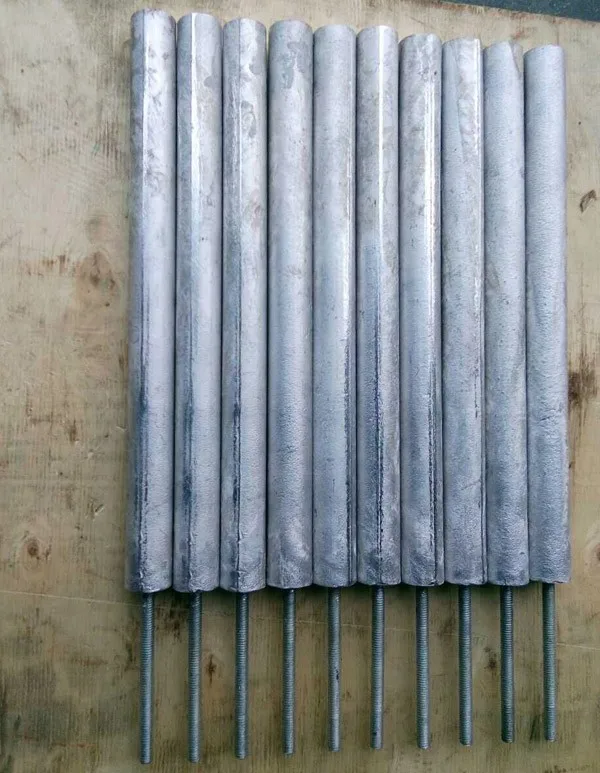

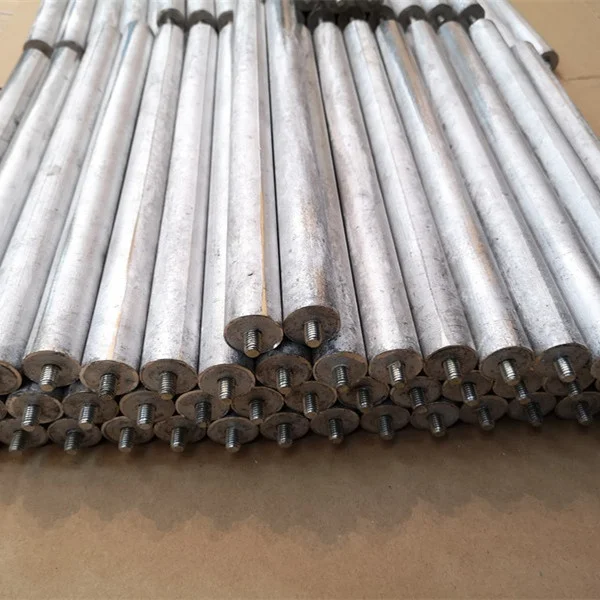

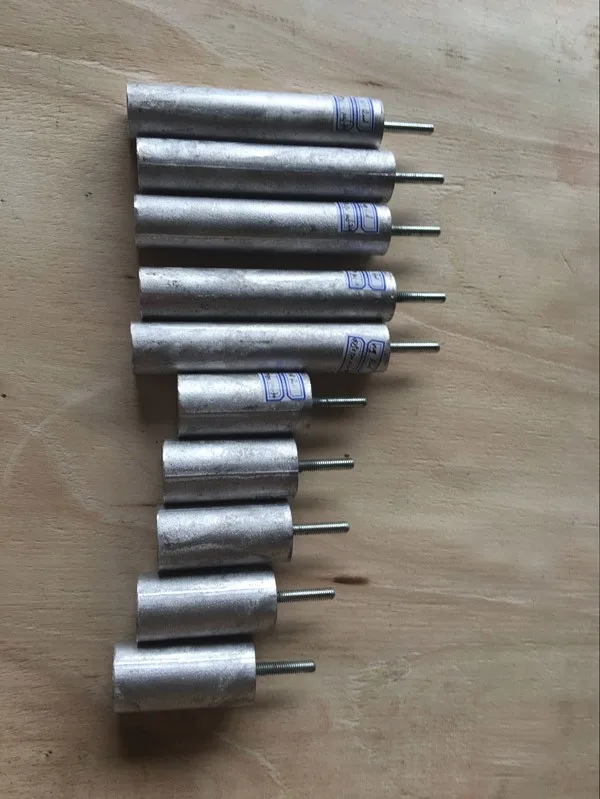

Magnesium Anode Rod cleaning for Pressurized solar water heater

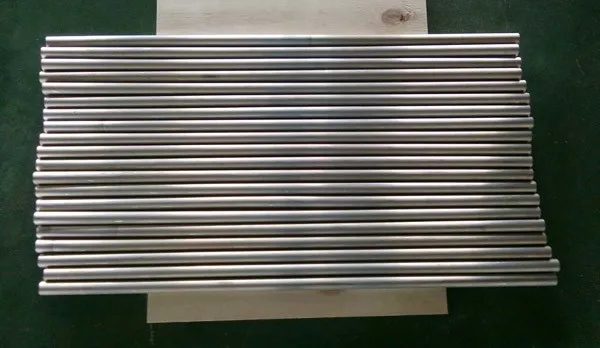

AZ31 and Pure Magnesium Rod anode 1~10mm Magnesium Rod





Item Number	MIC,High potential,AZ63C,AZ31
Features	Anti-corrosion/Cathodic protection
Materials	Magnesium alloy
Shape	Square,D shape,Cylinder,Bar,Rod ,Ribbon
Standards	American standard, ASTM G-97
Certificates	ASTM G-97, ISO, DNV
Place of Origin	China

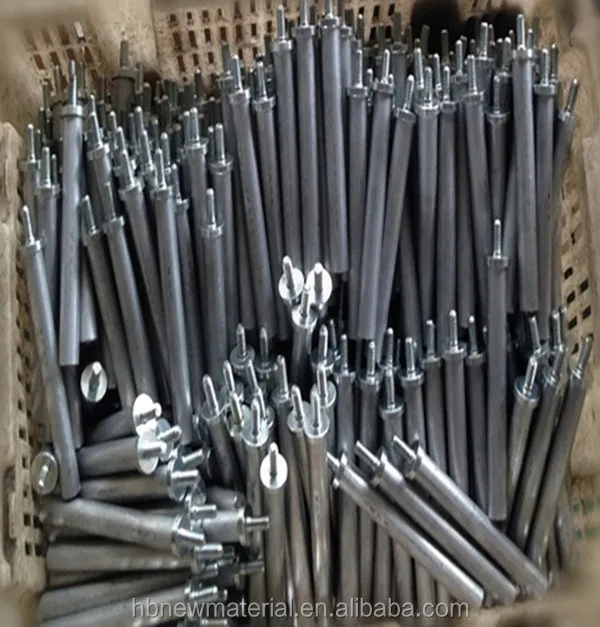

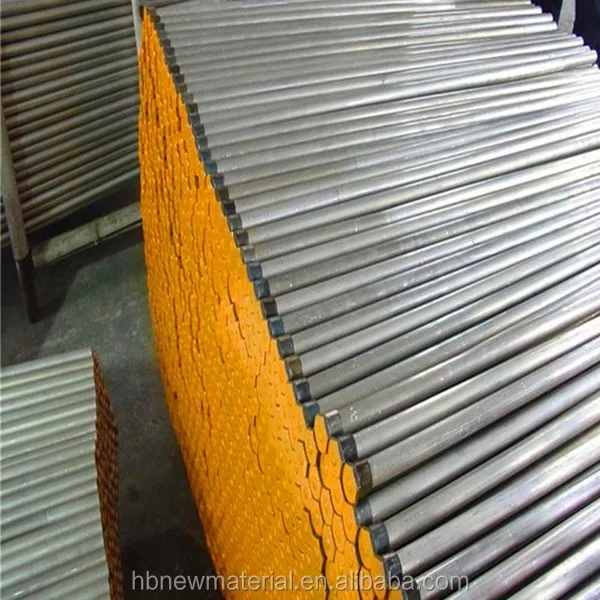

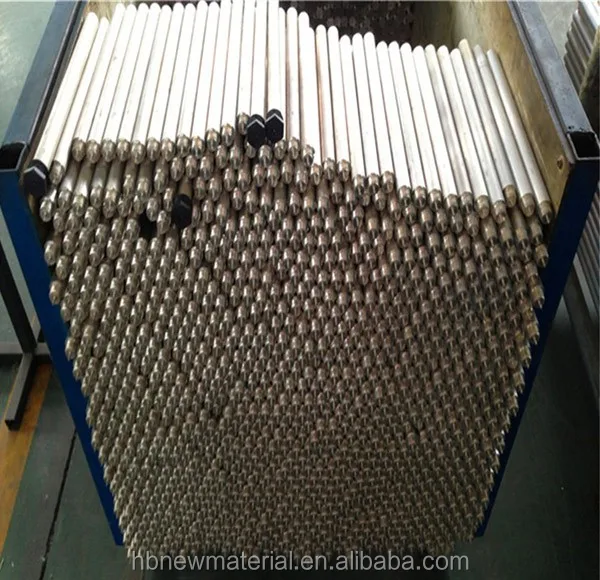

Applications save and earn big	Magnesium anode is used in ship equipment and building, port construction, sea project, underneath pipeline, petroleum chemical fields. Extruded magnesium anode rod is mainly used in water boiler, heat exchanger, evaporimeter, and boiler and so on. It has properties of softing water, de-dirt residual ,en-longing the working life of container.
Minimum Order QTY	10 Kilograms
Payment Terms	L/C,T/T for bulk order, Western Union and Paypal for samples
Supply Ability	300 Metric Ton/Metric Tons per Month
Delivery Time	20 FCL:20-30 Days. Depends on quantity.
Packaging details	on pallet with steel bundles

Standard: ASTM G-97

Chemical compositions of cast magnesium anode (%)
Element	High potential	AZ63B	AZ63C	AZ63D
Al	<0.01	5.30-6.70	5.30-6.70	5.0-7.0
Zn	---	2.50-3.50	2.50-3.50	2.0-4.0
Mn	0.5-1.30	0.15-0.70	0.15-0.07	0.15-0.70
Si (max)	0.05	0.10	0.30	0.30
Cu (max)	0.02	0.02	0.05	0.10
Ni (max)	0.001	0.002	0.003	0.003
Fe (max)	0.03	0.005	0.005	0.005
Others each	0.005	---	---	---
Others total	0.30	0.30	0.30	0.30
Mg	Balance	Balance	Balance	Balance



Specificantion of “S”shaped Mg sacrificed anodes

Model	Weight Kg (LB)	Specification of anodes   Inch (mm)
		A	B	C
3S3	1.4(3)	3(76.2)	3(76.2)	4.5(114.3)
5S3	2.3(5)	3(76.2)	3(76.2)	7.5(190.5)
9S2	4.1(9)	2(50.8)	2(50.8)	27(685.8)
17S2	7.7(17)	2(50.8)	2(50.8)	51(1295.4)
17S3	7.7(17)	3(76.2)	3(76.2)	25.5(647.7)
20S2	9.1(20)	2(50.8)	2(50.8)	60(1524.0)
32S3	14.5(32)	3(76.2)	3(76.2)	45(1143.0)
32S5	14.5(32)	5(127.0)	5(127.0)	21(533.4)
40S3	18.1(40)	3(76.2)	3(76.2)	60(1524.0)
48S5	21.8(48)	5(127.0)	5(127.0)	31(787.4)
60S4	27.2(60)	4(101.6)	4(101.6)	60(1524.0)
9S3	4.1(9)	3(76.2)	3(76.2)	13.5(342.9)

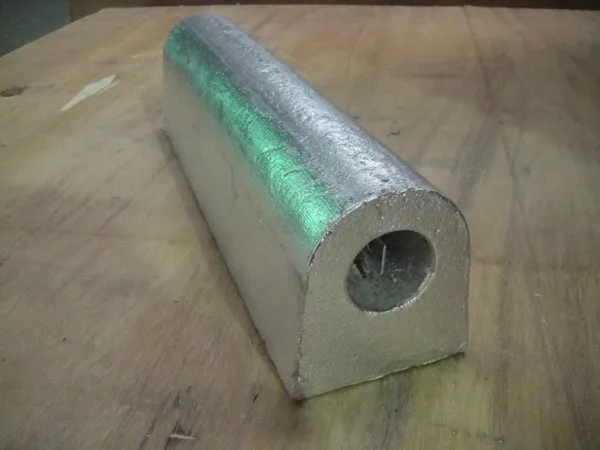

Specificantion of “D”shaped Mg sacrificed anodes

Model	Weight Kg (LB)	Specification of anodes   Inch (mm)
		A	B	C
9D2	4.082(9)	2 3/4(69.9)	3(76.2)	21 5/8(549.3)
14D2	6.350(14)	2 3/4(69.9)	3(76.2)	33 1/2(850.9)
20D2	9.072(20)	2 3/4(69.9)	3(76.2)	47 3/4(1212.9)
9D3	4.08(9)	3 1/2(88.9)	3 3/4(95.3)	13 7/8(352.4)
17D3	7.711(17)	3 1/2(88.9)	3 3/4(95.3)	25 1/4(641.4)
32D5	14.515(32)	5 1/2(139.7)	5 3/4(146.1)	19 7/8(504.8)
48D5	21.772(48)	5 1/2(139.7)	5 3/4(146.1)	30 1/8(765.2)
1.5Kg	1.5(3.5)	3 3/20(80.0)	2 3/4(70.0)	7 1/2(190.0)
2.5Kg	2.5(5.5)	3 3/20(80.0)	2 3/4(70.0)	11 4/5(300.0)





Model	Open-circuit voltage (-v)	Close-circuit voltage (-v)	actual capacitance (A.H/G)	Current efficiency (%)
Mg anode with low potential AZ63	1.50-1.55	1.45-1.5	≥1.105	≥50
Mg anode with high potential Mg-Mn	1.70-1.75	1.57-1.62	≥1.100	≥50

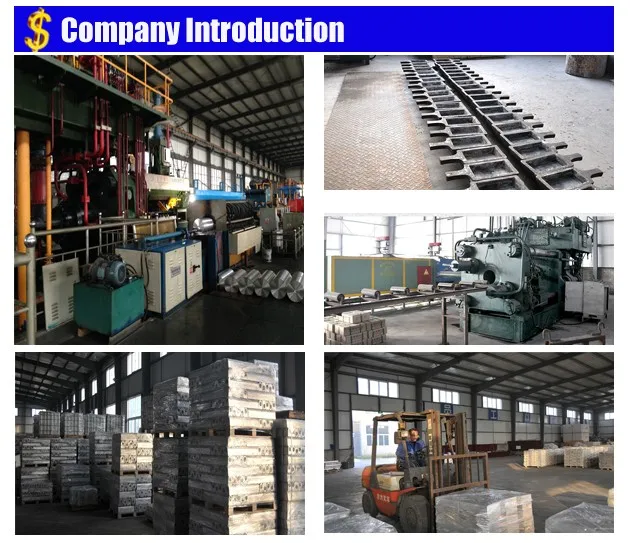

We are a professional anode supplier over 16 years ,mainly supply:

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* Al-Zn-In anodes (GAIII)

* Magnesium anodes ( ASTM-G97)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

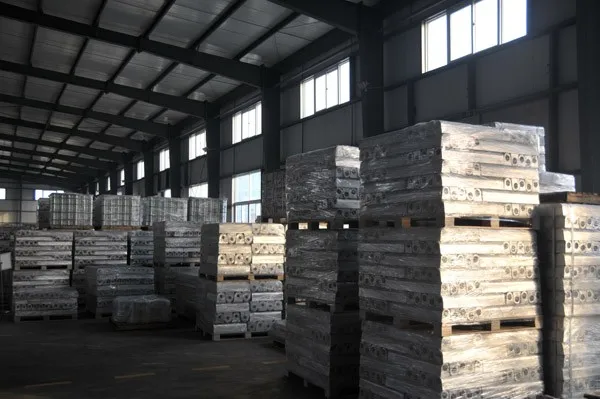

     Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you. We can also accept customized anodes with your logo according to your drawing !





Q.What information will be needed if I want a quotation?

A: Materials contents(Chemical Compositions) and the size of models. Special structures with drawing. Qty and delivery trade items.



Q. Can we visit your company/factory before place the order?

A: Welcome to visit us in China. Hopefully it will be a happy journey here.



Q: How does your factory do regarding quality control?

A: Quality is base of the company life. We working on new materials industrial for more than 20 years.



Q. What do Magnesium sacrificial anodes do?

A. Magnesium anode is used in the technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body  will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial materials.
