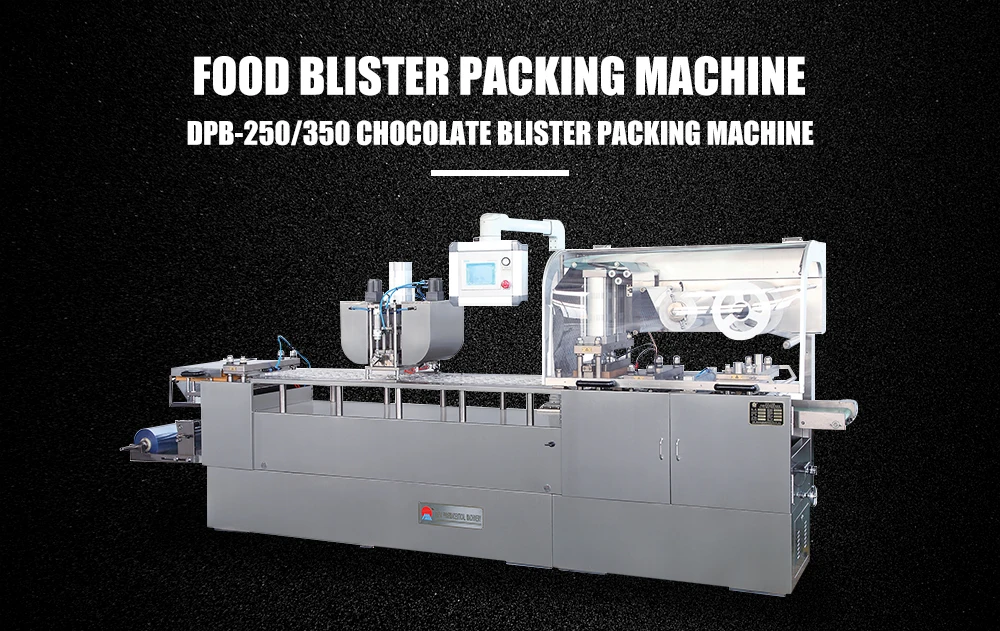

Wholesale High Quality DPB 250 Series Flat Plate Rotary Snacks Chewing Gum Chocolate Blister Packing Machine
- Category: >>>
- Supplier: Ruian Antai Pharmaceutical Machinery Co. Ltd.
Share on (60728298667):
Product Overview
Description
Mould:

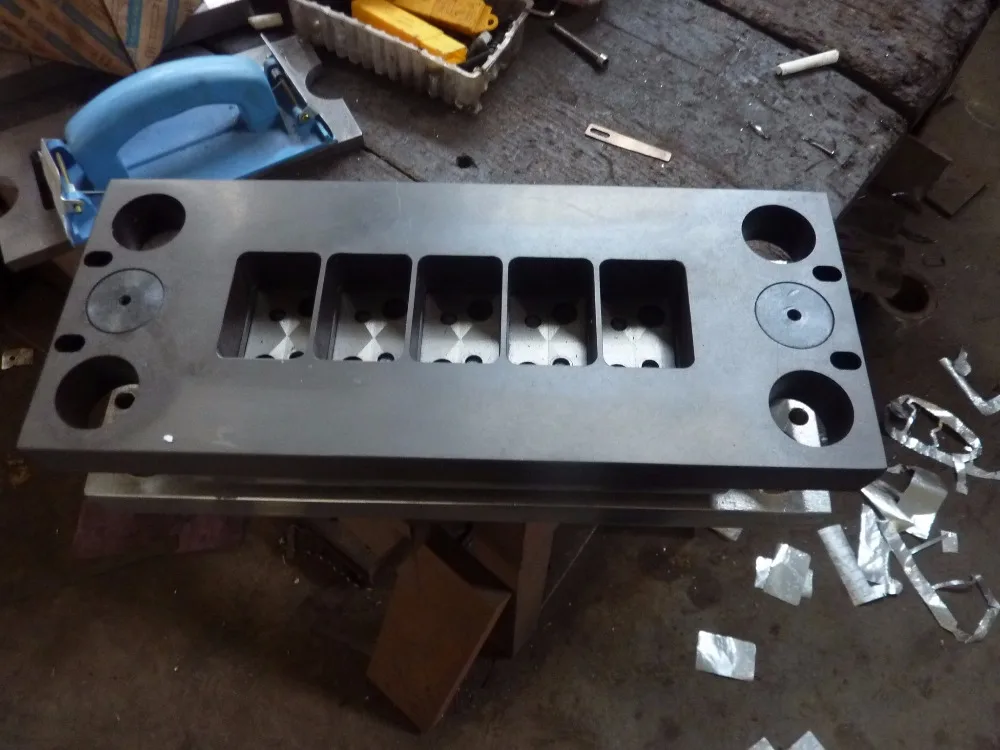

1,Forming Mould (Upper-Lower)
2,Heat-seal Mould (Upper-Lower)
3,Batch number Mould
4,Cutter Mould
1,Forming Mould (Upper-Lower)
2,Heat-seal Mould (Upper-Lower)
3,Batch number Mould
4,Cutter Mould
Main Technical Parameters | ||
Cutting Frequency (Times/min) | 6-25 | |
Max. Forming Area and Depth(mm) | 240×150×26 | |
Stroke (mm) | 40-160 can be manufactured as user's requirements | |
Standard Plate(mm) | 80×57 can be manufactured as user's requirements | |
Air Pressure (Mpa) | 0.4-0.6 | |
Air supply | ≥0.3 m³/min | |
Total Power | 380V/220V 50Hz 6.2kw | |
Main Motor Power (kw) | 1.5 | |
PVC Hard Pieces(mm) | 0.15-0.5×250 | |
PTP Aluminum Foil(mm) | 0.02-0.035×250 | |
Dialysis Paper(mm) | 50-100g×250 | |
Mould Cooling | tap water or recycling water | |
Overall Dimensions(mm) | 2900×720×1550(L×W×H) | |
Weight (kg) | 1600 | |
Description:
This equipment is an automatic packaging equipment integrating machine, electricity and gas. It is a new packaging form that our scientific researchers have transformed the advanced technology of medicine packaging into food industry. Filling materials such as chocolate jam, jam, biscuits, soft (hard) sugar, chocolate beans, lollipop, butter, honey, hawthorn bats, Glutinous rice balls, milk tablets, dipping cups, kinder joys and other liquids with good fluidity, or regular and irregular product blister packaging, the product has exquisite appearance, lightweight packaging materials, easy to carry, one-time use characteristics, and more sense of value.
This equipment is an automatic packaging equipment integrating machine, electricity and gas. It is a new packaging form that our scientific researchers have transformed the advanced technology of medicine packaging into food industry. Filling materials such as chocolate jam, jam, biscuits, soft (hard) sugar, chocolate beans, lollipop, butter, honey, hawthorn bats, Glutinous rice balls, milk tablets, dipping cups, kinder joys and other liquids with good fluidity, or regular and irregular product blister packaging, the product has exquisite appearance, lightweight packaging materials, easy to carry, one-time use characteristics, and more sense of value.
Features:
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble, easy maintenance.

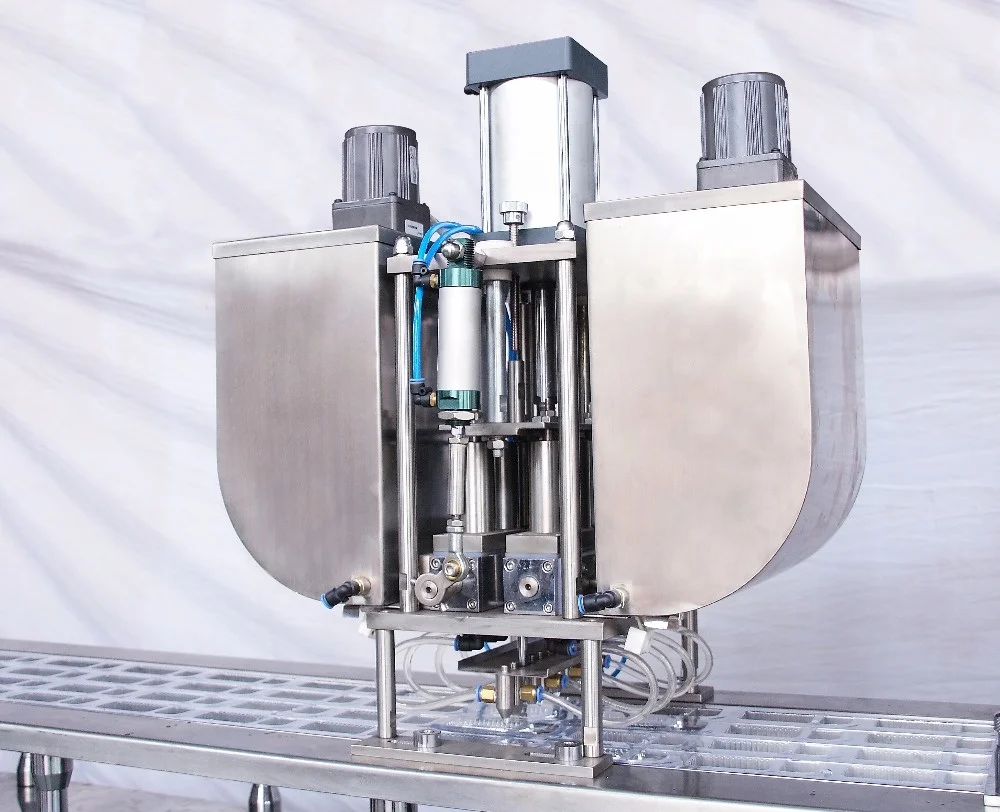

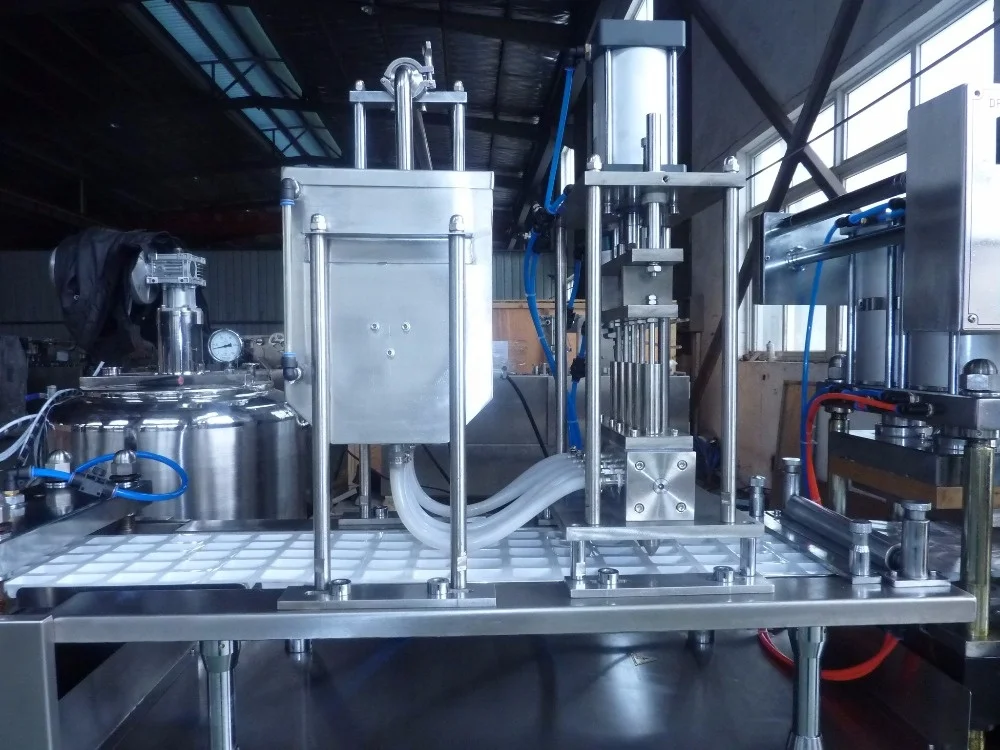

6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble, easy maintenance.
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
Package Material:
1. Forming material is suitable for production of PVC,PET, PS or above composite material, not suitable for PP material
2. Sealing Material: PTP, aluminum-plastic composite film, paper-plastic composite film etc.
Basic Procedures:
1. Material transport 2. Preheating 3. Air blow forming 4. filling (manual feeding) 5. heat-sealing 6. perforation and batch
number 7. traction 8. punching output 9. waste winding
1. Forming material is suitable for production of PVC,PET, PS or above composite material, not suitable for PP material
2. Sealing Material: PTP, aluminum-plastic composite film, paper-plastic composite film etc.
Basic Procedures:
1. Material transport 2. Preheating 3. Air blow forming 4. filling (manual feeding) 5. heat-sealing 6. perforation and batch
number 7. traction 8. punching output 9. waste winding
Q:Are you factory or a trading company？
A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.
Q: Can you send me the video to show how the machine works？
A: Certainly, we have many videos for reference.
Q: How can I know your machine is design for my products？
A: You can send us samples of your products and we will test it on machine.
Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.
Q: Can you send me the video to show how the machine works？
A: Certainly, we have many videos for reference.
Q: How can I know your machine is design for my products？
A: You can send us samples of your products and we will test it on machine.
Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
